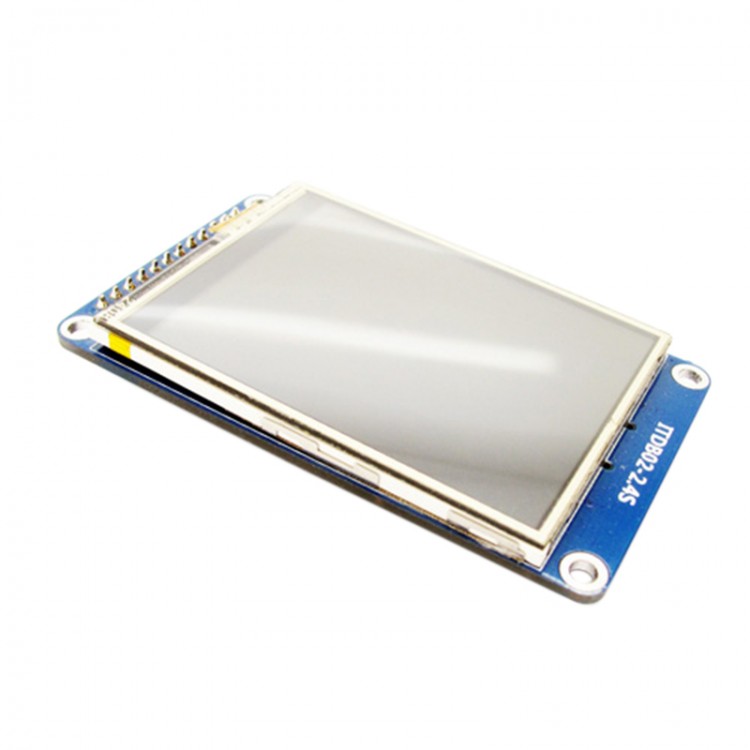

Itead Mini DC 5V SCM 2.4inch 320x240 Touch Handwriting LCD Module for Arduino
Specification:
- Voltage: DC 5V
- Control chip: ILI9341
- Resolution: 320*240
- Compatible with 3.3/5V operating level, come with micro SD card interface, support IO or PMW controls the backlight.
Function to realize the touch:
Download 2_4_spi_touch.zip file, 2_4_spi_touch.ino program into the UNO main board
2.4S pins uno pins
VCC 5V
GND GND
SCK D13
MISO D12
MOSI D11
CS D10
D/C D9
RST D8
LEDA 5V/3V3
SD_CS D4
T_CS D2
T_IRQ D3
After the power supply is available, then the picture or anything can be drew on the screen.
Package included:
- 1 x LCD Module
