XYYXCAN PCANFD PRO Dual Channel CAN FD Adapter with Error Frame Detection and Bus Load Measurement

* Option 1: PCANFD PRO Only

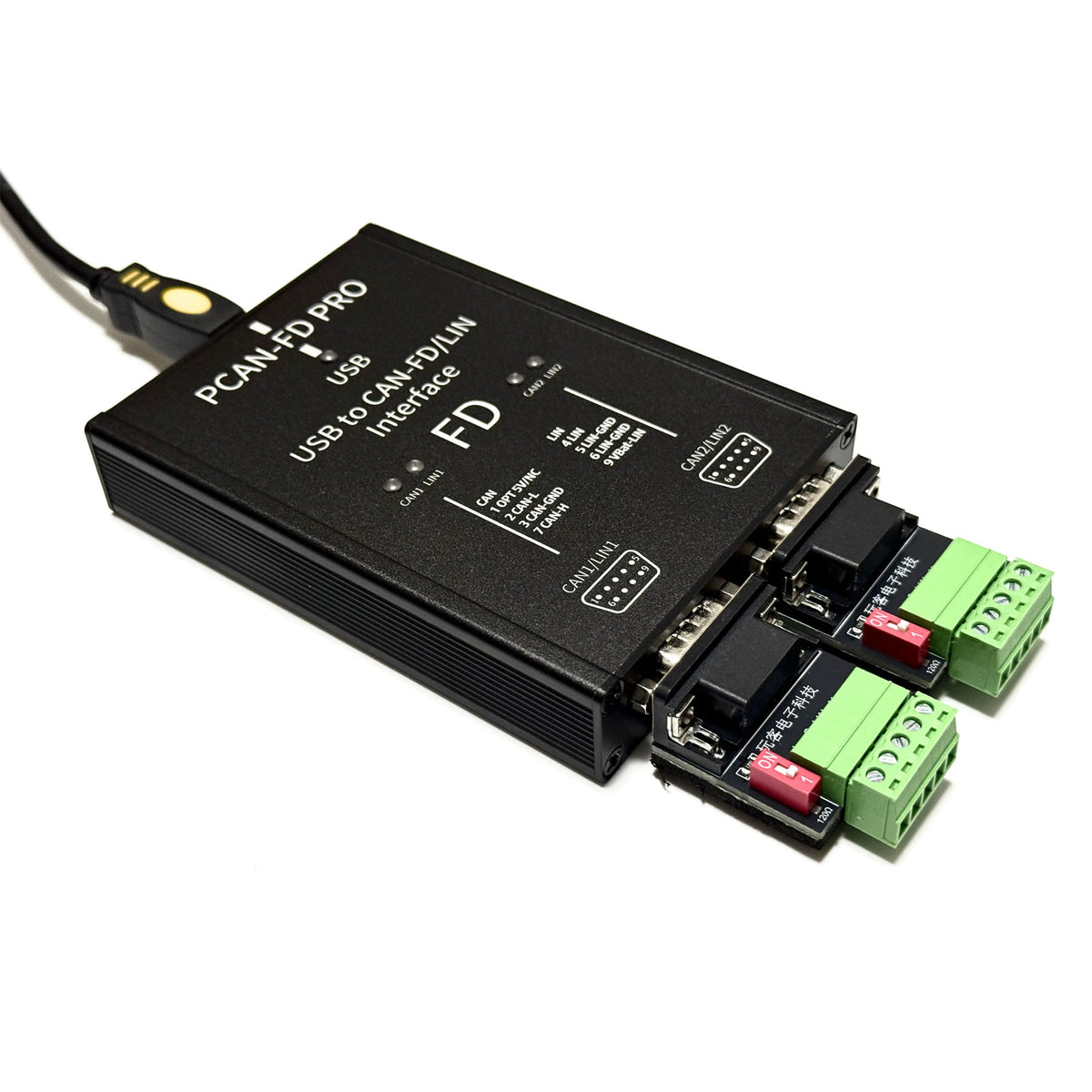

* Option 2: PCANFD PRO + Adapter

* High-Speed CAN FD Support: Supports data rates up to 12Mbps with TSMaster.

* Dual-Channel CAN FD Communication: Supports simultaneous two-channel CAN FD communication and transmission/reception under high bus loads.

* Automotive-Grade Communication Chips: Equipped with automotive-grade CAN and LIN communication chips, featuring electrostatic discharge (ESD) and surge protection for stable and reliable communication.

* Electrical Isolation: Suitable for testing and firmware upgrades of new energy vehicle battery packs operating above 1000V, as well as diagnostic applications.

* Protocol Compatibility: Supports J1939, XCP, J2534, and other protocols.

* Reliable DB9 Connector: Features a solid, gold-plated male DB9 connector to ensure reliable communication and stable operation in vibrating and humid environments.

* Bus Load and Error Monitoring: Supports CAN and CAN FD bus load measurement and error status monitoring.

* Built-in Programmable 120Ω Termination Resistor: The resistor setting is retained after power-off. The 120Ω termination resistor can be enabled or disabled via software, eliminating the need for an external termination resistor.

* Durable Aluminum Alloy Housing: Constructed with a robust aluminum alloy enclosure for enhanced durability and long-term use.

* Compatible with PCAN-Explorer 5/6, PCAN-View, LabVIEW, and new energy vehicle platforms from manufacturers such as BAIC and BYD.

* Includes CAN monitoring software such as BUSMASTER and TSMaster for message analysis, graph monitoring, and DBC file parsing.

* Provides secondary development API interfaces, supporting C#, C++, WFC, Delphi, and other development environments.

* Provides driver support for Windows 7, Windows 10, Windows 11, and Linux.

* Supports SocketCAN connectivity under Linux.

* Suitable for UDS diagnostics and reliable firmware flashing for vehicle control units, including VCU, BMS, and MCU systems.

* Reliable Firmware Flashing: Designed to provide stable and dependable programming performance for automotive electronic control units.

* Device drivers, professional software, and user manuals.

* BUSMASTER software.

* TSMaster software.

* Host-side development libraries and secondary development API interfaces, supporting C++, C#, .NET, LabVIEW, and other development environments.

* Brand: XYYXCAN

* Model: PCANFD PRO

* Applications: Internet of Things (IoT), traffic management, security surveillance, energy management, industrial control, smart home systems, education and research, building automation, and more.

* Communication Interfaces: CAN and USB

* Option 1: 1 x PCANFD PRO

* Option 2: 1 x PCANFD PRO + 1 x Adapter

* Package weight: 0.5kg
