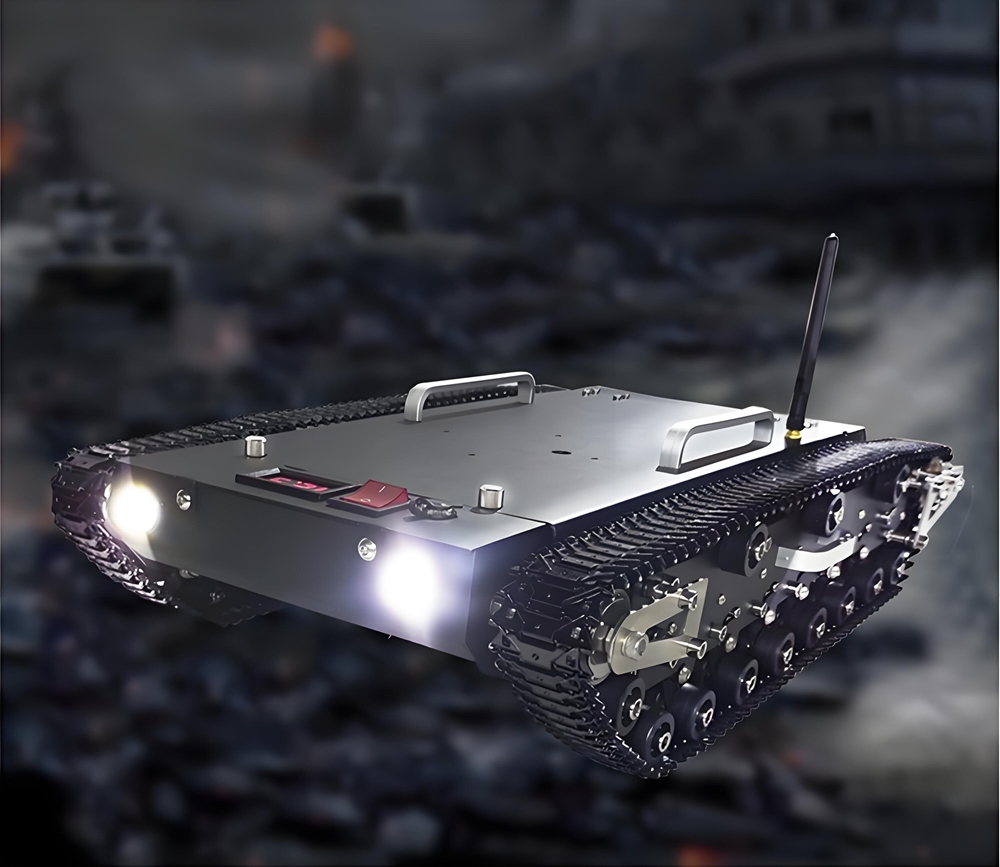

WT-500S 2WD Metal Tank Chassis Robot Chassis Remote Control Intelligent Car with Complete Electronic Control System

Improvements:
- Upgraded rubber double swing arm with load-bearing wheel, more wear-resistant and smooth, double-layer stainless steel swing arm with greater load-bearing capacity and three times longer service life.
- Upgraded remote control: 8 channels; Equipped with anti loss of control function, using special hybrid control for tracked vehicles, supporting battery voltage feedback; Remote control distance measured up to 300M; hidden antenna design; Powered by 4*AA batteries or 2S batteries.

Features:
- All-metal construction and shock-absorbing design.
- Large load and high torque. It can be used for competitions, graduation projects, engineering prototypes, robotic engineering, DIY creation, carrying heavy objects, etc.
- Stainless steel body process and high temperature surface treatment.
- TW500S second-generation upgraded version: The technology, design and accessories have been upgraded. Its surface is more wear-resistant and scratch-resistant with a 600# frosted high-temperature coating.
- Free installation and debugging; ready to use.

Specifications:
- Working load: 30kg/66.1lb
- Weight: 8KG/17.6LB

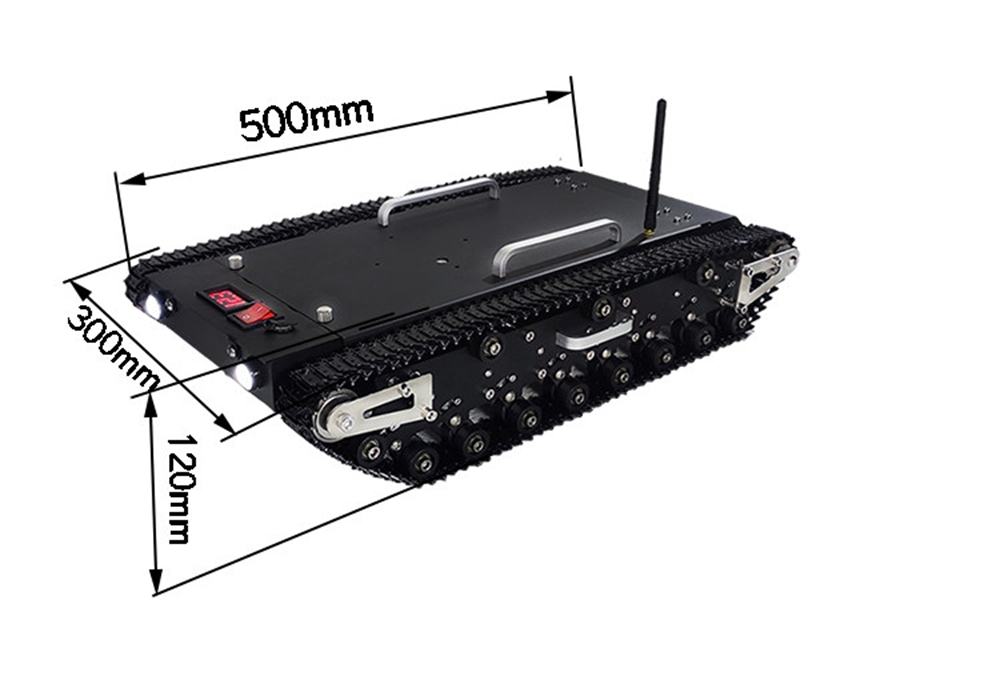

- Dimensions: 500 x 300 x 120mm/19.7 x 11.8 x 4.7"
- Track width system: 41mm/1.6"
- Reduction ratio: 1:30
- Rated power: 2-70W
- Rated voltage: 6-12V
- Maximum current: 1.5-8A

Complete set of Electronic Control System List:
- Controller: Equipped with a Hot RC track specific long-distance remote control and an 8-channel receiver.
- Driver: Using dual built-in hybrid control with high power 240W electric tuning. Adjustable offset.
- Power supply: 12V 18650 battery pack with 5c power battery and built-in 40A surge protection board.

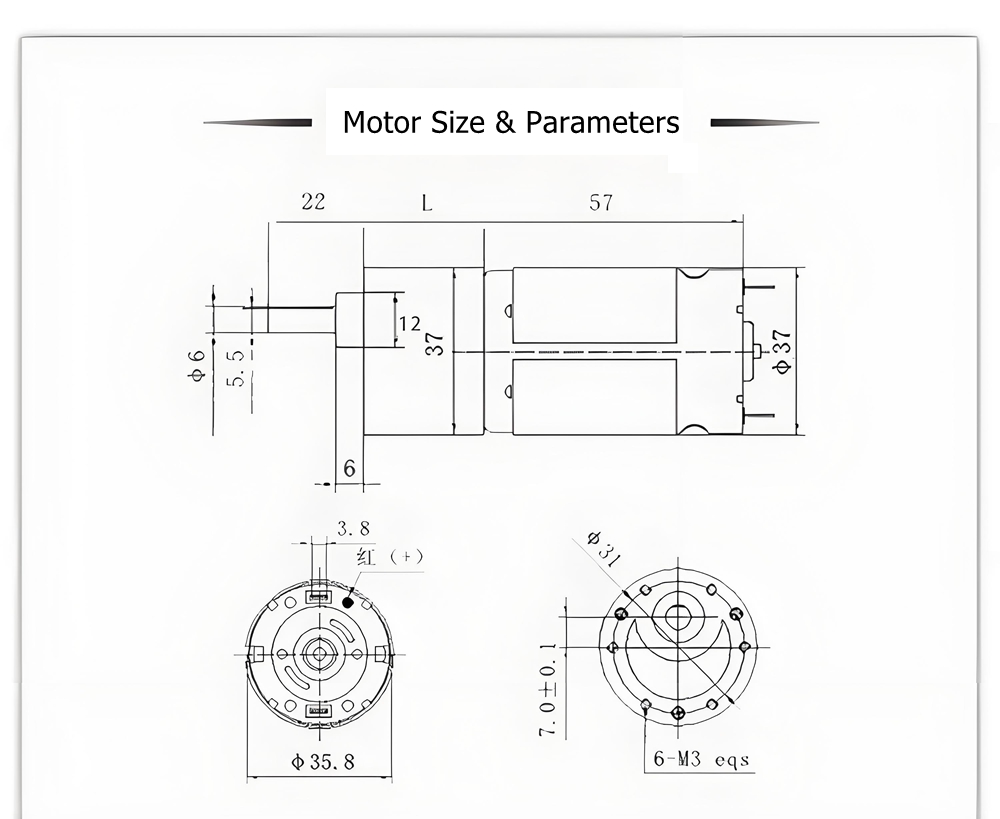

Motor Parameters:
- Model: JGB37
- Power: 120W
- Rotation speed: 617rpm
- Net weight: about 300g
- Voltage: DC12V
- Motor size: 37*(L+57)mm
- Maximum torque: 5kg
- Current: 1.9 - 12A
- Output shaft size: D6*15mm
- Speed regulation/forward/reverse: support

Package Included:
- 1 x Tank Chassis
- 1 x RC Transmitter
- 1 x ESC
- 1 x 8CH RC Receiver
- 1 x 12V 5C Lithium Battery
