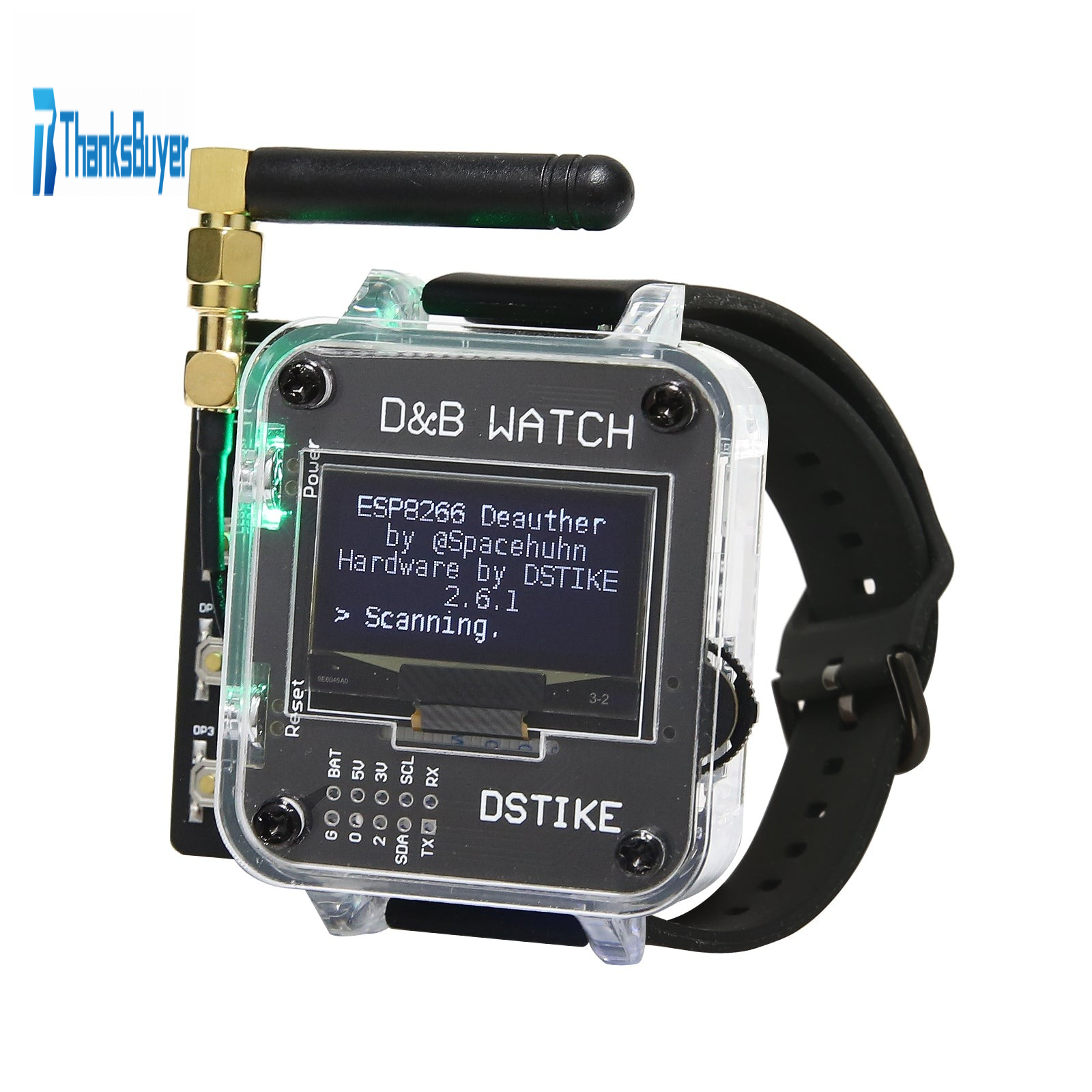

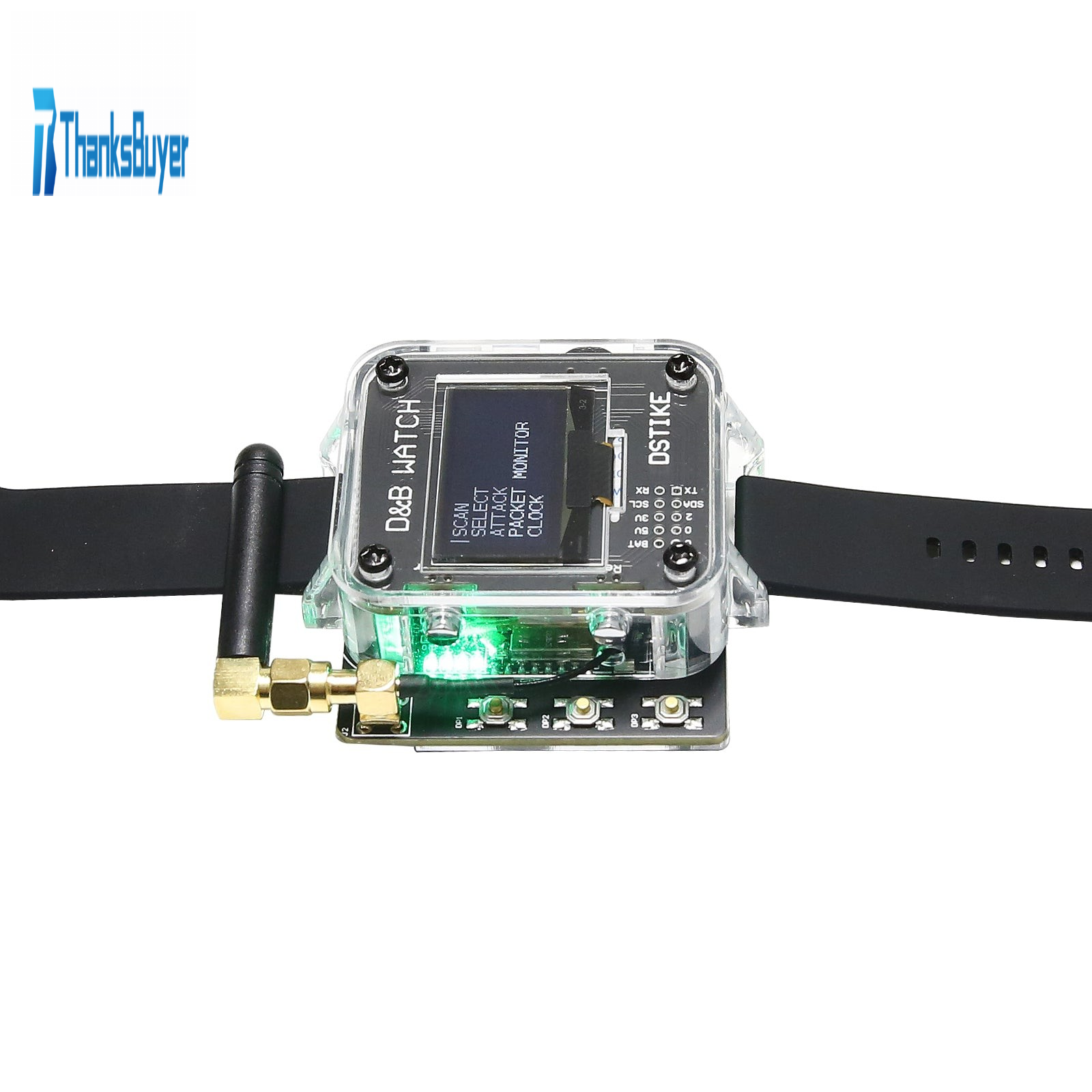

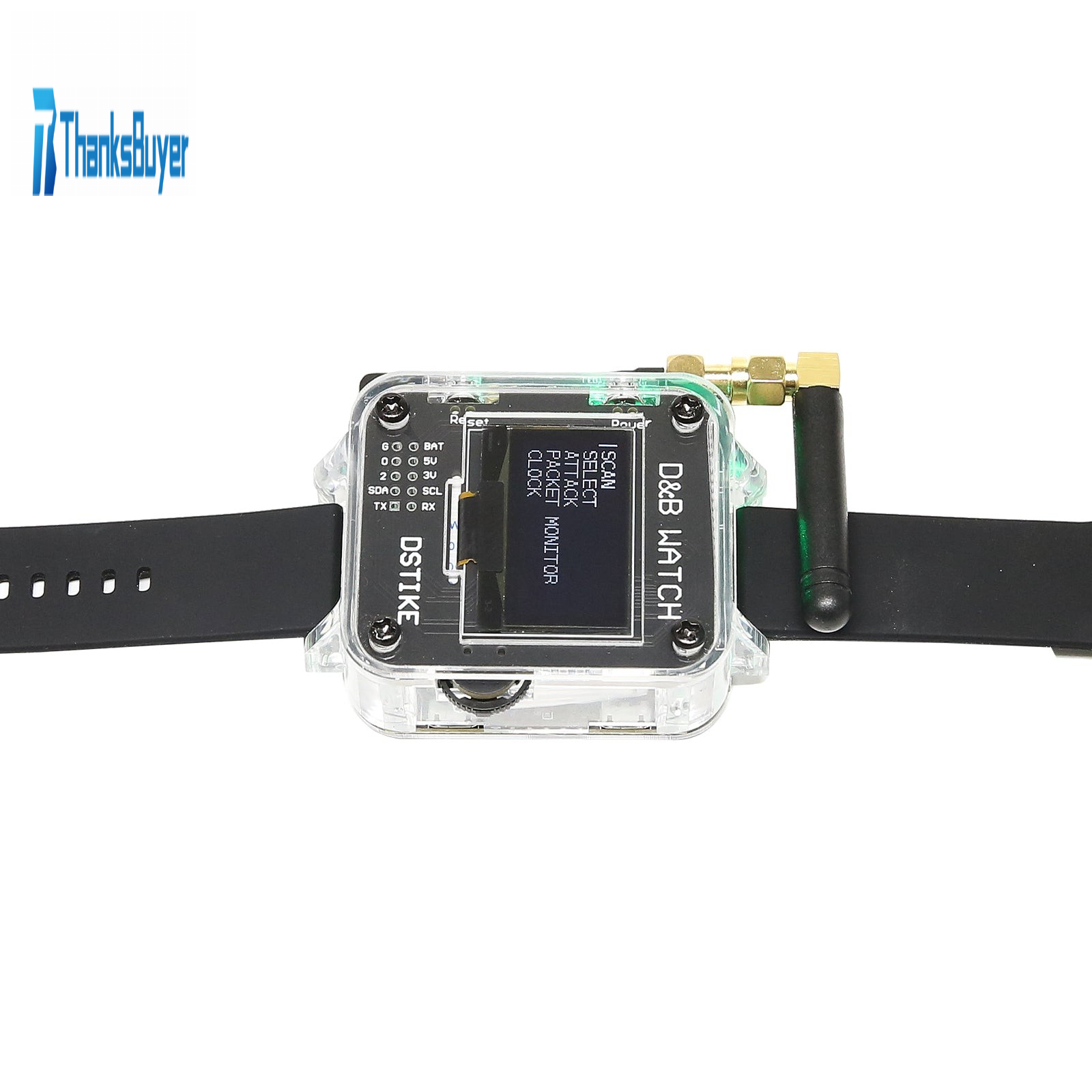

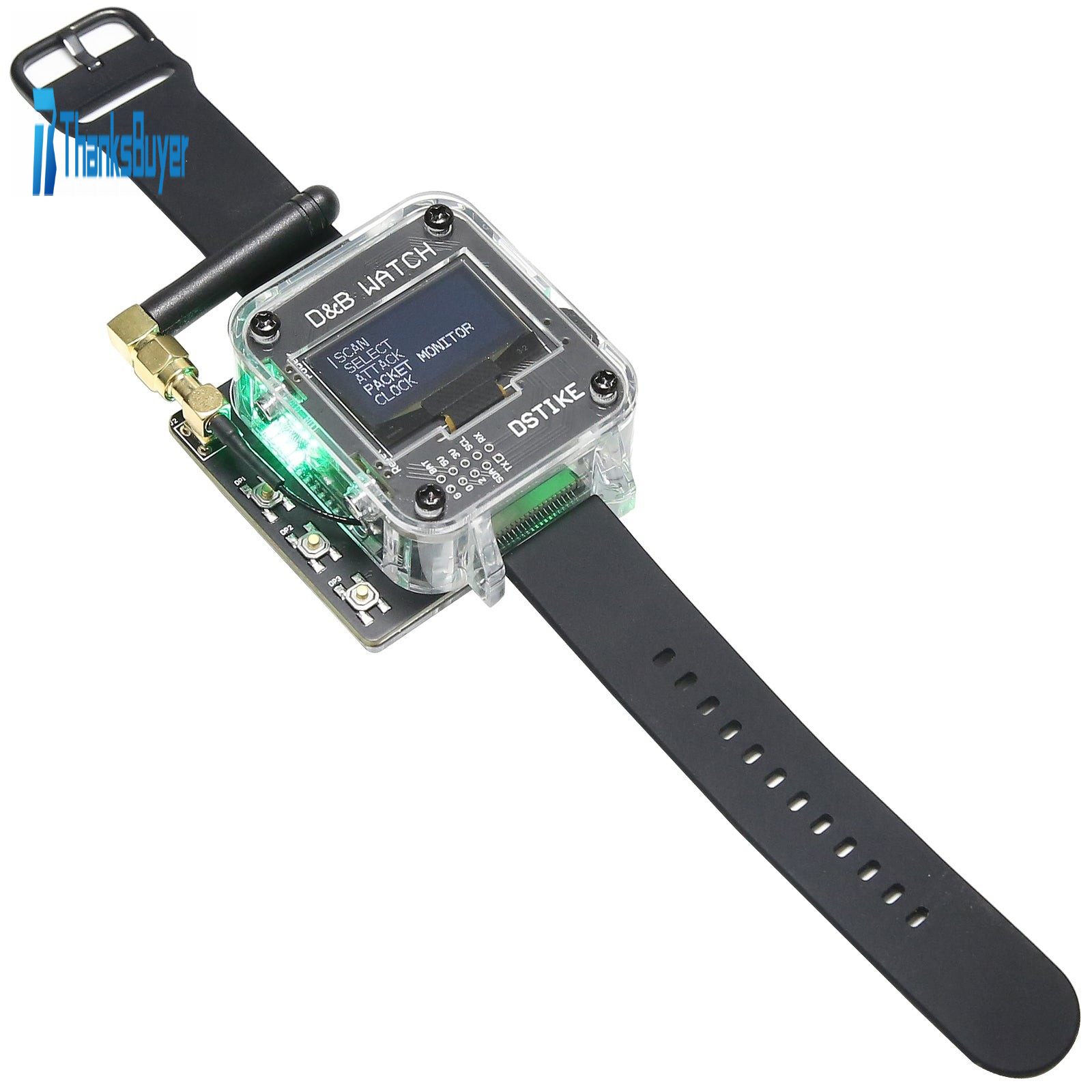

HamGeek DSTIKE Watch V4 D&B Watch WiFi Deauther and Bad USB Watch ESP8266 & Atmega32u4 Programmable

Description:
What is it?
I call it D&B watch. It is a Deauther & Bad USB watch sold by Hamgeek. You can also call it deauther watch V4. You can look Deauther Watch V3 to understand what is deauther.

Why did you make it?
In order to make it more fun. I added atmega32u4 (for Arduino Leonardo) to this watch. Now this watch not only disconnects wifi but also performs bad usb attack!

What makes it special?
Compare to deauther watch V3:
- ESP07 changed to ESP07s: With an external 3dB antenna, it could search more signal than V3. You can also add bigger antenna to the SMA connector.
- Added Atmega32u4: I flashed bootloader for Arduino Leonardo already. You can program it as bad usb directly. Two buttons (Digital pin 9 and 10) could be used to execute different commands. I flashed a demo program. When bad usb port connects PC, press DP9 button and cmd window will be opened. Press DP10 button and Notepad will be opened. You can reprogram it via IDE for Arduino.

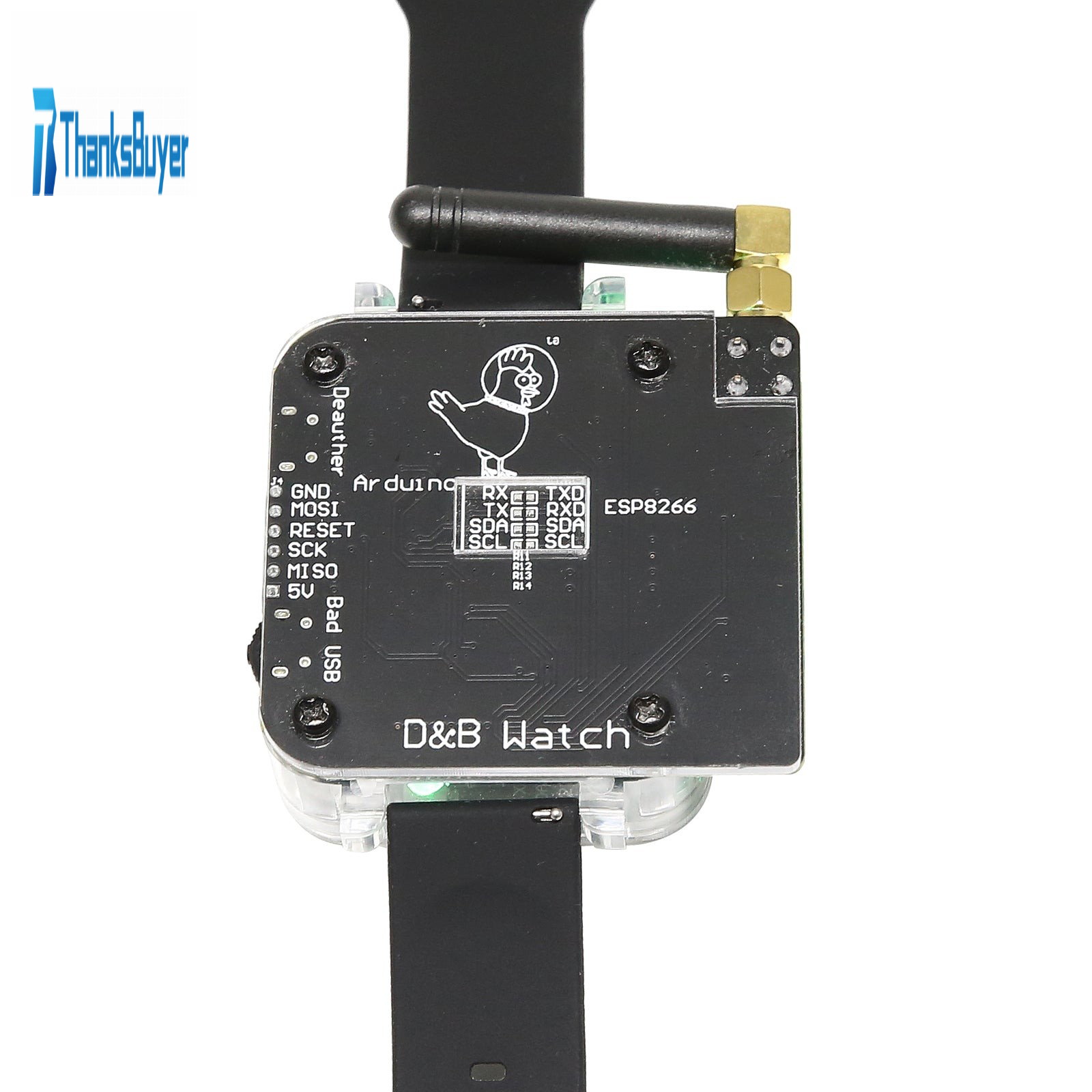

- Bridge: There are empty solder pads at the back of this watch. You can solder them to connect ESP8266 with atmega32u4. For example, if you solder IIC pads, this watch could become wifi duck.
- Battery: 800mAh battery is upgraded to 1000mAh. There are more space inside to put bigger battery instead.
- Strap: Canvas strap is upgraded to silicone strap.
- Design: 3D case has been redesigned. Added bottom acrylic board to protect this watch.
- Charging: There are two USBs. Each USB could be used to charge battery. But I do not suggest you use them at the same time.

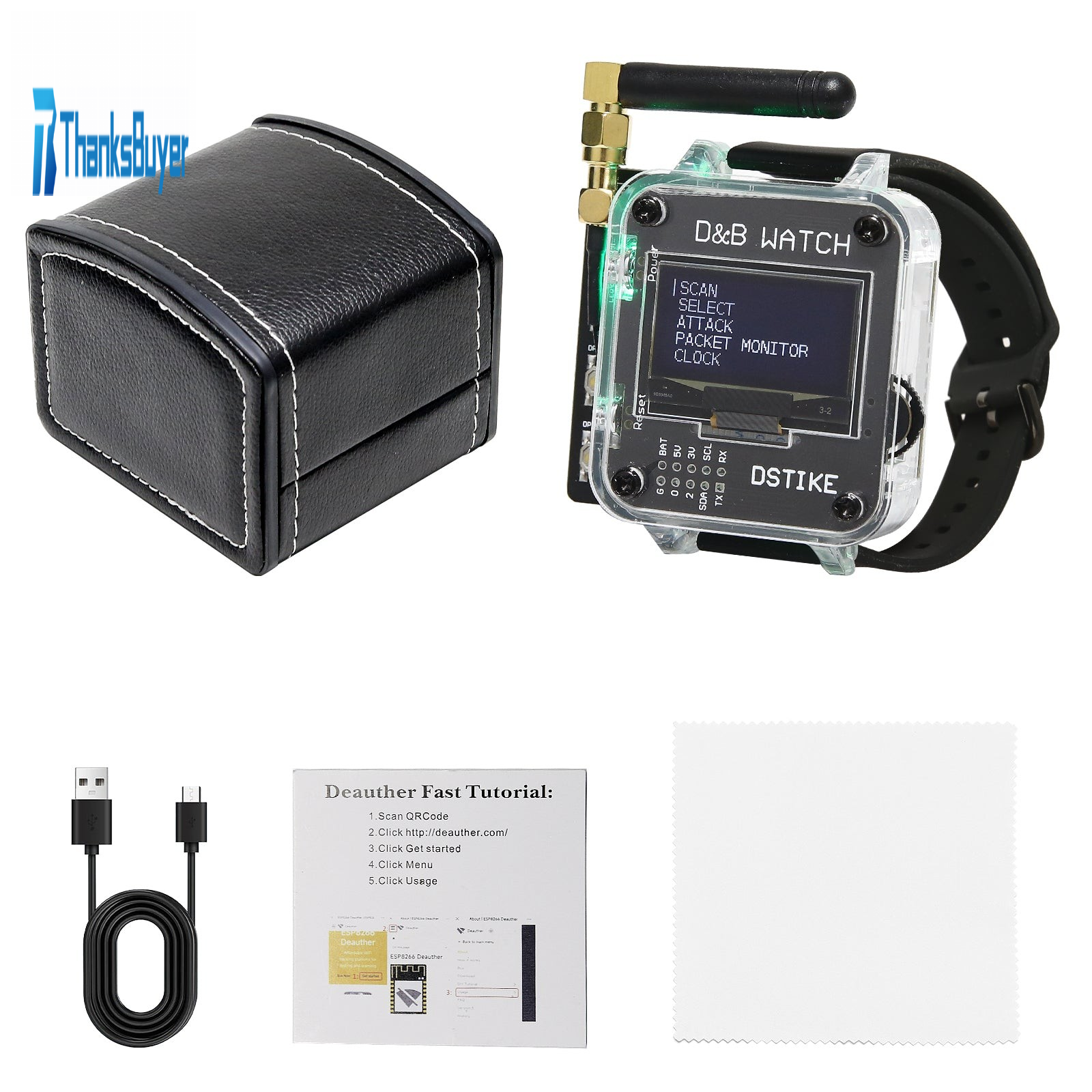

Package Included:
- 1 x HamGeek D&B watch
- 1 x Storage box
- 1 x Micro USB cable
- 1 x Fast tutorial
- 1 x Cleaning cloth
