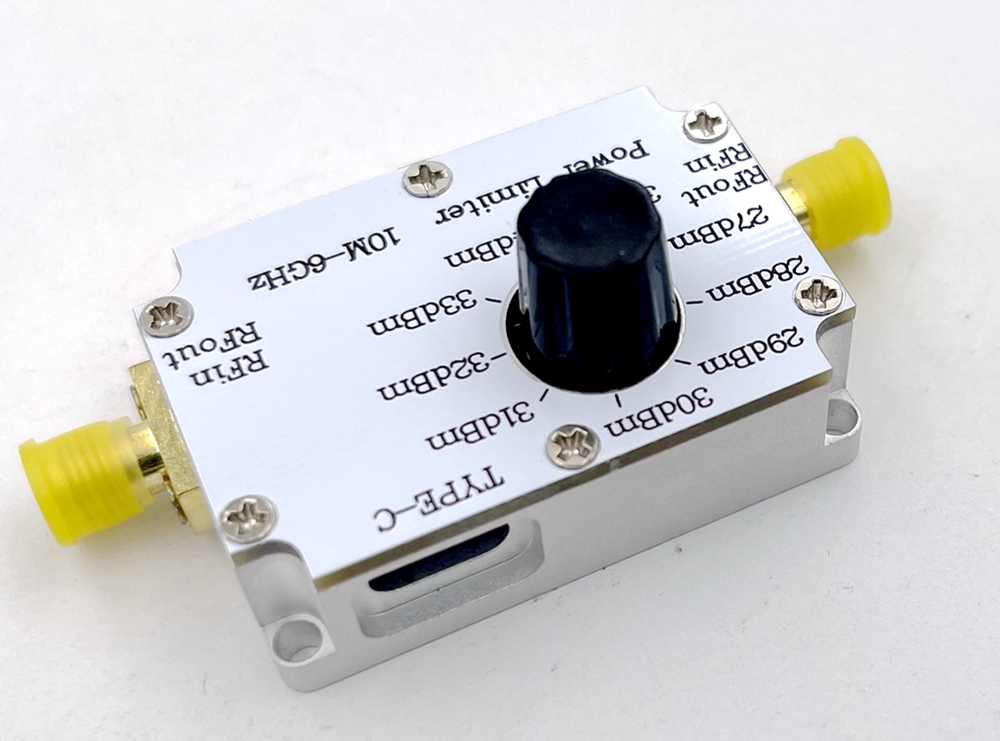

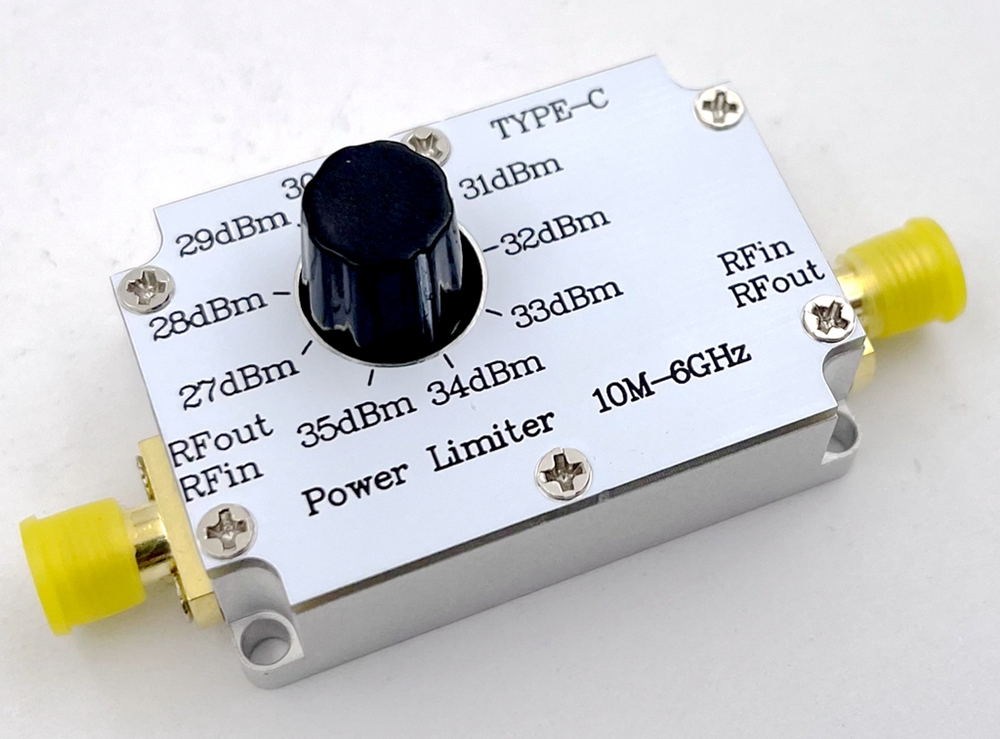

10MHz - 6GHz 27 - 35DBM Adjustable Bidirectional RF Limiter for Spectrum Analyzer RF Front-end Vector Network Protection

10MHz - 6GHz 27 - 35DBM Adjustable Bidirectional RF Limiter for Spectrum Analyzer RF Front-end Vector Network Protection

Specification:
- Working frequency: 10MHz - 6GHz
- Power supply interface: Type-C (+5V)
- Limiter level: 7 levels (7/8/9/10/11/12/13)
- Maximum power: constant input power CW=40dBm (10W); pulse power=47dBm (50W)

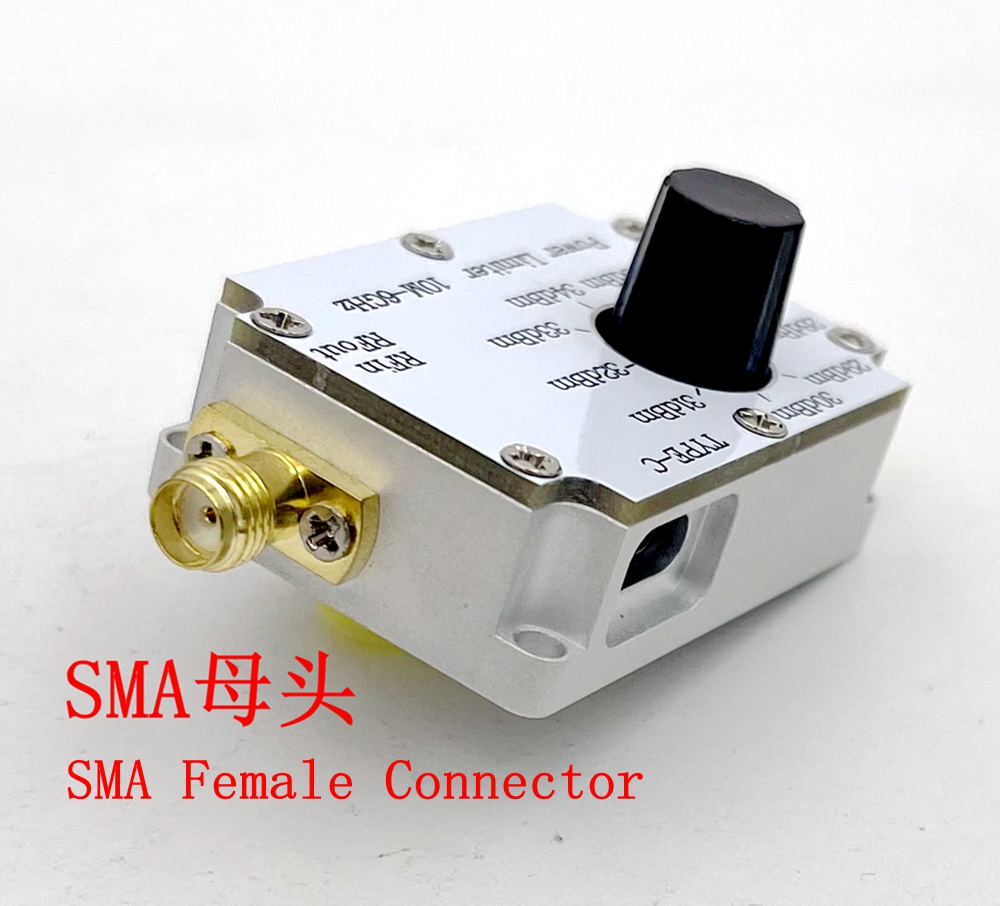

- Input and output connector and impedance: SMA female connector; 50ohm

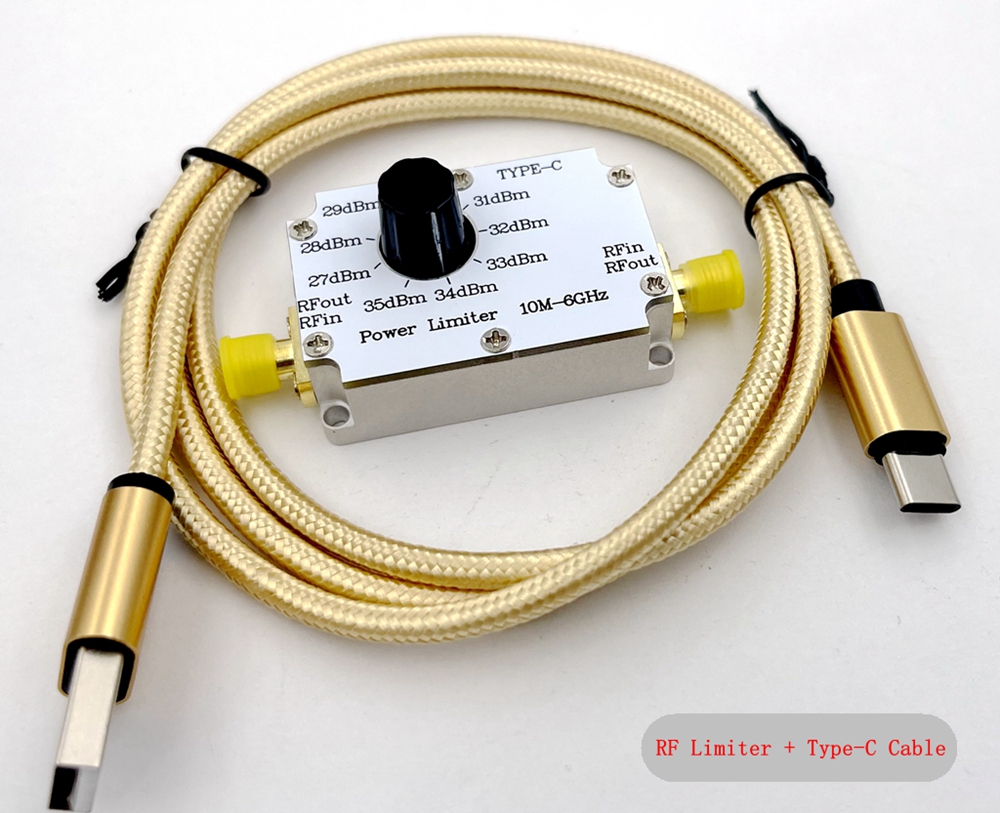

Package Included:
- 1 x RF Limiter
- 1 x Type-C Cable

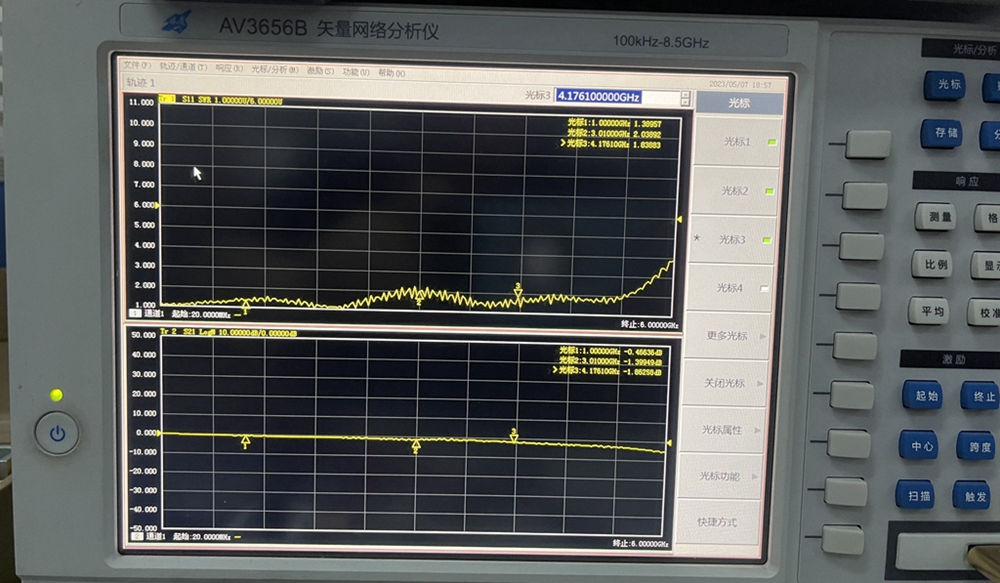

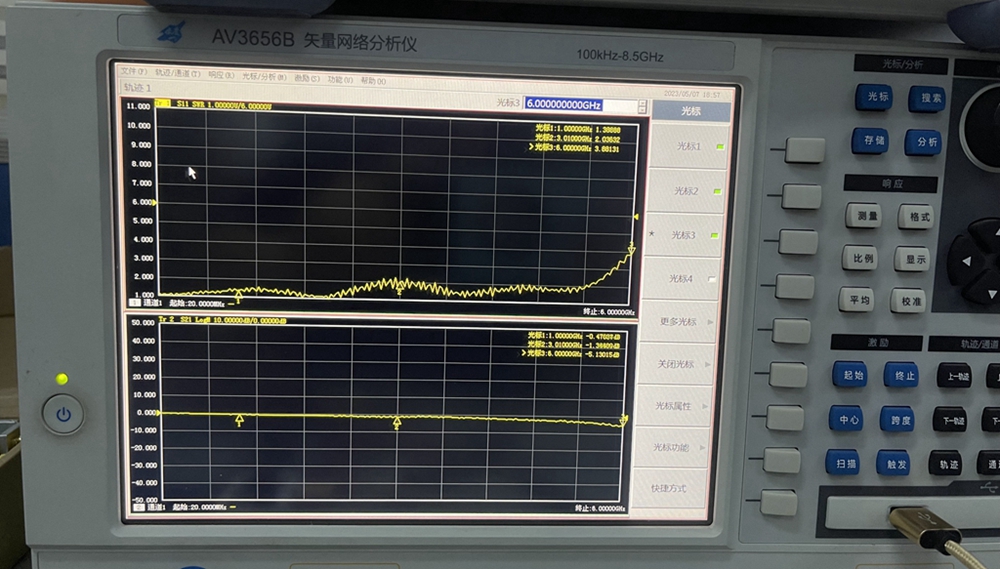

Insertion Loss Specification:

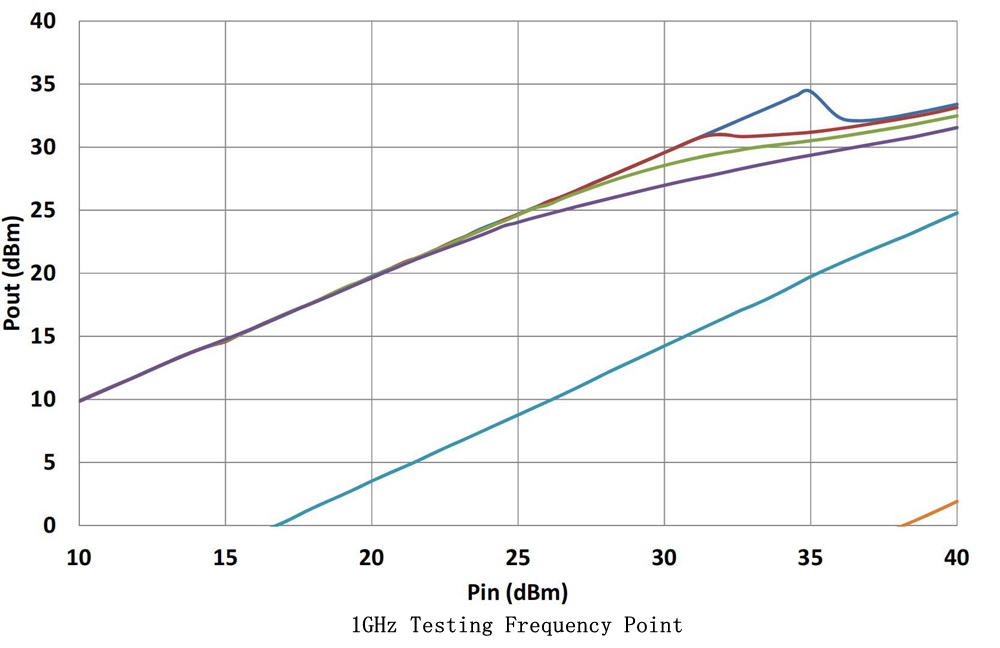

Compression Reference Curve:
