1200W/1500W DC-DC Buck Converter 30A Adjustable Voltage Regulator Synchronous Rectifier Power Module

* High-Power Output: Available in 1500W and 1200W versions to meet a variety of power conversion requirements.

* Synchronous Rectification Technology: Provides high efficiency and energy savings while significantly reducing power losses.

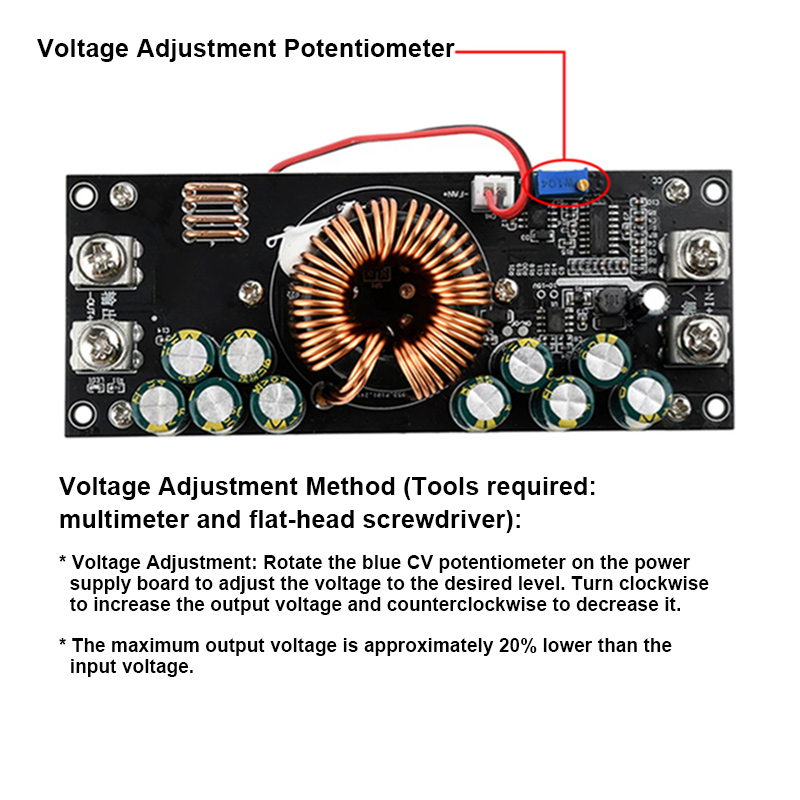

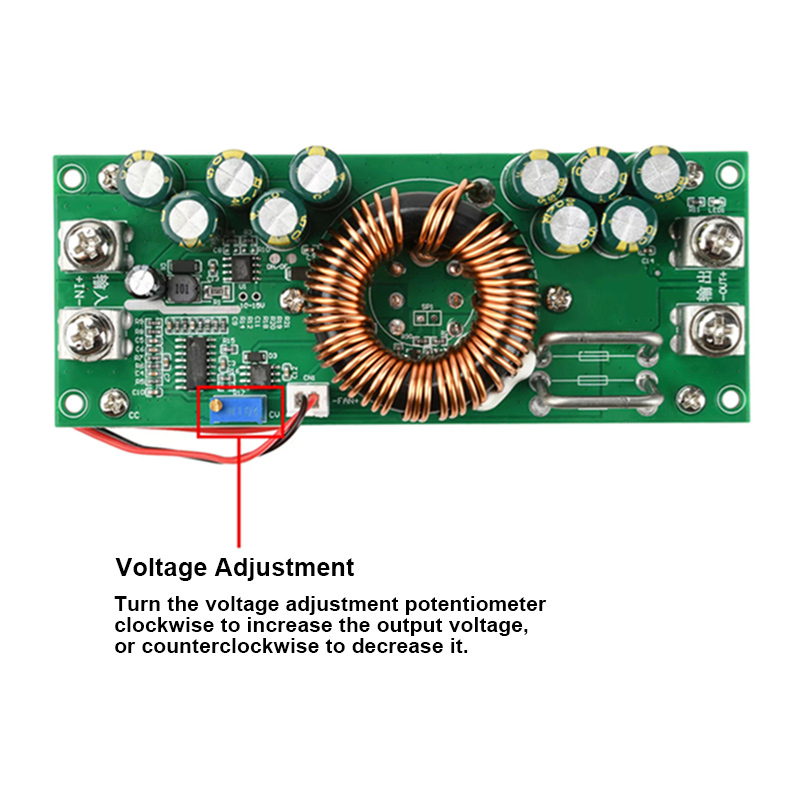

* Adjustable Constant-Voltage Output: Allows precise adjustment of the output voltage to meet the requirements of various devices.

* Integrated Module Design: Easy to install, space-saving, and designed to improve overall system stability.

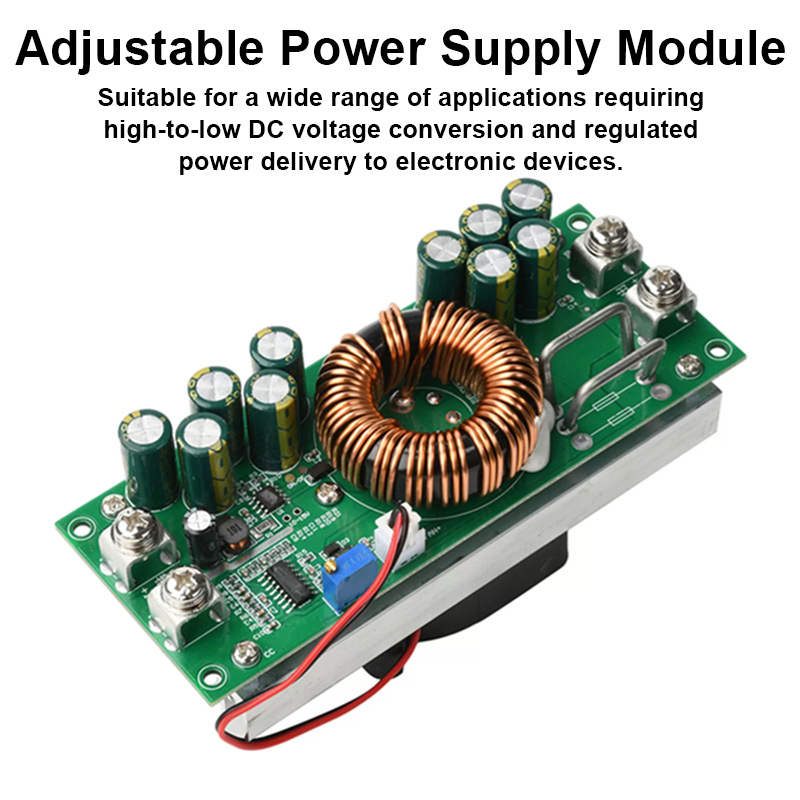

* Wide Range of Applications: Converts high DC input voltage to lower DC output voltage to provide regulated power for various devices.

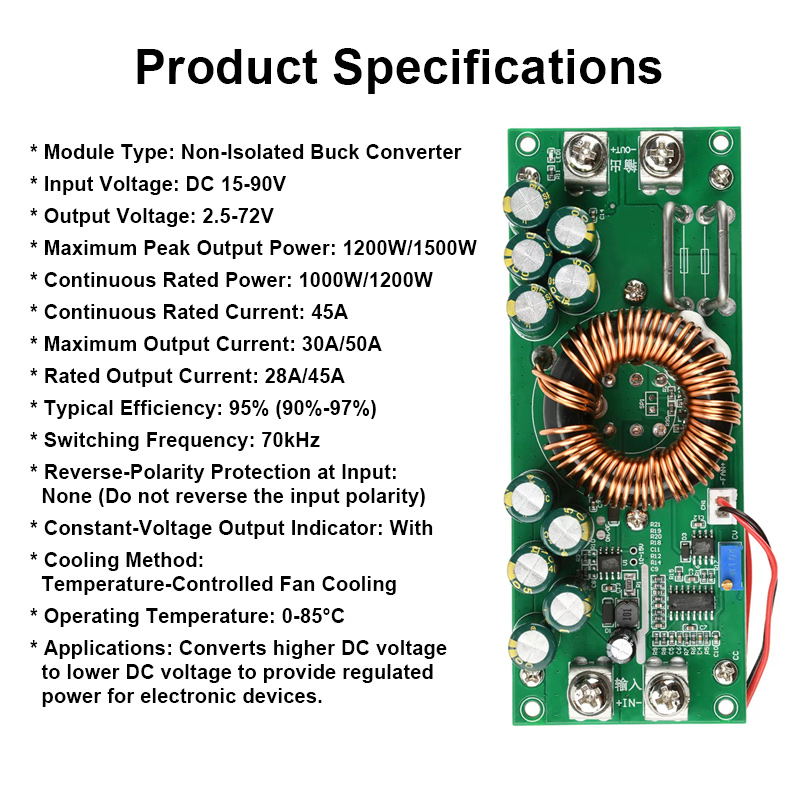

* Module Type: Non-Isolated Buck Converter

* Input Voltage: DC 15-90V

* Output Voltage: 2.5-72V

* Maximum Peak Output Power: 1200W/1500W

* Continuous Rated Power: 1000W/1200W

* Continuous Rated Current: 45A

* Maximum Output Current: 30A/50A

* Rated Output Current: 28A/45A

* Typical Efficiency: 95% (90%-97%)

* Switching Frequency: 70kHz

* Reverse-Polarity Protection at Input: None (Do not reverse the input polarity)

* Constant-Voltage Output Indicator: With

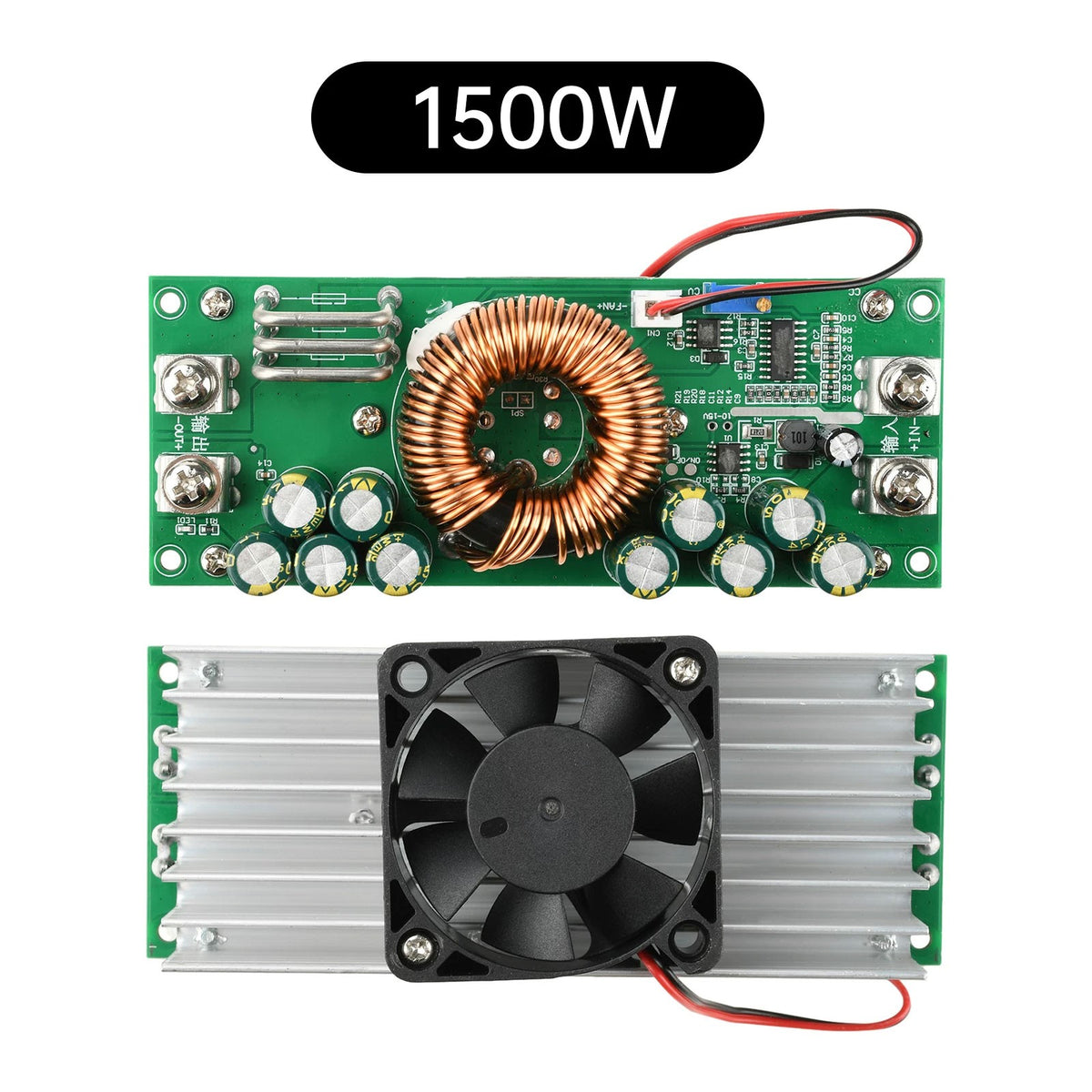

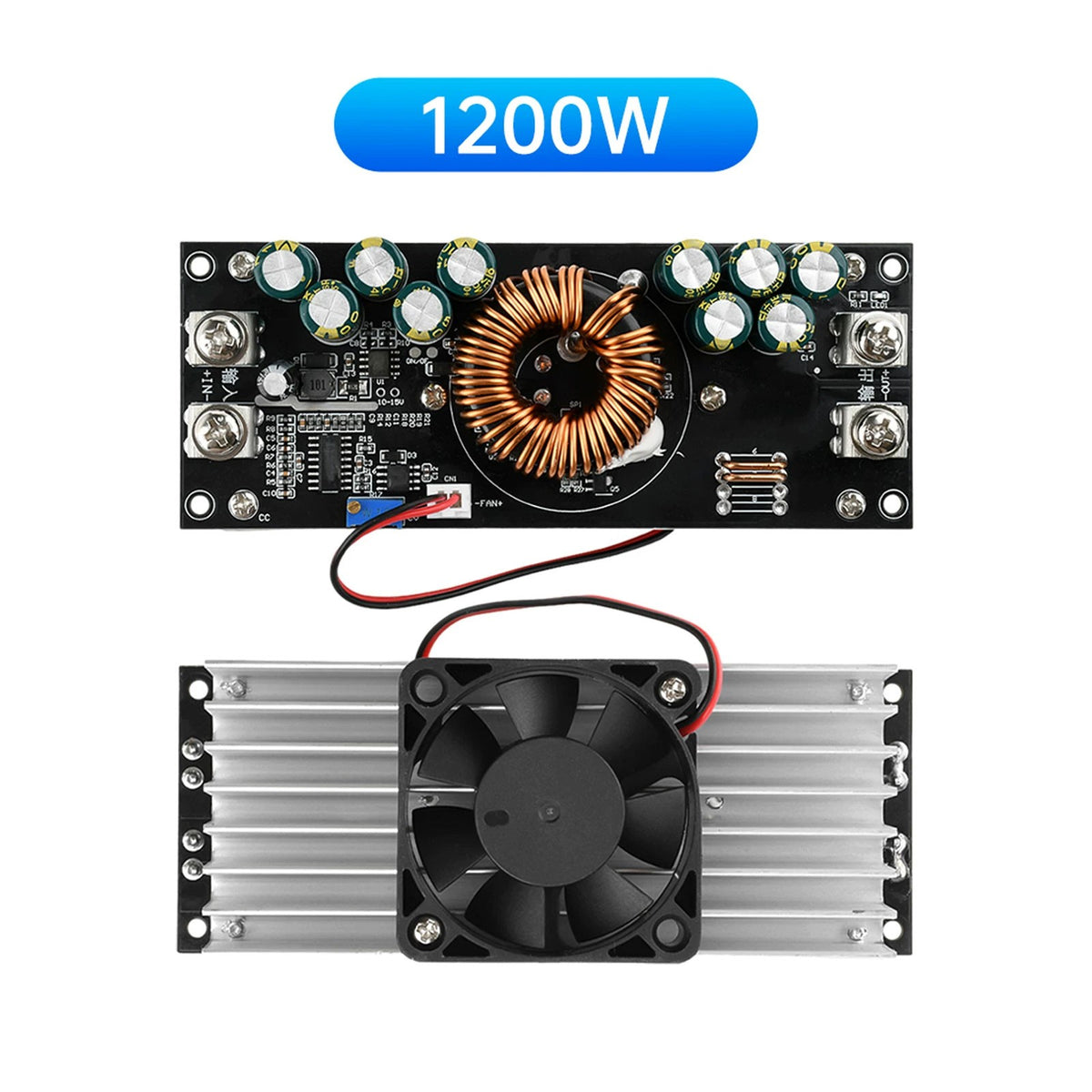

* Cooling Method: Temperature-Controlled Fan Cooling

* Operating Temperature: 0-85°C

* Applications: Converts higher DC voltage to lower DC voltage to provide regulated power for electronic devices.

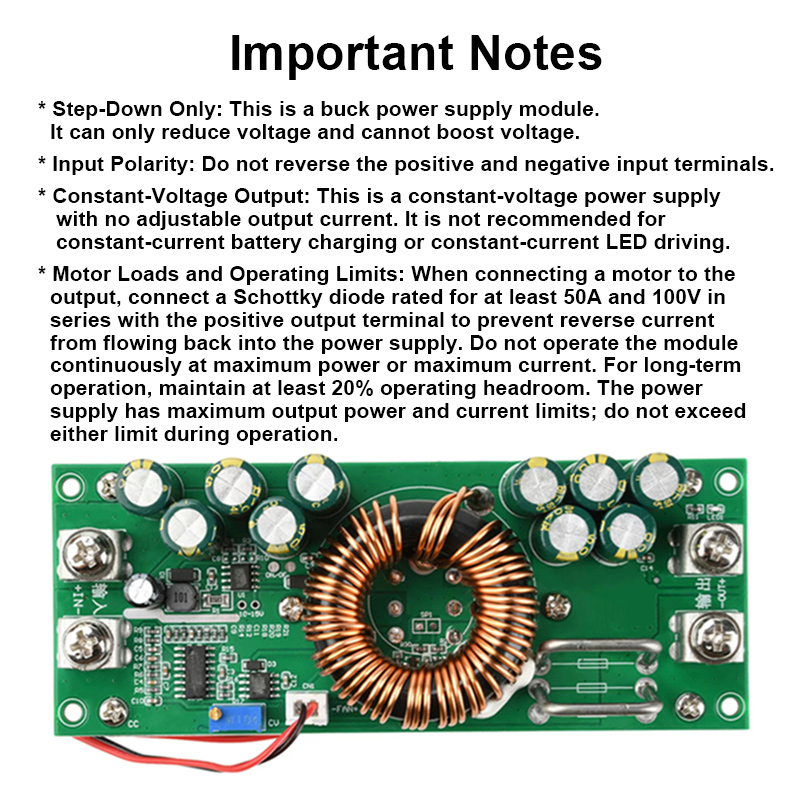

* Step-Down Only: This is a buck power supply module. The output voltage must be lower than the input voltage.

* No Reverse-Polarity Protection: The input terminals have no reverse-polarity protection. Do not reverse the positive and negative connections.

* Constant-Voltage Output Only: This module provides constant-voltage output and must not be used for battery charging or any other application that requires constant-current operation.

* Operating Limits: Do not operate the module continuously at maximum power or maximum current. Maintain at least 20% operating headroom during normal use.

* Power Supply Selection: When selecting an input power supply, its rated power should be at least 1.5 times the load power.

* Battery is not included.

* 1 x Buck Converter

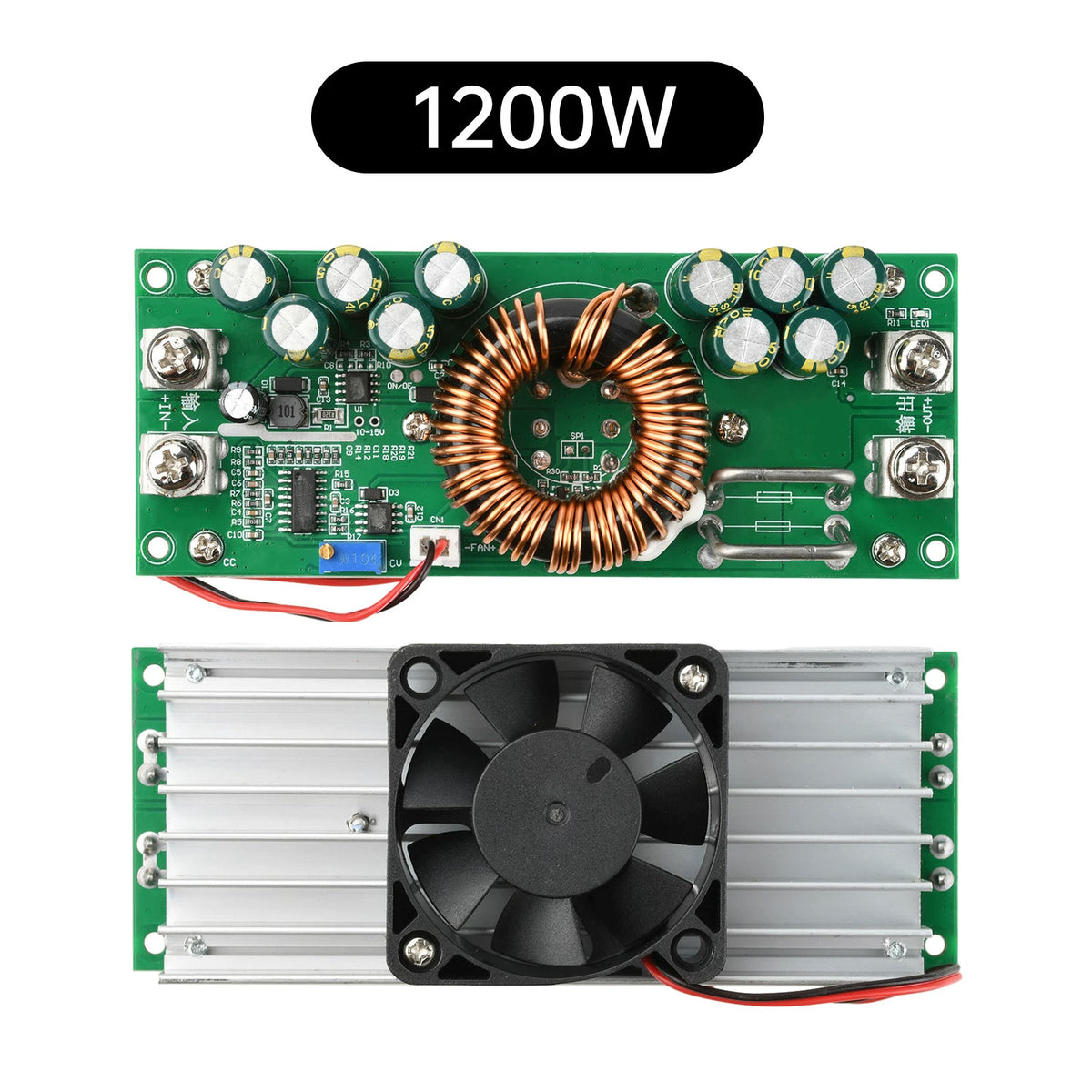

* 1200W Standard Version: 0.33kg

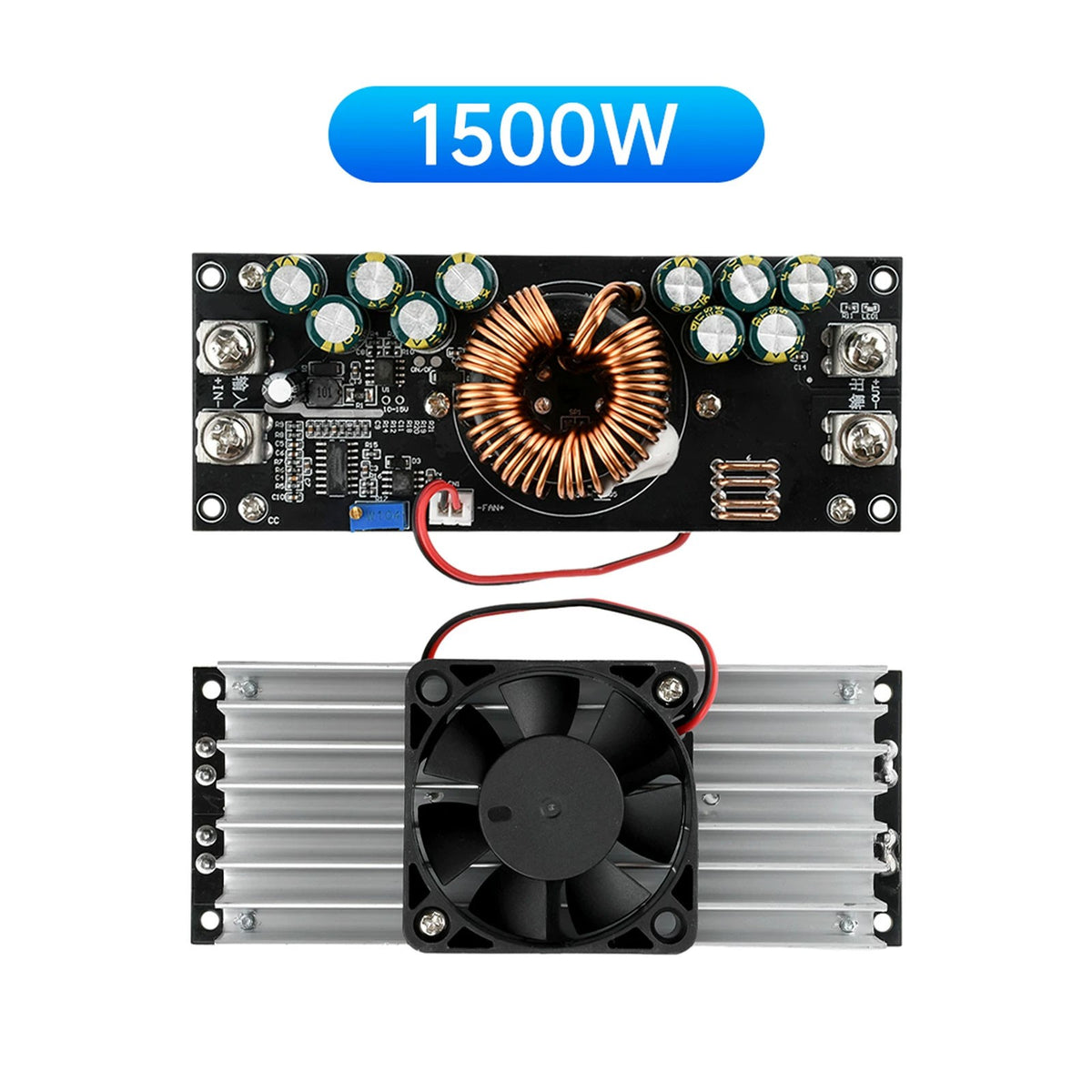

* 1500W Standard Version: 0.38kg

* 1200W High-Spec Version: 0.3kg

* 1500W High-Spec Version: 0.4kg
