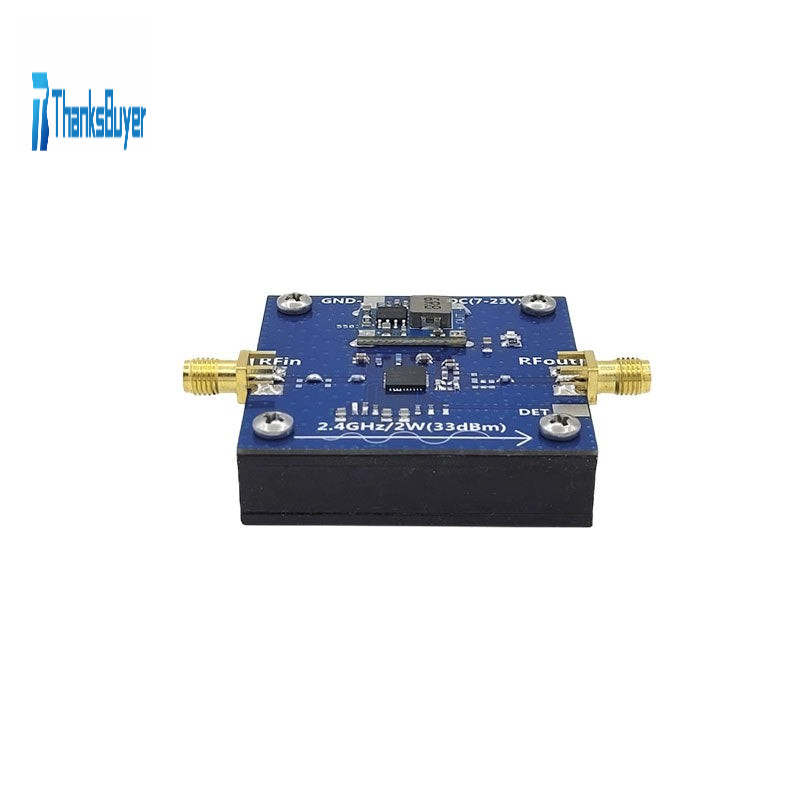

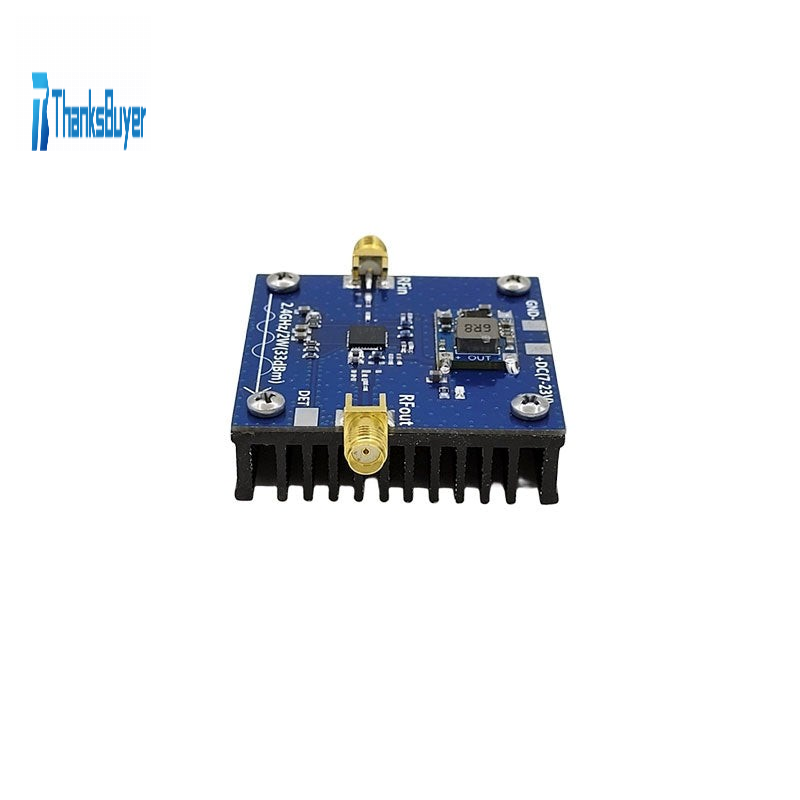

2.4GHz 2.5W RF Power Amplifier Module 50ohms SMA Female to Female Connector for Image Transmission Enhancement

2.4GHz 2.5W RF Power Amplifier Module 50ohms SMA Female to Female Connector for Image Transmission Enhancement

Specification:
- Working frequency: 2150 - 2550MHz
- Input and output impedance: 50ohms
- Input power (max): 10dBm (10mW)
- Output power (max): 34.5dBm (2.5W)
- Gain: 30dB
- NF: 7dB
- VSWR: < 1.5
- Power supply voltage: 7V - 24V DC
- Large signal input power consumption: 10.5W
- Small signal input power consumption: 1.59W
- Material: FR4
- Heat dissipation: aluminum alloy heat dissipation piece (black)
- Connector: SMA female to female connector
- Size: 50 x 50 x 13.5mm
- Net weight: 52.6g

Precaution:
- The module must first connect the input terminal (RFin) and output terminal (RFout), and finally connect the DC power supply.
- When supplying DC power to the module, make sure to connect the positive and negative DC poles correctly. Don't reverse connect it. Otherwise, it will cause module damage.

Package Included:
- 1 x Power Amplifier Module
