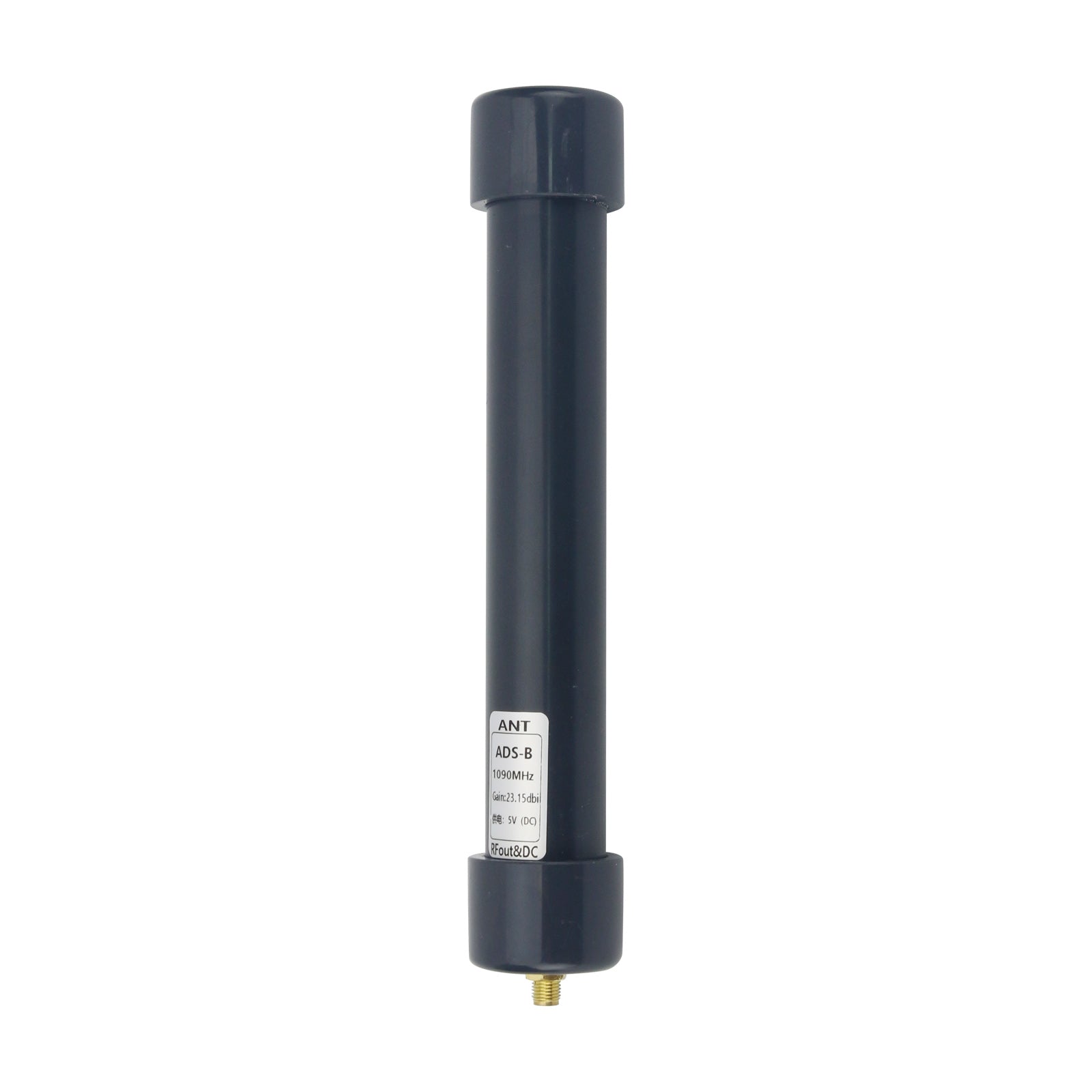

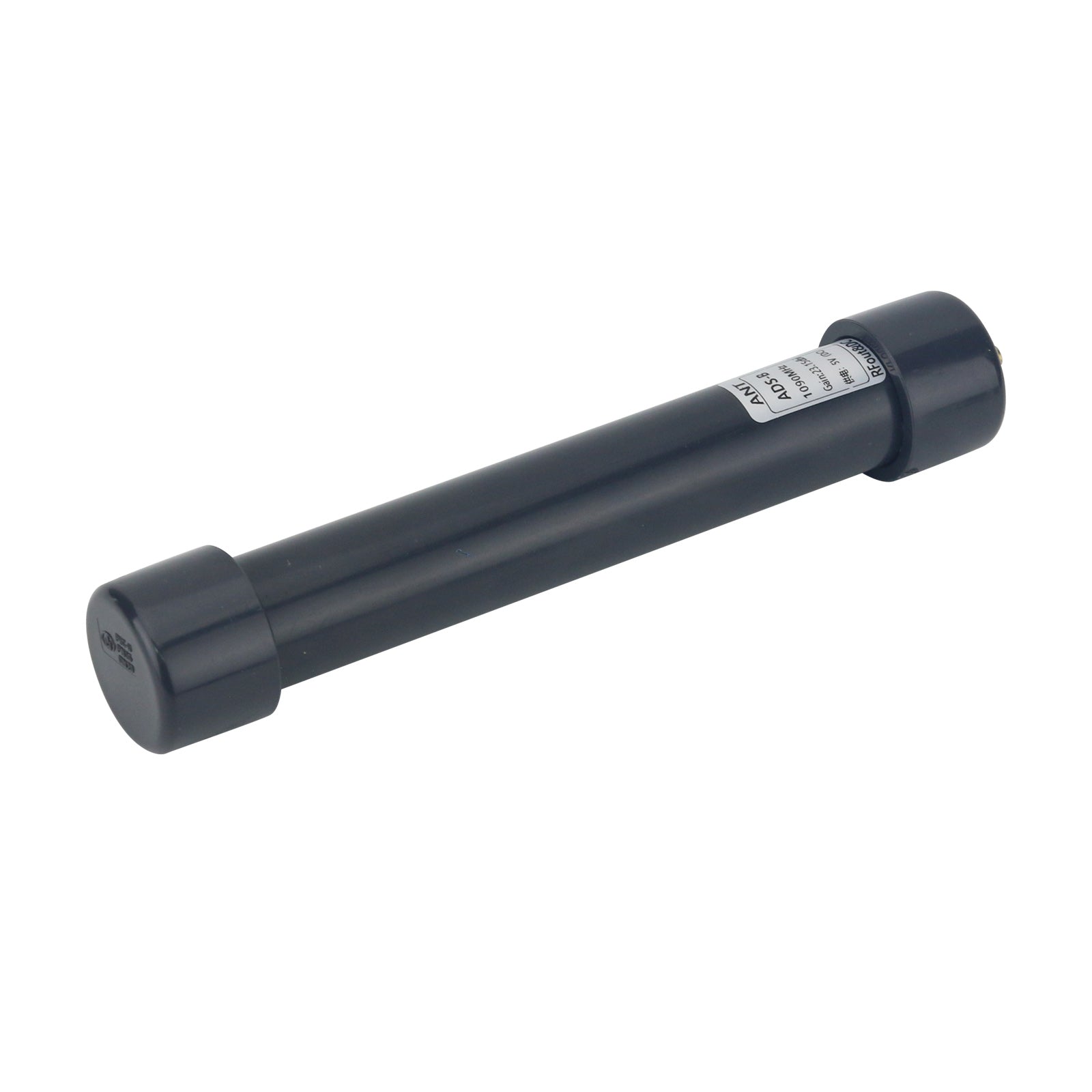

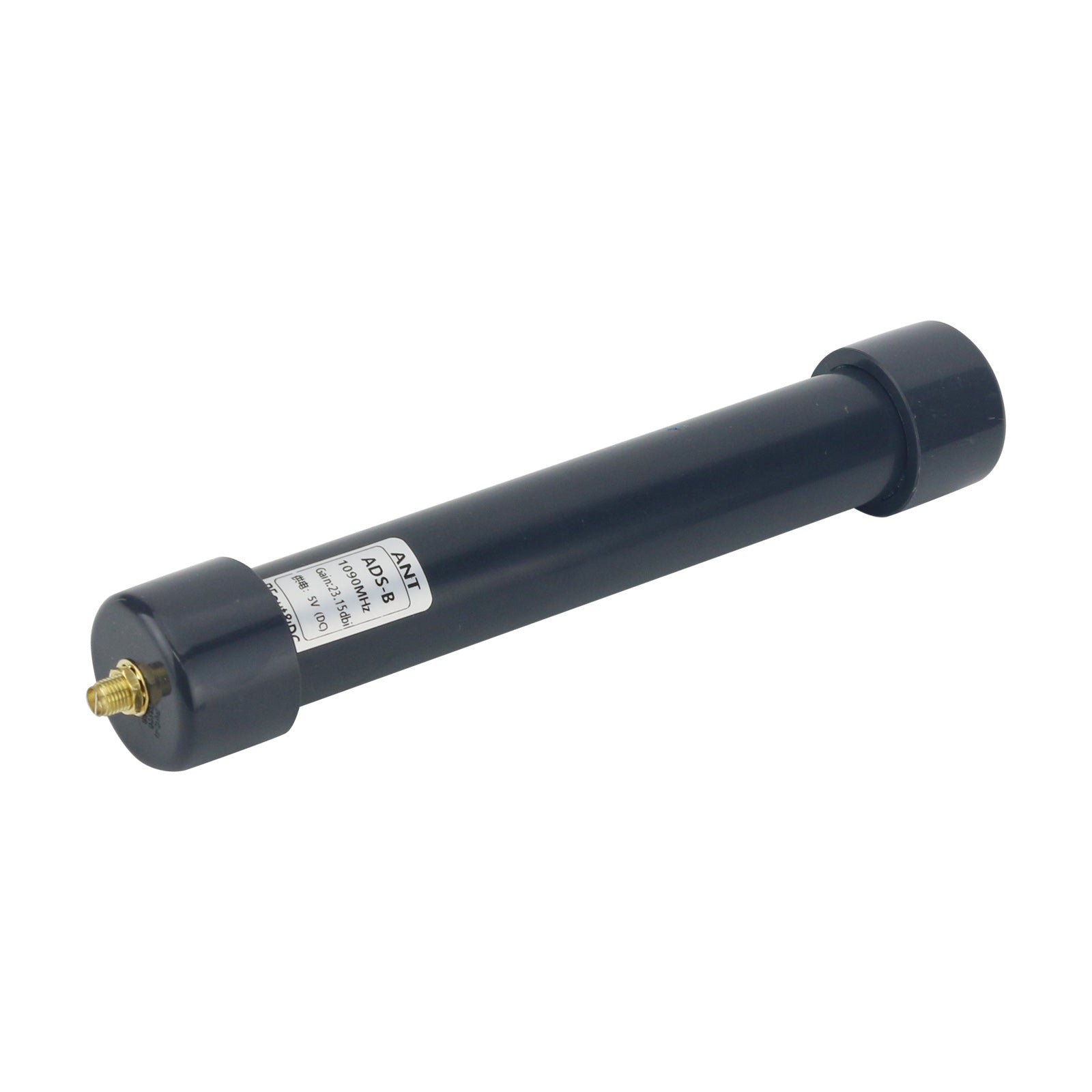

ADS-B 1090MHz Active Antenna DC5V Bias Tee USB Power Supply 23.15dBi High Gain RF Receiving Antenna with SMA Female Connector

ADS-B 1090MHz Active Antenna DC5V Bias Tee USB Power Supply 23.15dBi High Gain RF Receiving Antenna with SMA Female Connector

Description:
- This antenna is powered by a bias tee coaxial cable, which is divided into three power supply modes: USB, Type-C, and terminal blocks (optional). USB and Type-C can support mobile phone chargers, 5V power banks for quick and portable power supply, and the antenna is compact and suitable for outdoor applications.
- The antenna has been treated with lightning protection and electrostatic imitation inside, which is not easily damaged.

Specification:
- Working frequency bandwidth: 1090MHz +/- 15MHz
- Output impedance: 50ohm
- Gain: 23.15dBi
- SNR: NF<0.75
- Bias tee power supply voltage: 5V
- Connector type: SMA female connector

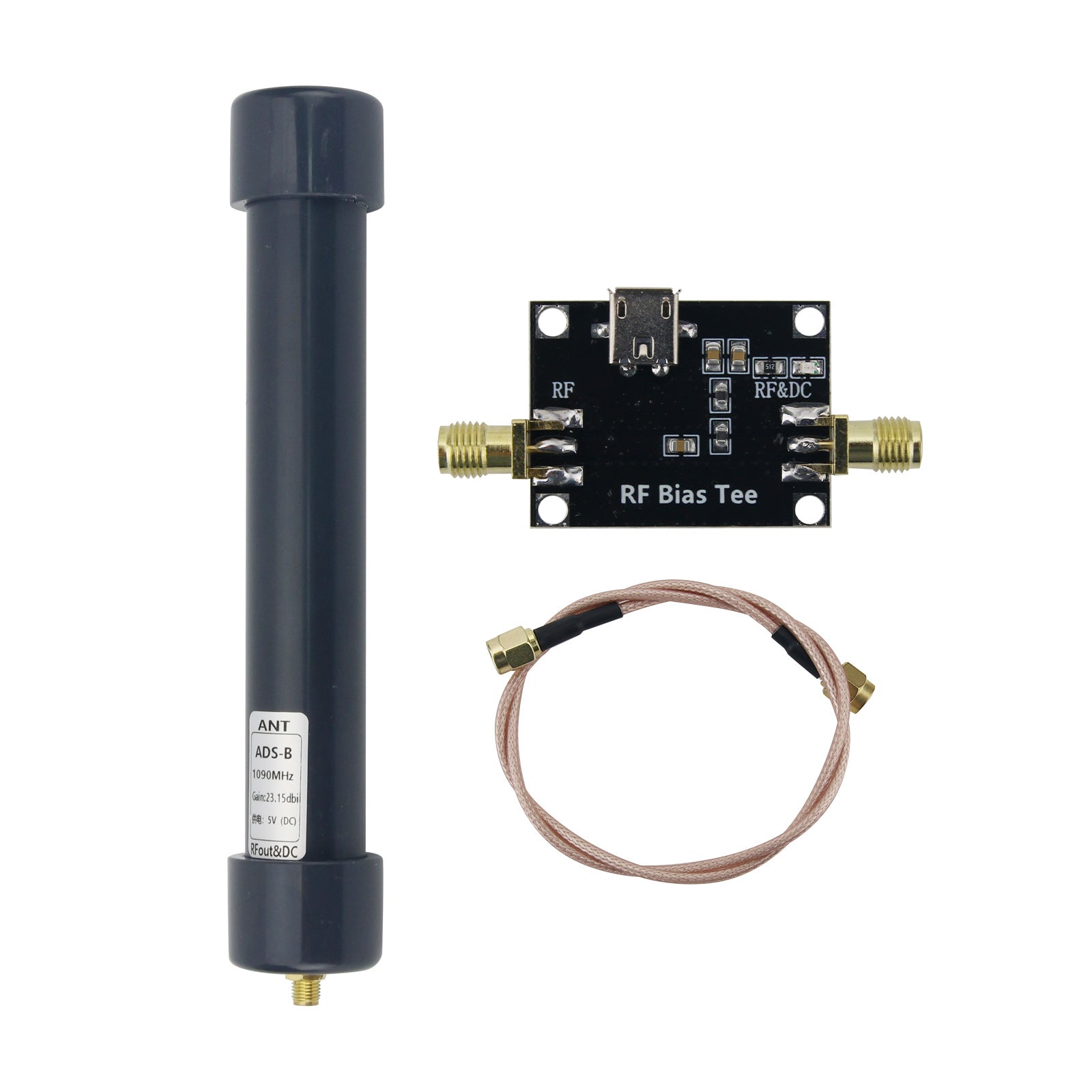

Package Included:
- 1 x Active Antenna
- 1 x SMA male to male 50CM Coaxial Cable 1m

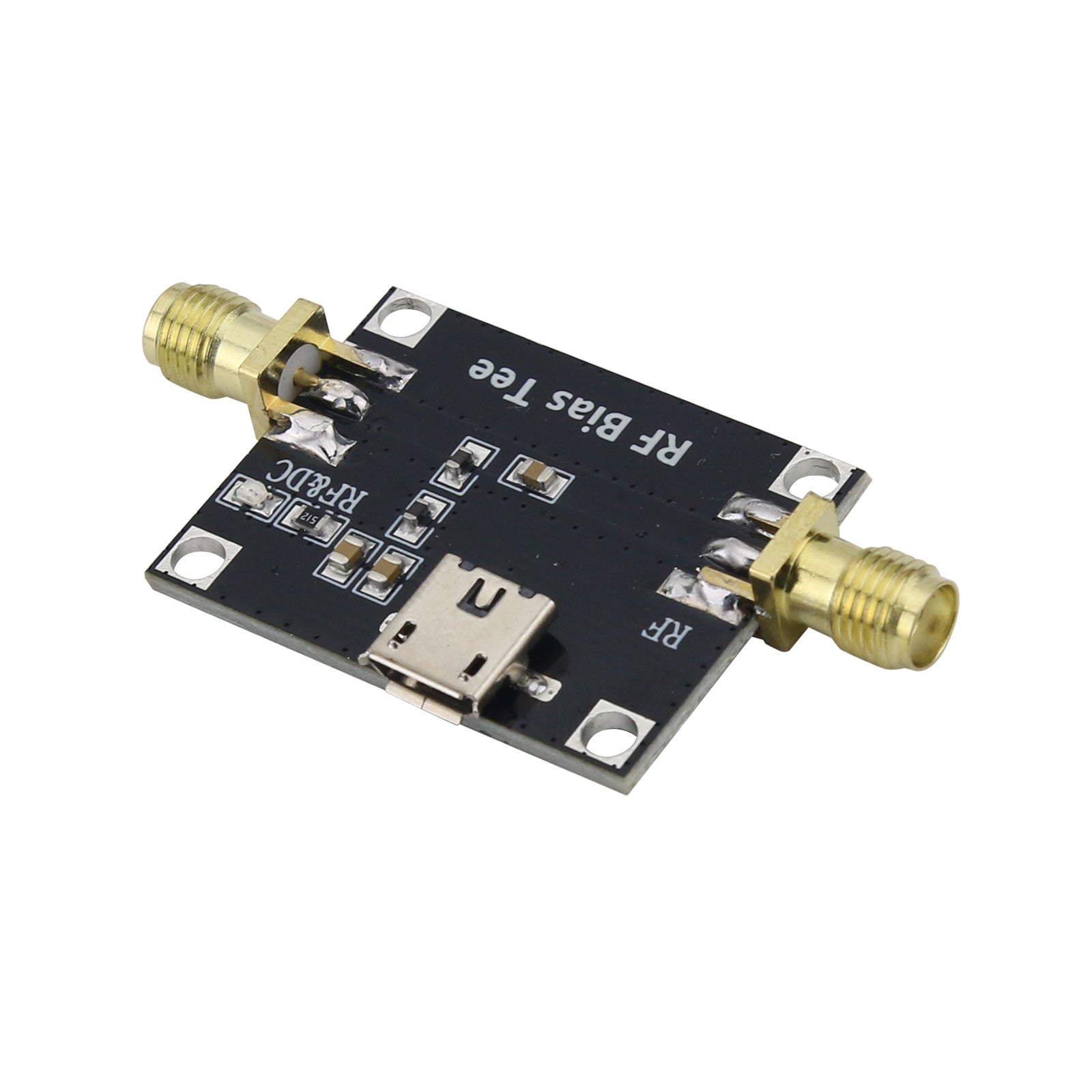

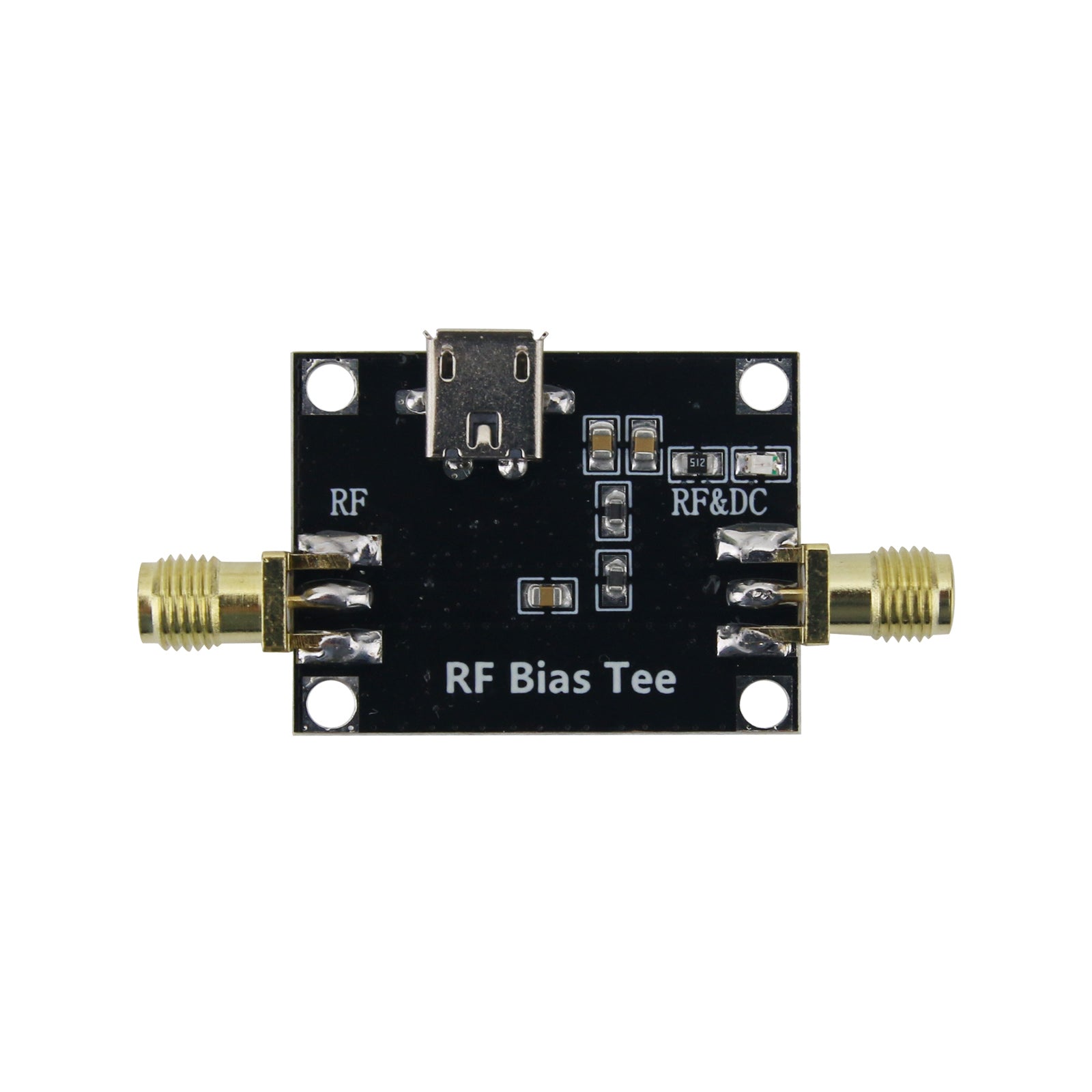

- 1 x Bias Tee Module

Note:
- This module must first connect the input and output terminals, and then connect the DC power supply.
- When supplying DC power to the module, be sure to connect the DC positive and negative poles correctly. Do not reversely connect it, which may cause module damage.
