AS5047P-TS_EK_AB AS5047P Adapter Board (Straight Pin Header) Assembled w/ 4000CPR Position Sensor

AS5047P-TS_EK_AB AS5047P Adapter Board (Straight Pin Header) Assembled w/ 4000CPR Position Sensor

Description:
The adapter board adopts an original chip AS5047P with a 14-pin TSSOP package.

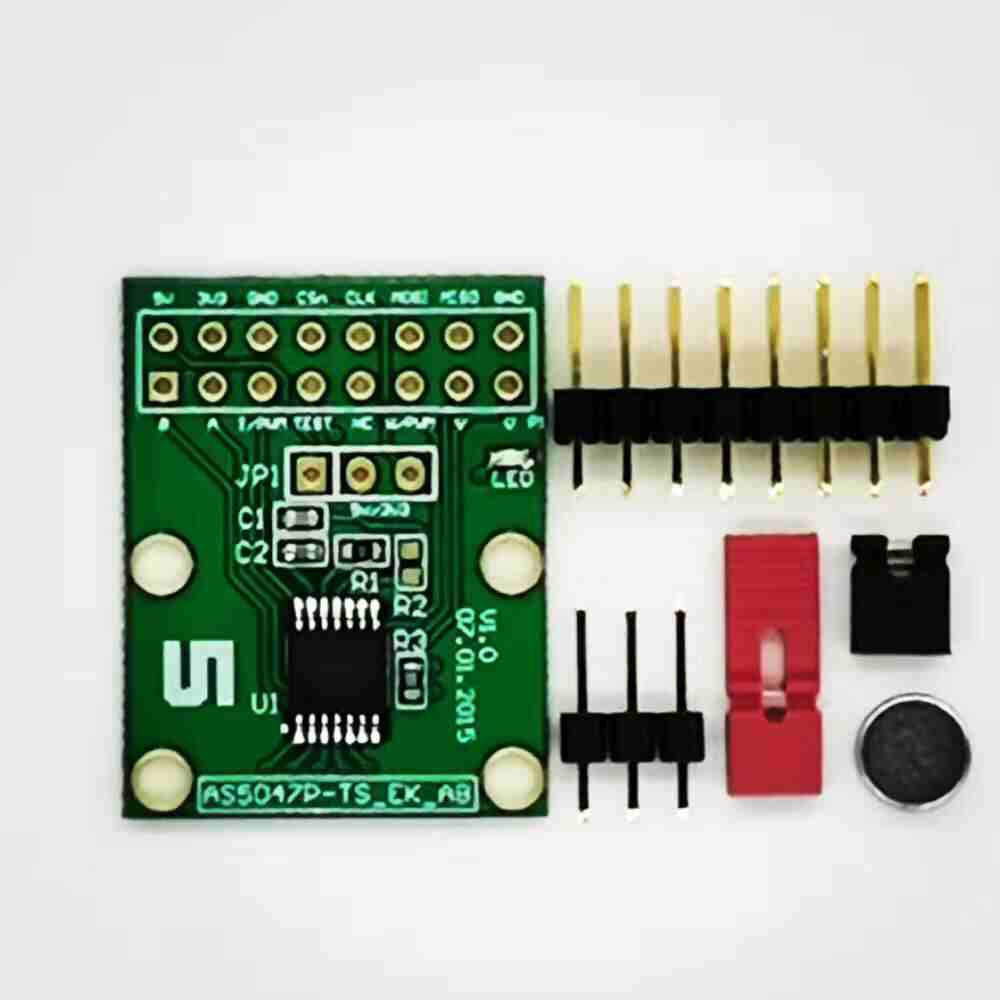

Package Included:
- 1 x Board
- 1 x 8pin pin header
- 1 x 3pin 2.54mm pin header
- 1 x Red jumper cap
- 1 x Black jumper cap

Packaging Details:
- Weight: 0.22kg
