BRZHIFI A600 Fully Balanced Input Output Amplifier Low Distortion Power Amplifier Board DIY Kit

BRZHIFI A600 Fully Balanced Input Output Amplifier Low Distortion Power Amplifier Board DIY Kit

Description:

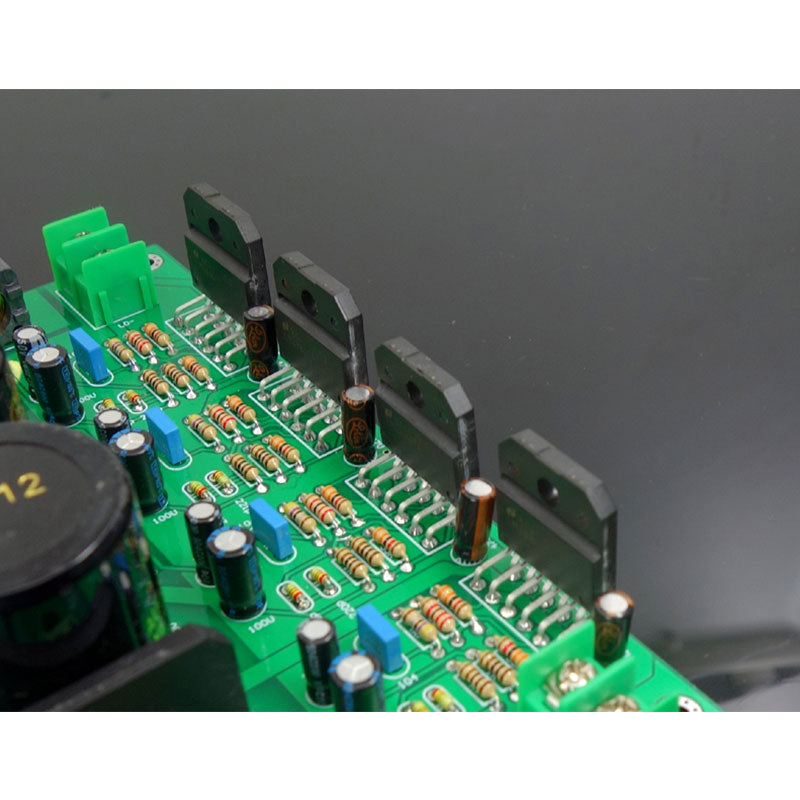

-At present, many decoder CDs have a balanced output interface. Balanced input and balanced output can make transmission distortion, noise and sound field more outstanding. The core is 4 pieces of semi-original LM3886TF chip, which is a classic, with balanced output power of 150Wx2.

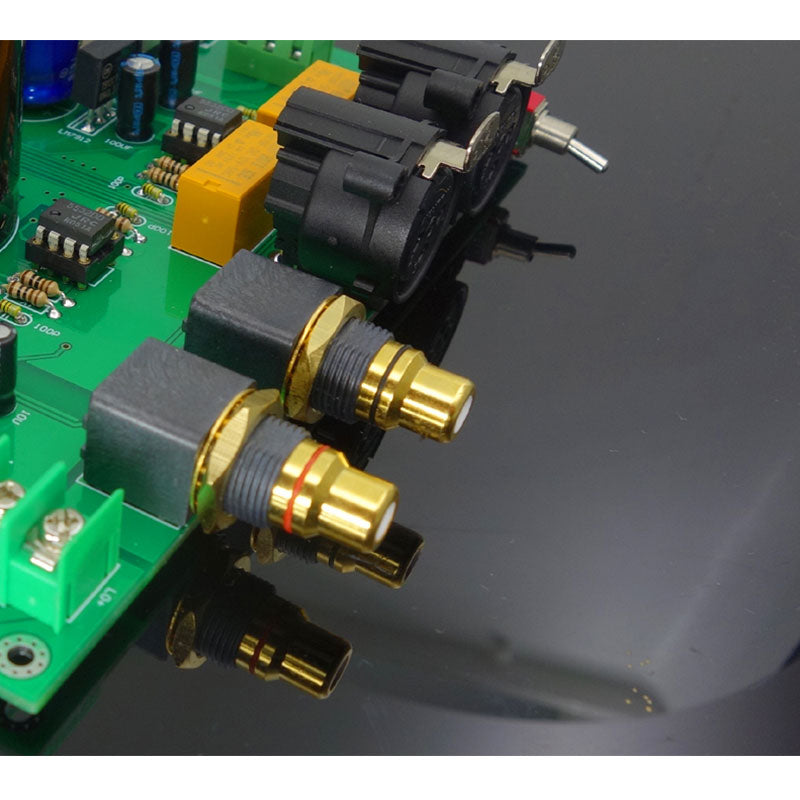

-High-quality materials, NOVER filter capacitors in gold, Swiss XLR balanced input terminal, brass RCA input terminal, Japanese ALPS potentiometer, 718 copper pin resistance, etc. The op amp has a socket, and the default is NE5532, and you can upgrade it yourself.

Specification:
Output power:
Balanced 150W (4 ohm); 100W (8 ohm)
Single-ended 68W (4 ohm); 50W (80 ohm)
PCB Size: 152x150mm

Package List:
1 x Amplifier Board Kit

Note:
1. The product is a kit, which needs to be welded by itself, but without debugging.

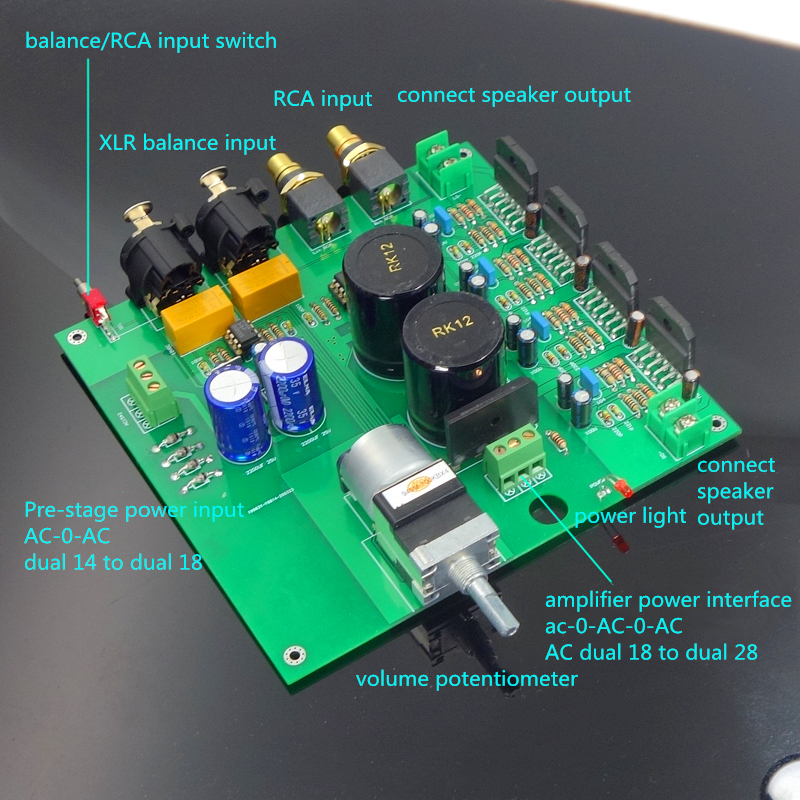

2. Please note that the power supply requires 2 groups, 1 group for the power amplifier, AC 18x2-28x2 range. 1 set for balanced pre-stage, AC 14-18x2.
