DC-8.5GHz 8PCS SMA Calibration Kit 2xOPEN + 2xSHORT + 2xLOAD + THRU for RF Circuit Impedance Compensation

DC-8.5GHz 8PCS SMA Calibration Kit 2xOPEN + 2xSHORT + 2xLOAD + THRU for RF Circuit Impedance Compensation

Specification:
- OPEN phase error: 8.5GHz ≤ 3.0°
- SHORT phase error: 8.5GHz ≤ 3.0°
- LOAD return loss: ≥31dB, VSWR < 1.06 for male connector; ≥28dB, VSWR < 1.07 for female connector

Package Included:
- 8 x SMA Calibration Units

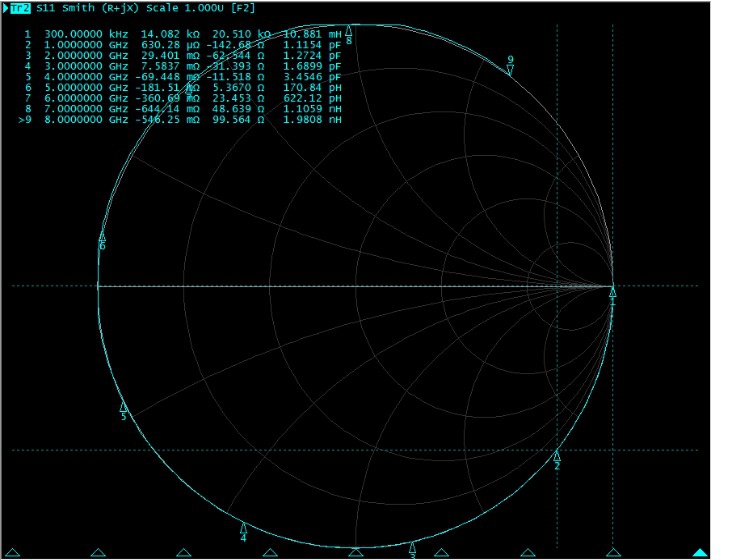

OPEN Testing Diagram (smith):

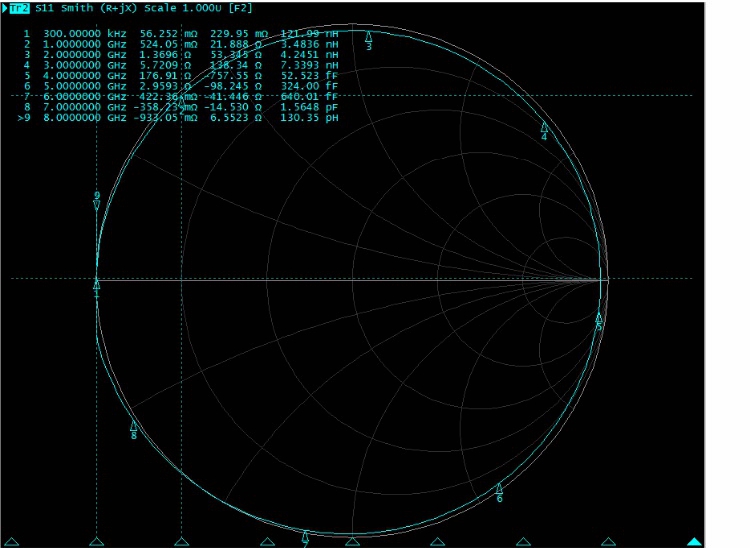

SHORT Testing Diagram (smith):

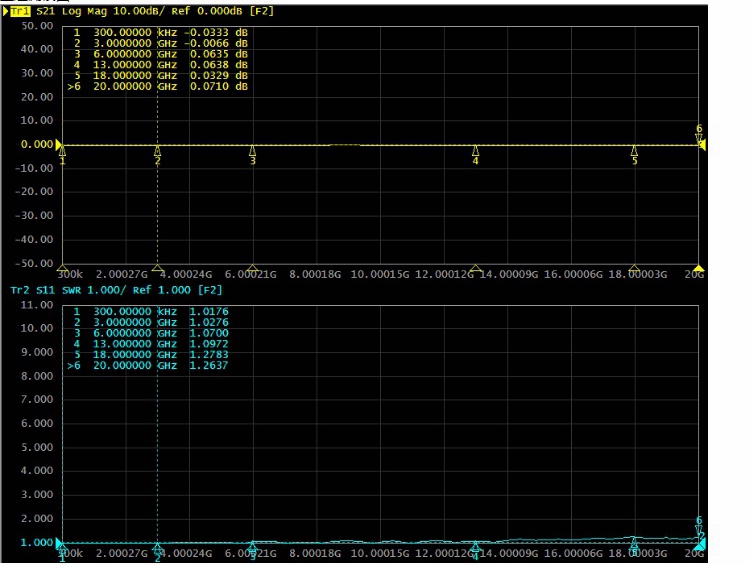

THRU Testing Diagram:

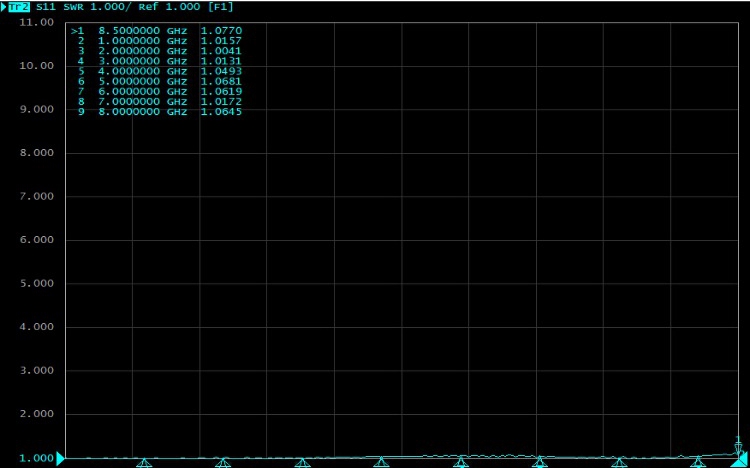

LOAD Testing Diagram:
