Demo Board 2.4G Wifi Zigbee Signal Booster Amplifier TDD Booster Module 2400MHz-2500MHz

Demo Board 2.4G Wifi Zigbee Signal Booster Amplifier TDD Booster Module 2400MHz-2500MHz

Description:
XQ-02A two-way signal amplifier module is specially designed for various applications in the 2.4GHz band. Its small size makes the RF part design of 2.4GHz wireless products extremely simple. Greatly shorten product development cycles and reduce product development costs.

Built-in automatic discrimination circuit for high-speed transceiver switching, which can automatically switch the transceiver status. It does not need a control signal from the wifi control chip to work automatically, so it is compatible with any WiFi solution.

It can be applied to all kinds of occasions with special requirements on the transmission distance and connection stability of WiFi signals, such as advertising machines, wireless network players, high-power wireless routers, high-power wireless network cards, high-power outdoor APs, wireless cameras, etc.

Specifications:
- Receiving gain: 10dB
- Transmission gain: 11dB
- Accepted noise figure: ≤3.0dB
- Input power range: 4dBm-20dBm
- Maximum transmitting power (Peak Power): 33dBm (2W)
- Dimensions: 36 x 26 x 4.8mm (L*W*H)

Package Included:

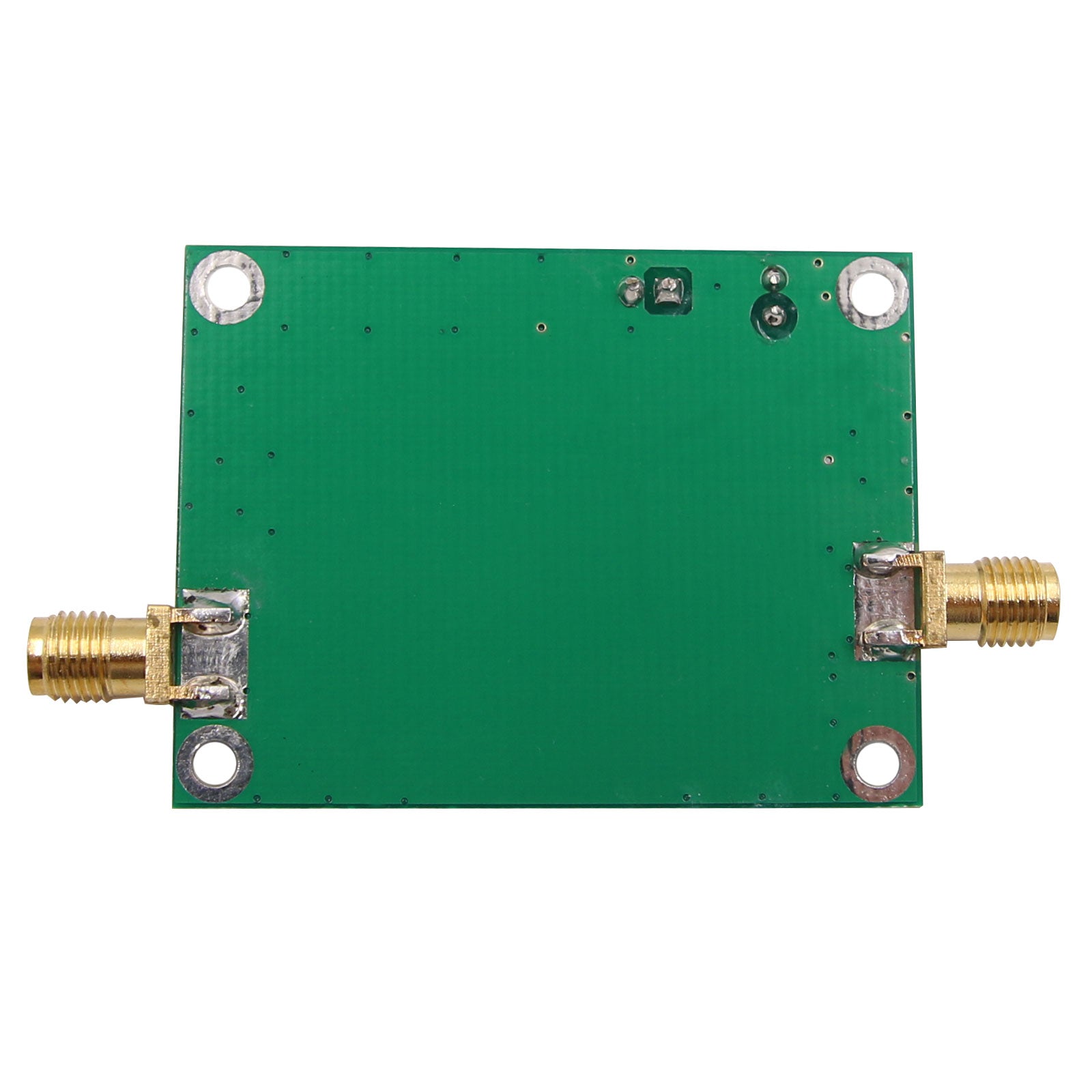

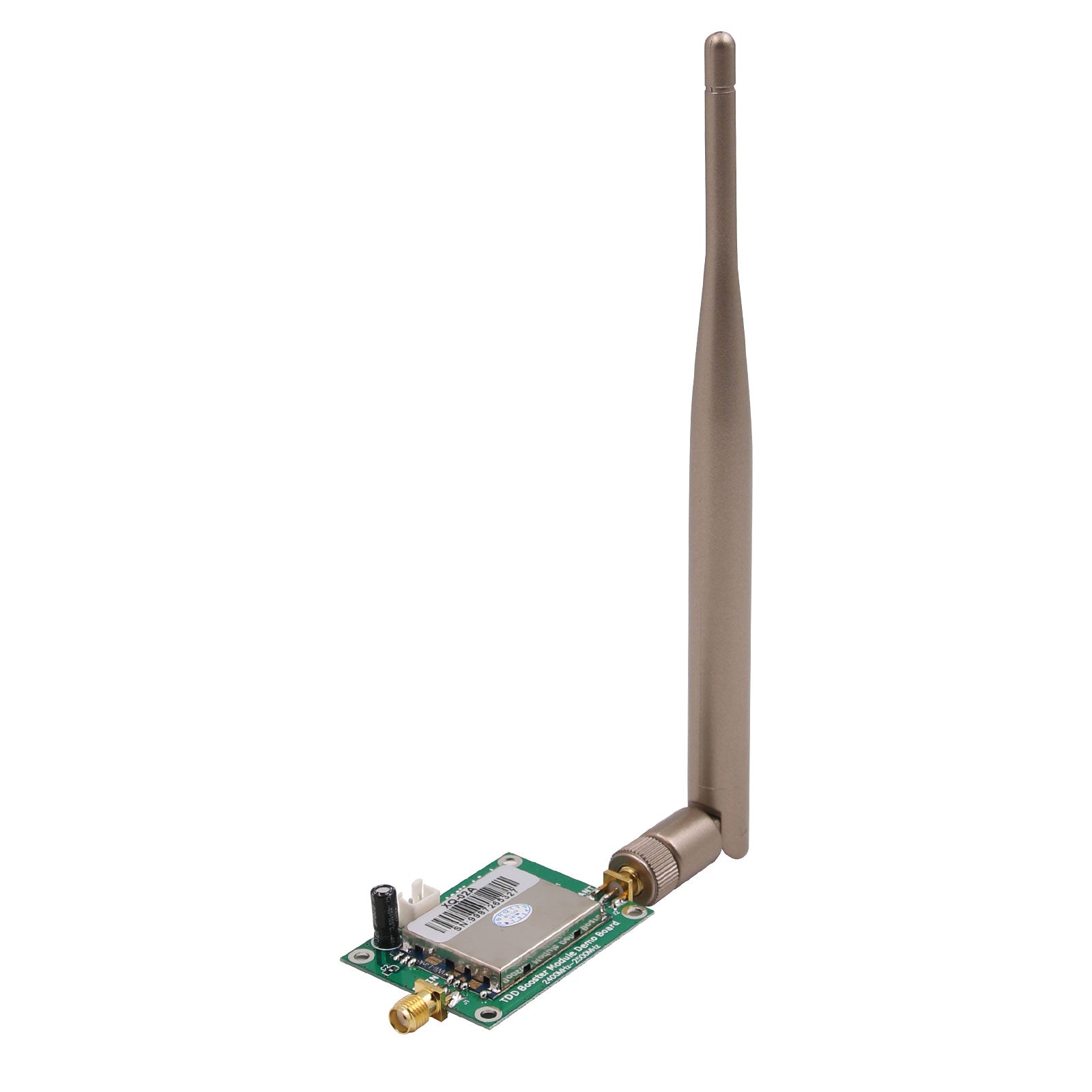

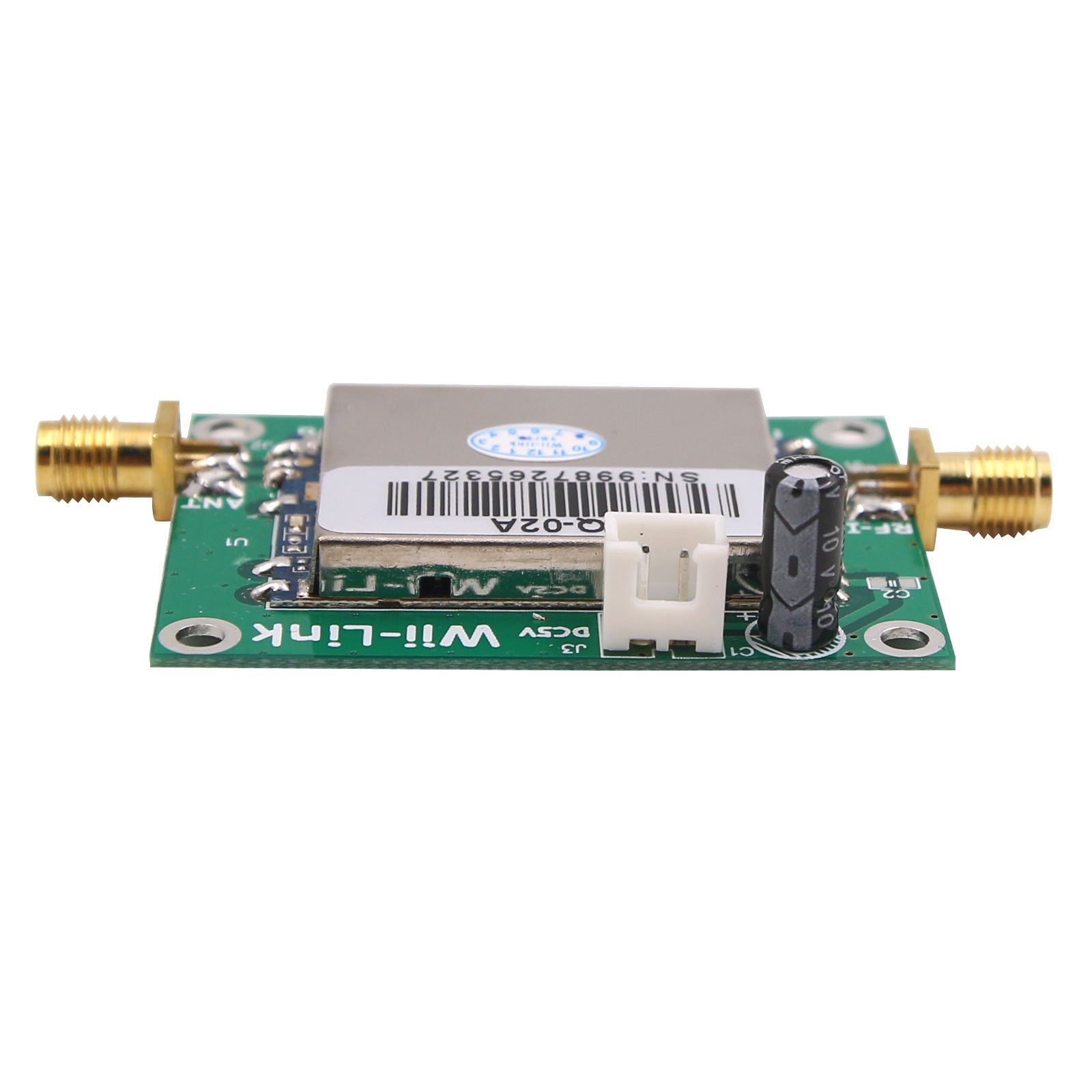

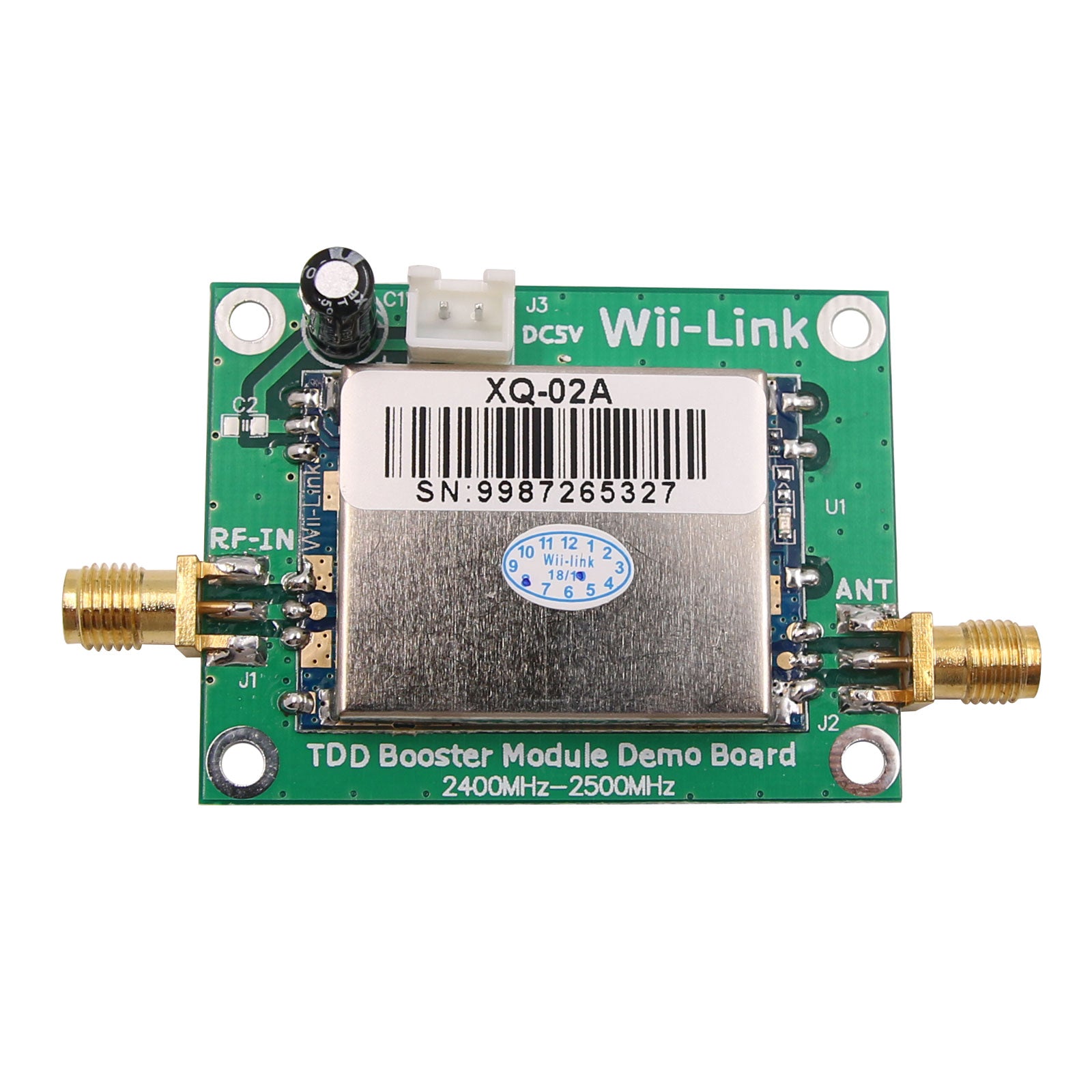

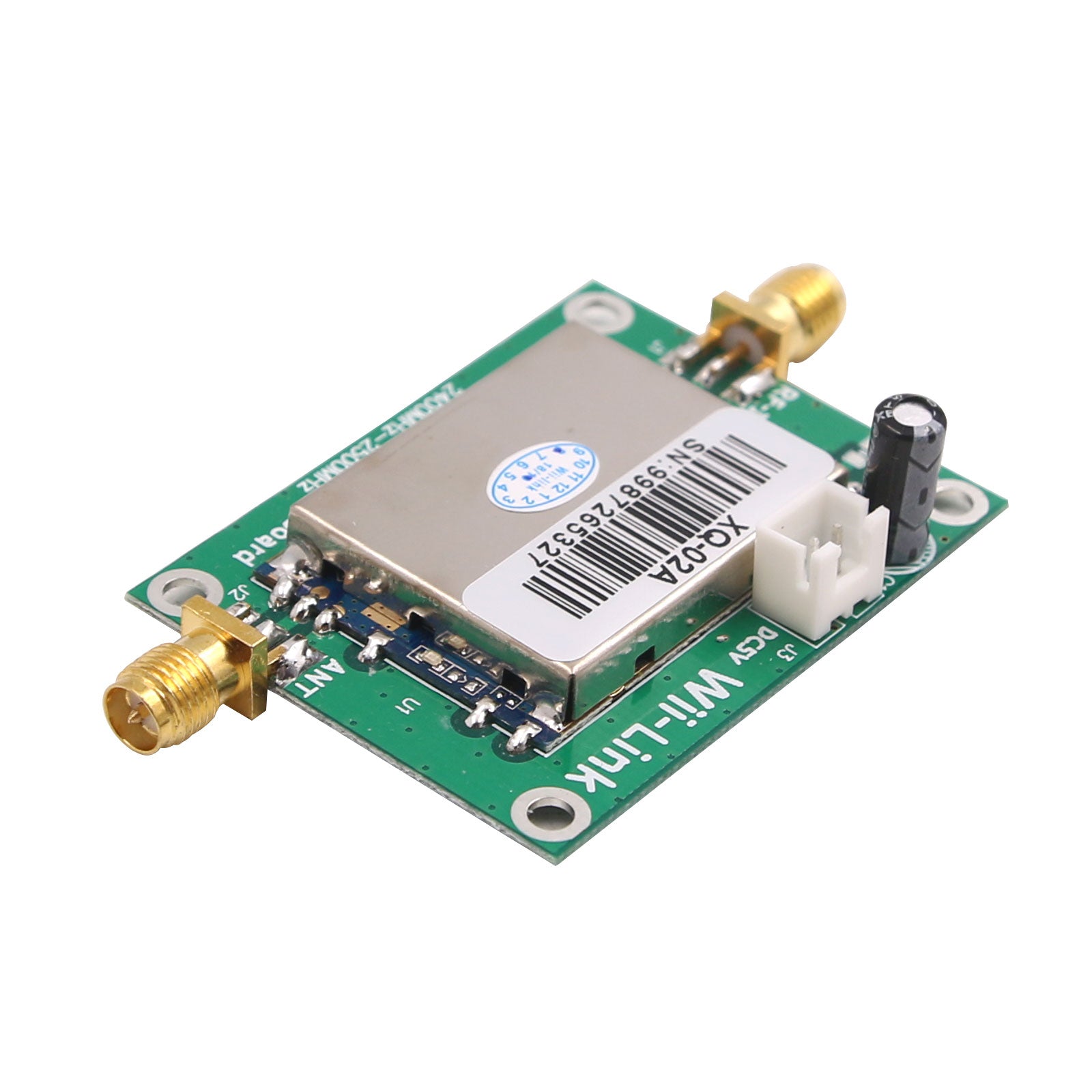

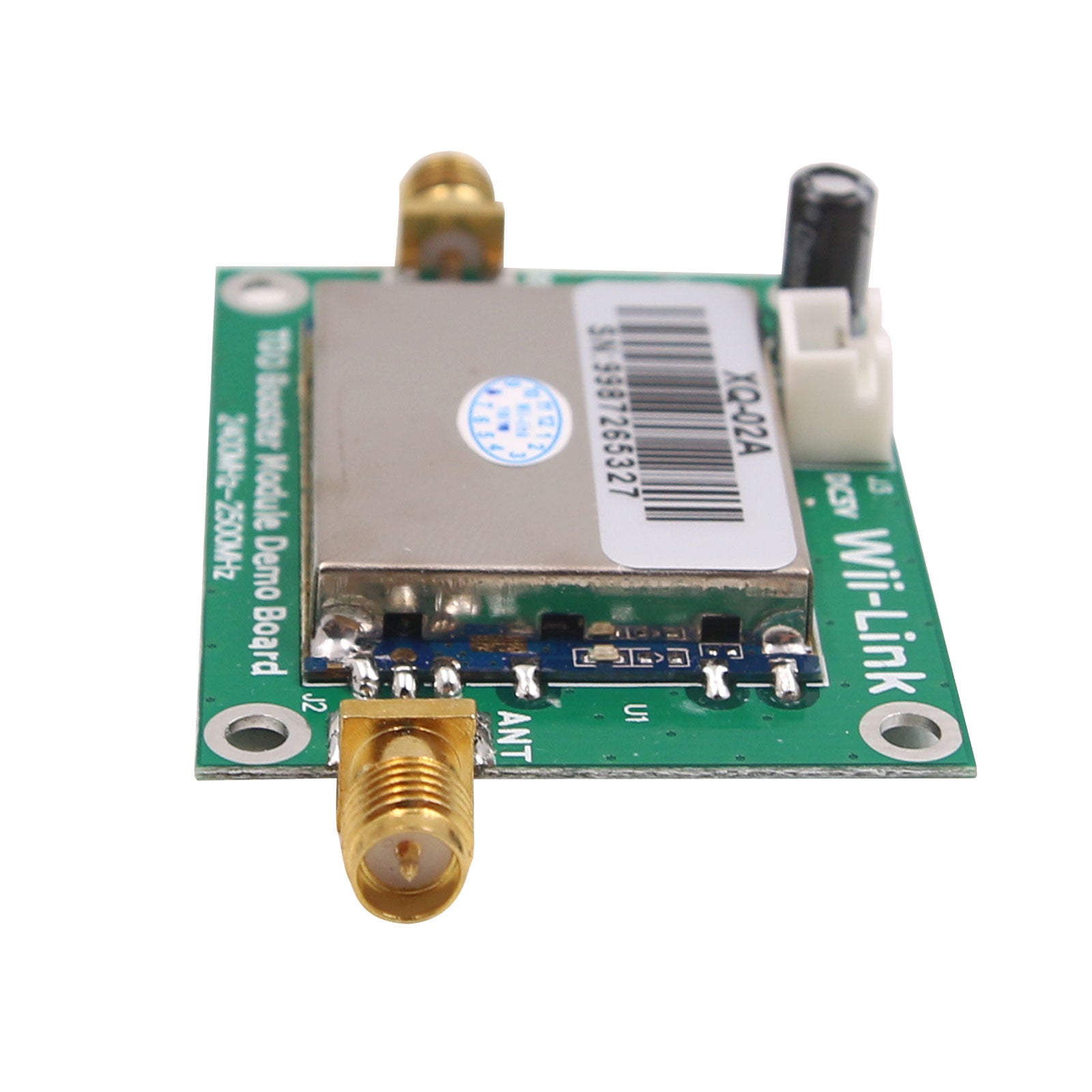

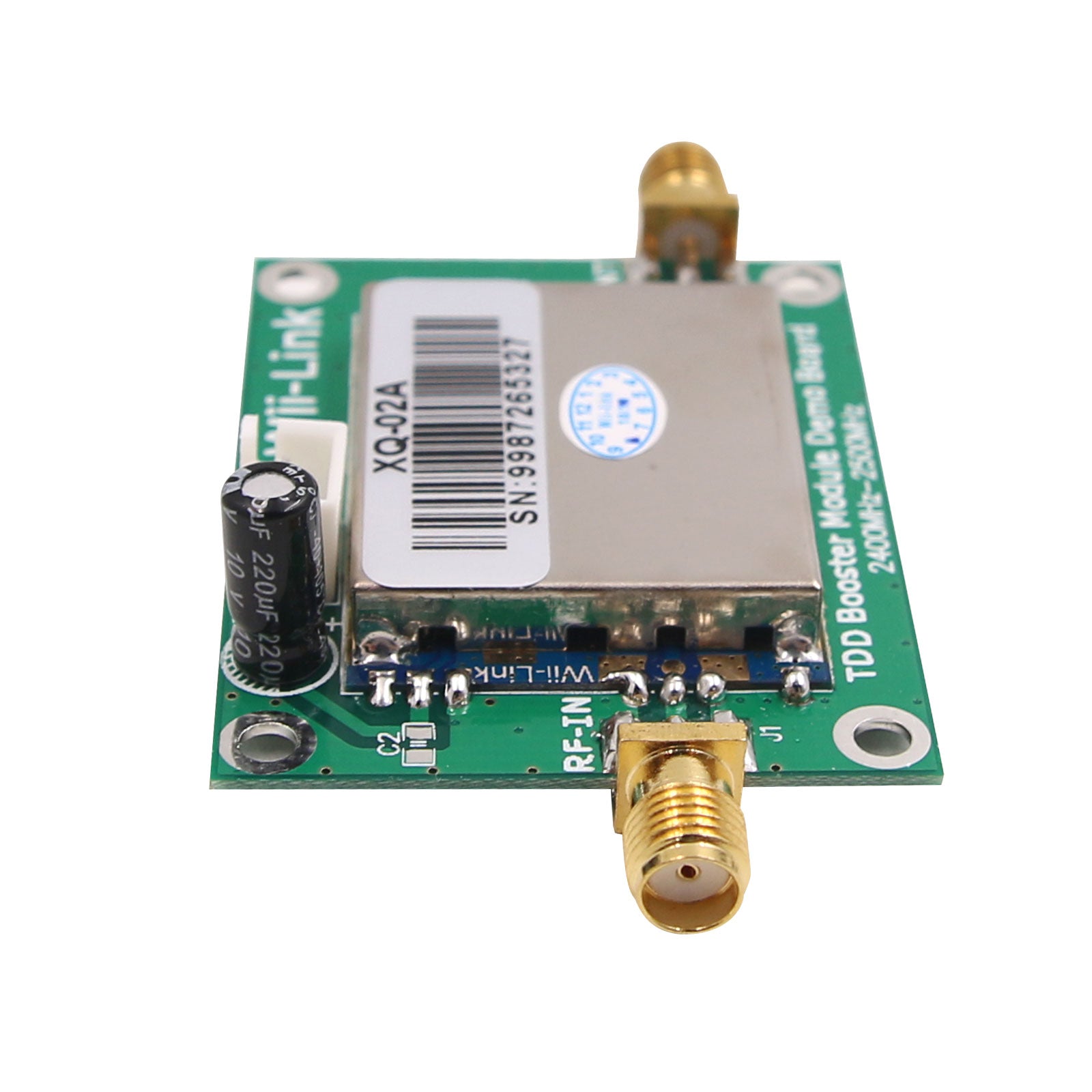

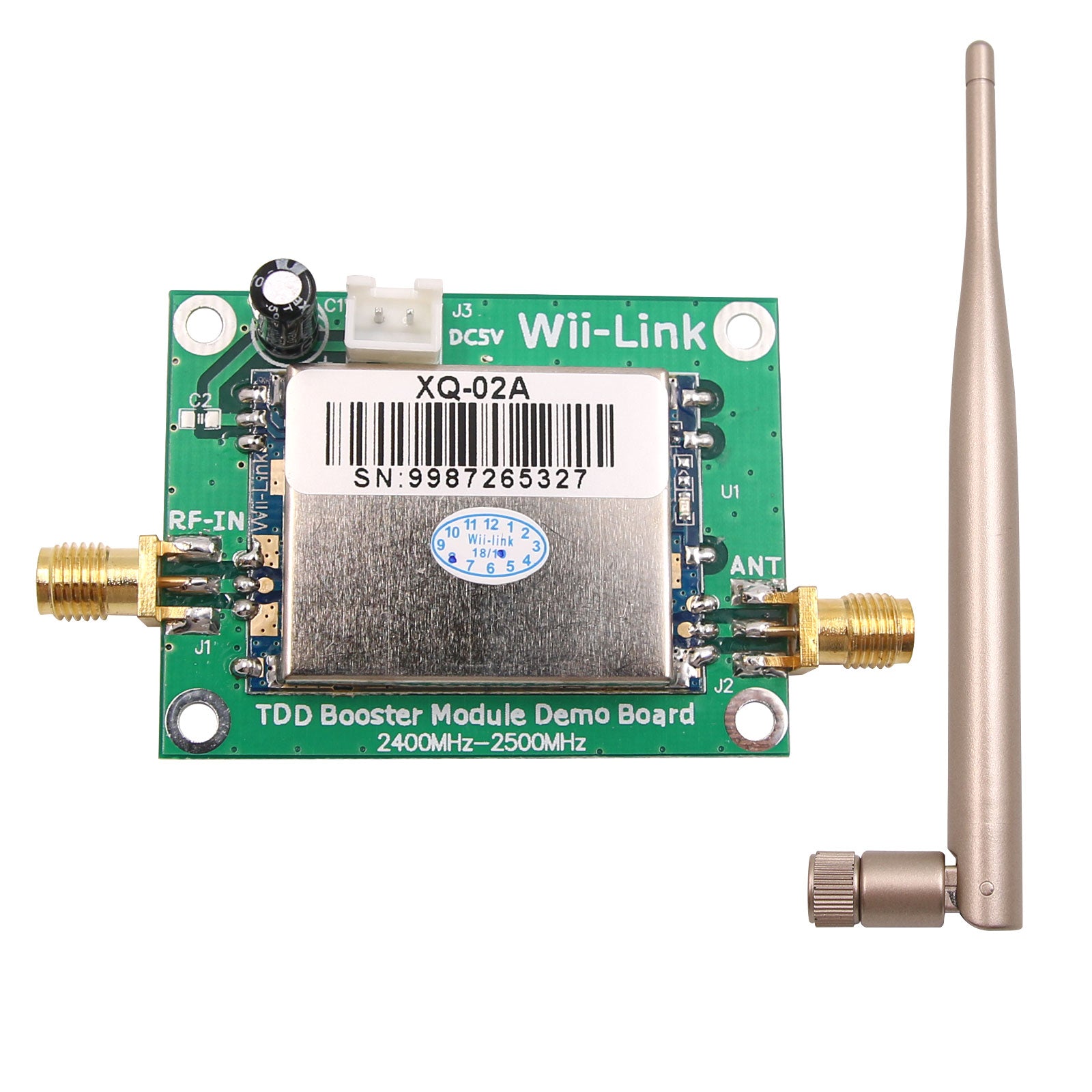

- 1 x Demo Board (with XQ-02A Module)

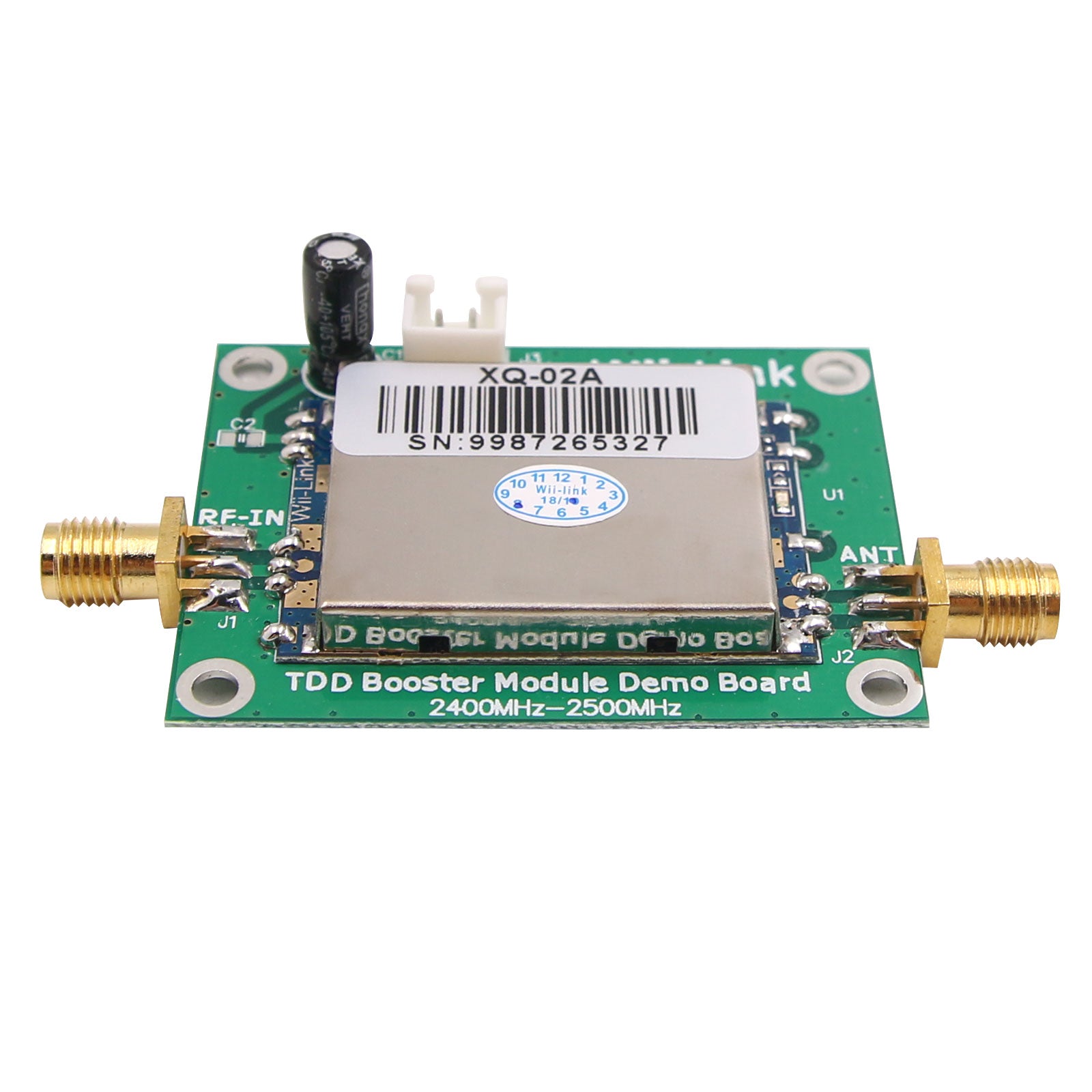

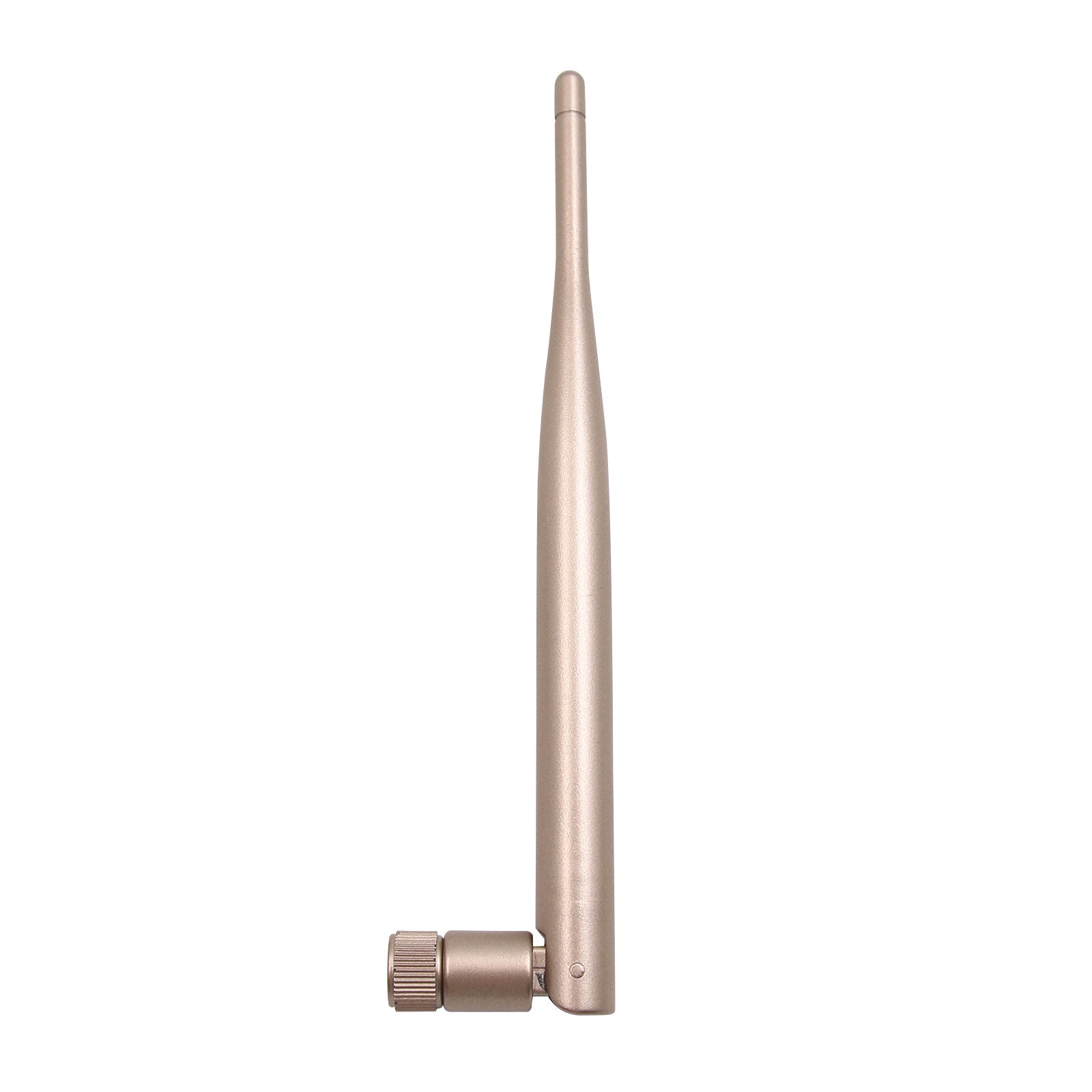

- 1 x 6DB Antenna

Note:
- Power supply is not included in the package. 5V power supply is recommended. Users can test the board with a regulated power supply.
- It is highly recommended for engineering users and manufacturers.
- The default configuration is a built-in automatic discrimination circuit for transmitting and receiving switching. Please contact customer service if you need external control to switch transmitting and receiving. Thank you!
- The signal input port of the module is a SMA female connector.
