DP100 High Performance CNC Portable Adjustable DC Power Supply 100W 30V 5A Regulator with C2C Data Cable

DP100 High Performance CNC Portable Adjustable DC Power Supply 100W 30V 5A Regulator with C2C Data Cable

Features:
- DP100 CNC power supply is a high performance CNC adjustable DC power supply.
- Power supply mode support PD/QC fast charging source, universal DC power adapter, power bank.
- Support 10 groups of preset output, directly call out.
- The power-on curve is smooth and stable without overshoot.
- Hardware constant voltage constant current circuit, intelligent anti-burning, constant voltage constant current mode automatic switching.
- The input supports reverse protection and undervoltage protection.
- The output supports overvoltage protection, overcurrent protection, overload protection, overheat protection and reverse protection.

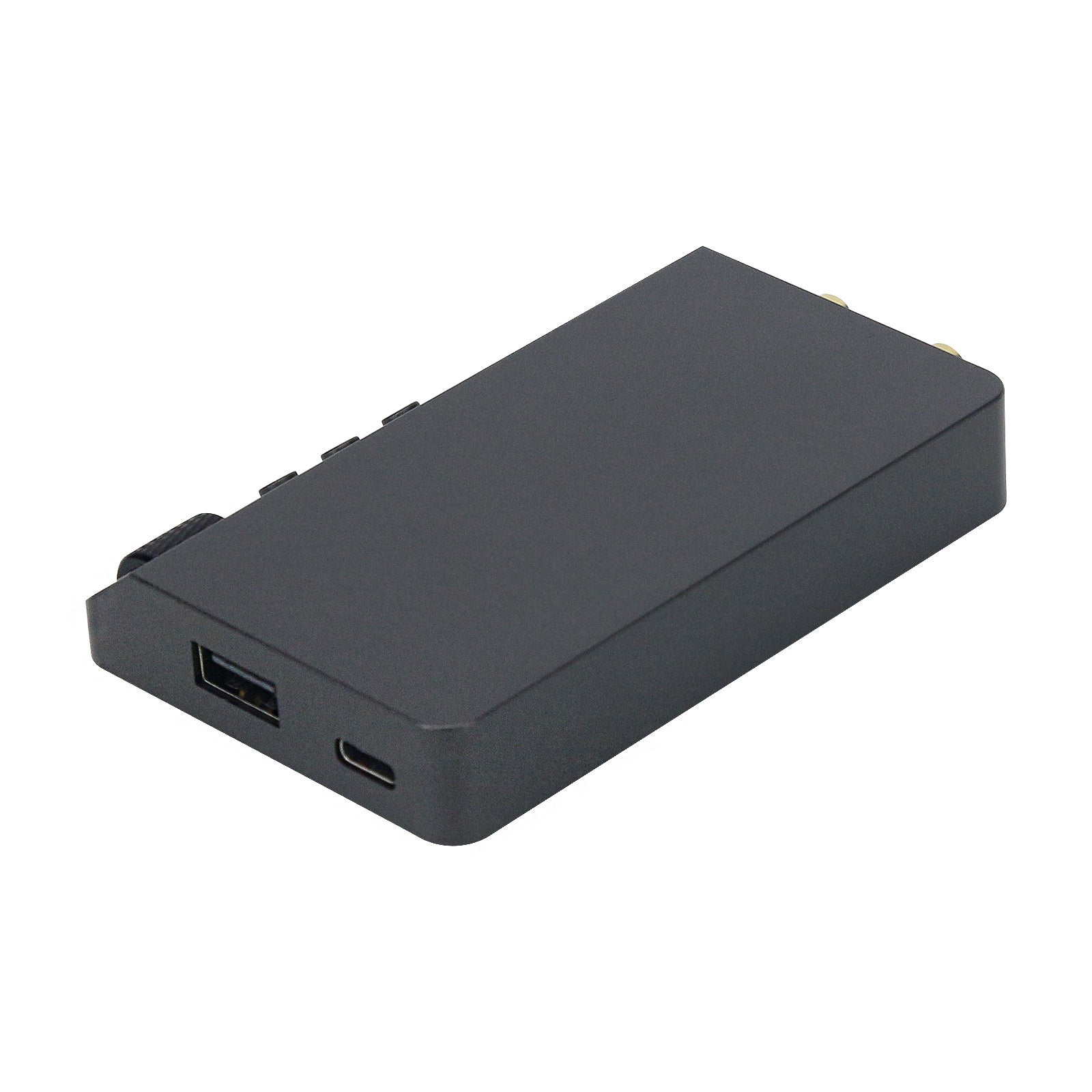

- USB-A interface slave mode (USBD) supports communication with the host computer.
- Use 0.96 inch 160x80 HD IPS screen to display and control panel humanized Angle design, easy to operate.

Specification:
- Model: DP100
- Size: 10.4cm x 6.2cm x 1.72cm
- Input voltage: DC5V ~ 32V
- Output voltage: 00.00V ~ 30.00V, resolution 0.01V continuously adjustable
- Output current: 0.000A ~ 5.000A, resolution 0.001A continuously adjustable
- Output power: ≤100W
- Conversion efficiency: ≤97%
- Input interface: Type-C
- Output interface: 4.0mm banana head interface
- Fast charge protocol: PD/QC
- Screen: 0.96TFT (160 x 80 Pixel, IPS)

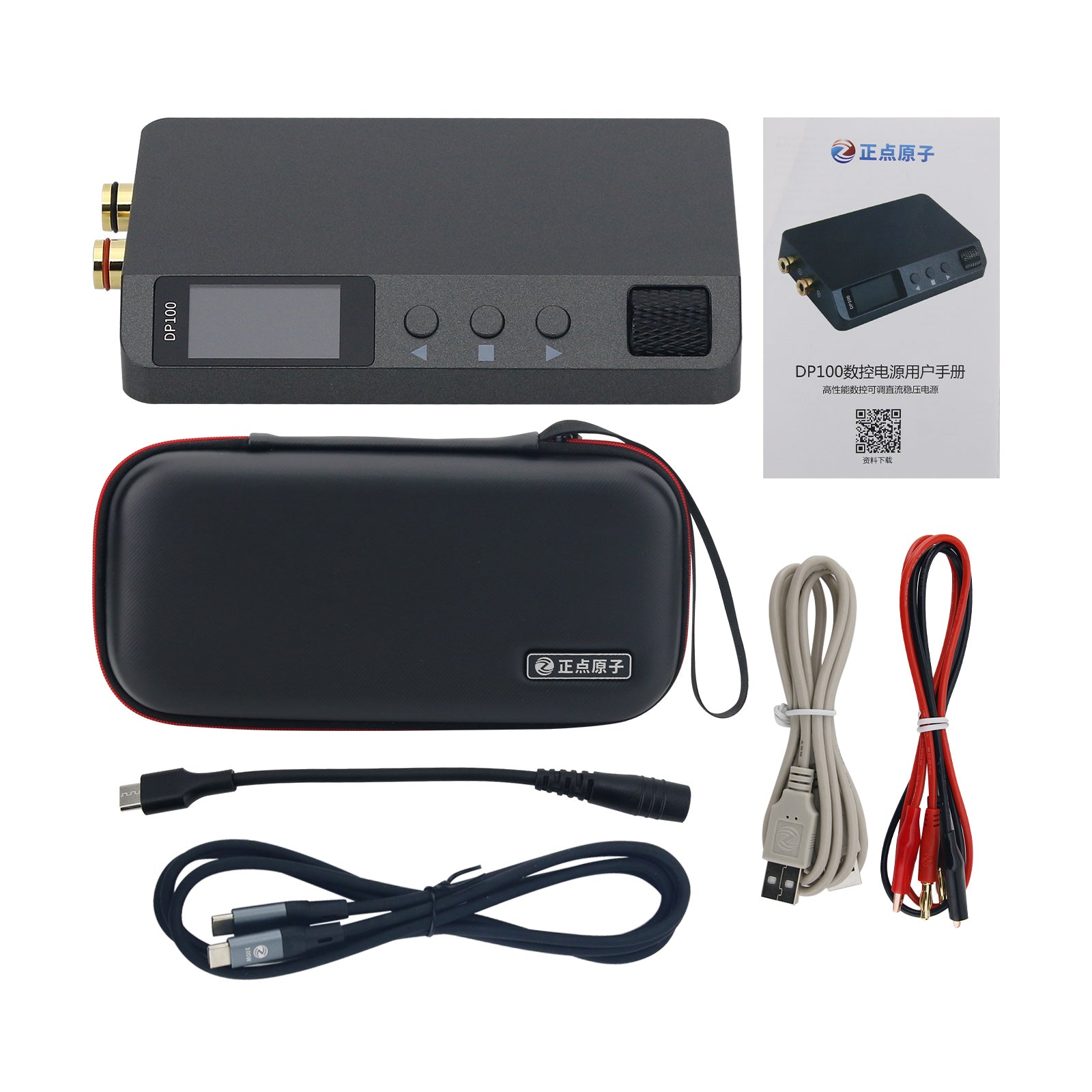

Package Included:
- 1 x DP100 Power Supply

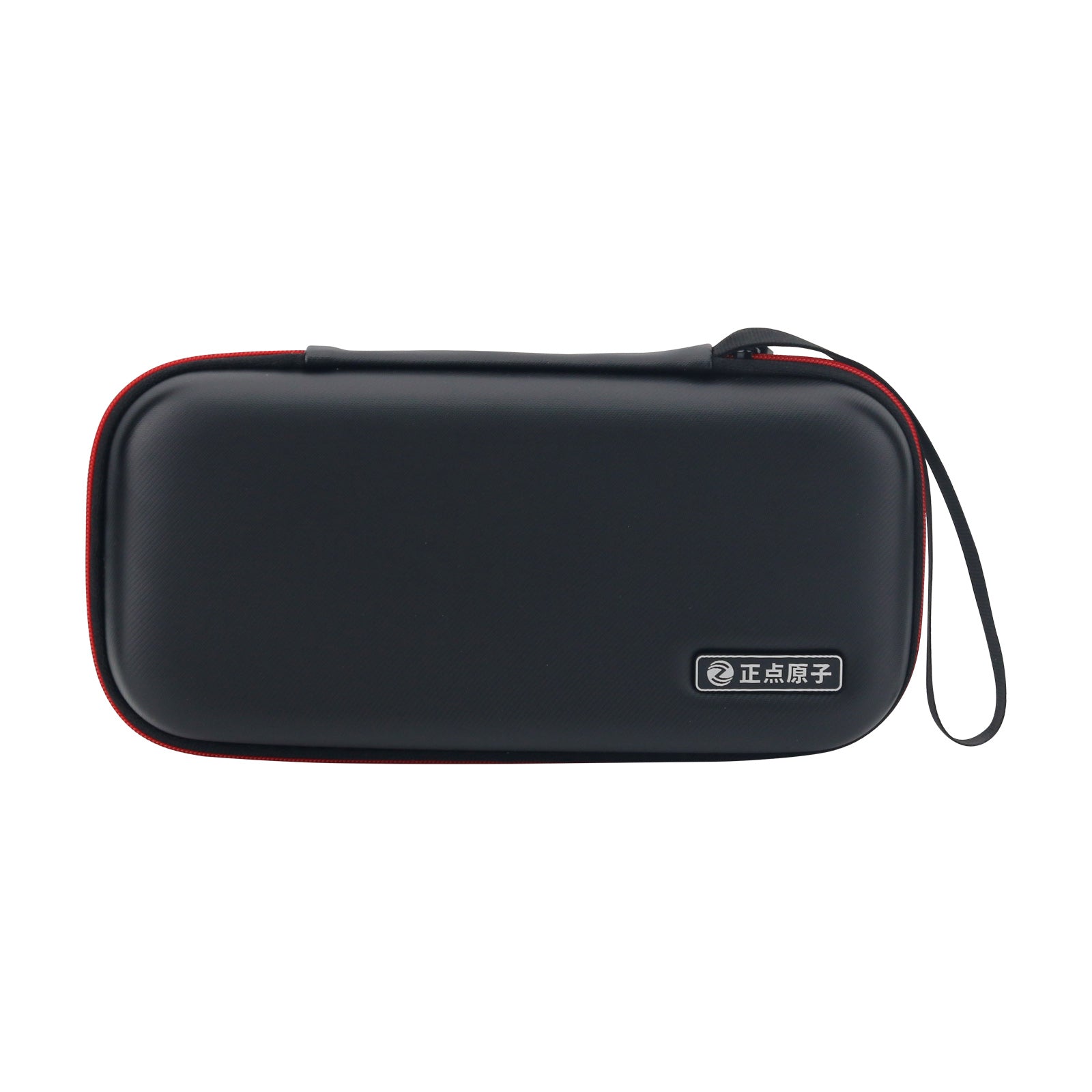

- 1 x Zipper Bag
- 1 x Instruction
- 1 x A2A USB Cable
- 1 x DC to Type-C Adapter Cable
- 1 x Power Cord (red)
- 1 x Power Cord (black)
- 1 x C2C Data Cable

Note:
- It does not support voltage boost.
