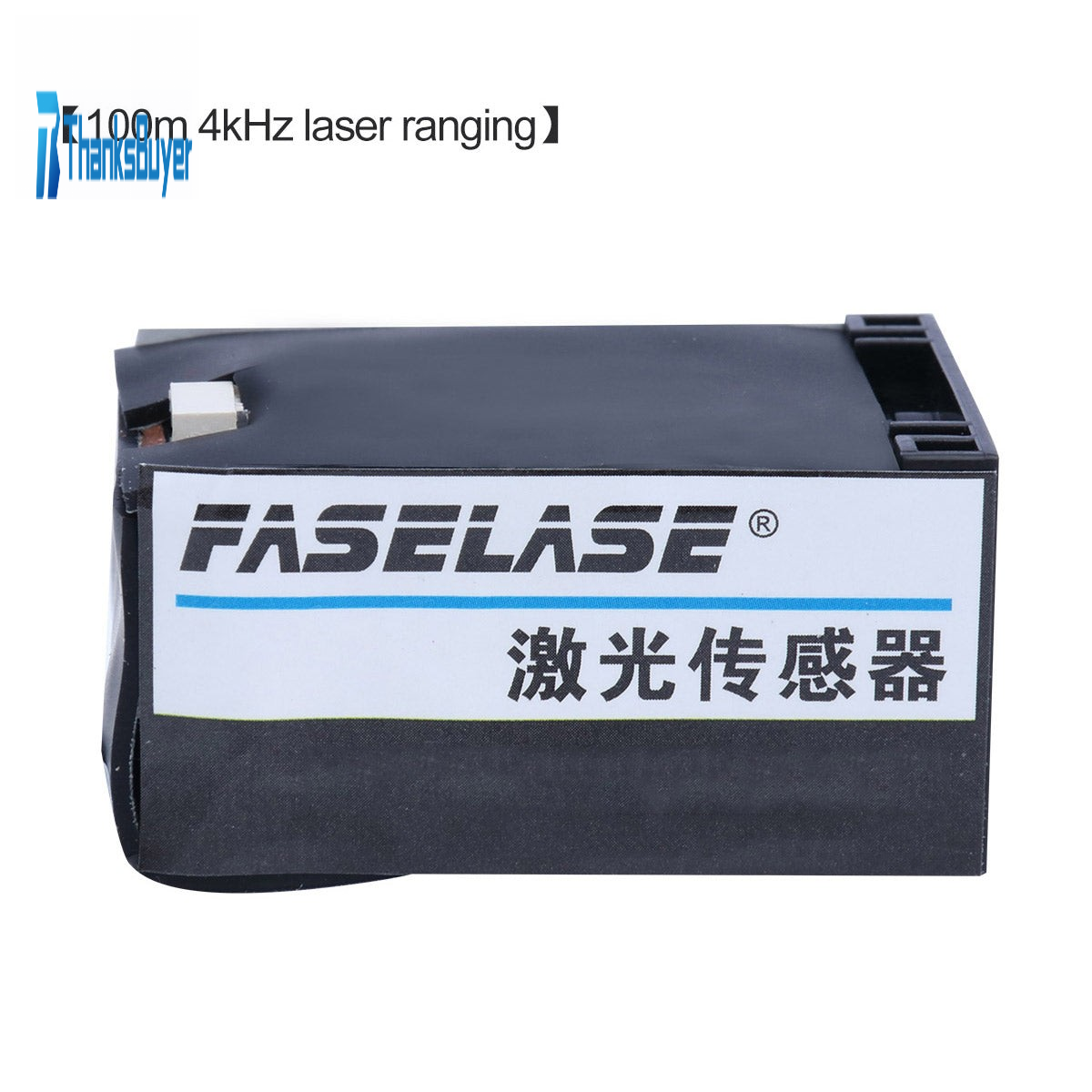

FASELASE TOF Lidar Module Laser Ranging Sensor Range Finder 100m Ranging 4KHz Frequency

FASELASE TOF Lidar Module Laser Ranging Sensor Range Finder 100m Ranging 4KHz Frequency

Description:
FS010 mini high-speed ranging module is the smallest, lightest and most economical product developed by Faselase. It is used for the detection of fast-moving objects and the detection of the surrounding environment by fast-moving objects. Its speed, accuracy and detection distance can meet the needs of most customers. The main features of the product are fast measurement speed, small size, light weight, low power consumption and low cost. It adopts first-class human eye safety protection laser, in line with international and domestic standards.

Specification:
Measuring distance: 0.15~100m
Measurement frequency: 4KHz
Communication rate: 115200bps
Repeatability: ±3cm@100Hz
Power supply: DC 5V ±10%, <1W
Volume: 52×37×27mm
Output interface: TTL
Net weight: 20g
Light source: laser diode 905nm, ≤1mW; in line with GB7247.1-2001, Class I laser eye safety requirements

Package List:
1 x Lidar Sensor
