Application Scenarios:
- There are few on-site nodes, close distances, standardized wiring, and hand in hand connections, requiring isolation and protection of one of the expensive devices.
- Commercial charging stations for CAN bus, requiring isolation protection.
Specification:

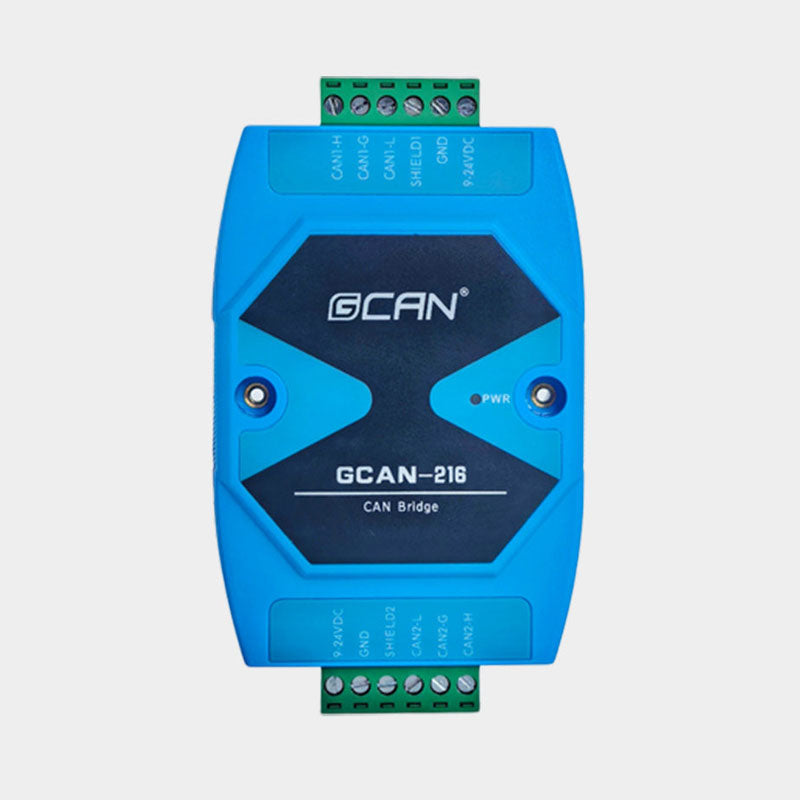

- Model: GCAN-216
- Channel number: 2-channel
- Wiring method: 6 PIN plug-in terminal
- Terminal resistor: connection access
- Protocol standard: support CAN2.0A and CAN2.0B, frame rate complies with ISO/DIS 11898 standard
- Electrical isolation: 3000V DC, independent isolation
- Baud rate range: 10Kbps - 500Kbps
- Baud rate configuration: adaptive
- Two-end baud rate: must be consistent
- Software: no
- Power supply current: 20mA Max.
- Power supply voltage: 9 - 24V DC
- Forwarding delay: 0
- Forwarding throughput capability: 8000 fps (1M baud rate, standard frame, 8 Byte)
- ID filtering: not supported
- Transparent transmission mode: support
- Isolation fault frame: support
- Relay function: not supported
- Working temperature: -40℃ to 85℃
- Working humidity: 15% to 90% RH, non-condensing
- EMC testing:
EN 55024: 2011-09
EN 55022: 2011-12
- Electrostatic discharge: contact discharge ±4KV, air discharge ±8KV
- Electromagnetic immunity: electrical fast transient burst immunity level: ±2KV
- Surge protection: power interface ±1KV, CAN bus interface ±4KV
- Qualification certification: compliant with design specifications for mining product safety certification, fire protection product certification, automotive intelligent networking, energy storage, etc., we can provide the necessary certification materials to assist users in completing qualification certification
- Installation method: standard 35mm DIN rail installation
Package Included:
- 1 x CAN Bus Isolation Module
