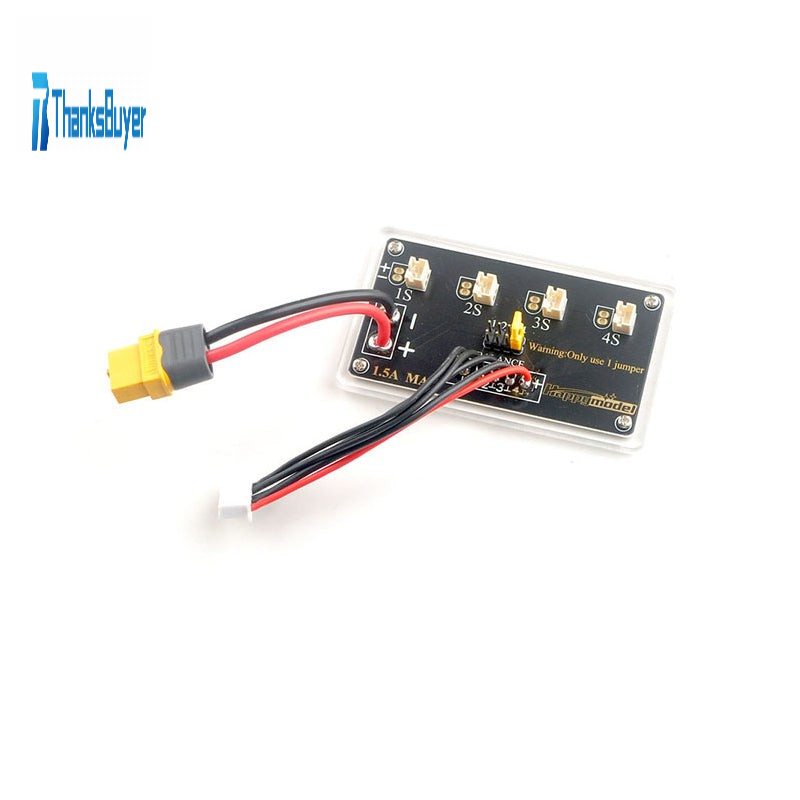

Happymodel 1S LIPOS Series Balance Charging Board Battery Balance Board Accessory for FPV Drone

Happymodel 1S LIPOS Series Balance Charging Board Battery Balance Board Accessory for FPV Drone

Specifications:

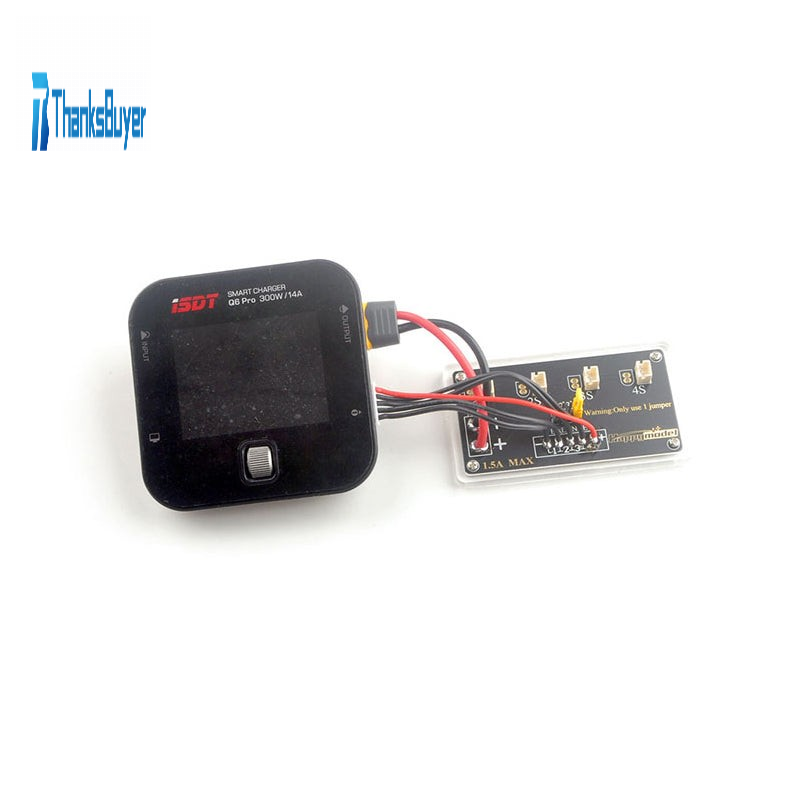

* Connection to the charger in XT60+4S balancing plug
* Max amperage: 1.5A
* Supports up to 4 1S LIPOS simultaneously
* Weight: 35g
* Dimensions: 81*46*20mm
* Selection of the number of elements to be detected using the jumper (included)

Connector:
* 1x XT60H-F
* 1x JST-XH 4S1P
* 4x PH2.0

Package Included:
* 1 x Series Balance Charging Board

Note:
* Be careful to always load identical LIPOS with an equivalent discharge.

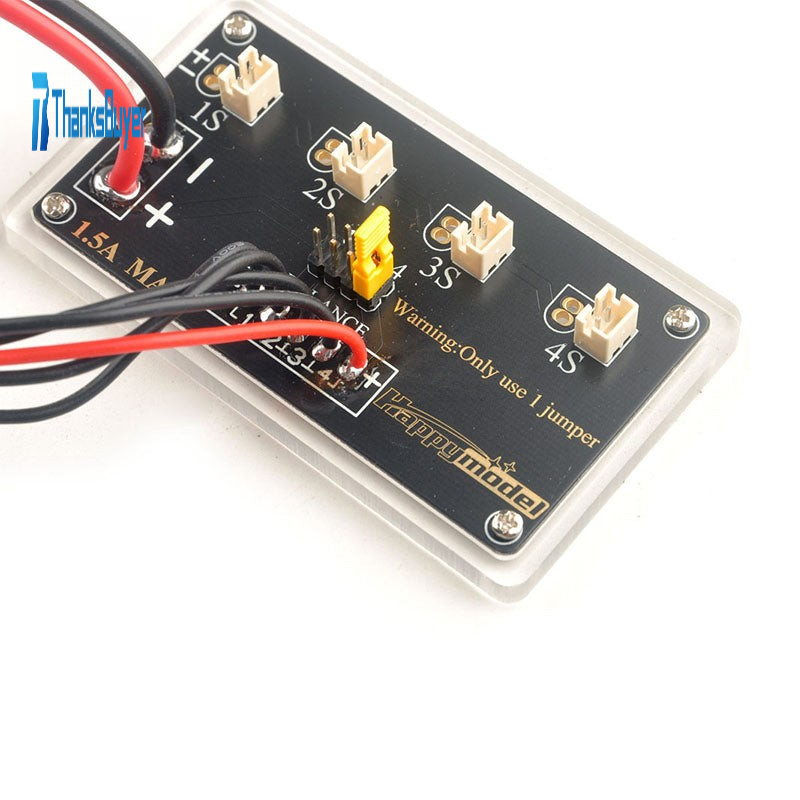

* If you charge 4 batteries at the same time, please insert the jumper cap into the position of number "4"; if you charge 3 batteries at the same time, please insert the jumper cap into the position of number "3", and so on.
* Battery is not included.
