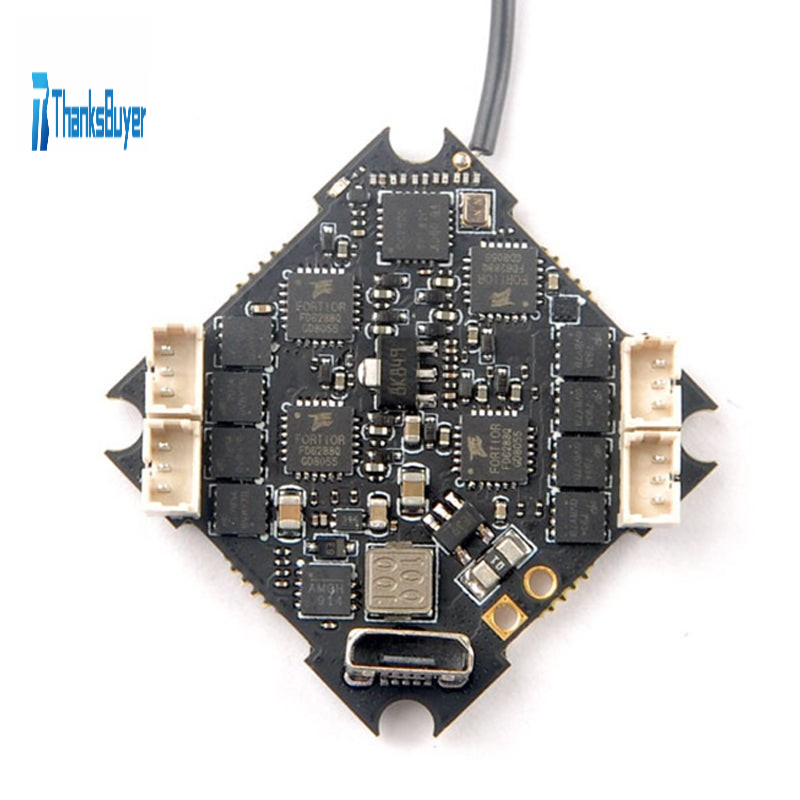

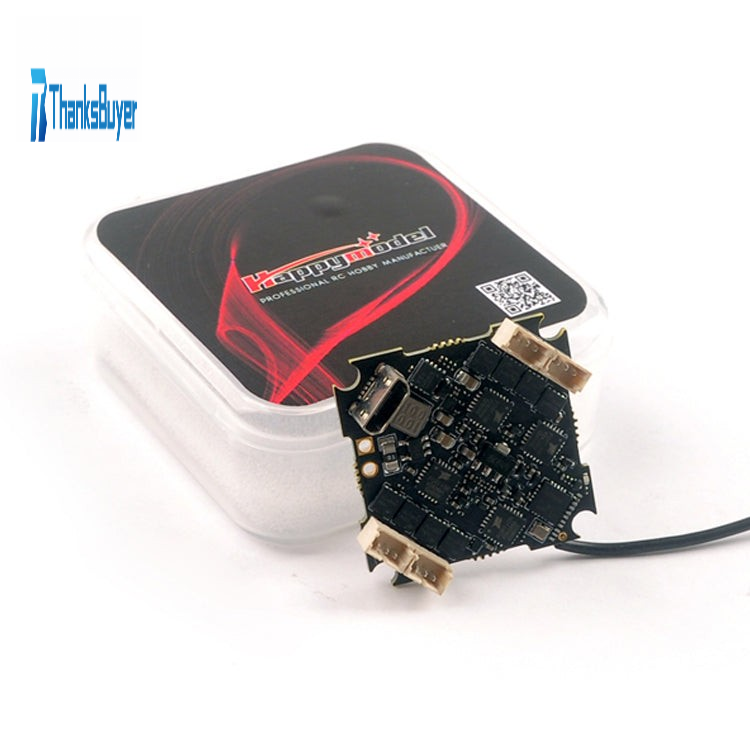

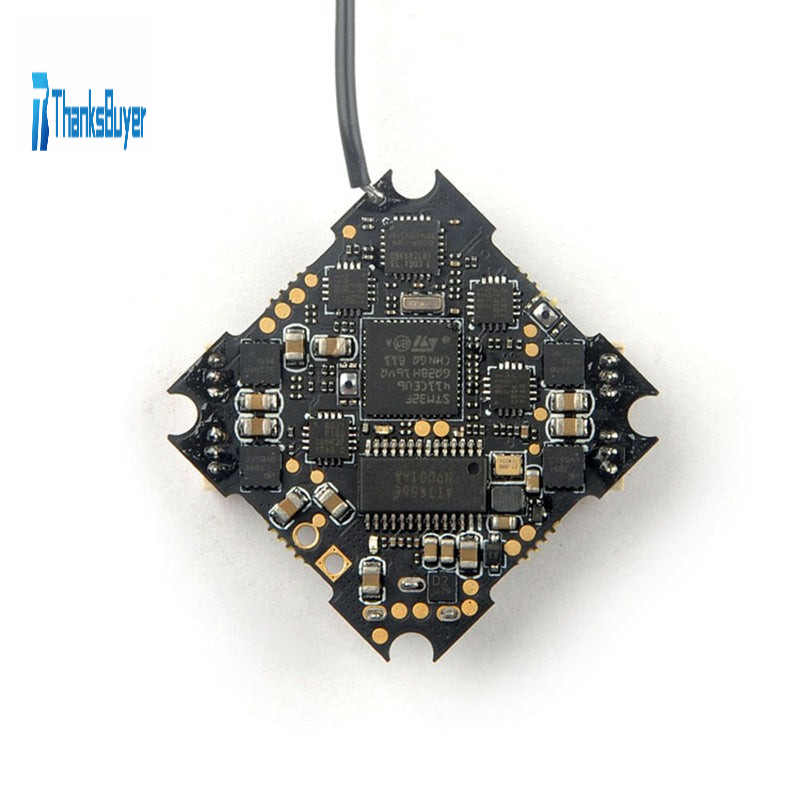

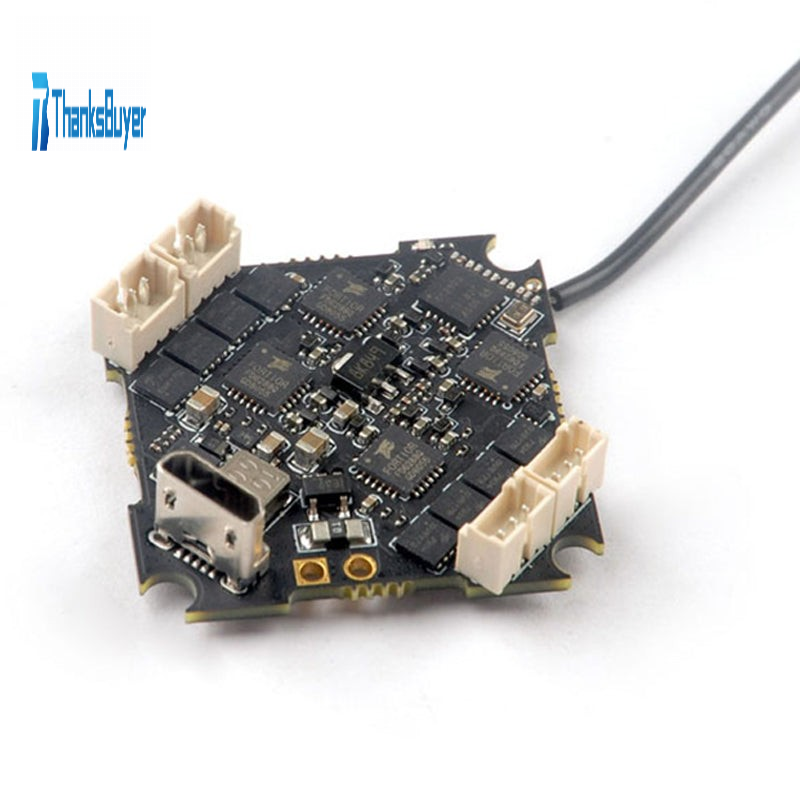

Happymodel Crazybee F4 Pro V3.0 2-4S Flight Controller ESC w/ Flysky Receiver for Larva X FPV Drone

Happymodel Crazybee F4 Pro V3.0 2-4S Flight Controller ESC w/ Flysky Receiver for Larva X FPV Drone

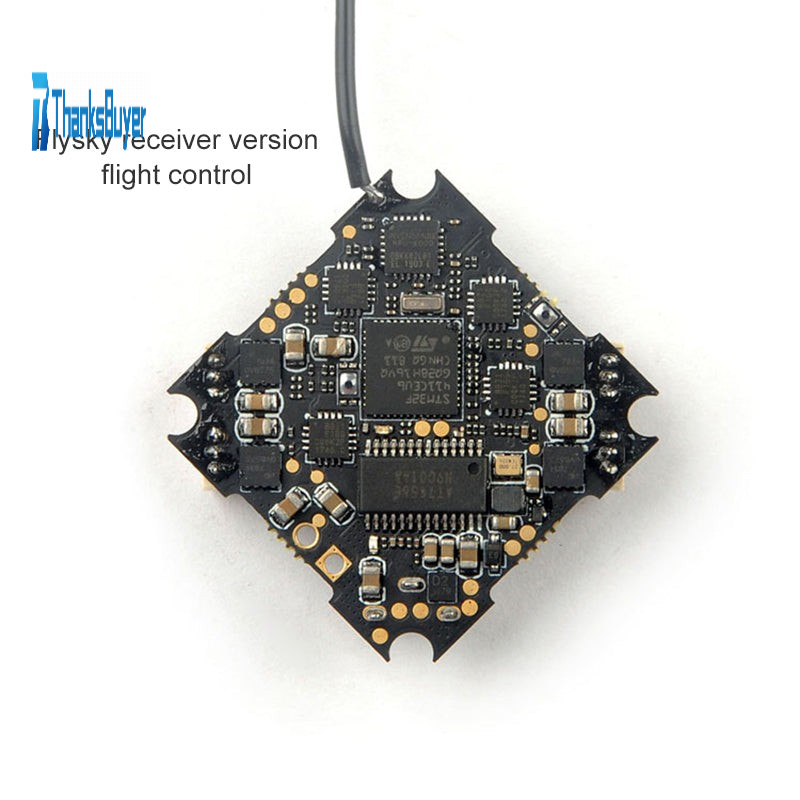

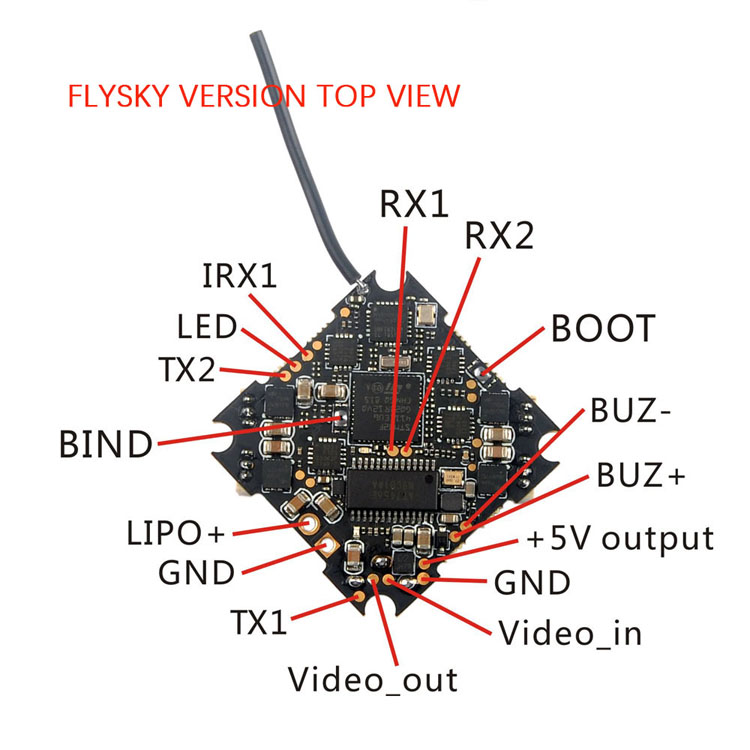

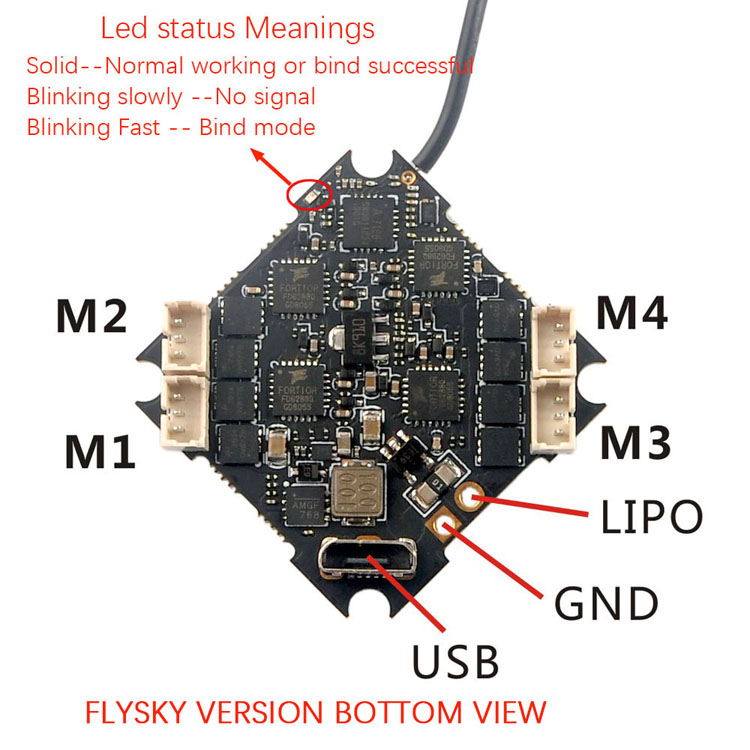

Flysky Version:
Crazybee F4FS PRO V3.0 Firmware target
Built-in SPI Flysky receiver with telemetry (AFHDS/AFHDS2A switchable)

MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5*28.5mm
Power supply: 2-4S battery input (DC 7-17V)
Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 470
Built-in 5V 1A BEC
Built-in voltage detection

MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7V/17V)
Current: 10A continuous peak 12A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8CH (AFHDS) or 14CH (AFHDS-2A)
No ground interference ( transmitter and receiver 1 m from the ground): 300m
Failsafe support

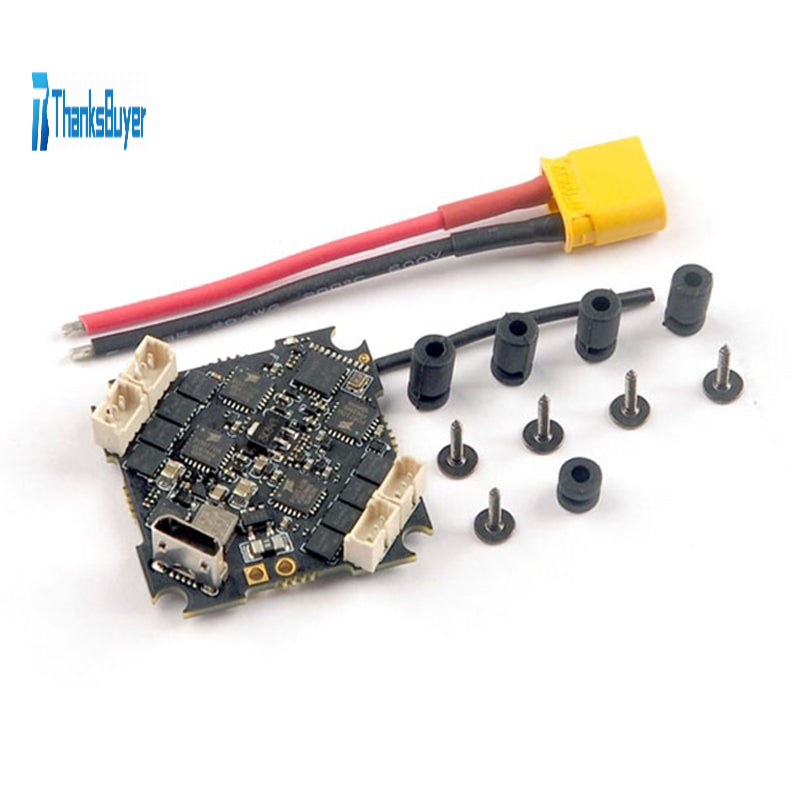

Package List:
1 x Flight Controller
1 x Accessories Kit
