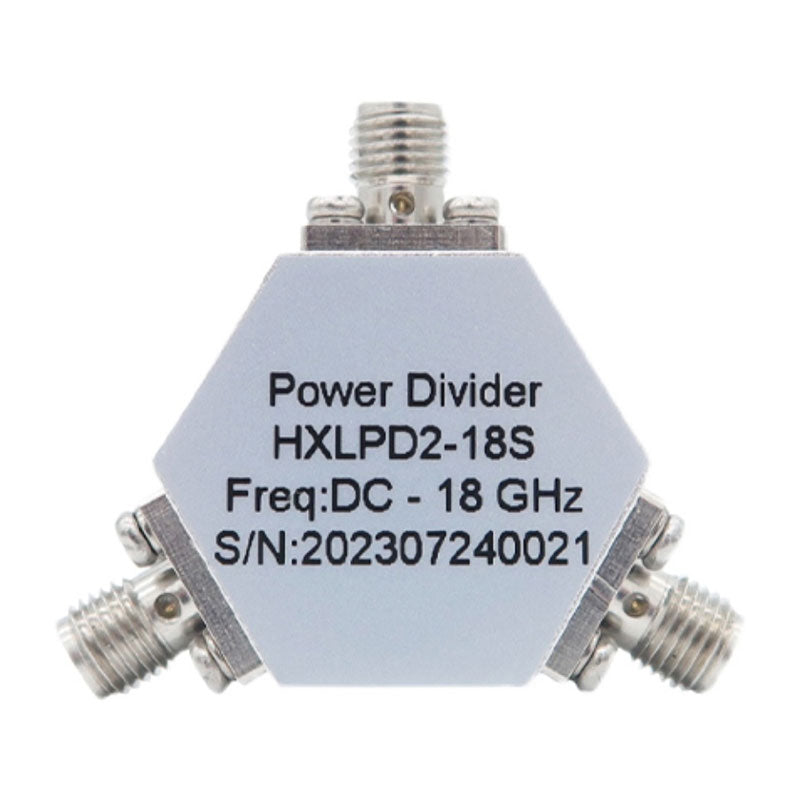

HXLPD2-18S DC-18GHz One to Two Wideband Resistive Power Divider Micro-band Power Splitter with SMA Female Connector

Specification:
- Frequency range: DC-18GHz

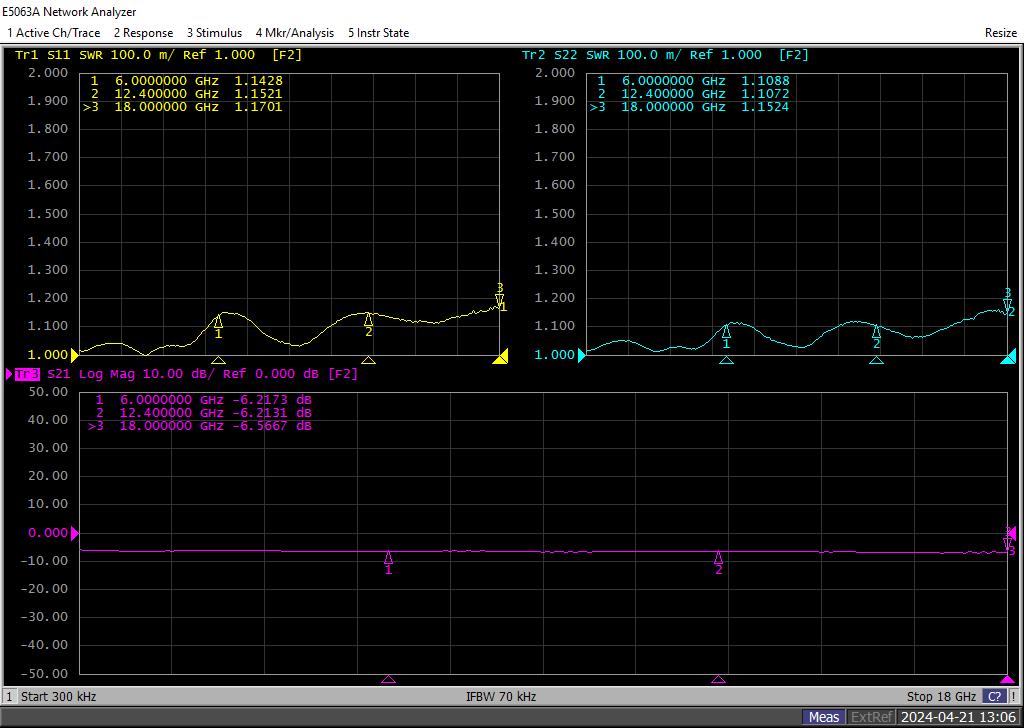

- Insertion loss: 6.3dB
- Isolation degree: 6.5dB
- Input VSWR: 1.23 : 1
- Output VSWR: 1.21 : 1
- Connector: SMA female connector
- Amplitude balance: ≤0.4dB
- Phase balance: ±10°
- Characteristic impedance: 50ohms
- Operating temperature: -35℃ to +75℃
- Storage temperature: -35℃ to +75℃
- Rated power: 1W
- Net weight: 24g

Package Included:
- 1 x Power Divider
