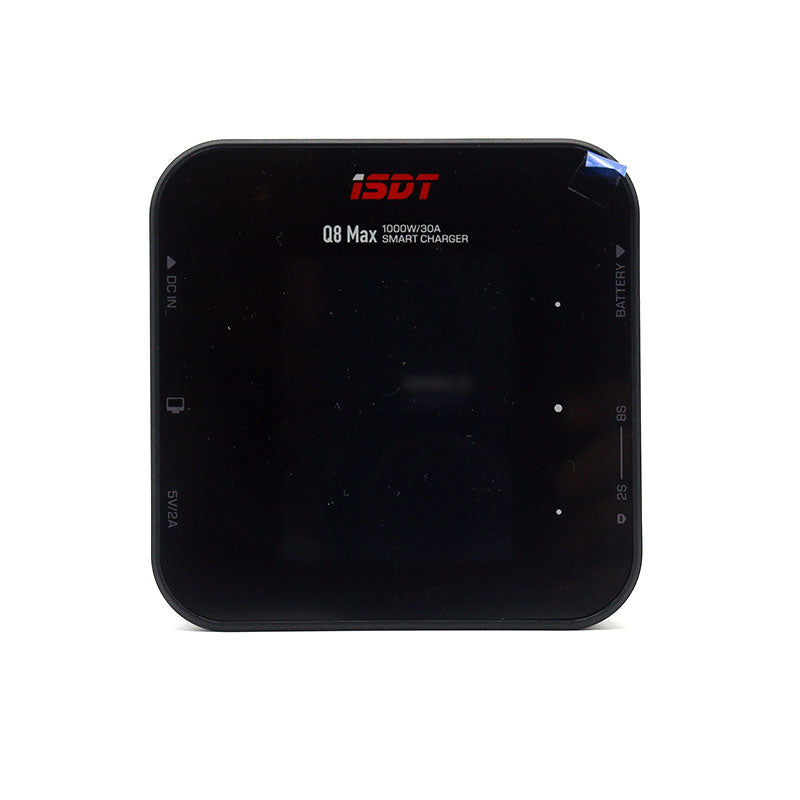

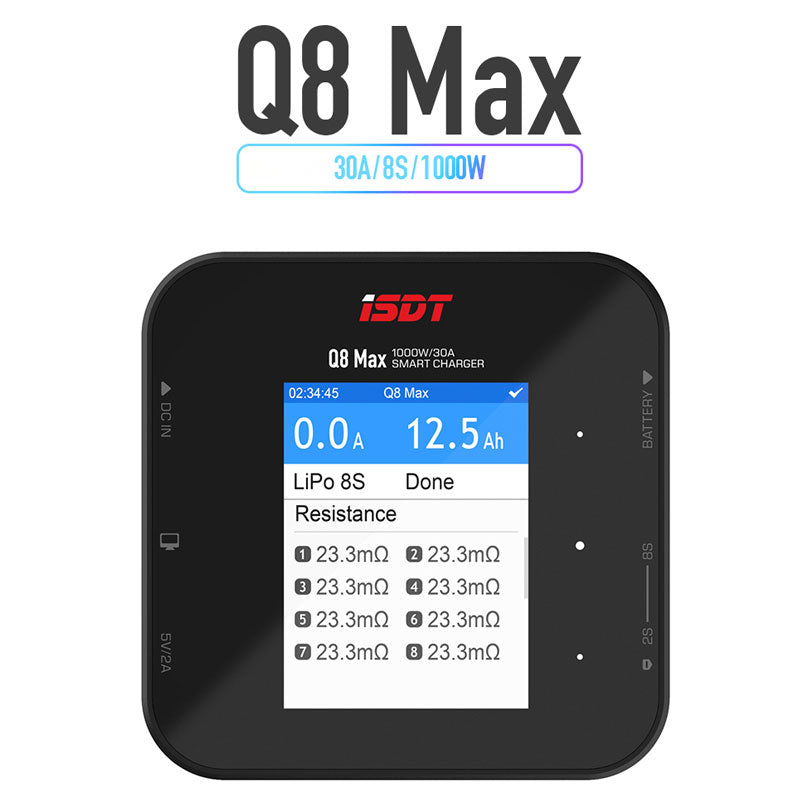

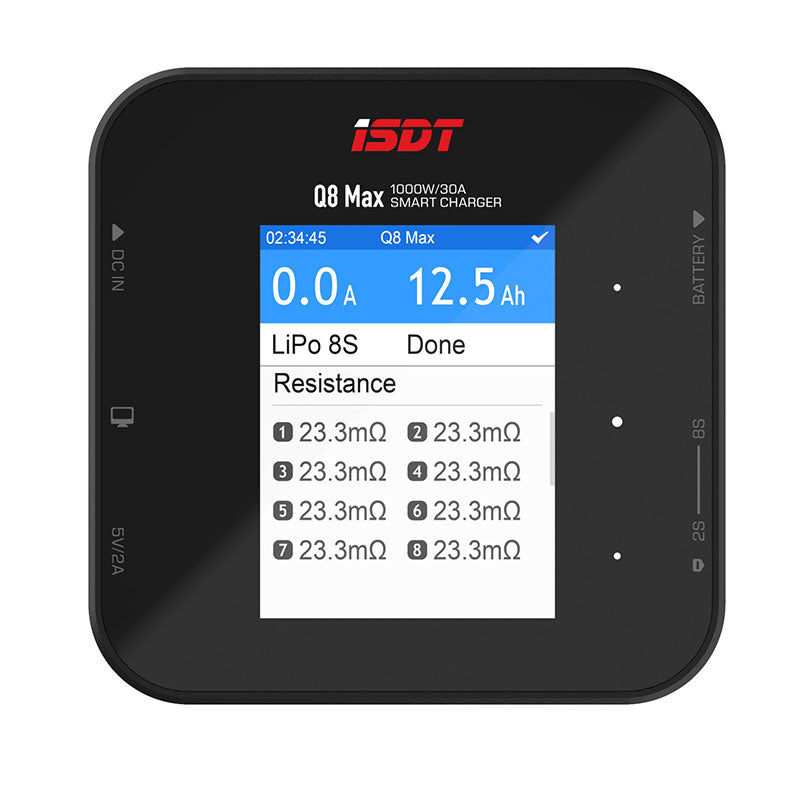

ISDT Q8 MAX 1000W 30A 1-8S Lipo Battery Balance Charger for Lilon LiPo LiHV NiMH Pb RC Models
受取状況を読み込めませんでした
ISDT Q8 MAX 1000W 30A 1-8S Lipo Battery Balance Charger for Lilon LiPo LiHV NiMH Pb RC Models
Specifications
- Model No: Q8 Max
- Input voltage: DC 10~34V
- Output voltage: DC 1~34V
- Max. input current: 33A
- Charging current: 0.2~30.0A
- Discharging current: 0.2~3.0A
- Max. charging power: 1000W
- Max. discharging power: 30W
- Balance current: 1.5A/Cell Max
- Supported battery types and cell count:
- LiFe,LiIon,LiPo 1~8S; LiHv 1~7S; Pb 1~12S; NiMH/Cd 1~16S
- Input BattGo: Support
- Output BattGo: Support
- Abnormal voltage alarm: Support
- Incorrect cell count setting alarm: Support
- Working temperature: 0℃~40℃
- Storage temperature: -20℃~60℃
- Dimension: 95×95×45mm
- Weight: 290g
Input voltage：DC 10~34V
Q6nano needs an additional power adapter to power the charger. The store sells a variety of power adapters. If you can’t find it, you can contact customer service for recommendation.
Function Buttons
Parameter Settings.
When the battery is connected, the system automatically recognizes the battery parameters by default,
Parameter Settings
You can set according to your needs, battery type, current, voltage, battery number, etc.
