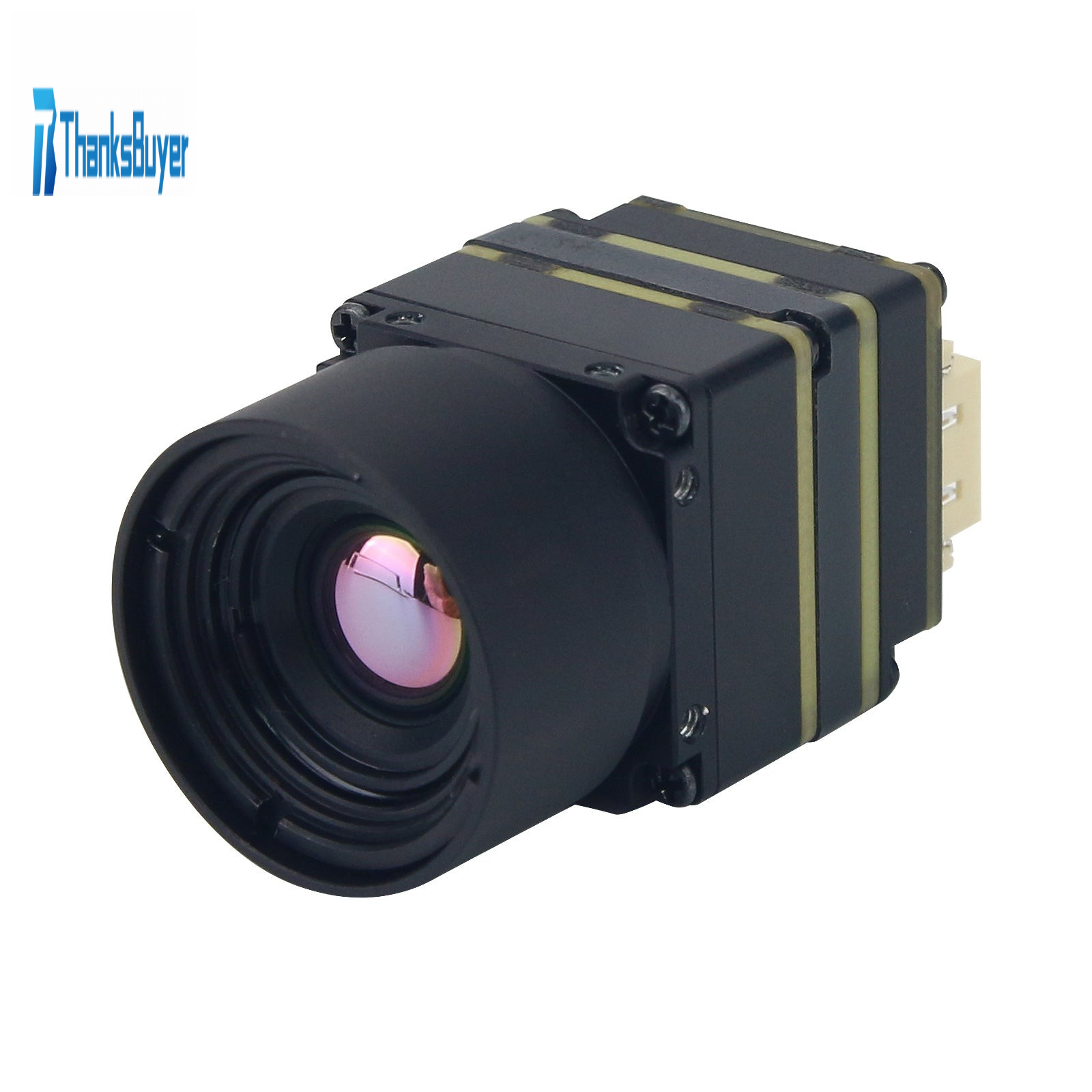

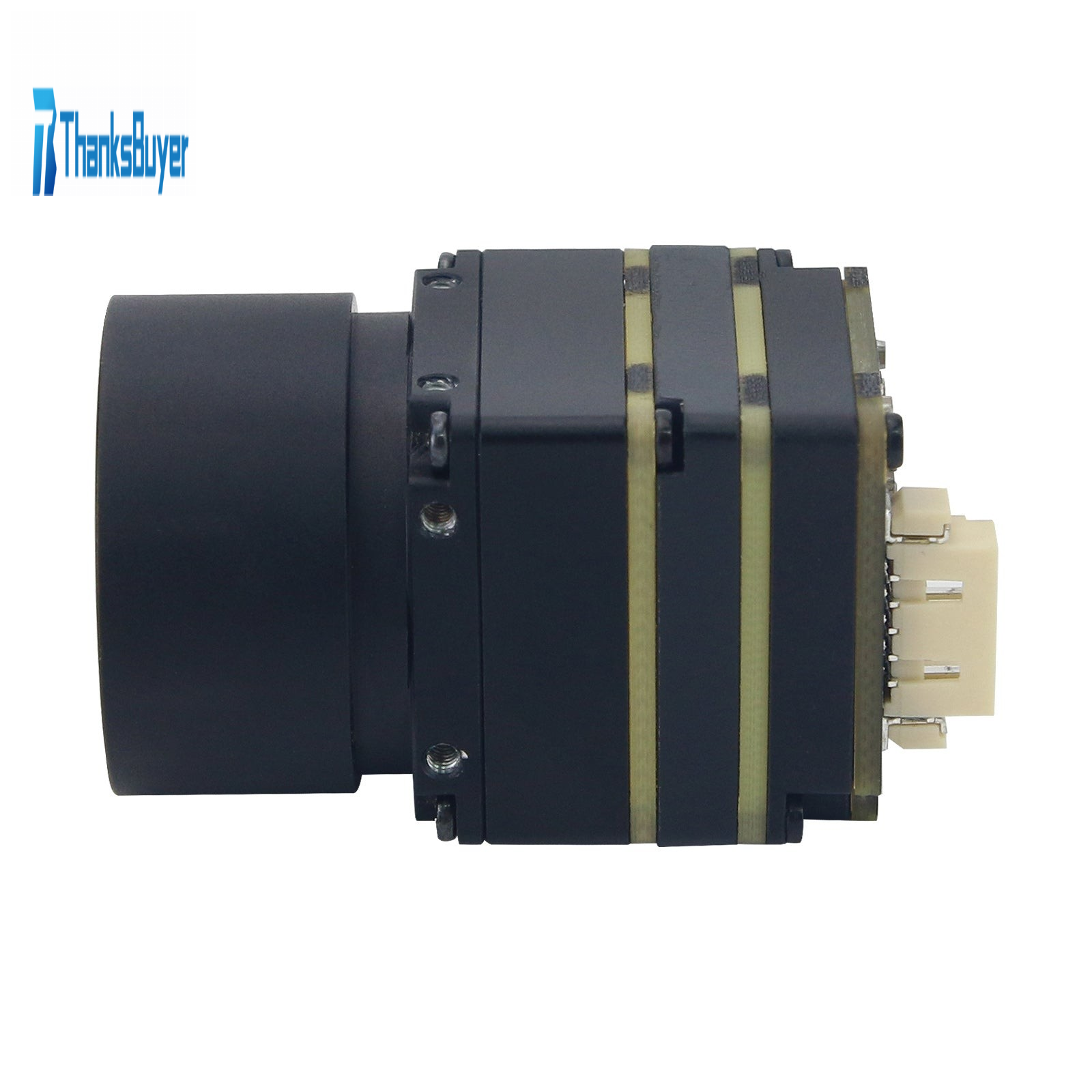

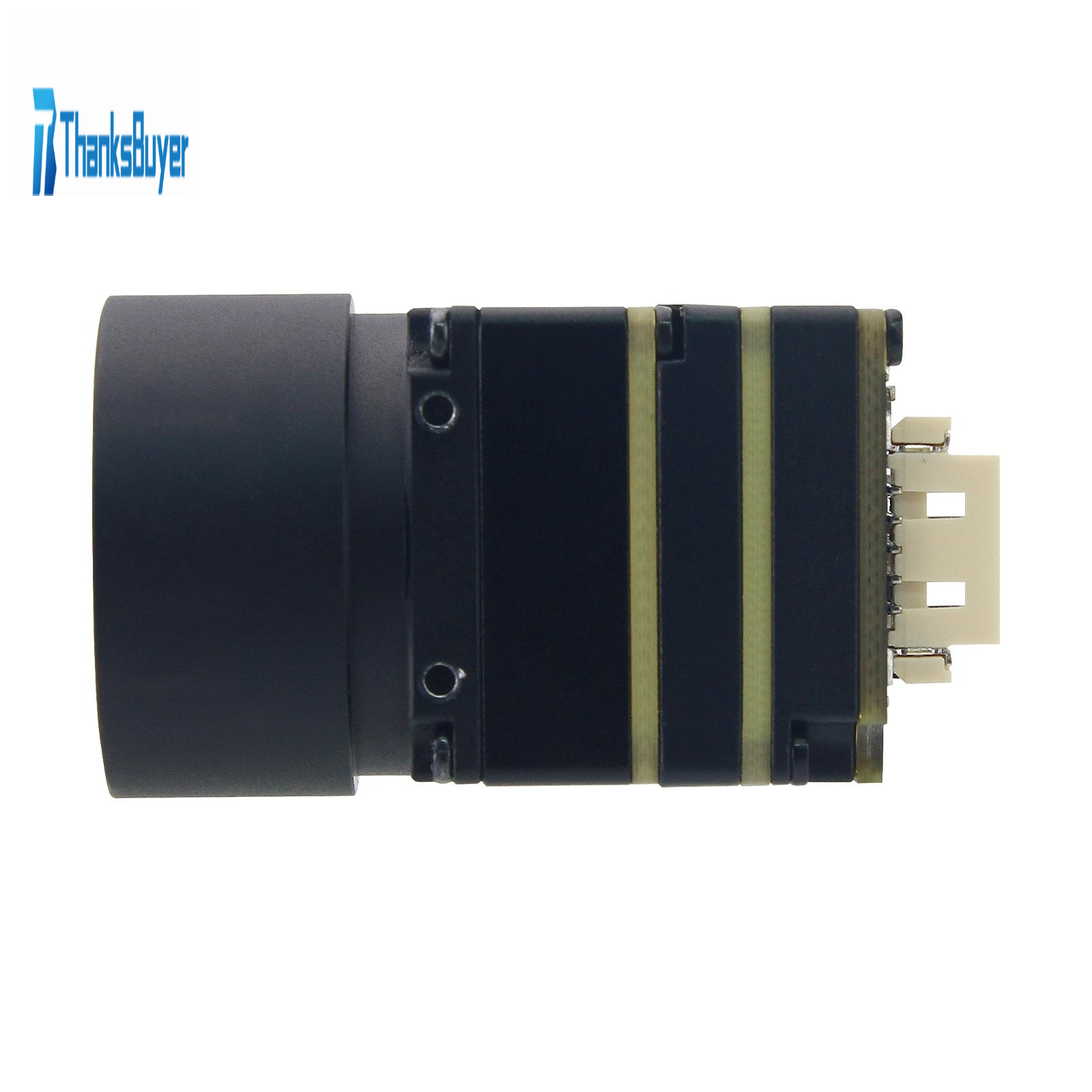

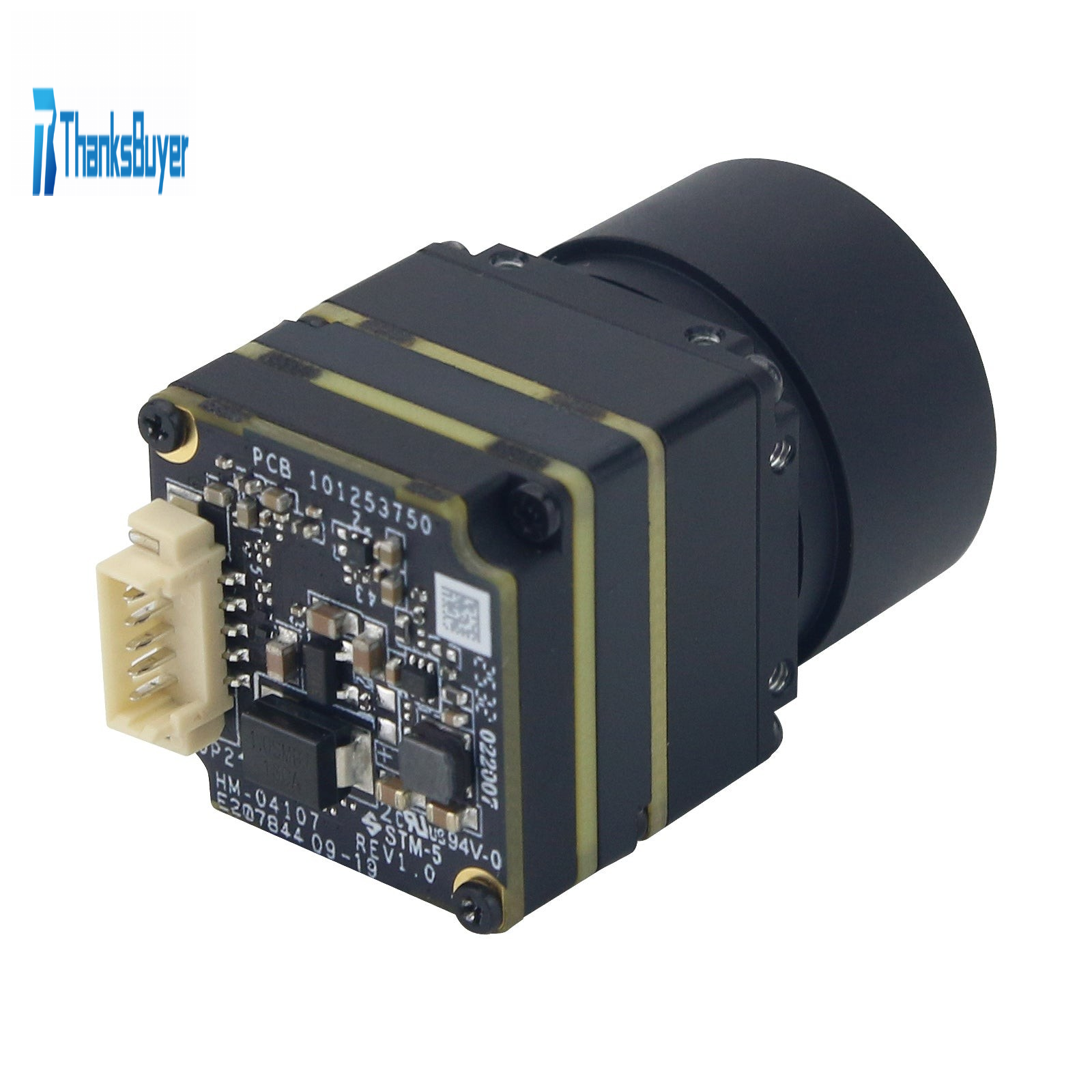

JS 384×288 Thermal Imaging Camera Module for FPV Drones CVBS Interface 4mm/9.7mm Lens 12µm IR

Specification:
- Resolution: 384 x 288
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 50fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 4mm/9.7mm F1.0
- FOV (HxV): 9mm: 26.46°(H) x 19.81°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -50℃ ~ 85℃

Package Included:
- 1 x Thermal Imager
