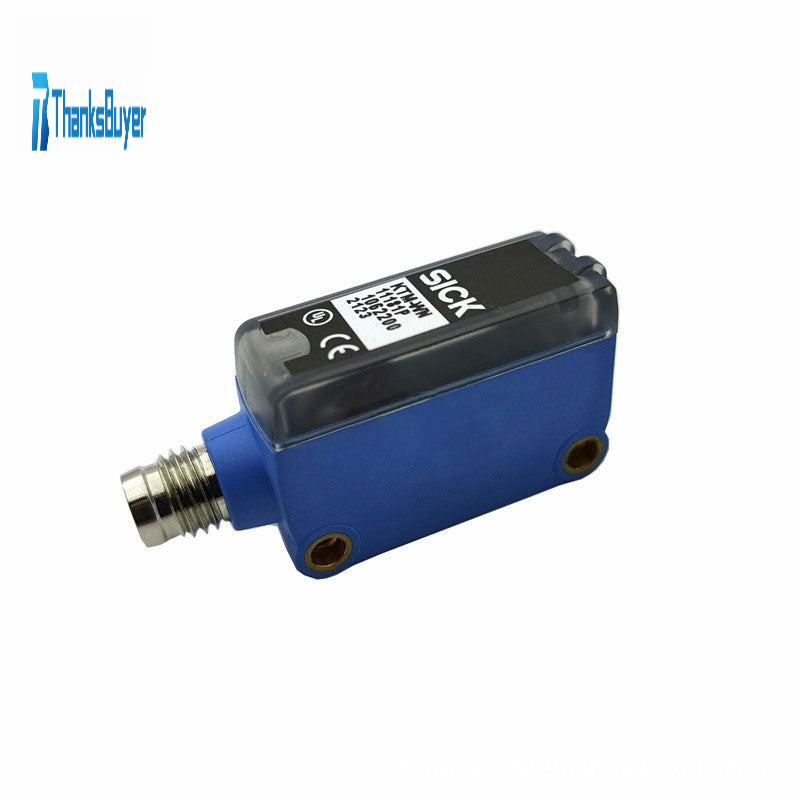

KTM-WN11182P Contrast Sensor KTM Prime 1062150 Original Sensor for SICK

KTM-WN11182P Contrast Sensor KTM Prime 1062150 Original Sensor for SICK

Dimensional drawing KTM-Mxxxxx2P, KTM-Wxxxxx2P
Dimensions in mm (inch)

① Center of optical axis, sender
② Center of optical axis, receiver
③ Mounting holes M3
④ display and adjustment elements

Display and adjustment elements

① Teach-in button
② LED yellow
③ LED green

Connection type. see table: Connection/PIN assignment

M12 male connector, 4-pin, A-coding

Setting the switching threshold (dynamic)


Setting the switching threshold (static)


Sensing distance KTM-xxx1xxxx


Package Included:
- 1 x Contrast Sensor
