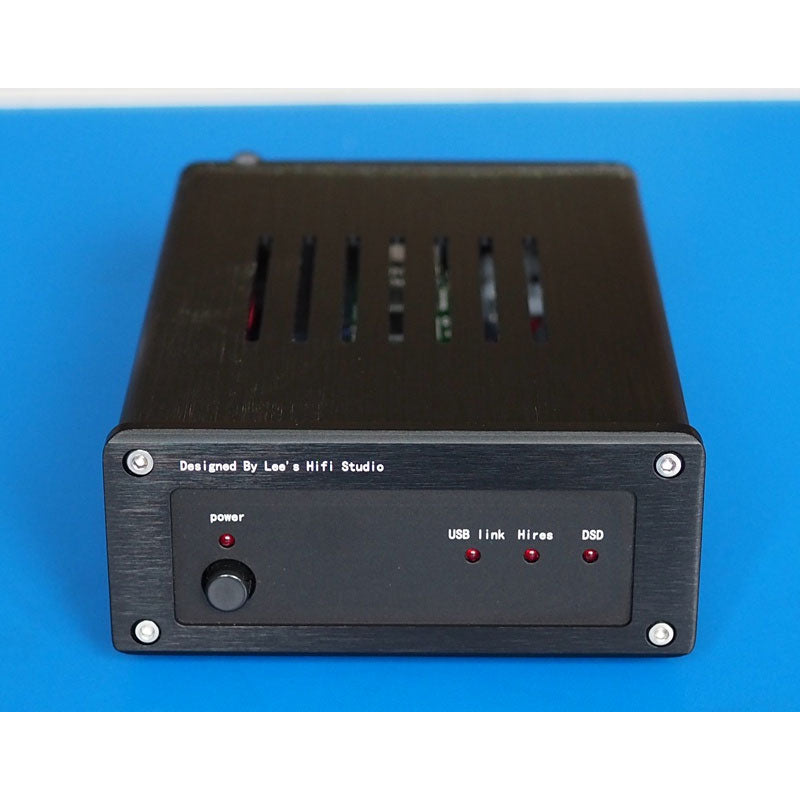

L4398DAC with Sub Card and USB Cable DSD HIFI Decoder Master Audio DSD LA5 Preamplifier for Lahmann

L4398DAC with Sub Card and USB Cable DSD HIFI Decoder Master Audio DSD LA5 Preamplifier for Lahmann

Features:

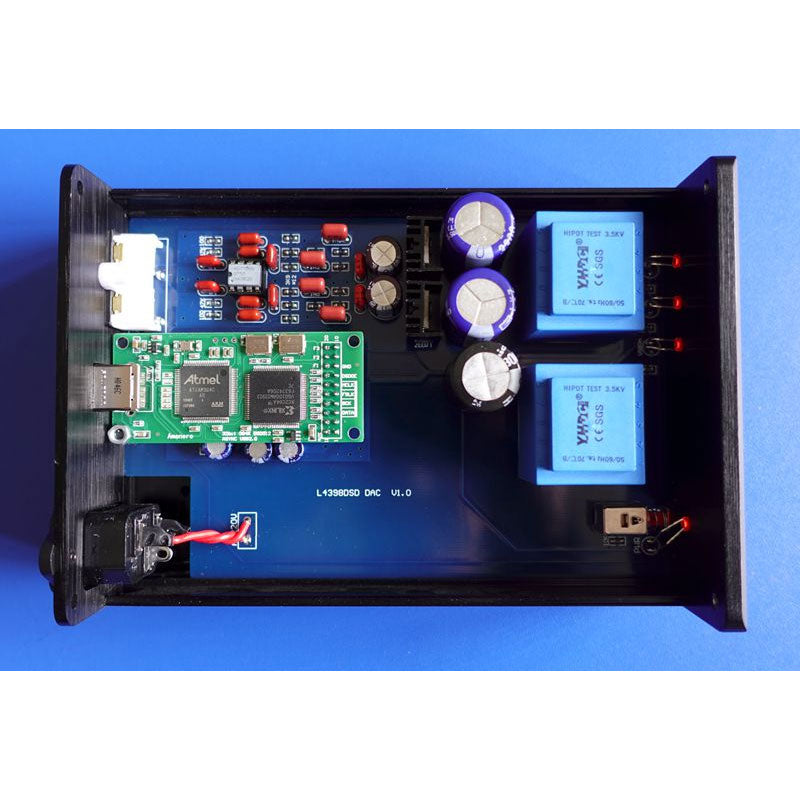

- Using CS4398 fever decoding chip and MCU to do dynamic optimization of 24-192K PCM and DSD.
- Compatible With Italian digital interface to support PCM ASIO, for Wasapi source code and DSD bus output.
- LPF adopts AD712 fever operational amplifier and is equipped with socket, which can be replaced and upgraded by itself.
- Double transformer output three independent power supply for digital, DAC analog, low pass part strictly independent power supply.
- CS4398 core parts from the power supply, software, low-pass filtering, wiring and so on to do a lot of optimization.
- It used CS4398 DSD bus transmission, hard solution DSD audio.
- The driver used in this machine and foobar2000 with all plug-ins are shown in the following software package: https://pan.baidu.com/s/18nc5Bdu9wjlgGda6jCiU-A; password: 8888

Parameter:
- Input interface: USB square port
- Input format: PCM 24-192K,DSD64, DSD128

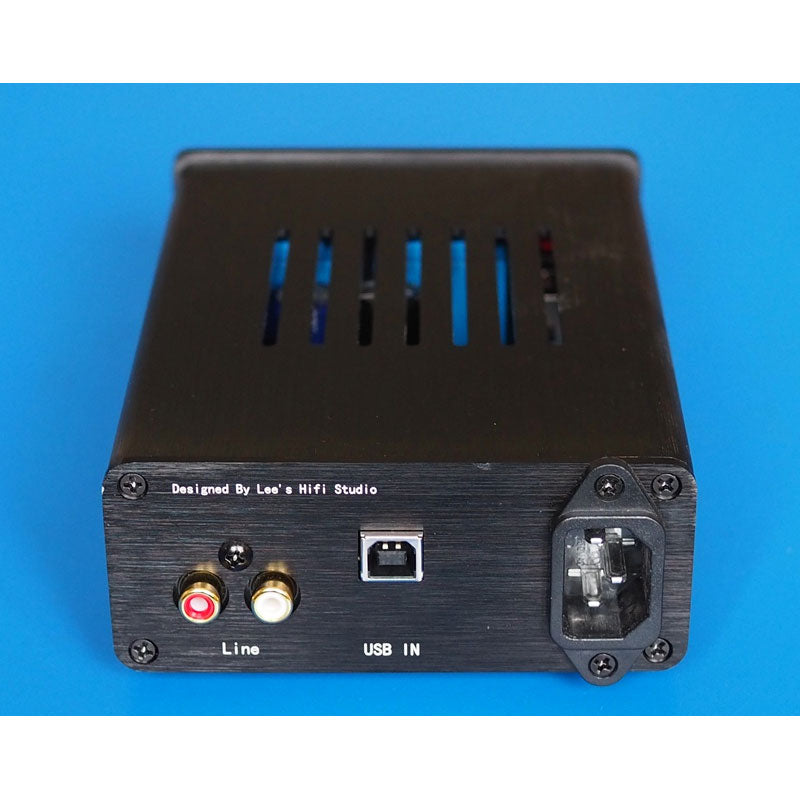

- Output interface: RCA lotus stereo
- THD+N: -107dB
- S/N: 120dB
- Output level: 2.2V VPPM
- Output impedance: <100 ohm
- Average power consumption: AC220V<10W.
- Size: 118 x 52 x 170mm
- Weight: about 1.1kg

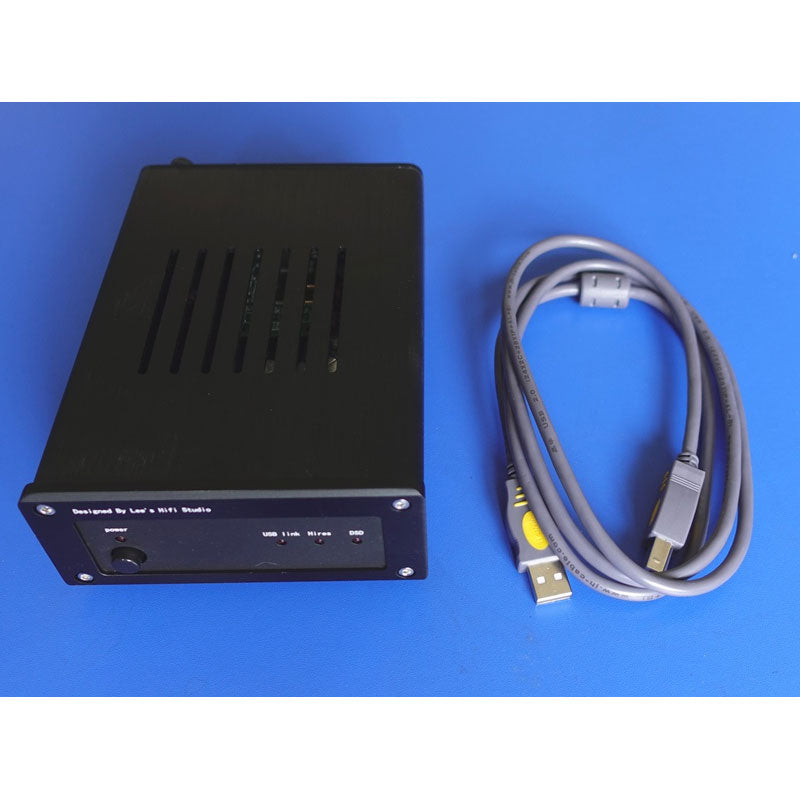

Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x Sub Card
- 1 x USB Cable
