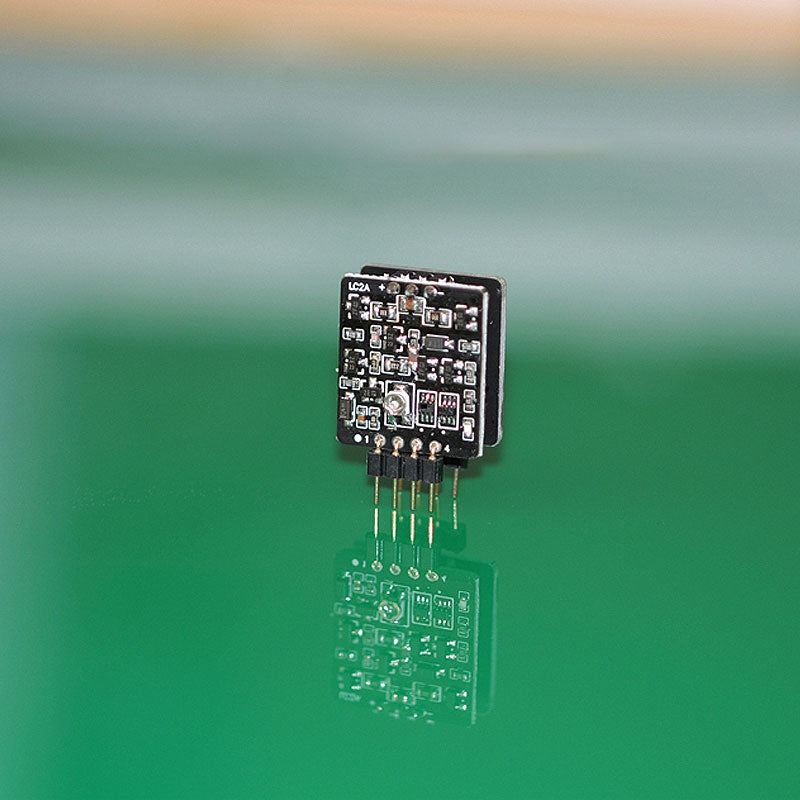

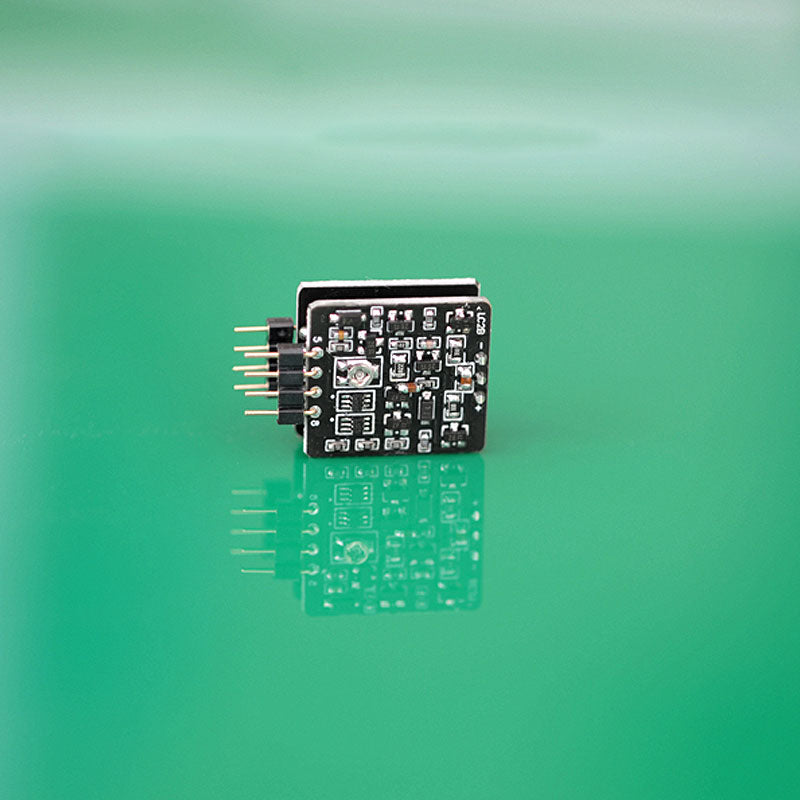

LC2 Class-A Discrete Dual Operational Amplifier Low Noise and Low Distortion Pre-amplifier for TOSHIBA Tube

LC2 Class-A Discrete Dual Operational Amplifier Low Noise and Low Distortion Pre-amplifier for TOSHIBA Tube

Parameter:
- Model: LC02
- Noise: 20nV
- Operational amplifier type: Dual operational amplifier
- Signal-to-noise ratio: >120dB
- Distortion: <0.0002%
- Output DC voltage: <5mV
- Operating voltage: ±9~15V
- Static current: 40mA (40mA for positive and negative voltage respectively)
- Max. Output current: 100mA
- Number of pin: 8
- Dimension: 25.5 x 20 x 10.5mm

Package Included:
- 1 x Module

Note:
- The operational amplifier module has its order marked with pins 1 to 8, and it can not be installed backwards when using.
- This op amp module works in Class A state, and it is normal to generate heat during operation.
