LM-518 IA Electronic Tube Amplifier 845 Vacuum Tube Amplifier 22W+22W Single-ended Class A Power Amplifier 230A

LM-518 IA Electronic Tube Amplifier 845 Vacuum Tube Amplifier 22W+22W Single-ended Class A Power Amplifier 230A

Features:
- Twenty-two watts per channel, Single Ended Triode design, Pure Class A Integrated.
- Stereo Amplifier with 845 output power tubes.
- All tube Integrated with 12AX7 input tubes for voltage amplification, 6P3P driver tubes, 5AR4 rectifier tubes and 845 output tubes. Driver tubes 6P3P can also be replaced by different kinds of driver tubes and you can select which tubes you prefer judging by different sounds.

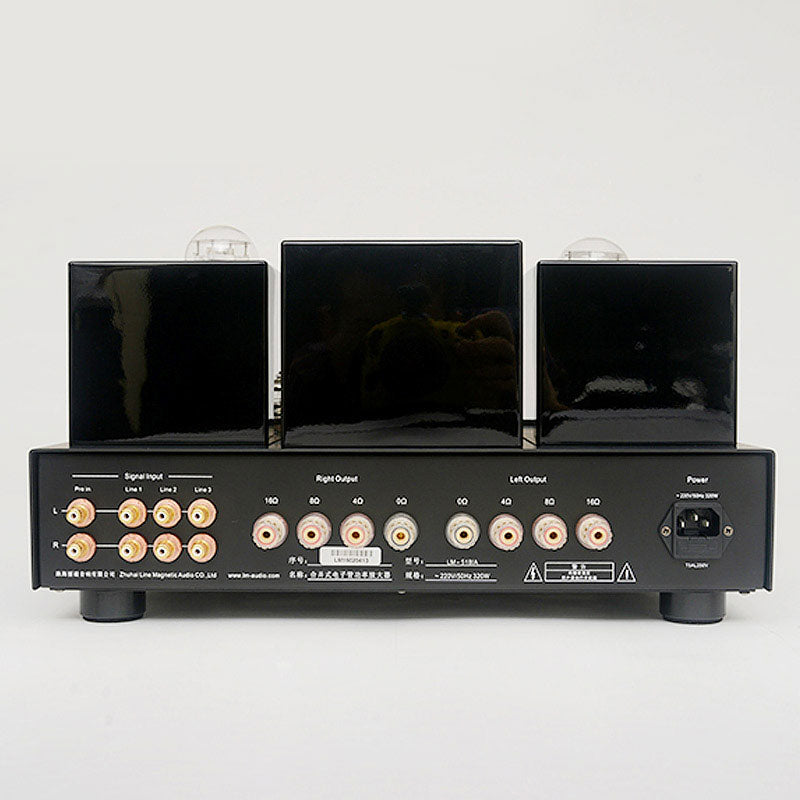

- 4 pairs of inputs and speaker terminals for 4, 8 and 16 ohm speakers are located on the back panel.

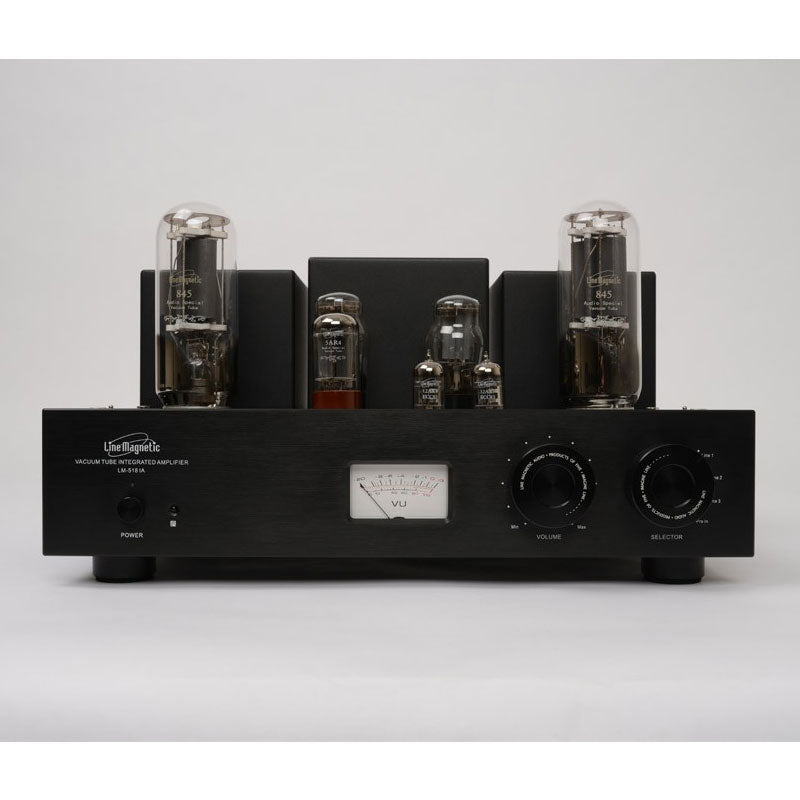

- User bias control has been used for bias adjustment and one meter has been added to the front plate to allow you to monitor bias with ease.
- External Hum Balance adjustment for sound adjustment.
- Specially designed EI transformers for power supply and two EI output transformers with wide bandwidth are applied.
- For ALPS volume potentiometer, N-cap coupling capacitors and other audio grade components have been applied.
- Standard with remote control.
- Hand made construction with the finest point-to-point wiring.
- Soft Start and time-delay circuit. (30 seconds).

Specification:
- Using electronic tubes: 12AX7 x 2, 6P3P x 2, 845 x 2, 5AR4 x 1
- Harmonic distortion: 1% (1kHz)
- SNR: 87dB
- Input sensitivity: 200mV; pure rear stage 800mV
- Output power: 22W + 22W (single-ended Class A)
- Frequency response: 10Hz - 50kHz (-1.5dB)
- Input impedance: 100kohms
- Output impedance: 4ohms, 8ohms, 16ohms
- Power supply voltage: 220V±5% (50Hz)
- Power consumption: 320W
- Product size: 430 x 365 x 250mm
- Net weight: 35kg

Package Included:
- 1 x Electronic Tube Amplifier
