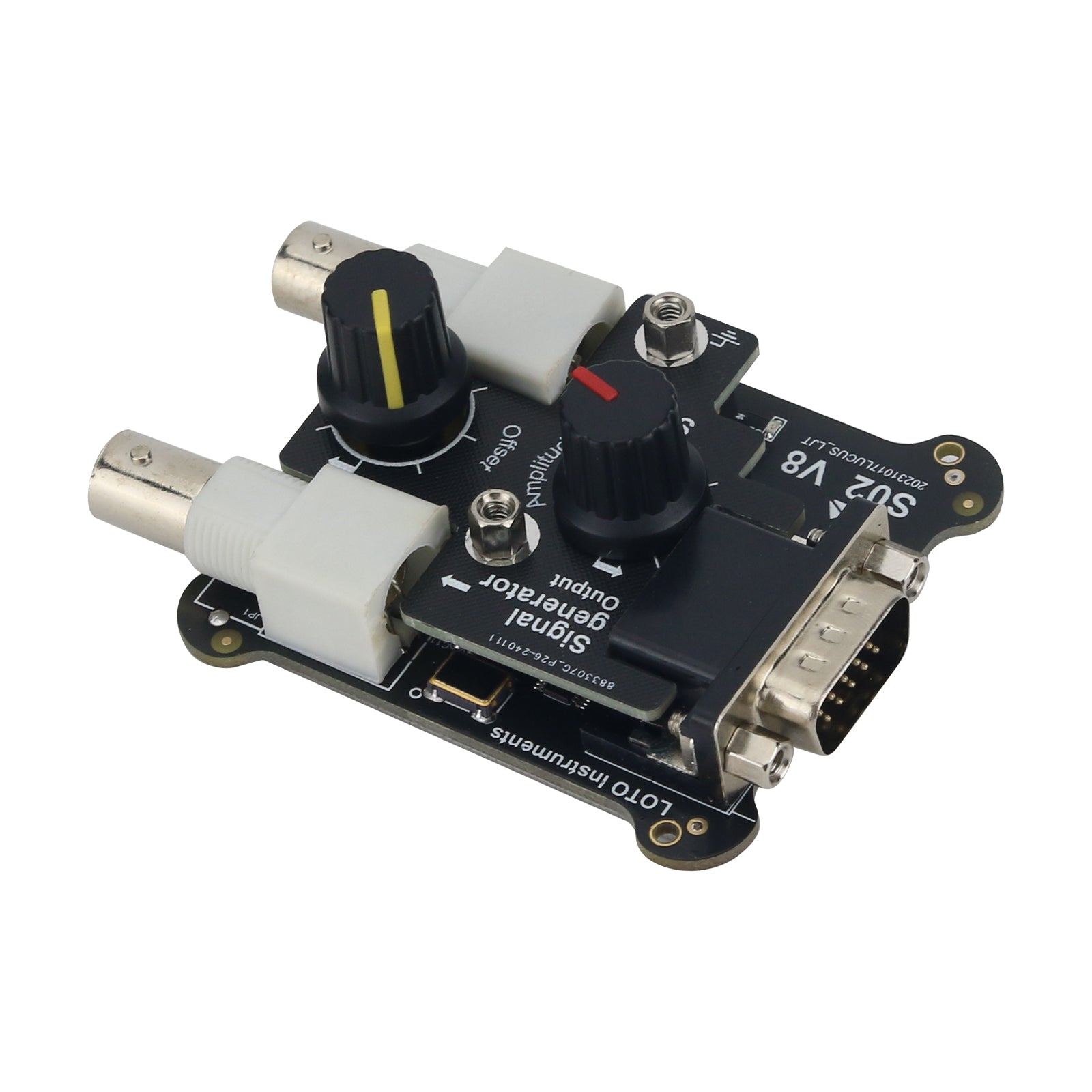

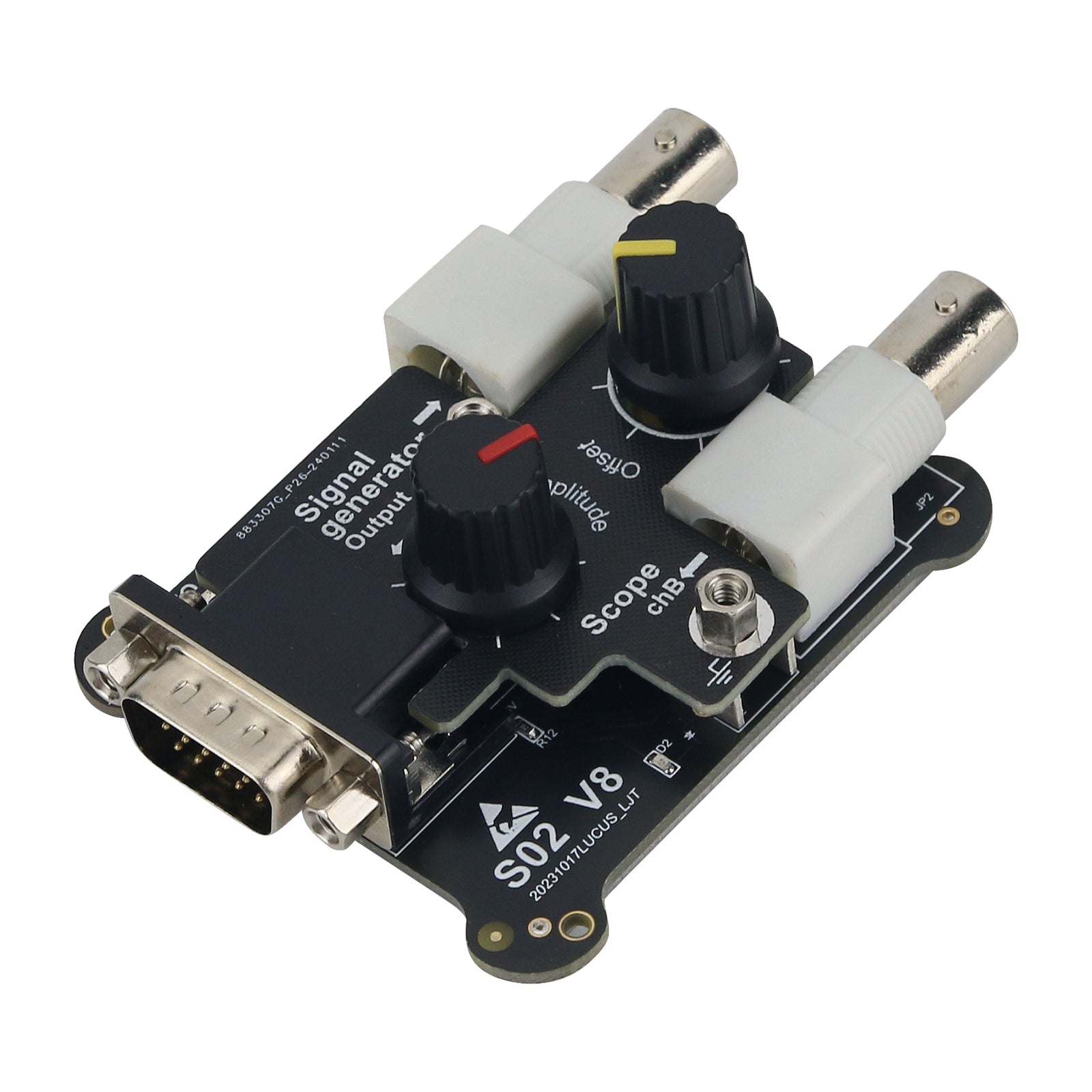

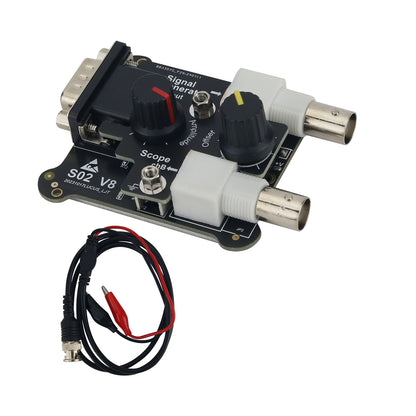

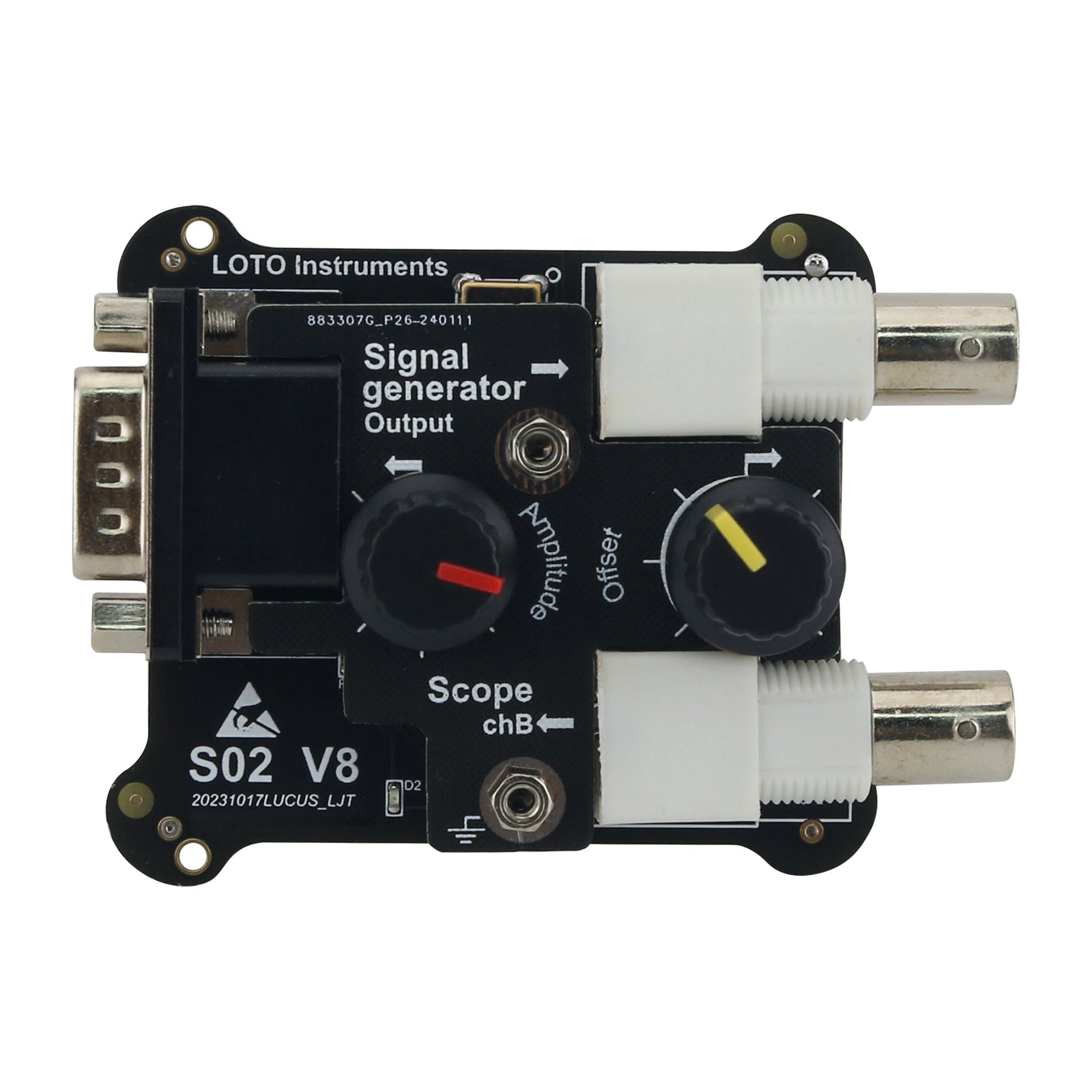

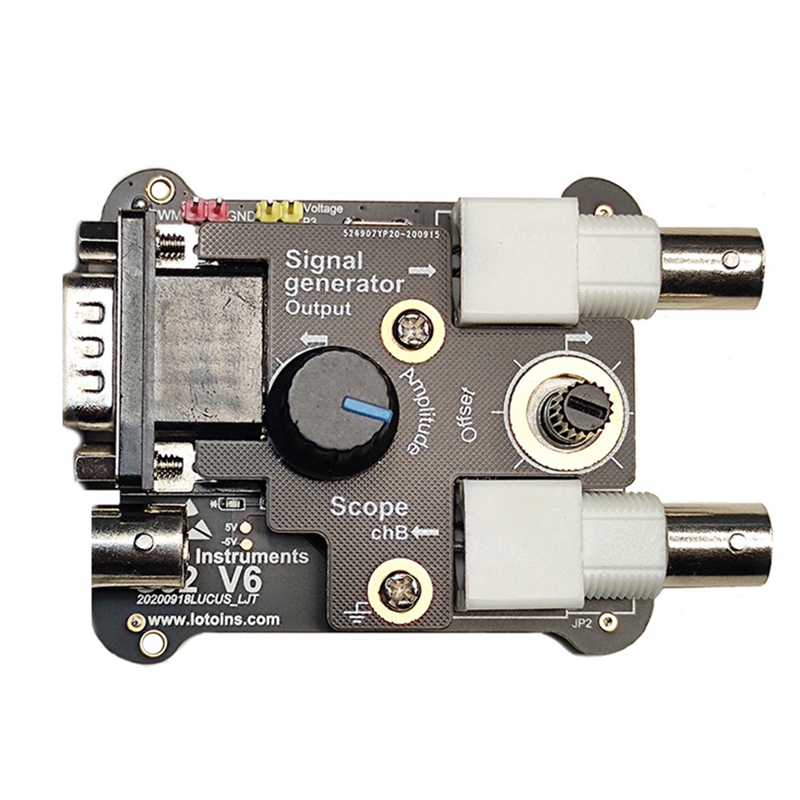

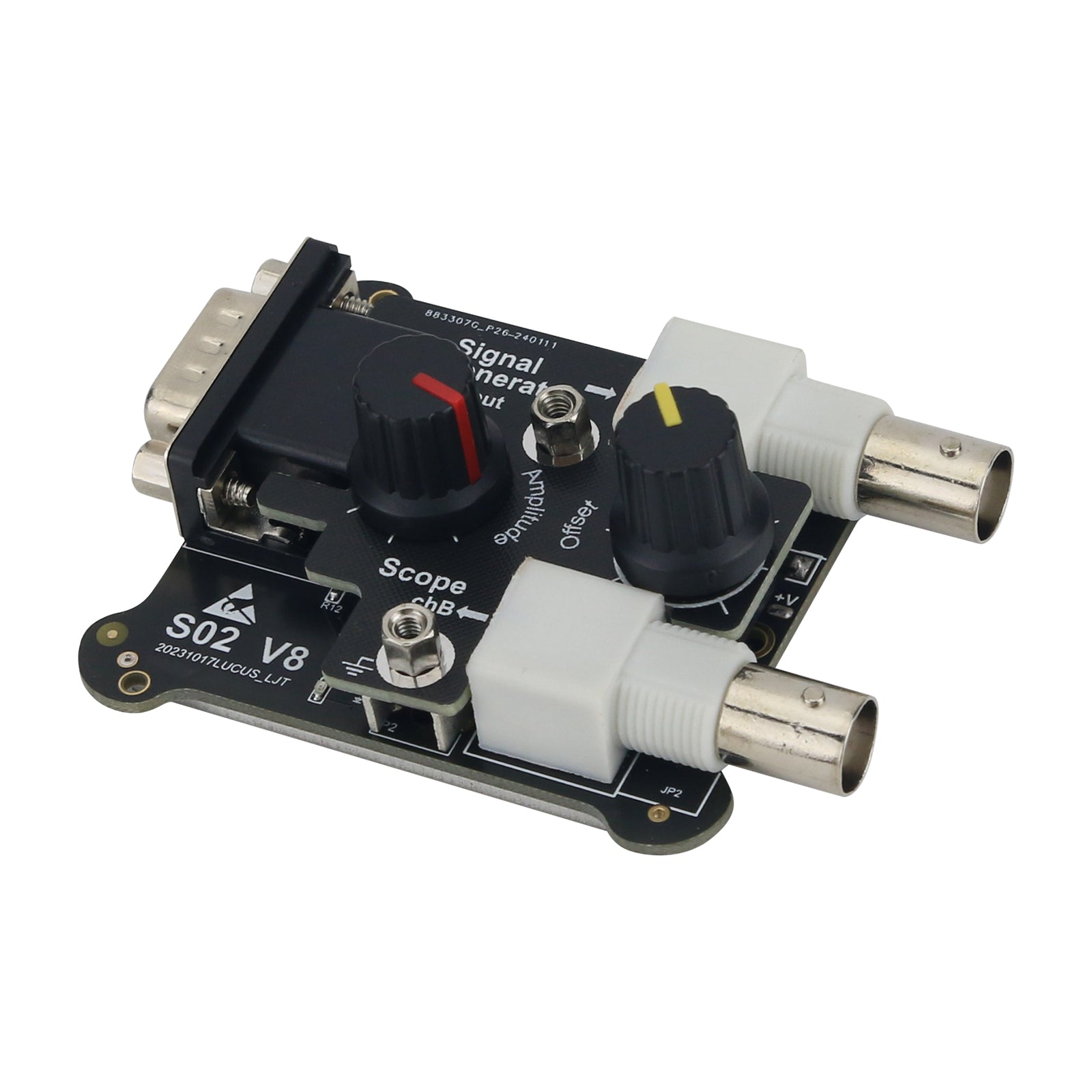

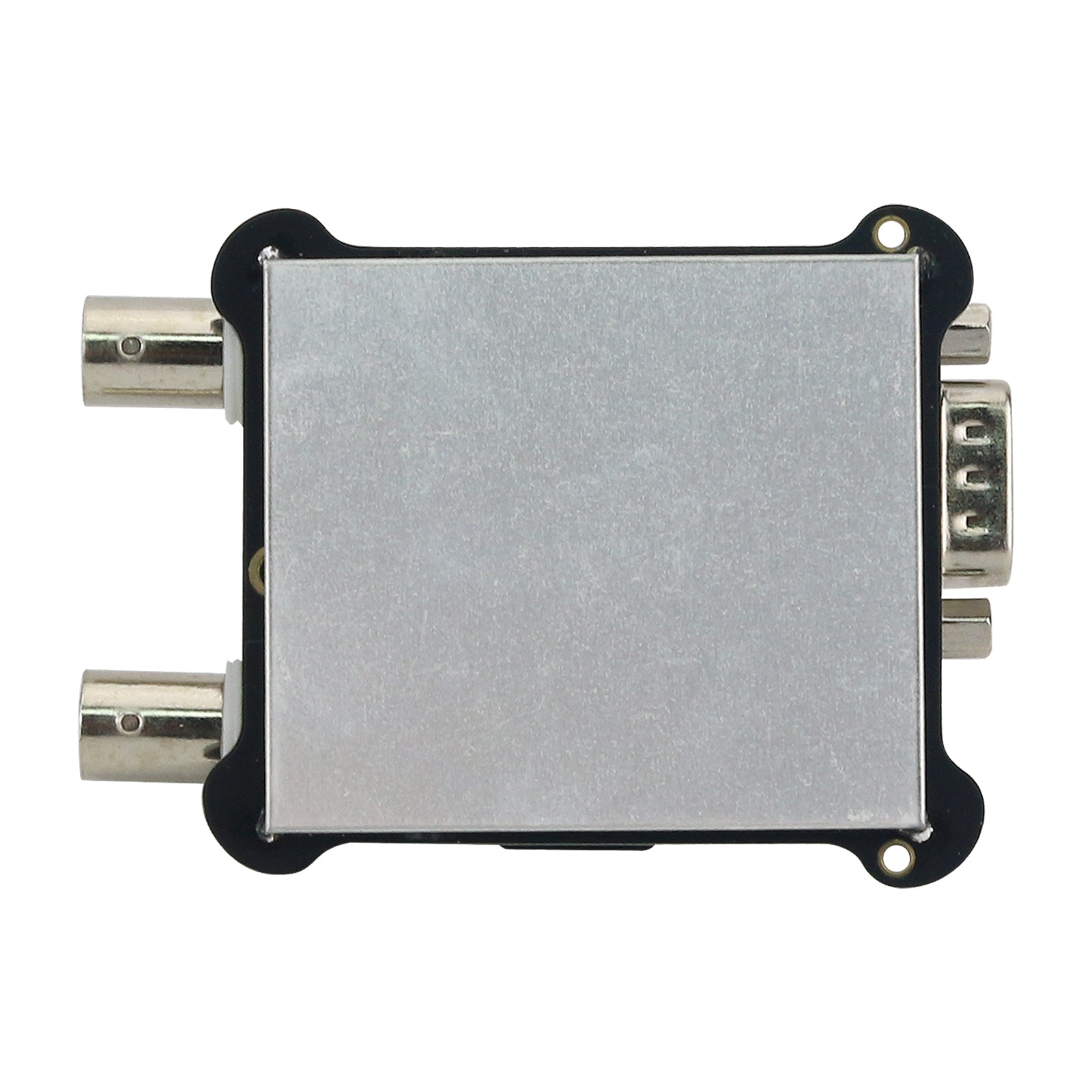

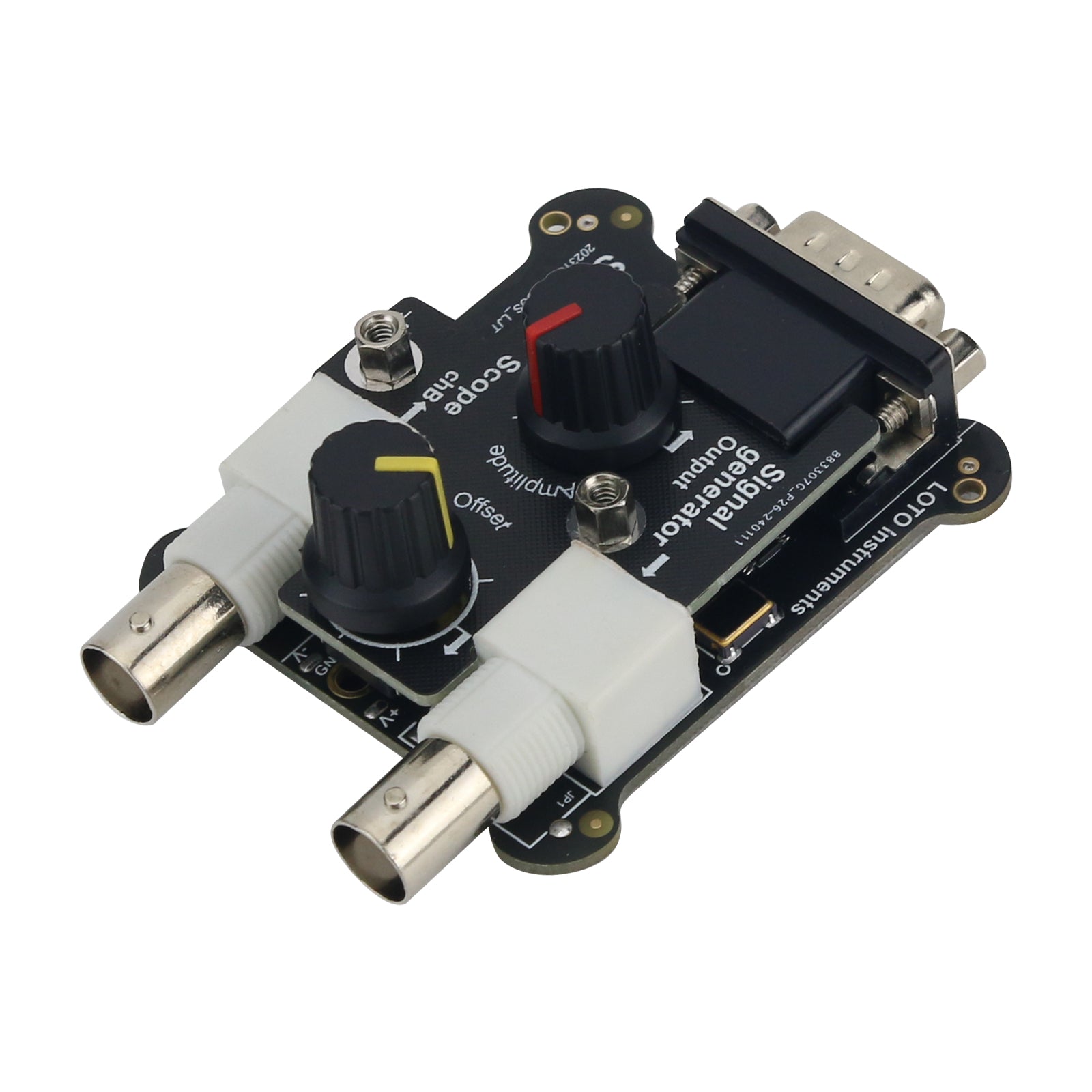

LOTO S02 Signal Generator Module Single Channel 13M Bandwidth Compatible with OSC482/A02/2002/H02 Series

LOTO S02 Signal Generator Module Single Channel 13M Bandwidth Compatible with OSC482/A02/2002/H02 Series

Specification:
- Output wave form: sine wave, triangular wave, square wave
- Amplitude range: -4V ~ 4V (constant adjustable manual knob)
- Amplitude resolution: 50mV
- Noise: 40mV ~ 80mV
- Output frequency range:
  Sine wave: 1Hz ~ 13MHz
  Triangular wave: 1Hz ~ 8MHz
  Square wave: 1Hz ~ 1MHz
- DC bias range: -4V ~ 4V (constant adjustable manual knob)
- DC bias resolution: 100mV
- Automatic frequency sweep: software controlled frequency sweep
- Output stable time: stable in 30 second after powered on

Introduction:

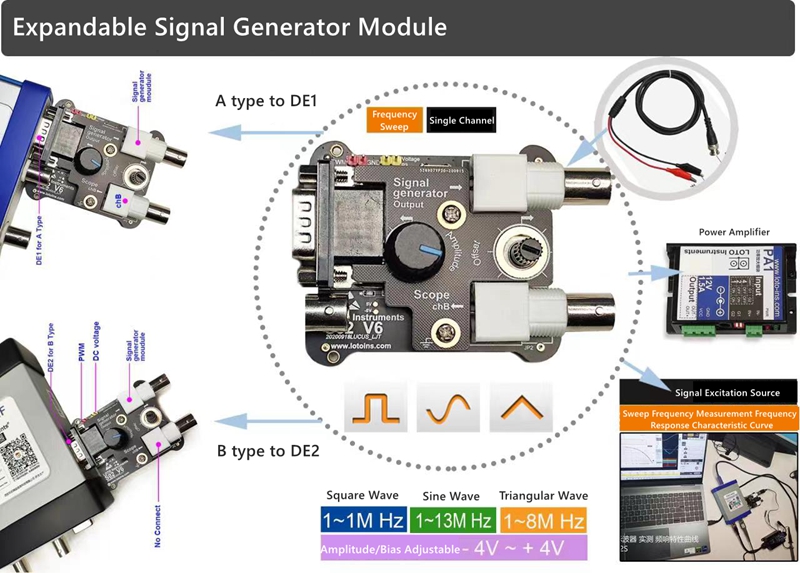

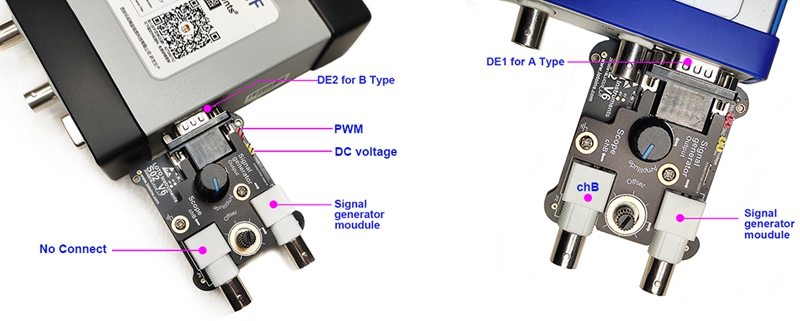

- This signal generator module is used in conjunction with the OSC oscilloscope. As long as you purchase an oscilloscope host that supports this module and plug it in, you can use both the oscilloscope and signal generator functions simultaneously. For details, please refer to the demonstration video on Bilibili: https://www.bilibili.com/video/BV1jJ411r7a9

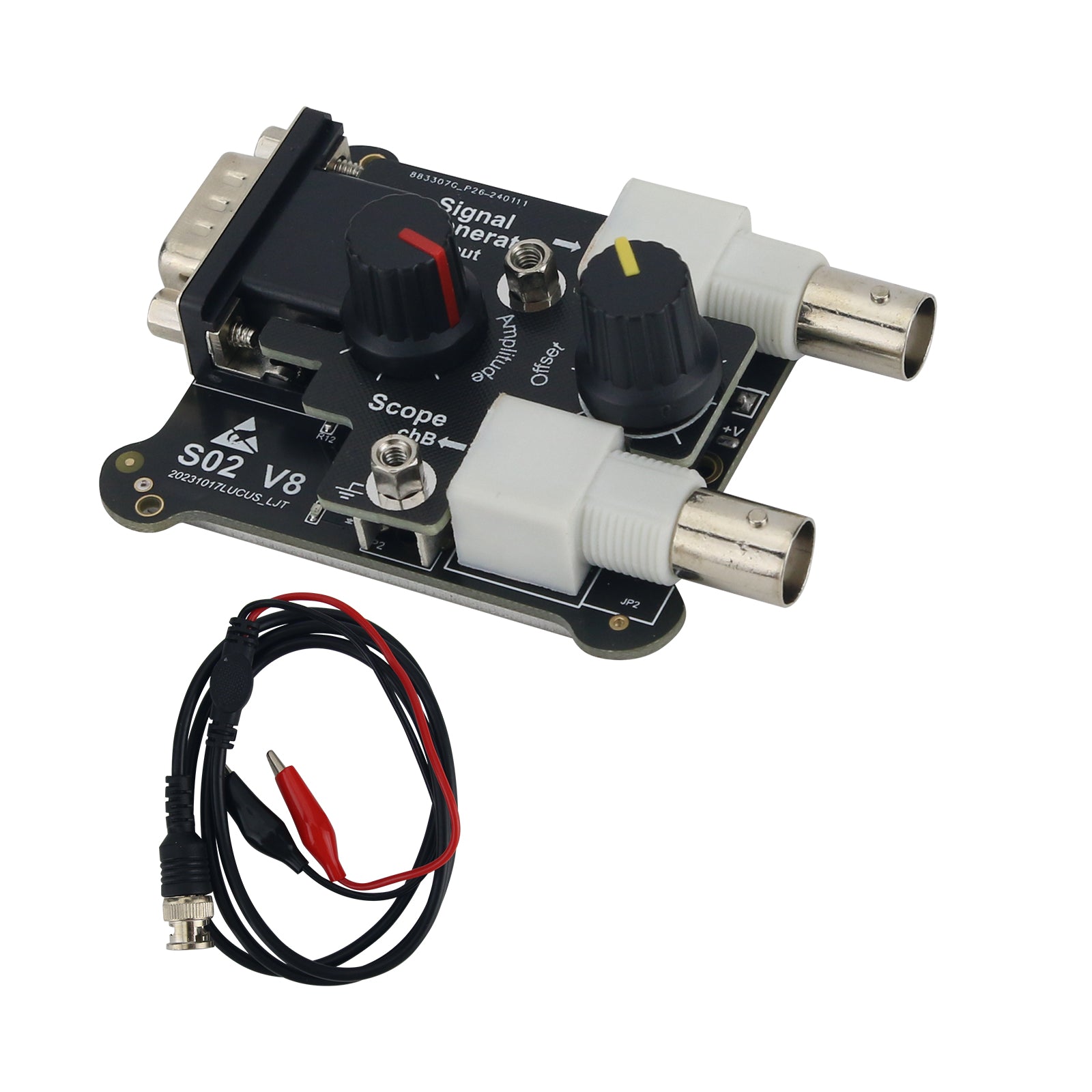

Package Included:
- 1 x Module

Note:
- The OSC oscilloscope is not included.
