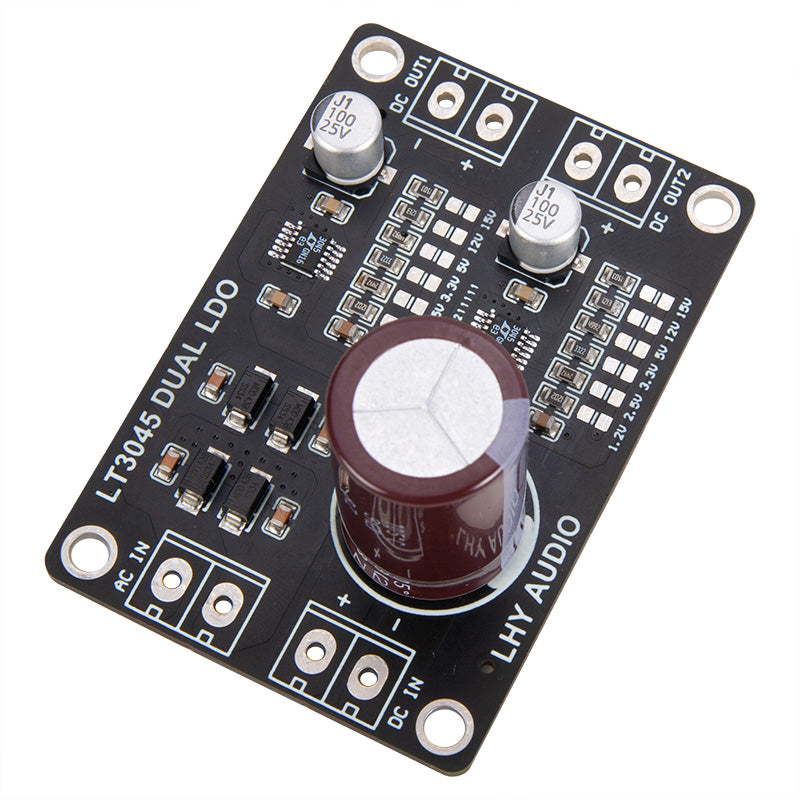

LT3045 Dual-channel Positive Voltage DC Stabilized Power Supply Low Noise High Precision Linear Power Supply Module

LT3045 Dual-channel Positive Voltage DC Stabilized Power Supply Low Noise High Precision Linear Power Supply Module

Description:
- This product can provide a DC regulated power supply with close to 0 noise, and can provide pure power for high-precision measuring instruments, DAC audio decoders and other equipment. The noise voltage as low as 1uV is 2-3 levels lower than the regulated noise such as LM317 LM78XX, and the effect is very good, which can make the audio equipment reach the background pitch black.

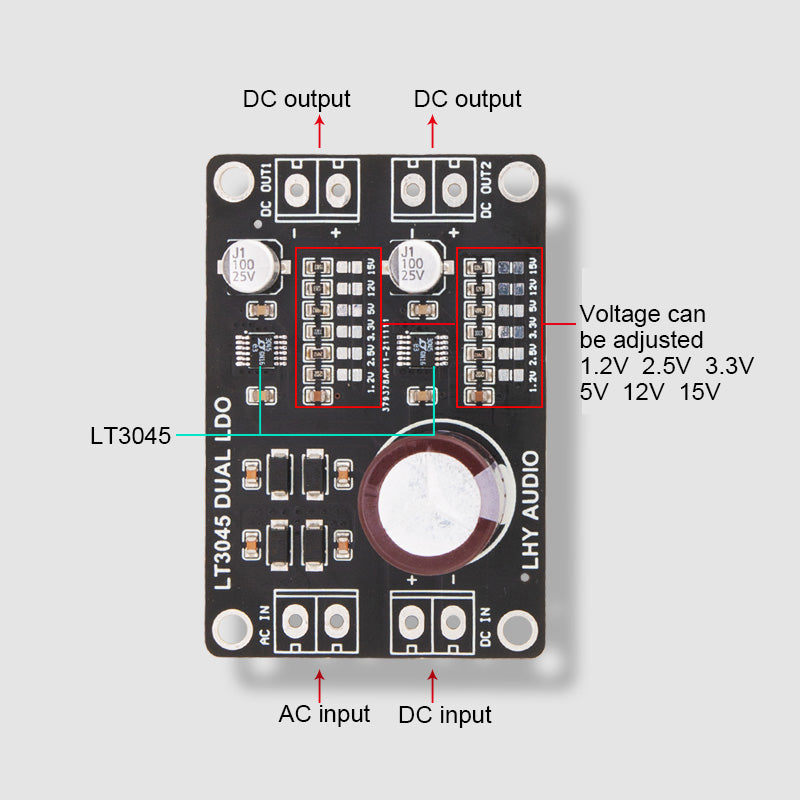

- This power board has 2 modes of DC input and AC input, independent 2 channels of positive voltage output, and can also have multiple voltage output options, which can be directly welded and short-circuited as needed.

Reminder: The default output setting for delivery is DCOUT1=5V DCOUT2=5V

Specification:
- Input method: DC (DC 3.3V-DC 20V) / AC (AC 3V-AC 13V)
- Output current: 500mA (each channel)
- DC output mode: 2-way DC independent output
- DC output range: 1.2v, 2.5v, 3.3v, 5v, 12v, 15v
- PCB size: 42Wx62Lx29H
- Ultra-low RMS noise: 0.8 μ VRMS (10Hz-100KHz)
- Ultra-low point noise: 2nV/√Hz (at 10KHz)
- Ultra-high PSRR: 76dB (at 1MHz)
