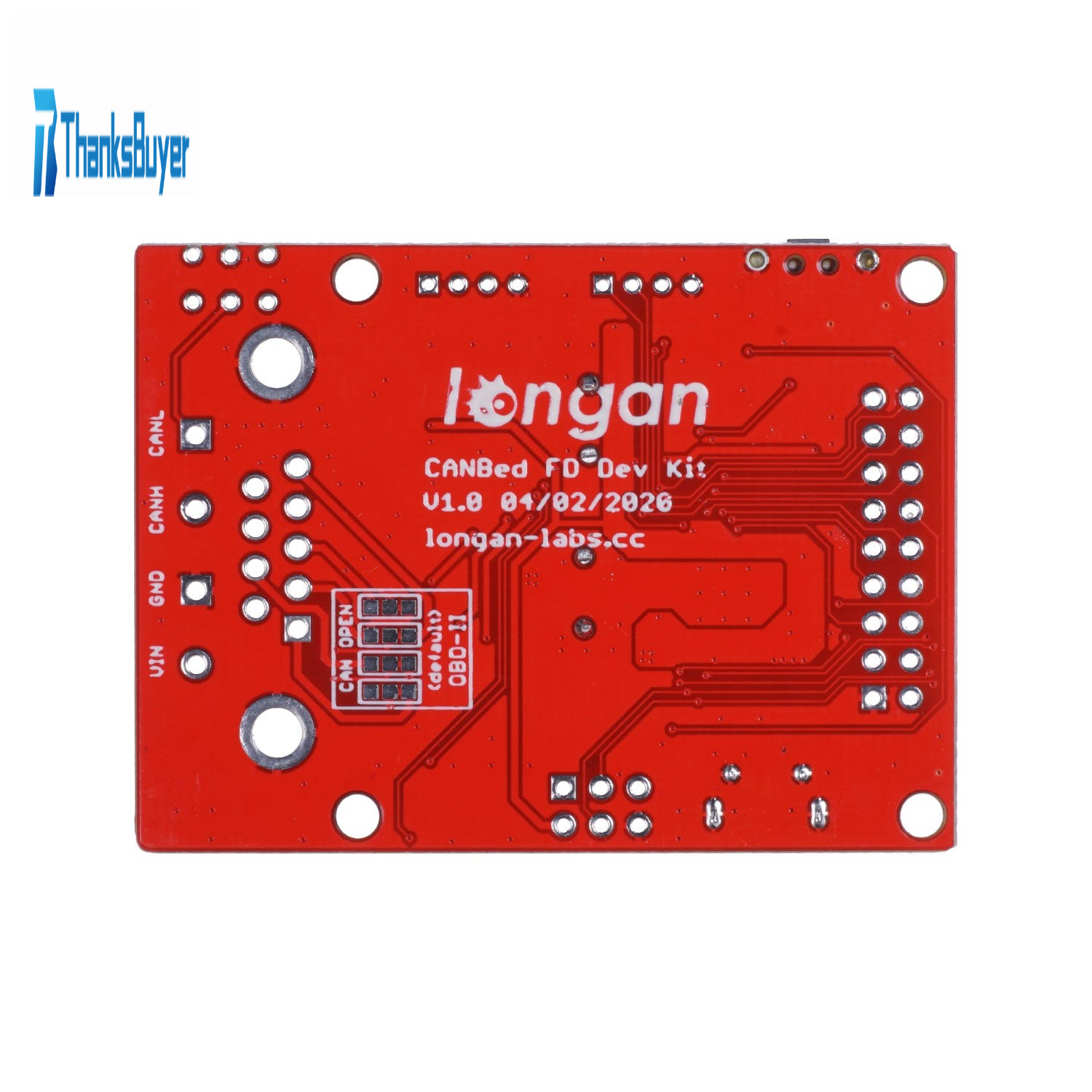

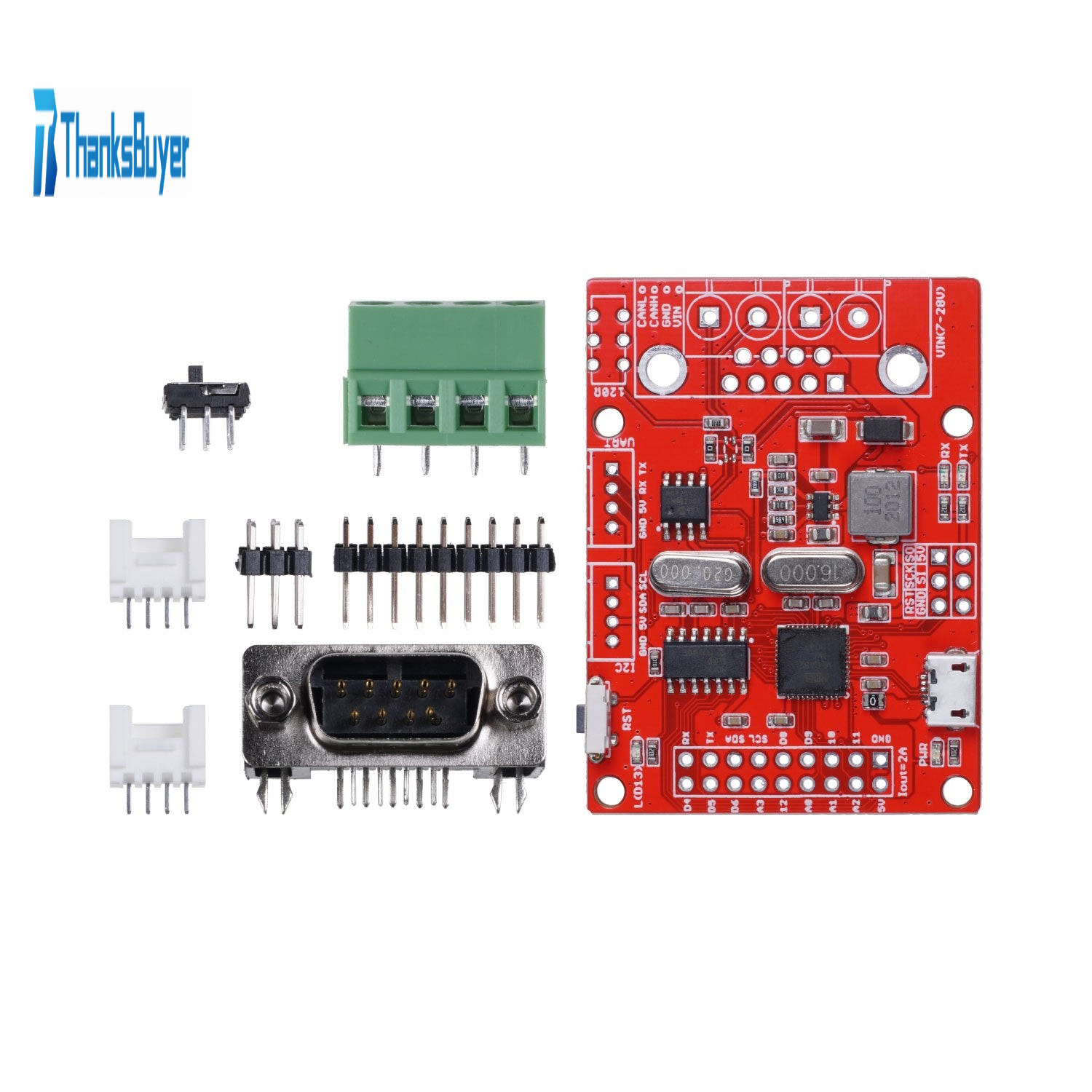

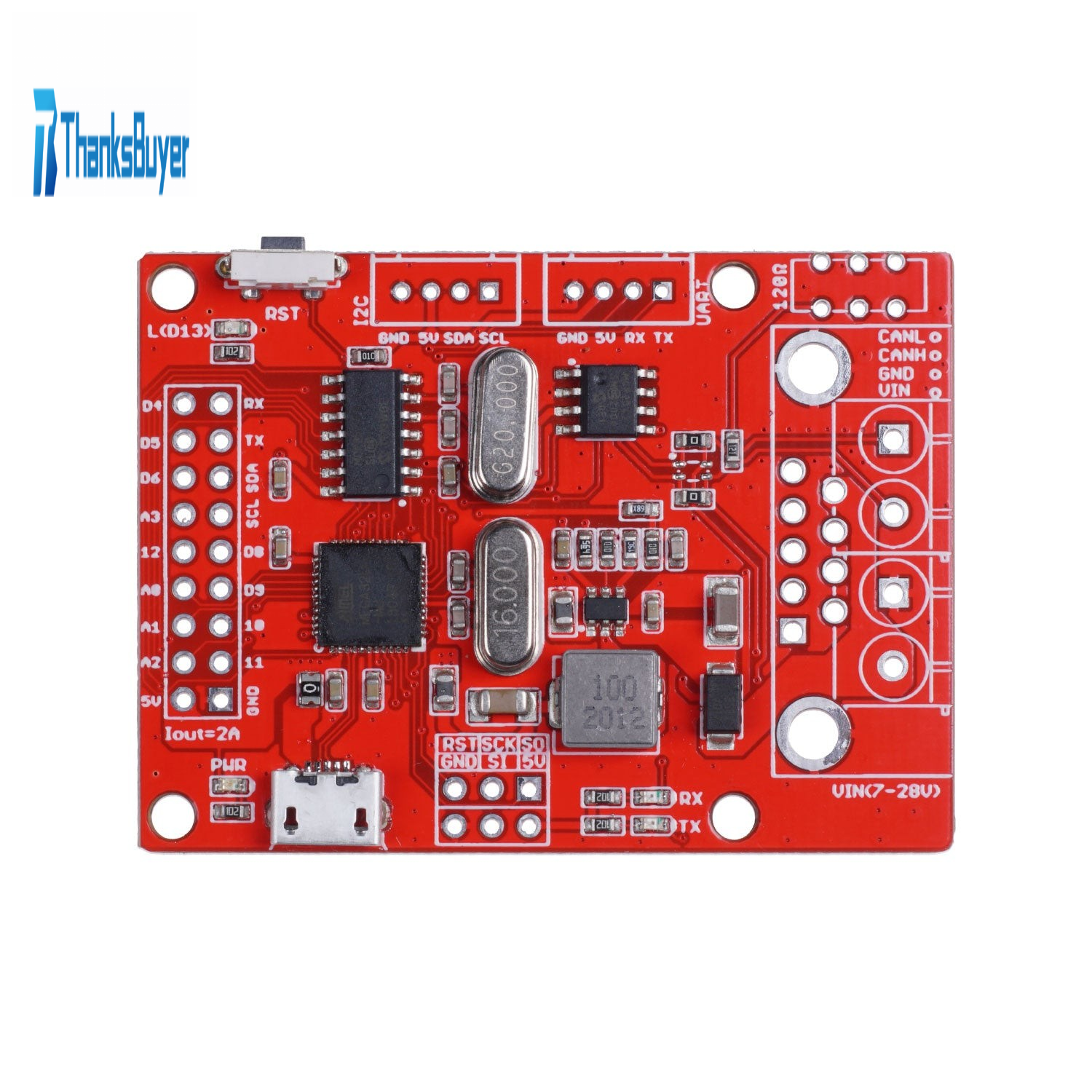

MCU ATmega 32U4 CANBed FD Ar-duino CAN-FD Development Kit CAN BUS Board SPI Port

Description:
- Can bus has the advantages of long transmission distance, medium communication speed and high reliability. It is a common industrial bus. It usually appears on modern machine tools, such as automobile diagnostic bus.
- The CAN bus adopts mcp2517fd can bus controller with SPI interface and mcp2542fd can transceiver to realize the CAN Bus function. By adding OBD-II converter cable and importing it into OBD-II library, you can build on-board diagnostic equipment.
- More importantly, on-board Ar-duino Leonardo, you can use the Ar-duino ide to make programming easier.

Specification:
- MCU: Atmega 32u4 (with Ar-duino Leonardo boot loader)
- Clock speed: 16mhz
- Flash: 32KB
- SRAM: 2.5KB
- EEPROM: 1KB
- Working voltage: 7 ~ 28V
- Input interface: sub-d
