  3. MicroPhase ADA-107 10Bit 50MSPS/125MSPS High Speed AD/DA Conversion Module Support DC/AC Coupling for FPGA Development Board
Thanksbuyer Online,SDR Radio, Testers and Measurement devices, Astronomy products, Audio Amplifer and Decodersによる

MicroPhase ADA-107 10Bit 50MSPS/125MSPS High Speed AD/DA Conversion Module Support DC/AC Coupling for FPGA Development Board

$22.56
$22.56
税込み。 配送料はチェックアウト時に計算されます。
Availability: 2000個の在庫
SKU: 98839
Tags:
$22.56
$22.56

MicroPhase ADA-107 10Bit 50MSPS/125MSPS High Speed AD/DA Conversion Module Support DC/AC Coupling for FPGA Development Board

Specification:
- Bit width: 10bit
- ADC conversion rate: 50MSPS
- DAC conversion rate: 125MSPS
- Analog input range: +/- 5Vpp
- Analog output range: +/- 4.3Vpp
- Interface type: SMA
- Coupling method: support DC coupling/AC coupling
- Interface: 40Pin GPIO digital interface, level voltage 3.3V
- Working temperature: 0℃ to 70℃

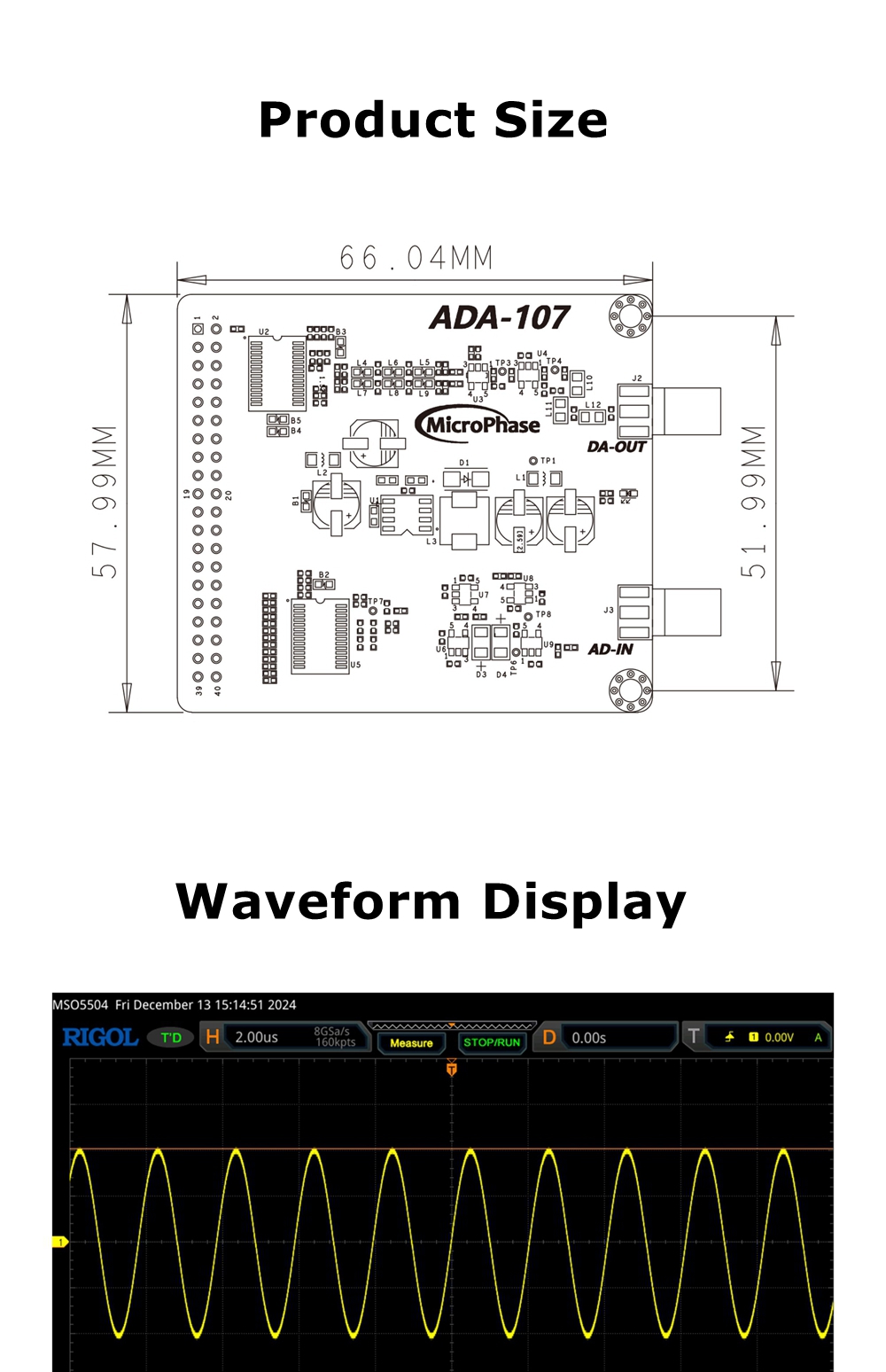

- Product size: 66 x 58mm

Package Included:
- 1 x AD/DA Conversion Module
