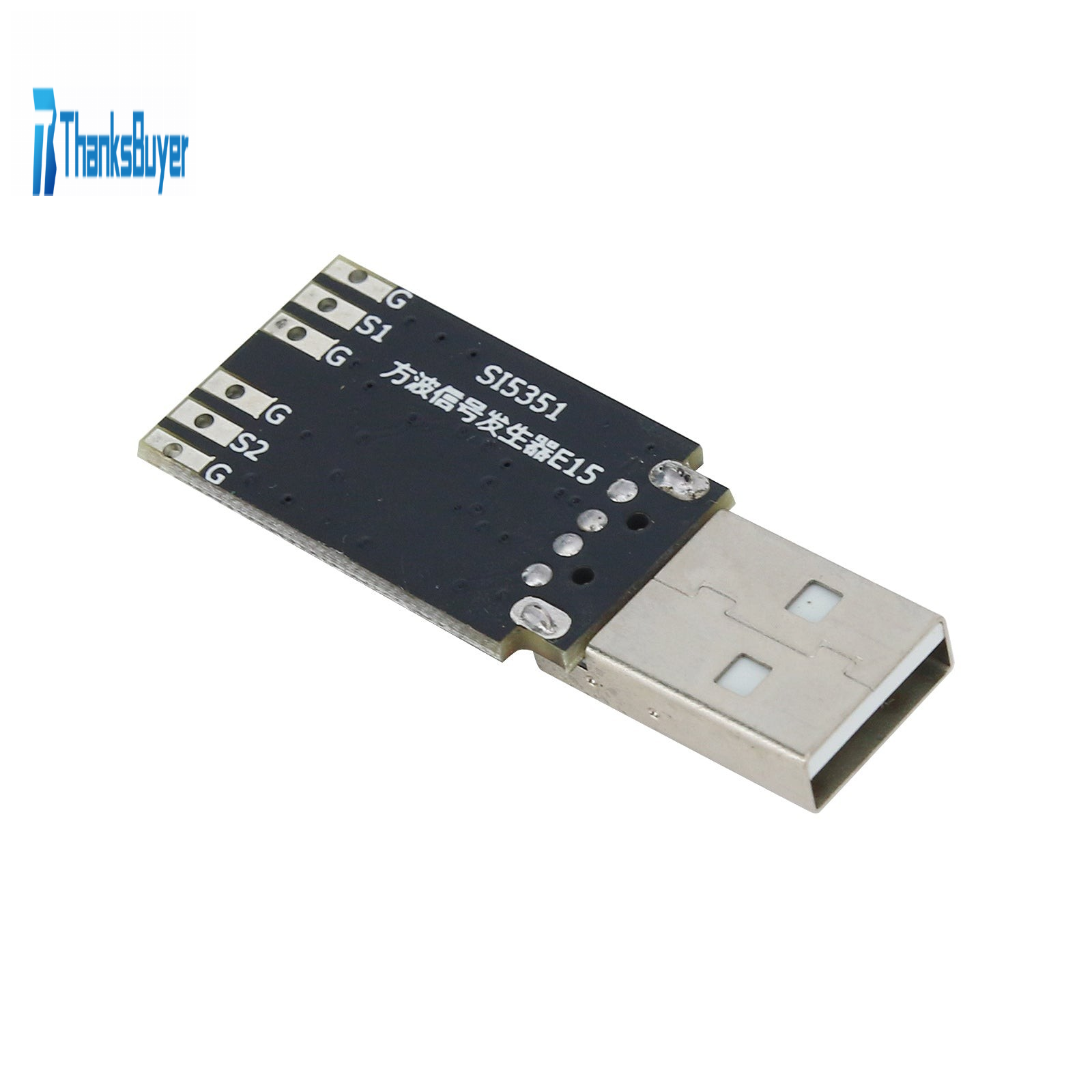

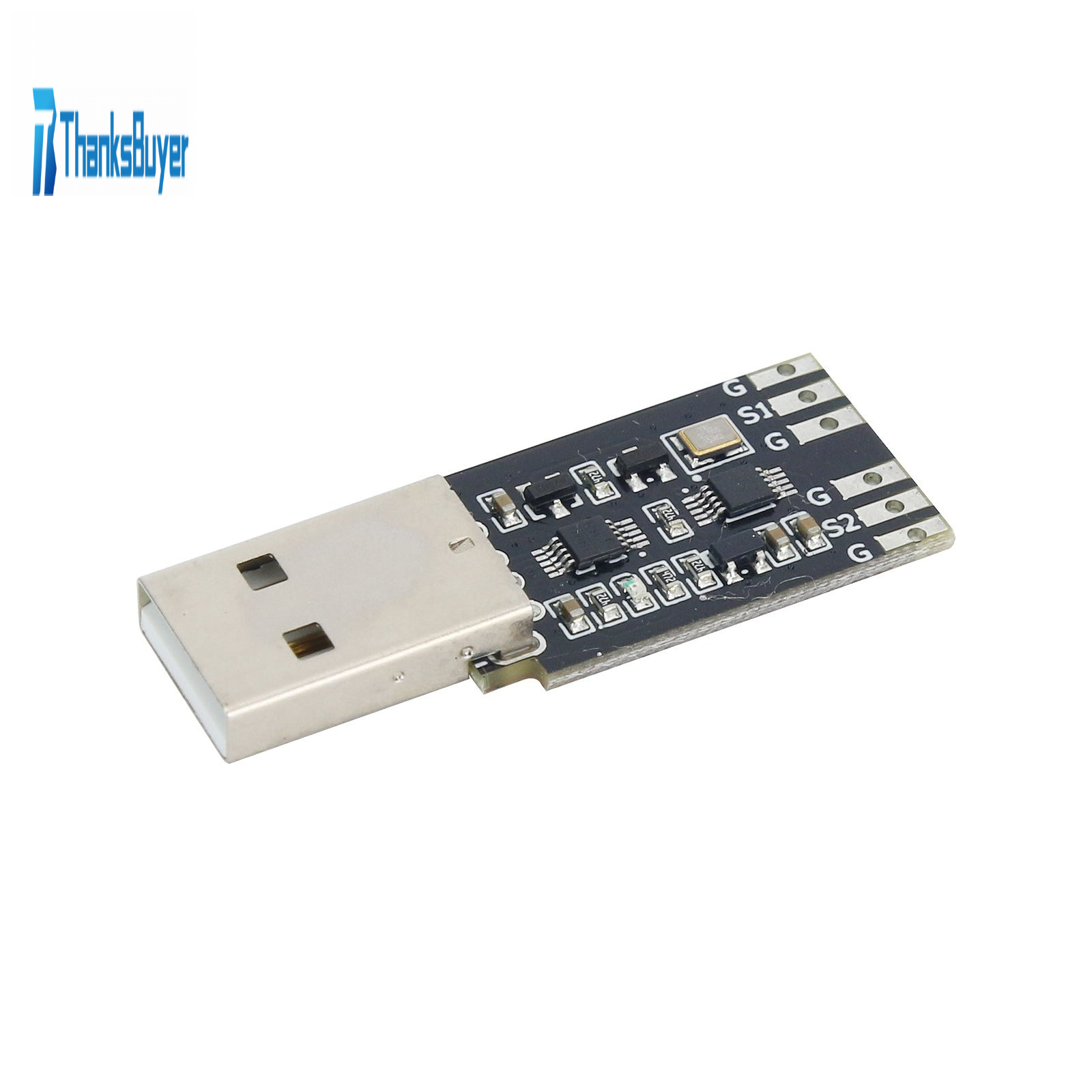

MS5351 2KHz-150MHz Signal Generator Module USB Interface 2-Channel High Frequency Square Wave Independent Output

MS5351 2KHz-150MHz Signal Generator Module USB Interface 2-Channel High Frequency Square Wave Independent Output

Features:
- Support 2-channel square wave independent output
- Support the upper computer to quickly set frequency and waveform
- The chip can save the current output frequency value
- Support crystal oscillator error correction to achieve precise output
- The adjustment accuracy is 1Hz, and the adjustment range is 2KHz-150MHz
- Stable output frequency

Specification:
- Working voltage: USB 5V
- Output frequency: 2KHz - 150MHz
- Output amplitude (Vpp): 3.3V
- Adjustment accuracy: 1Hz
- Output channel: 2-channel independent adjustment

2KHz Waveform:


100KHz Waveform:


1MHz Waveform:


10MHz Waveform:


50MHz Waveform:


100MHz Waveform (provided by customers through actual measurement):


150MHz Waveform (provided by customers through actual measurement):


Note:
- It is not recommended to use for DuPont cable for 1MHz above frequency. Please use high frequency transmission cable with SMA connector.

Package Included:
- 1 x Signal Generator Module
