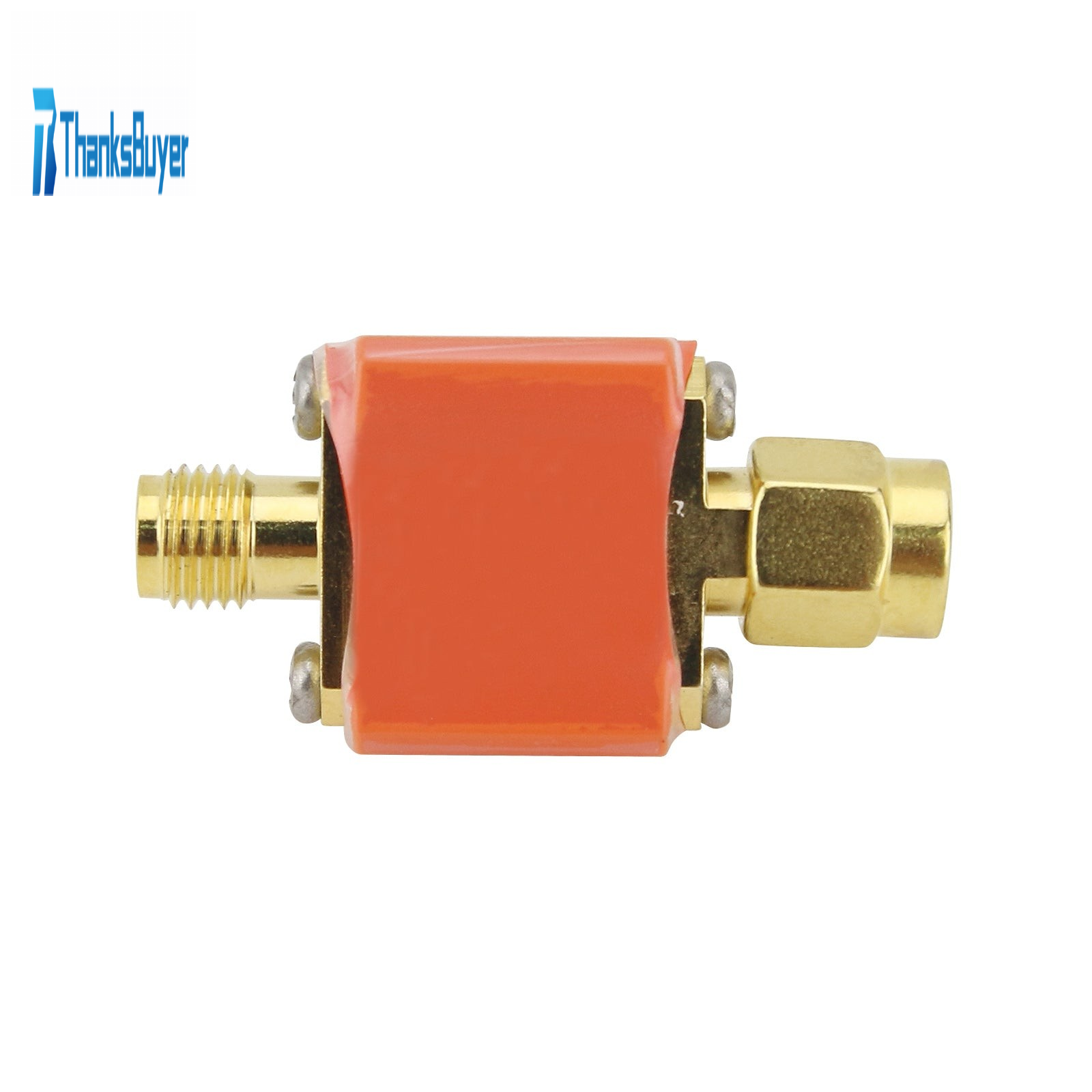

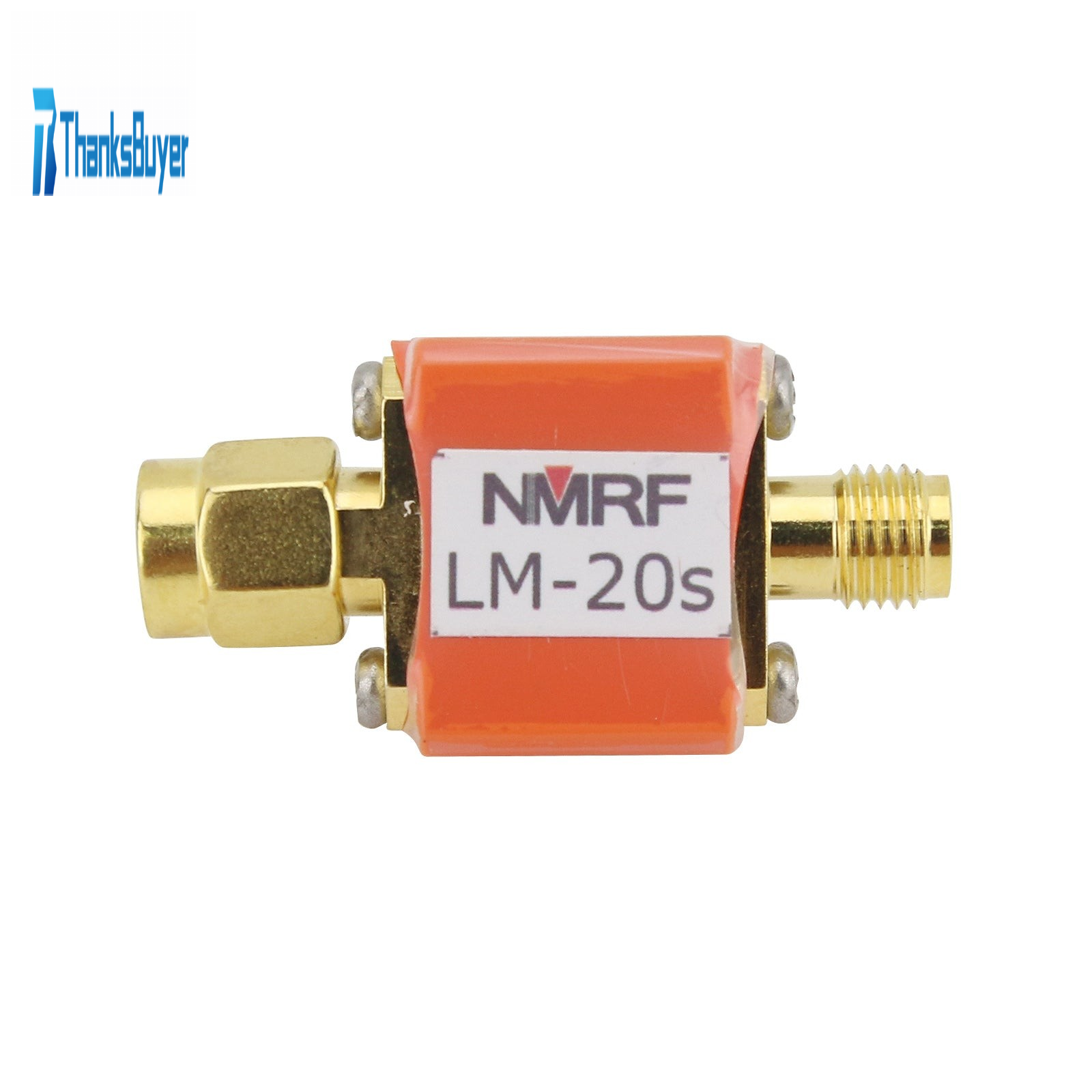

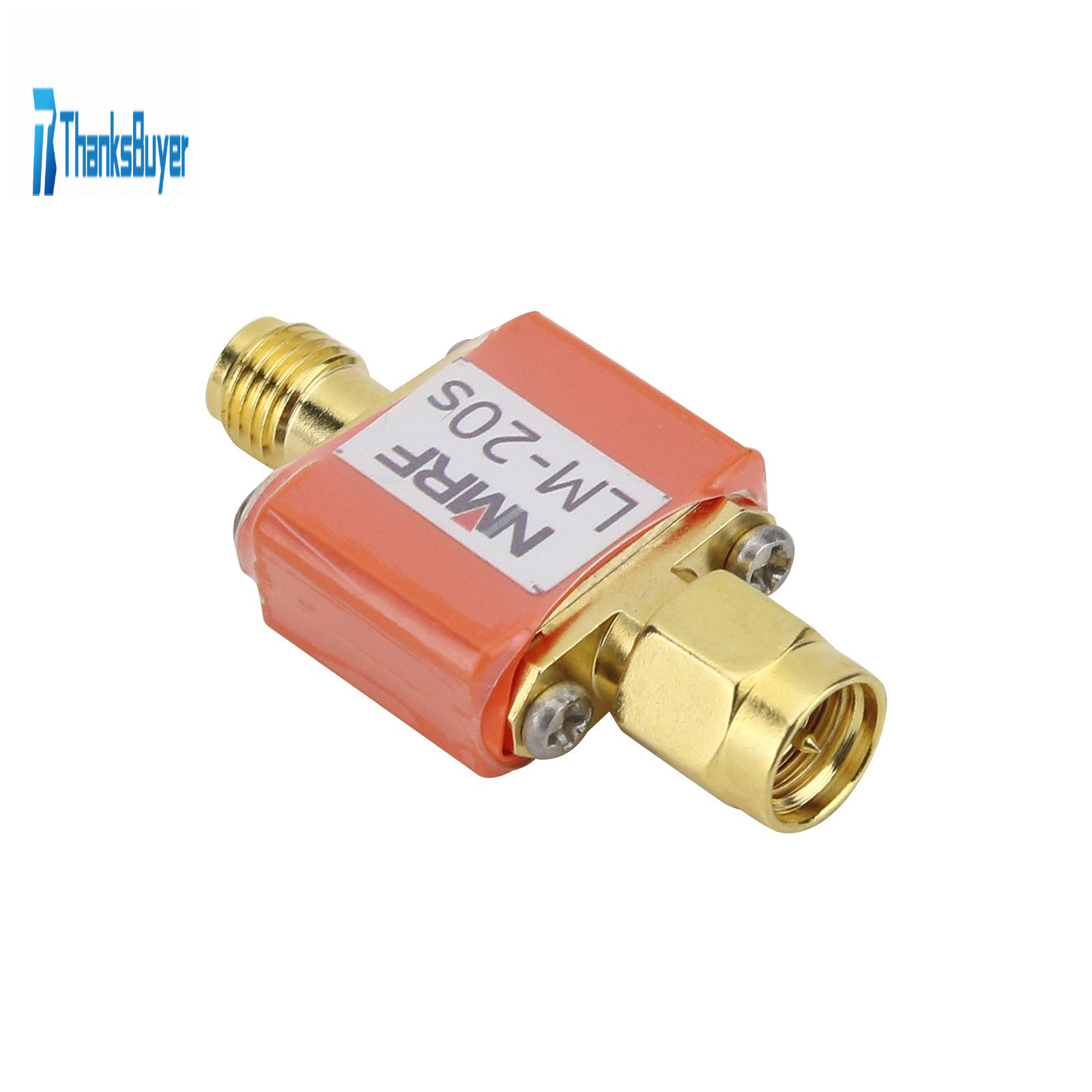

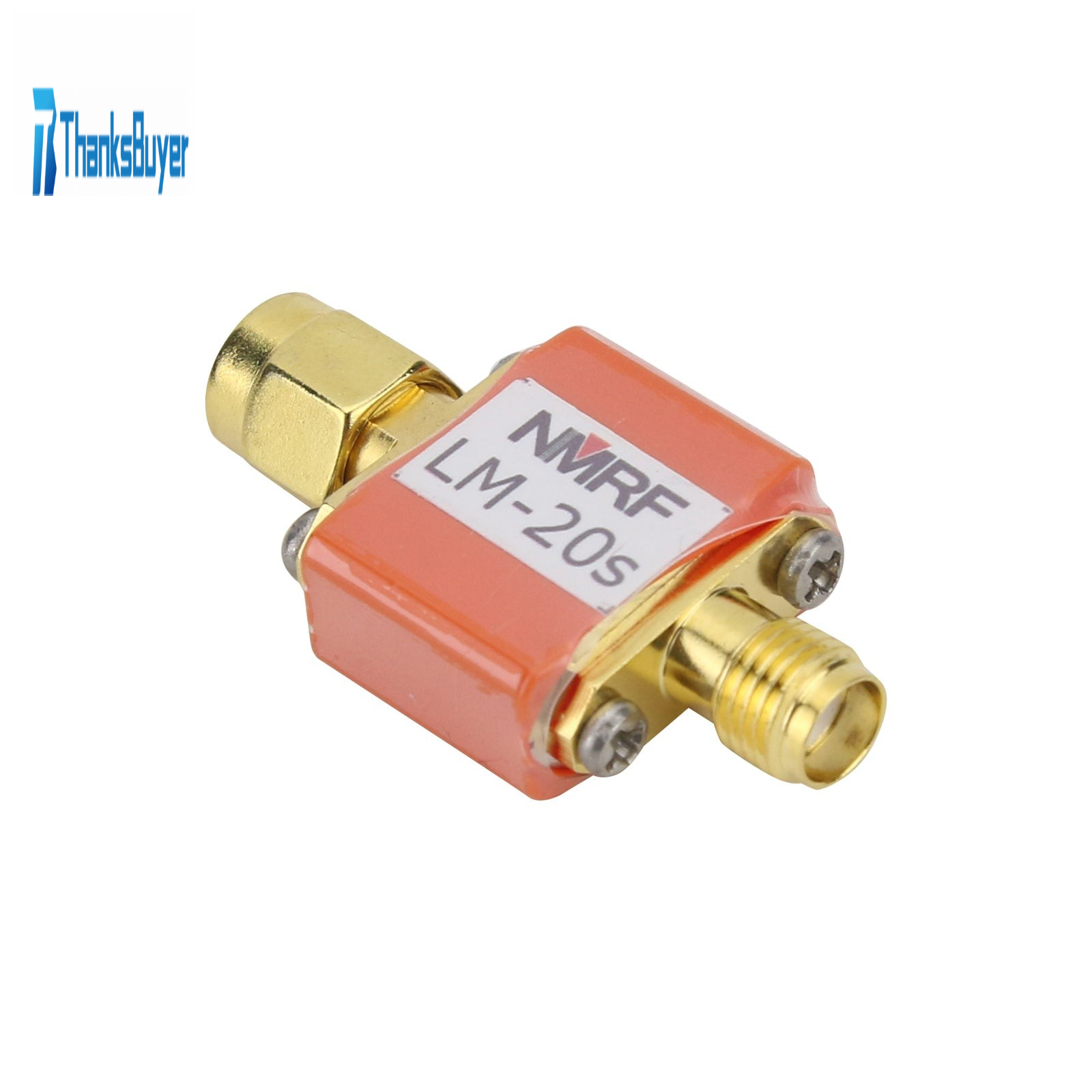

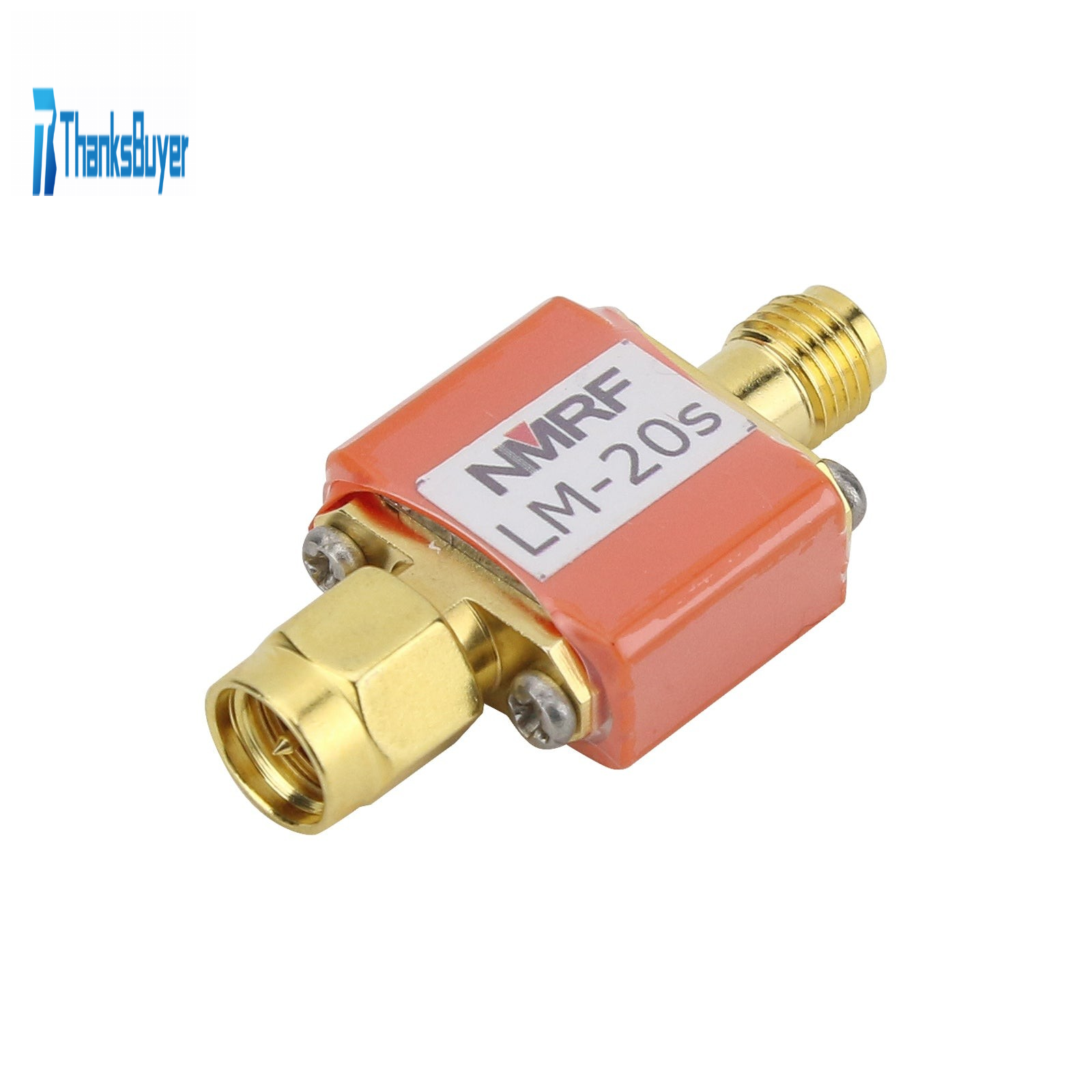

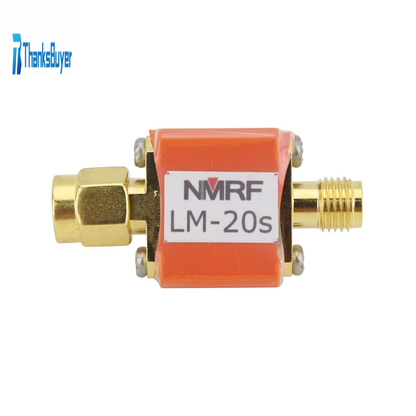

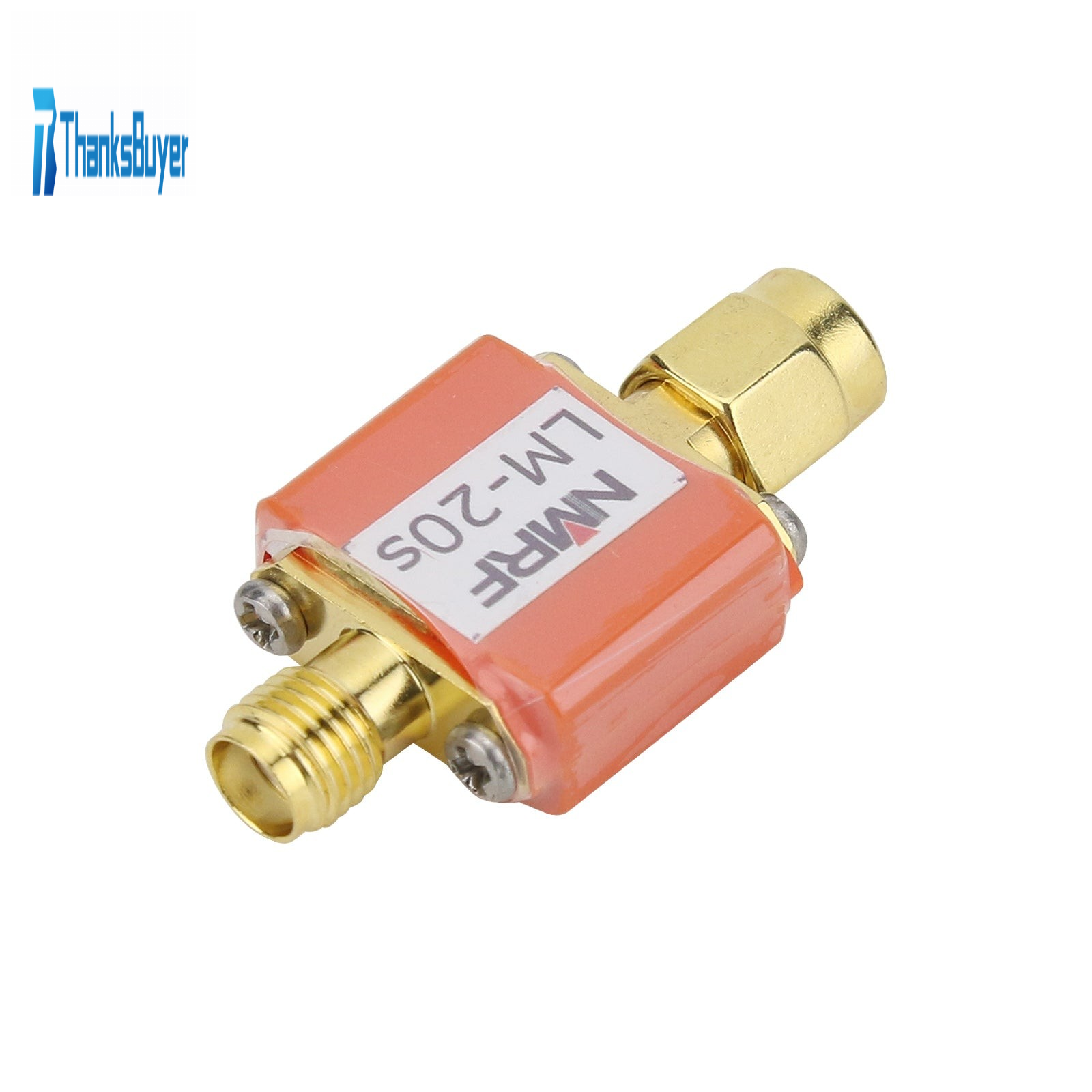

NMRF LM-20s Coaxial RF Limiter 1MHz-1GHz 10dBm SMA Interface for Low-Power Receiving Devices LNA

NMRF LM-20s Coaxial RF Limiter 1MHz-1GHz 10dBm SMA Interface for Low-Power Receiving Devices LNA

Description:
The RF limiter is used for input protection of low-power receiving equipment such as VHF low-noise amplifiers, shortwave and SDR receivers below 1GHz. It can effectively resist the damage of ESD. It is designed with a solid aluminum alloy shielding shell, with no leakage or interference. Small and easy to use. It is a standing device for radio receiving equipment.

Specifications:
- Model: LM-20s
- Impedance: 50 Ohms
- Insertion loss: < 0.5dB at 0.03~1GHz/0dBm
- Maximum input power: 2W (33dBm)

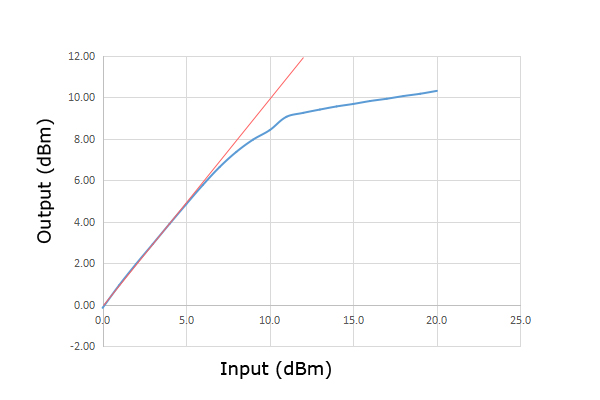

- 1dB clipping power: < 10dBm at 50MHz
- Maximum clipping output: < 15dBm at 30dBm/50MHz; < 18dBm at 30dBm/500MHz

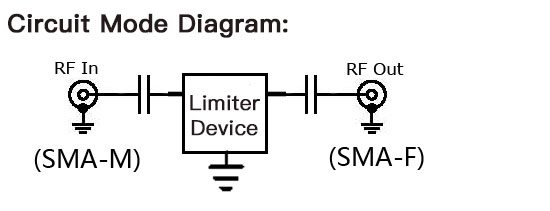

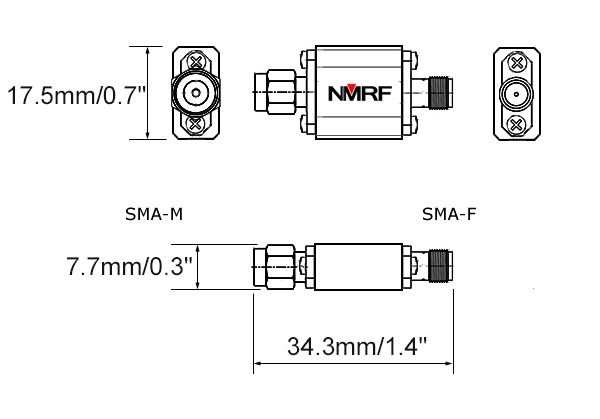

- Interface: SMA-F and SMA-M

Package Included:
- 1 x RF Limiter
