Original 500W 500A 4 Ohms Digital Power Amplifier Board Power Amp Board Audio Accessory for Icepower

Original 500W 500A 4 Ohms Digital Power Amplifier Board Power Amp Board Audio Accessory for Icepower

Description:

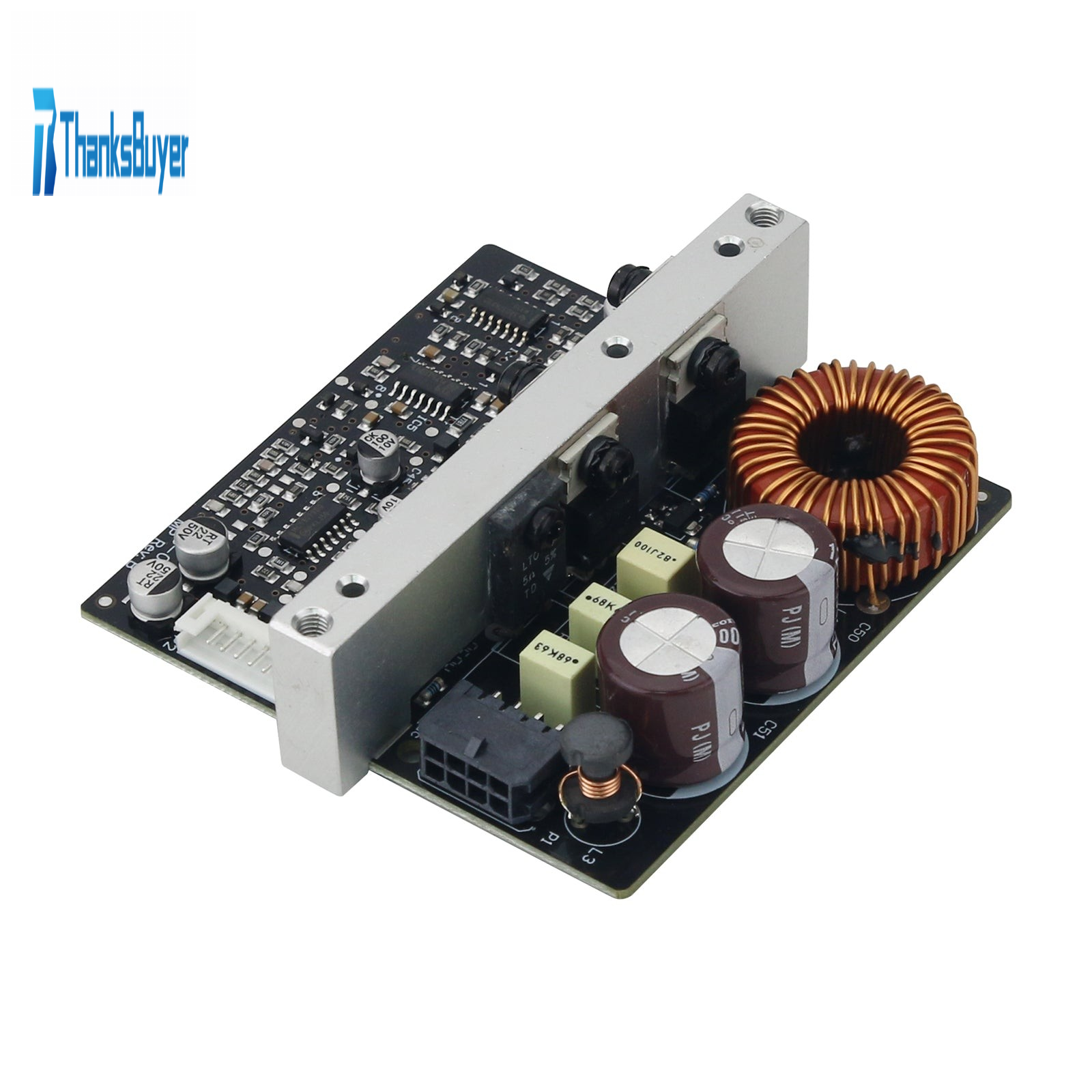

The 500A is a 500 W at 4 Ω general purpose high-quality class D audio amplifier. It can be powered from the DC hanger bus of the 500ASP and the 1000ASP. This way, 2-channel or 3-channel solutions can be created for either stereo amplifiers or 2- or 3-way active speakers.

Key Performance Parameters:
- Output Power per channel 1 % THD+N, 20 Hz-20 kHz: 600 W (4 Ω); 300 W (8 Ω)
- Minimum load impedance: 2 Ω
- Maximum amplifier efficiency: –
- Maximum total amp + PSU efficiency: 93 %
- Supply voltage input: 115-230 VAC
- Peak output current: >55 A
- Dynamic range: 117 dB
- Amplifier maximum output voltage per channel: 69.3 V
- Output referenced idle noise (A-weighted): 75 µV
- THD+N 1W/1kHz: 0.006 %

Package Included:
- 1 x Amplifier Board

Packaging Details:
- G.W.: 0.25kg
