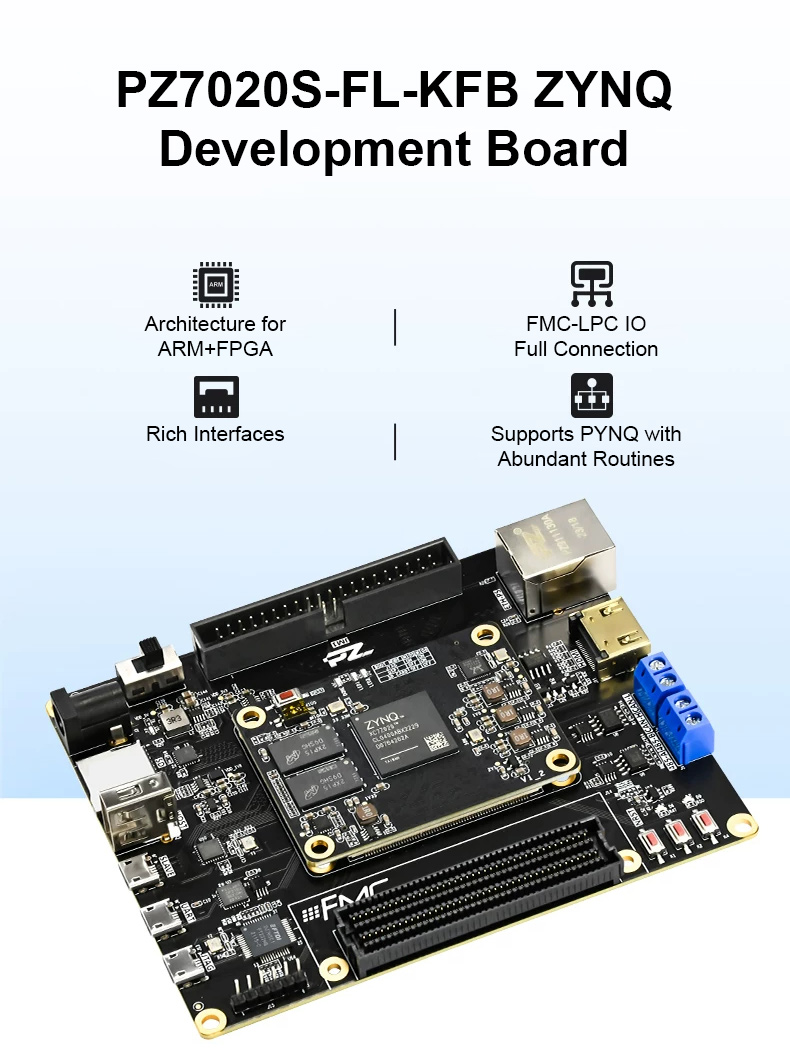

PZ7020S-FL-KFB ZYNQ-7020 FPGA Development Board XC7Z020 Industrial Grade FMC PYNQ Compatible

* Development Board Only

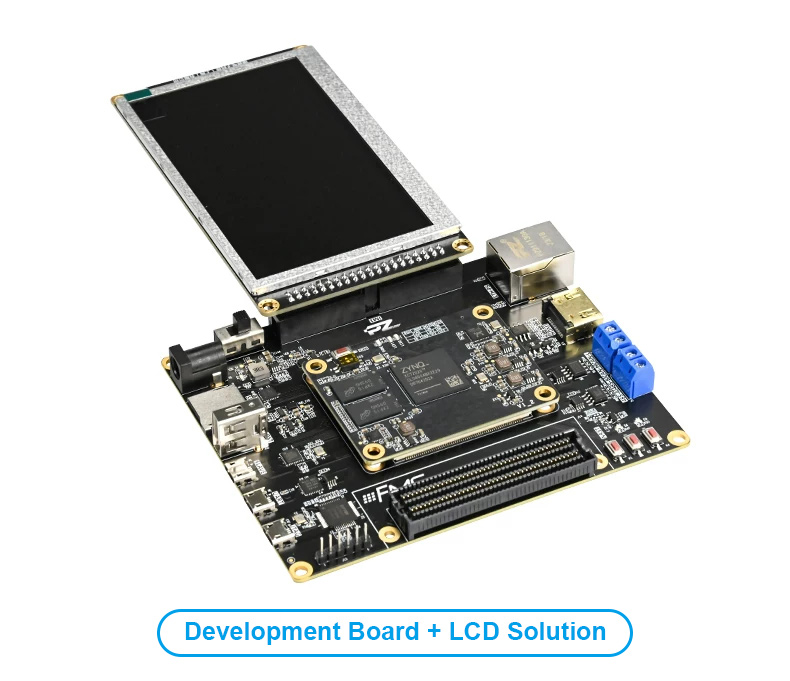

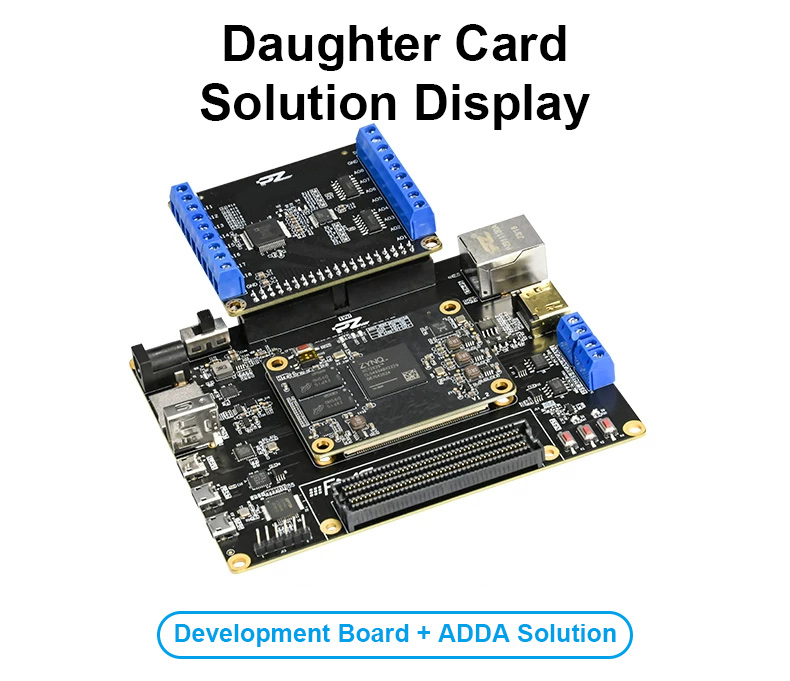

* ADDA Kit

* Dual Camera Kit

* LCD Kit

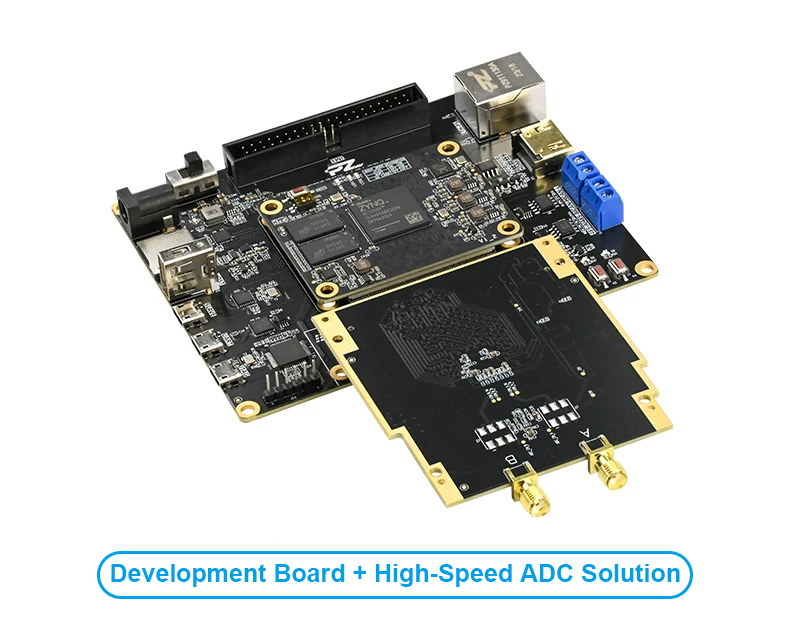

* High-Speed ADC Kit

* Classic Kit

* Deluxe Kit

* PZ7020S-FL-KFB ZYNQ-7020 FMC Development Board

* Heterogeneous Architecture for ARM+FPGA

* LPC High-Speed Expansion

* 1GB DDR Industrial Grade

* Supports PYNQ with Abundant Routines

* Integrated JTAG Downloader

* FMC-LPC IO Full Connection

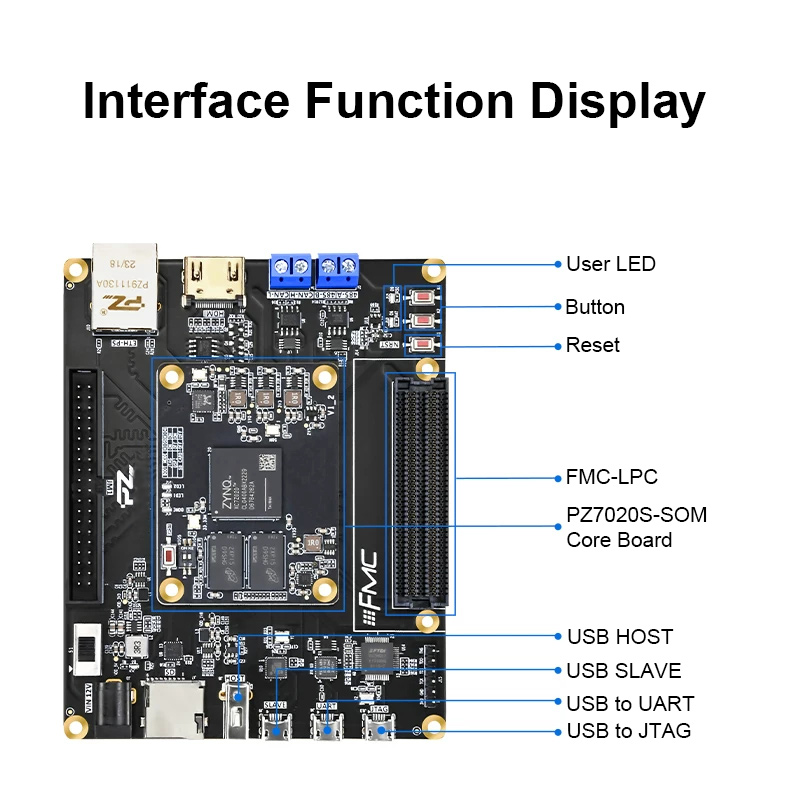

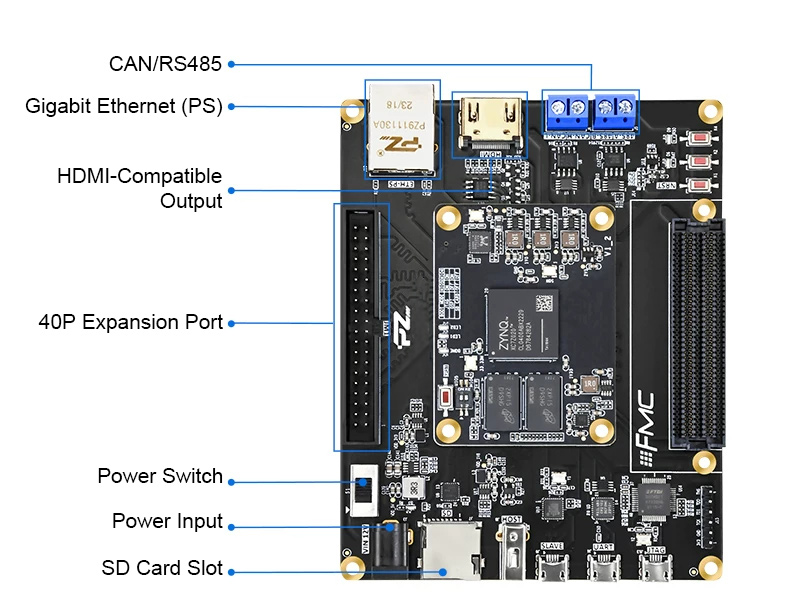

* Rich Interfaces

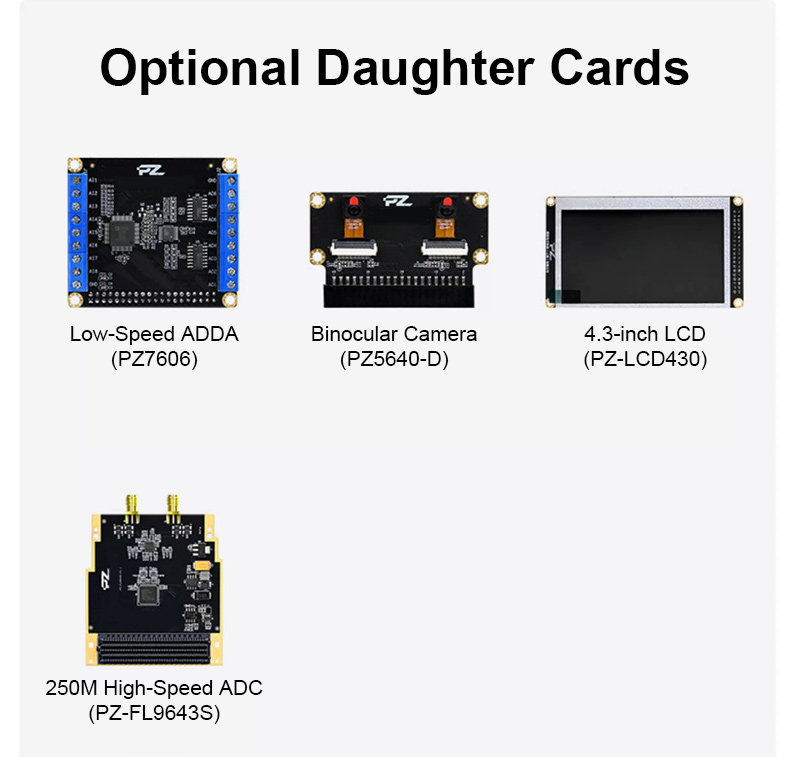

* Optional Matching Daughter Cards

* Development Board: PZ7020S-FL-KFB

* Main Controller: XC7Z020-2CLG400I

* Core: Dual-core Cortex-A9 for ARM, main frequency 766MHz

* Speed Grade: Grade 2

* Temperature Grade: Industrial grade (-40°C to 85°C)

* Logic Cells: 85K

* LUTs: 53200

* Flip-Flops: 106400

* DSP Slices: 220

* BLOCK RAM: 4.9Mb

* DDR3/DD3L: 1GB

* QSPI FLASH: 256Mb

* User LED: 2-channel

* PS MIO: 30 PS ports (24 fixed 1.8V, 6 fixed 3.3V)

* PL IO: 116 single-ended (1.8/2.5/3.3V adjustable, default 3.3V)

* Crystal Oscillator: 1 single-ended 33.3333MHz crystal oscillator provided to PS, 1 single-ended 50MHz crystal oscillator provided to PL

* Core Board Dimensions: 60x45mm

* Integrated JTAG Downloader: 1-channel

* UART/RS485/CAN: 1-channel/1-channel/1-channel

* SD Card Interface: 1-channel

* USB 2.0 Host/Slave: 1-channel/1-channel

* Gigabit Ethernet: 1-channel on PS side

* HDMI-Compatible: 1-channel HDMI-compatible output

* LED, Buttons: 4-channel LED, 4-channel buttons

* FMC-LPC: 72 single-ended/36 differential pairs

* Power Supply/Current: 12V 1A

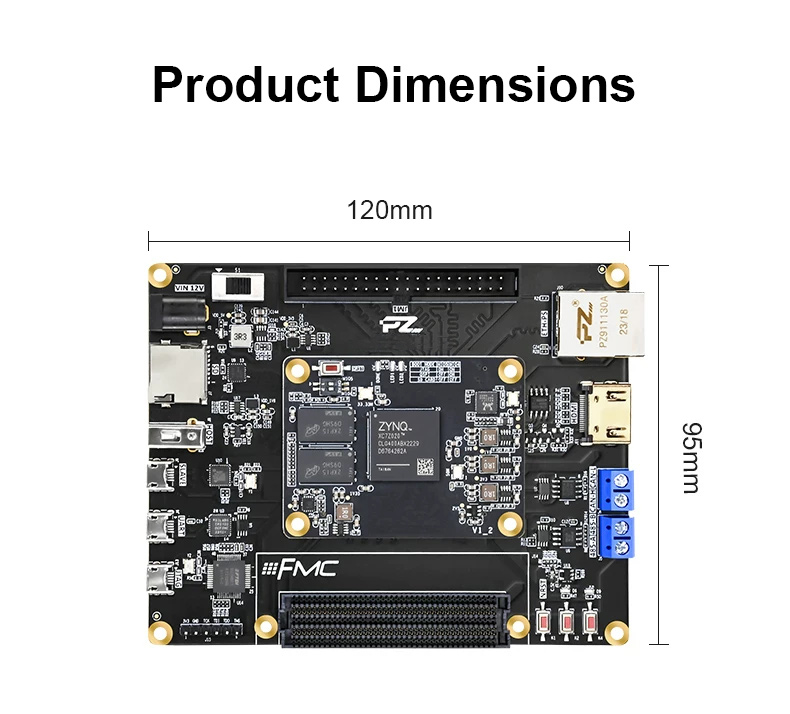

* Development Board Dimensions: 120x95mm

* Development Board Craft: Black Matte, Immersion Gold

* 40P Expansion Port: 32 single-ended/16 differential pairs (PL side). Reserved 1x 40P 2.54mm pitch expansion port for connecting various PZ modules (AD/DA, dual camera, 4.3-inch TFT LCD screen, etc.). The expansion port includes 1-channel 5V power supply, 1-channel 3.3V power supply, 6 ground pins, and 32 IO ports.

* 1 x Development Board

* 1 x 12V 1A Power Adapter

* 2 x Micro USB Cables

* 1 x Heatsink

* 1 x 8G SD Card

* 1 x SD Card Reader

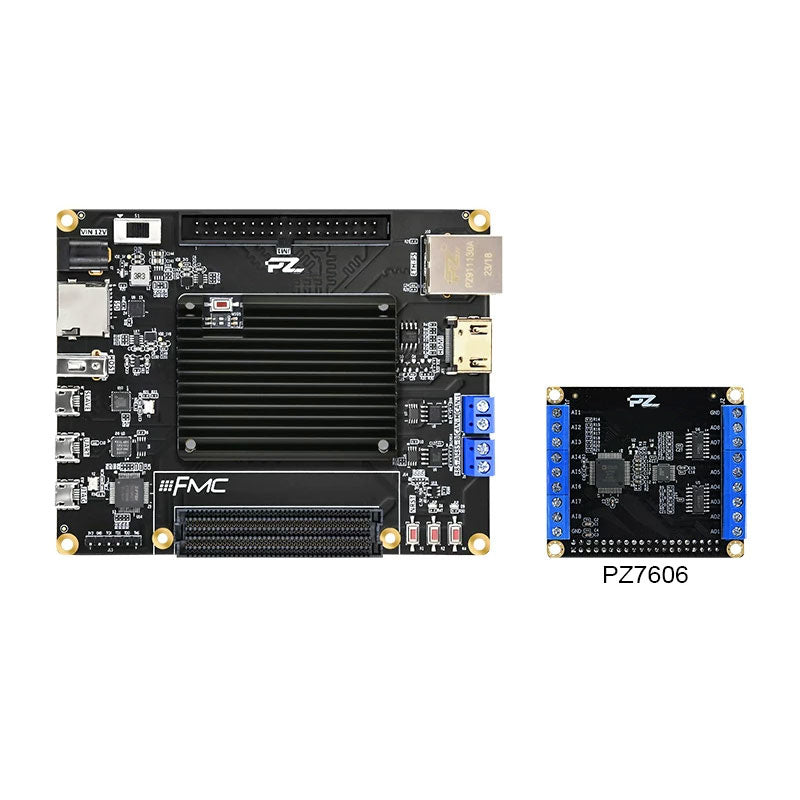

* 1 x Development Board

* 1 x 12V 1A Power Adapter

* 2 x Micro USB Cables

* 1 x Heatsink

* 1 x 8G SD Card

* 1 x SD Card Reader

* 1 x PZ7606

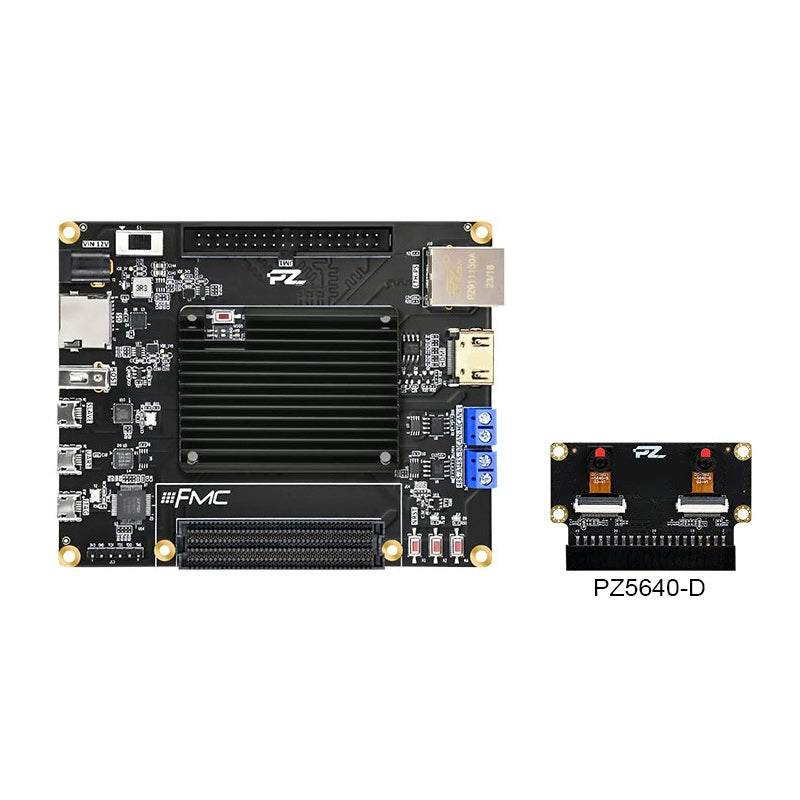

* 1 x Development Board

* 1 x 12V 1A Power Adapter

* 2 x Micro USB Cables

* 1 x Heatsink

* 1 x 8G SD Card

* 1 x SD Card Reader

* 1 x PZ5640-D

* 1 x Development Board

* 1 x 12V 1A Power Adapter

* 2 x Micro USB Cables

* 1 x Heatsink

* 1 x 8G SD Card

* 1 x SD Card Reader

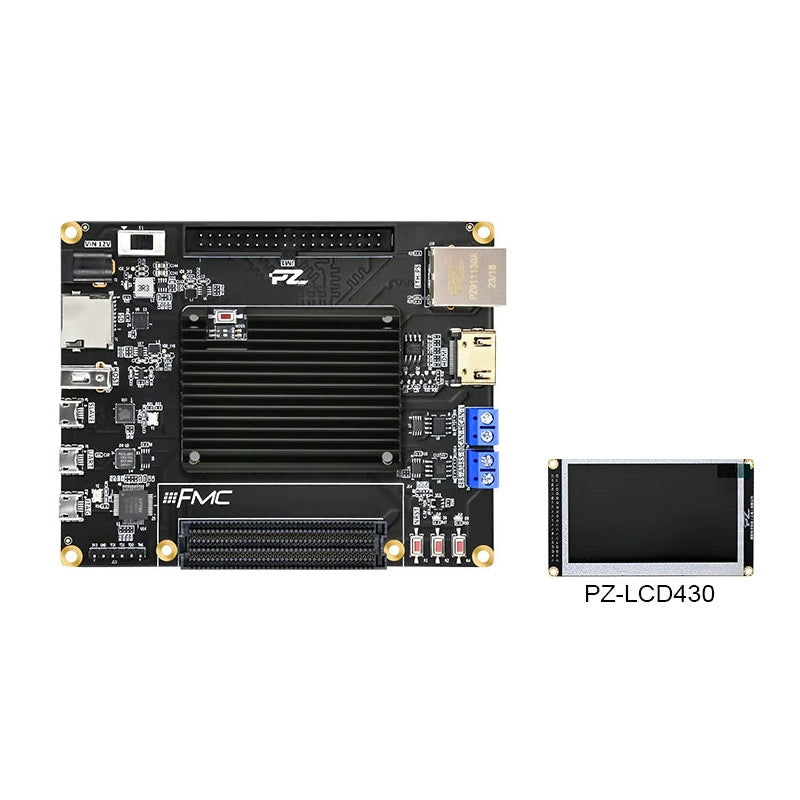

* 1 x PZ-LCD430

* 1 x Development Board

* 1 x 12V 1A Power Adapter

* 2 x Micro USB Cables

* 1 x Heatsink

* 1 x 8G SD Card

* 1 x SD Card Reader

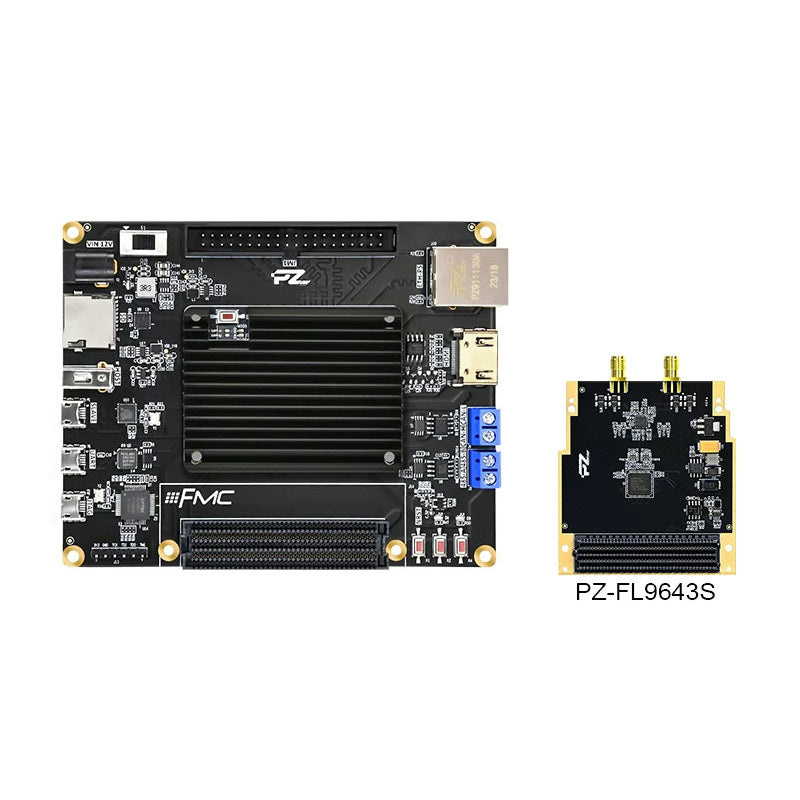

* 1 x PZ-FL9643S

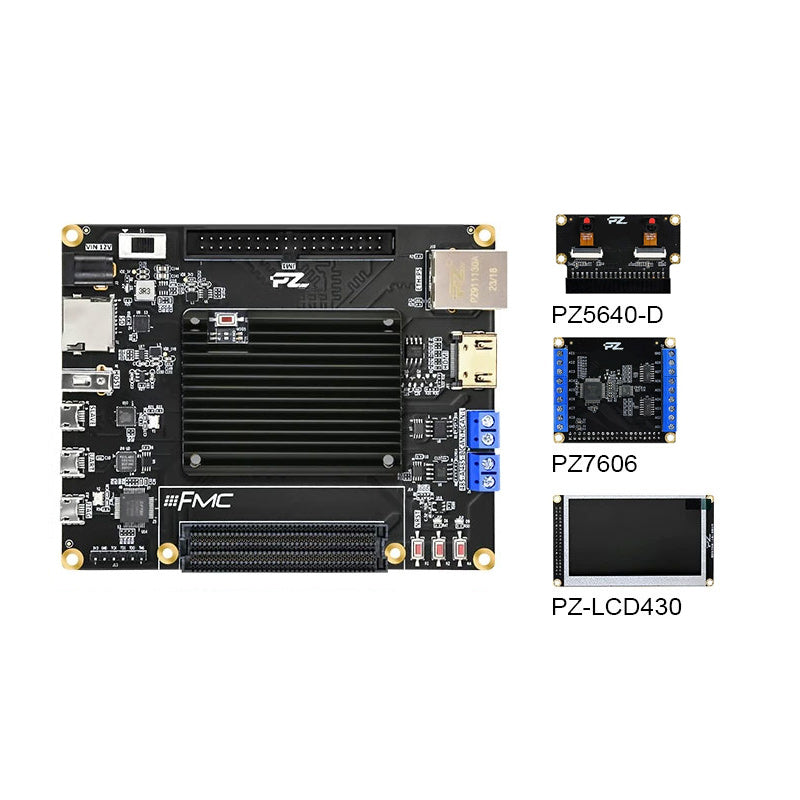

* 1 x Development Board

* 1 x 12V 1A Power Adapter

* 2 x Micro USB Cables

* 1 x Heatsink

* 1 x 8G SD Card

* 1 x SD Card Reader

* 1 x PZ5640-D

* 1 x PZ7606

* 1 x PZ-LCD430

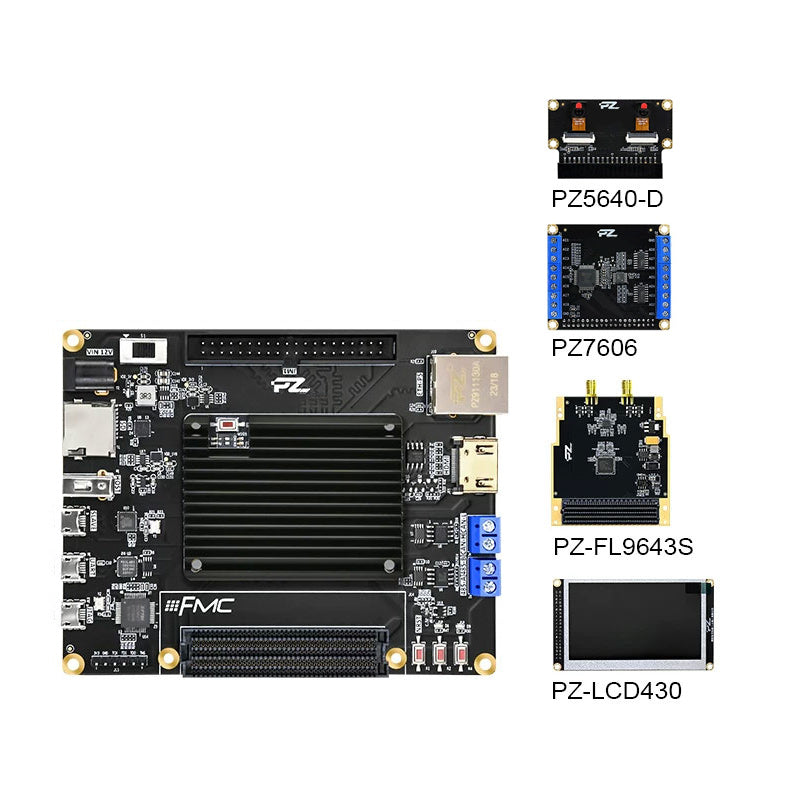

* 1 x Development Board

* 1 x 12V 1A Power Adapter

* 2 x Micro USB Cables

* 1 x Heatsink

* 1 x 8G SD Card

* 1 x SD Card Reader

* 1 x PZ5640-D

* 1 x PZ7606

* 1 x PZ-FL9643S

* 1 x PZ-LCD430

* Development Board Only: 0.35kg

* ADDA Kit: 0.4kg

* Dual Camera Kit: 0.4kg

* LCD Kit:0.4kg

* High-Speed ADC Kit: 0.4kg

* Classic Kit: 0.5kg

* Deluxe Kit: 0.6kg

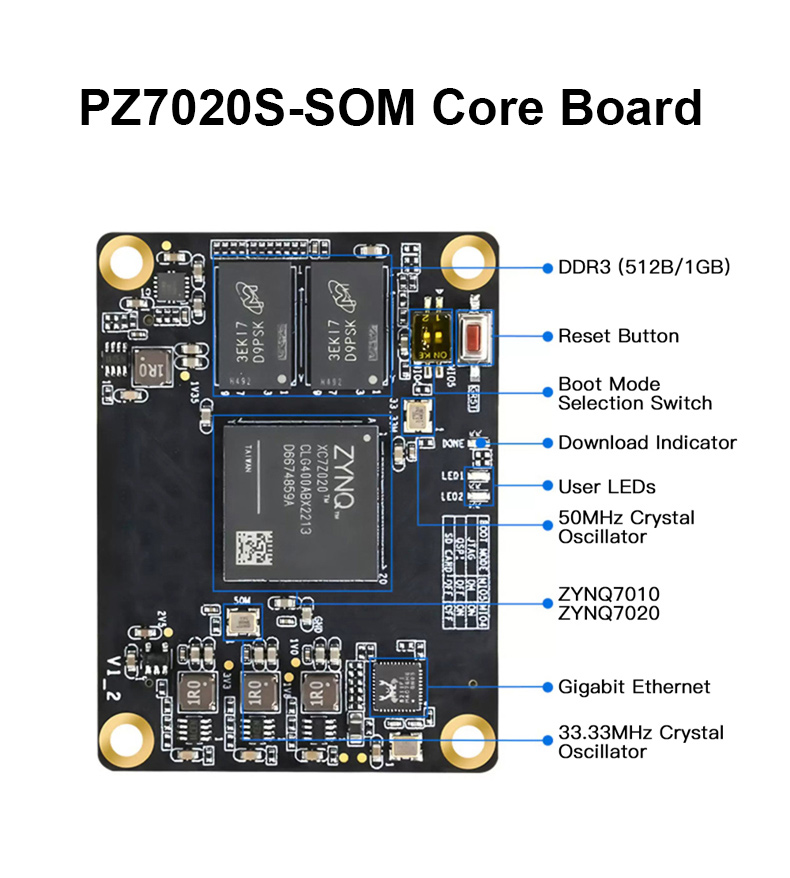

Click to Learn More: PZ7020S-SOM Core Board

* PZ7606 AD7606 8-Channel ADC Module

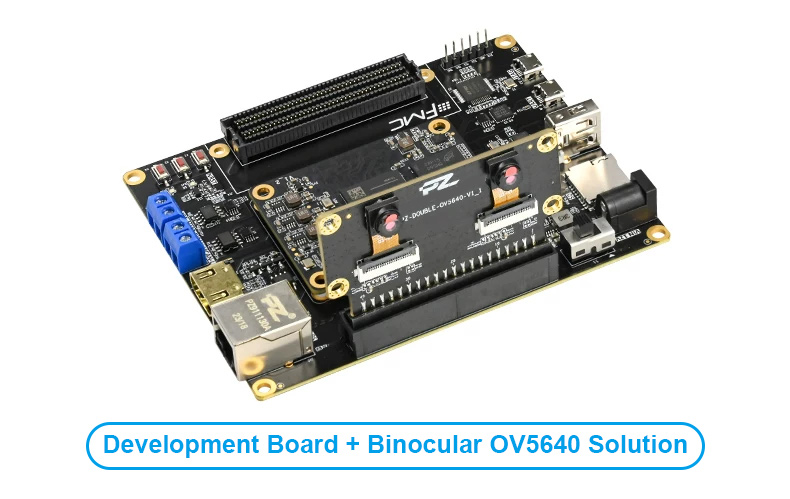

* PZ5640-D OV5640 5MP Stereo Camera

* PZ-LCD430 4.3-Inch TFT LCD Display

* PZ-FL9643S AD9643 250MSPS FPGA ADC Board
