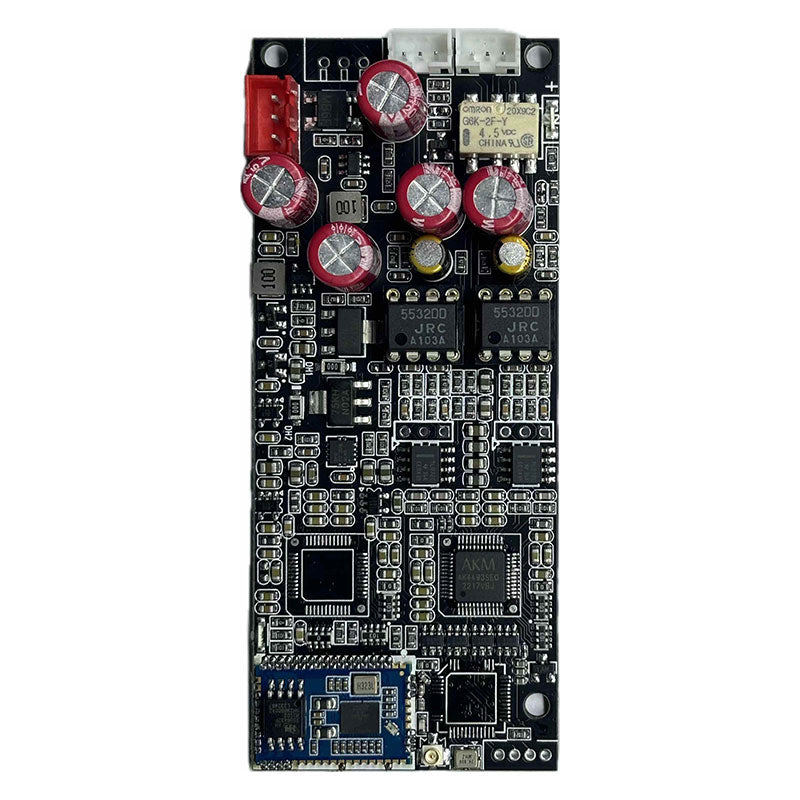

QCC5181 BT5.4 Bluetooth Receiver Module with Dual Parallel AK4493SEQ Supports Lossless Music

QCC5181 BT5.4 Bluetooth Receiver Module with Dual Parallel AK4493SEQ Supports Lossless Music

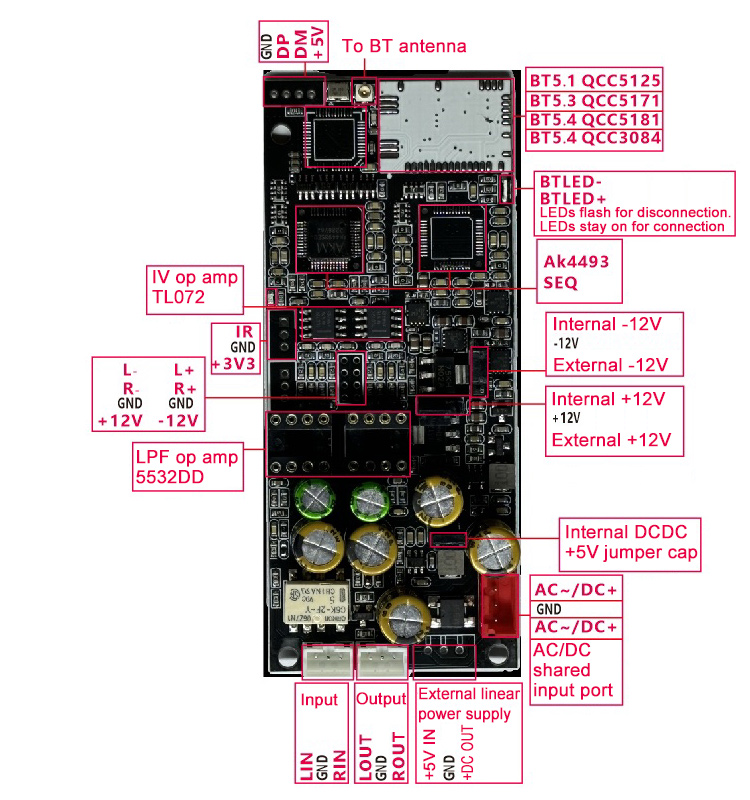

Features:
- The Bluetooth chip is for LDAC, aac, aptX, aptxLL, aptxHD and aptx-Adaptive, and supports 24BIT 96K. LDAC requires the support of your mobile phone
- Upgraded version makes it suitable for you to DIY
- It adopts a jumper cap for DC-DC5V and linear power supplies, and adopts a design compatible with 7805
- Positive and negative voltage designs are available, with a jumper cap for internal boost and external power supply. Flexible to use
- DC and AC share one input socket
- Low noise LDO for TI is used for internal power supply
- Sound card socket (PCM 24bit 96K) added
- Supports USB drive playback function, WAV, FLAC, APE, MP3 and 24BIT 48K sampling
- Supports four dual op amps, IV op amp TL072, LPF op amp 5532DD [default is 5532, 5532DD]. LPF op amp can be replaced with dual op amps
- Supports the control of USB drive APP

Package Included:
- 1 x Set of Bluetooth Receiver

Packaging Details:
- Weight: 0.23kg

Note:
- Returns are not available if users plug in the wrong power supply, burn out the component, or the product has been soldered with a soldering iron.
