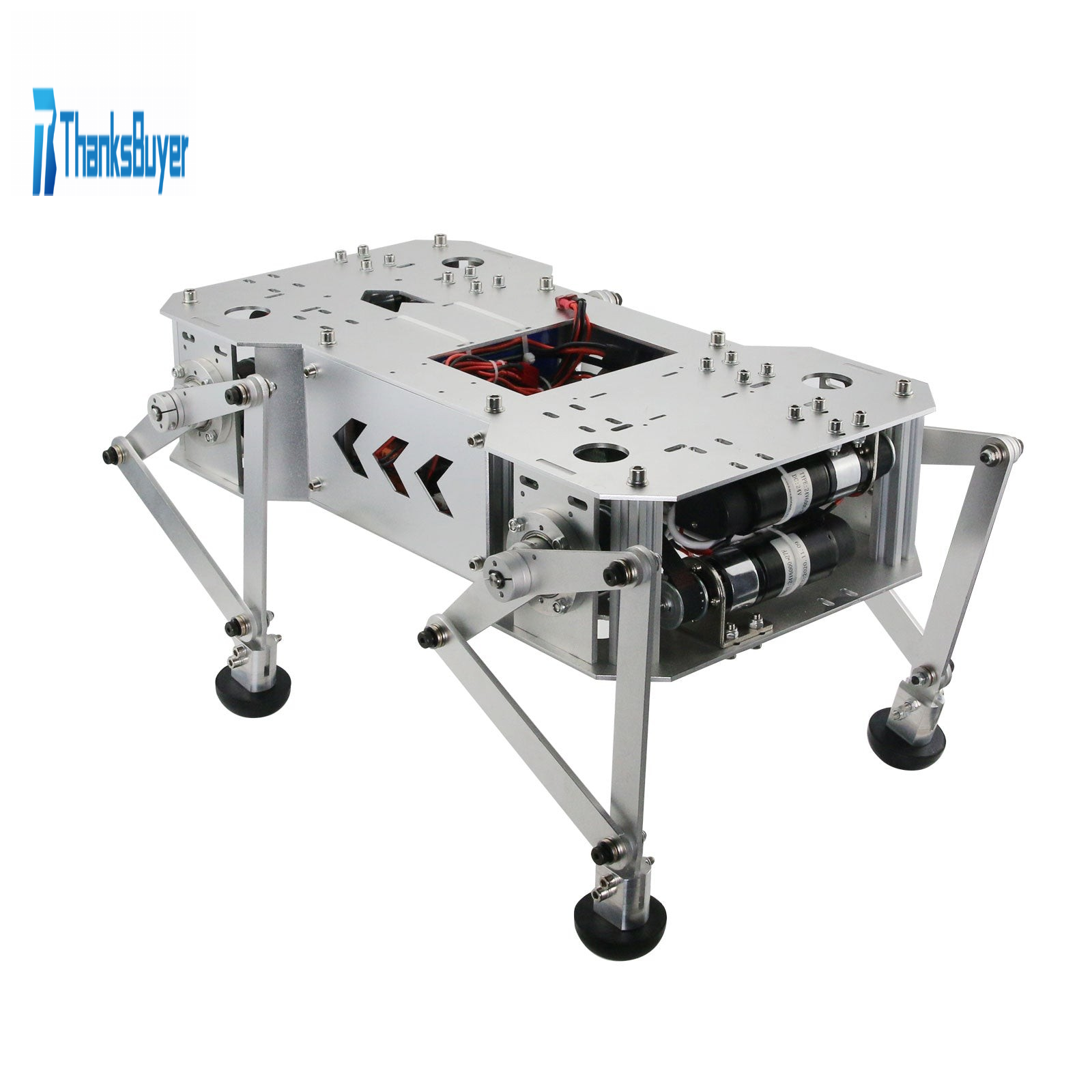

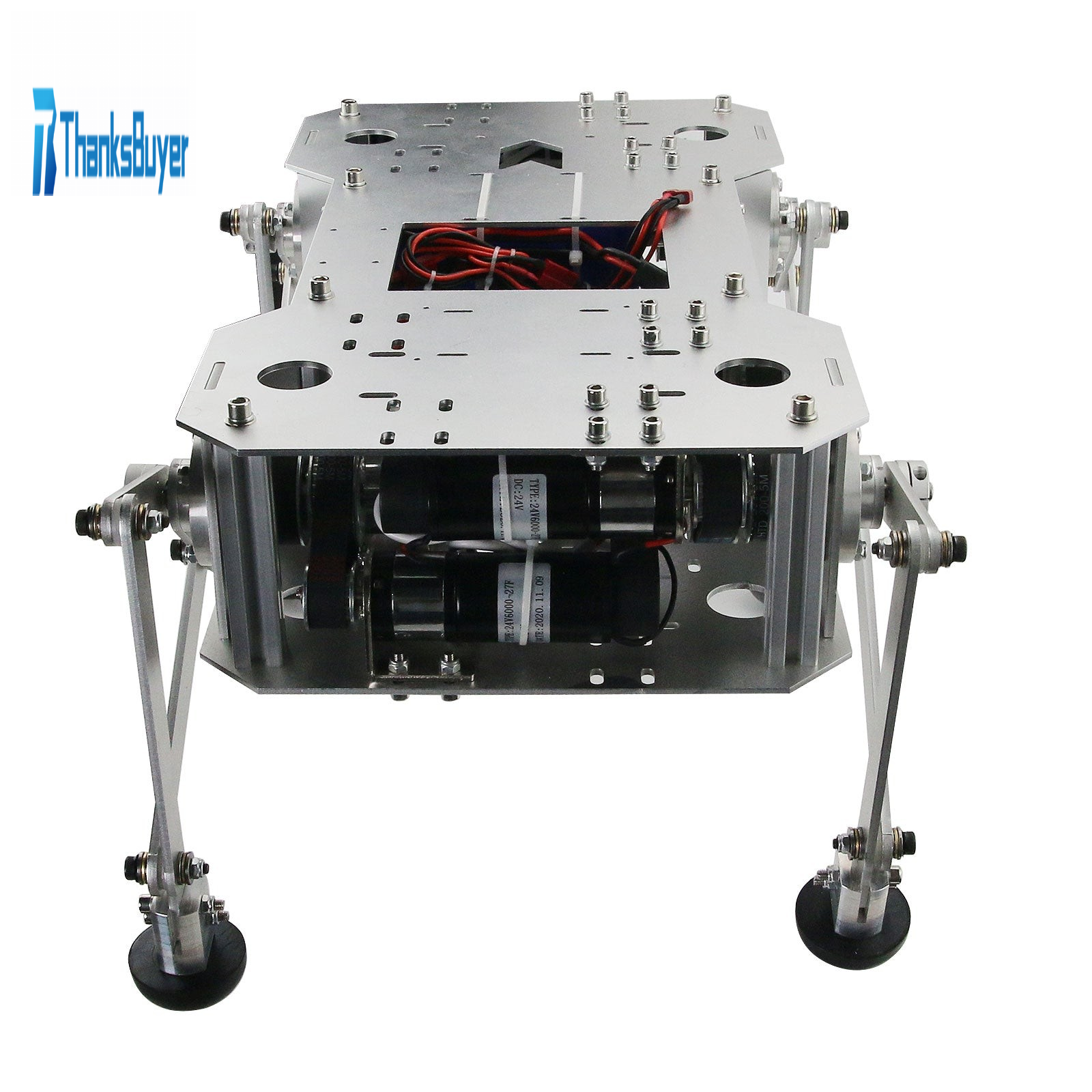

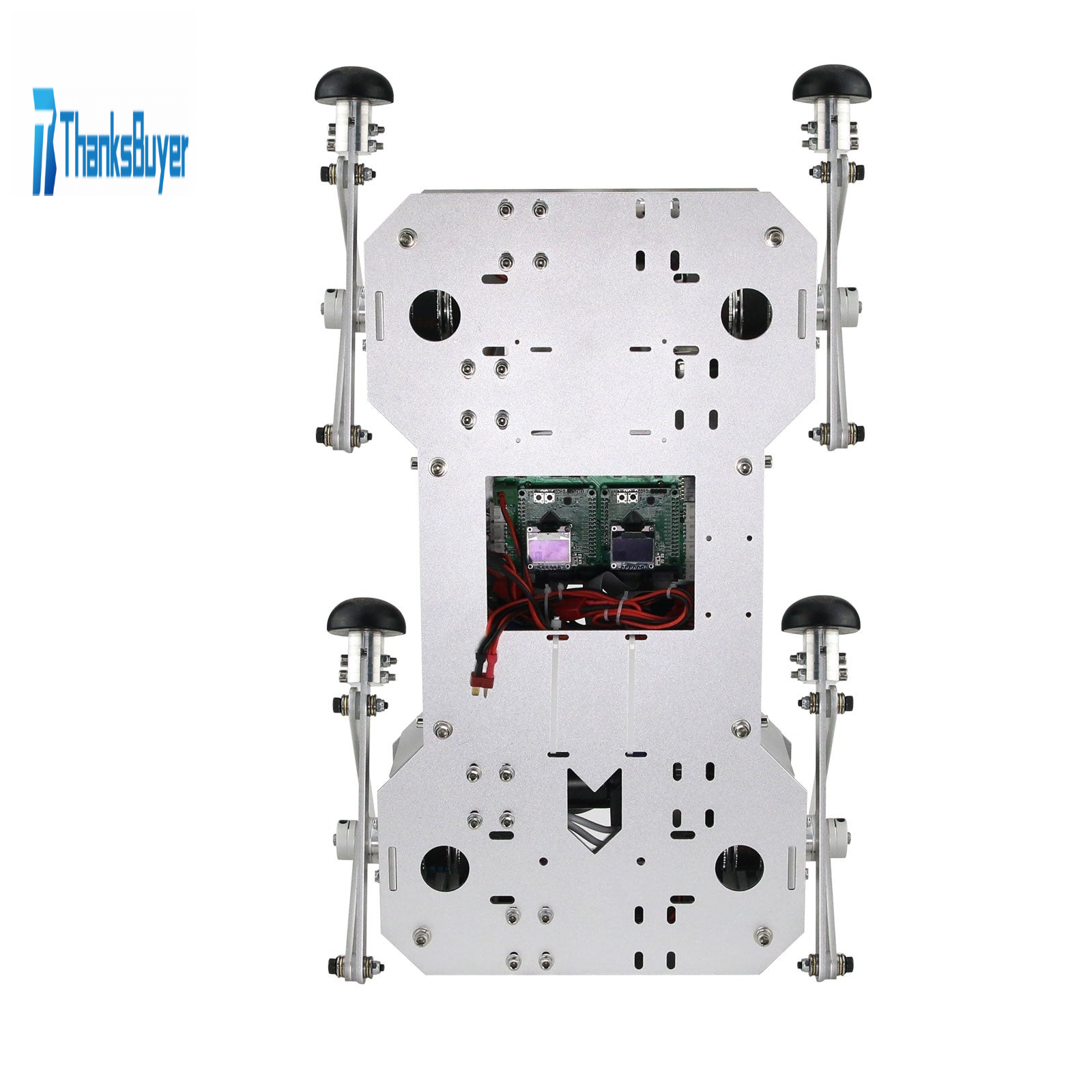

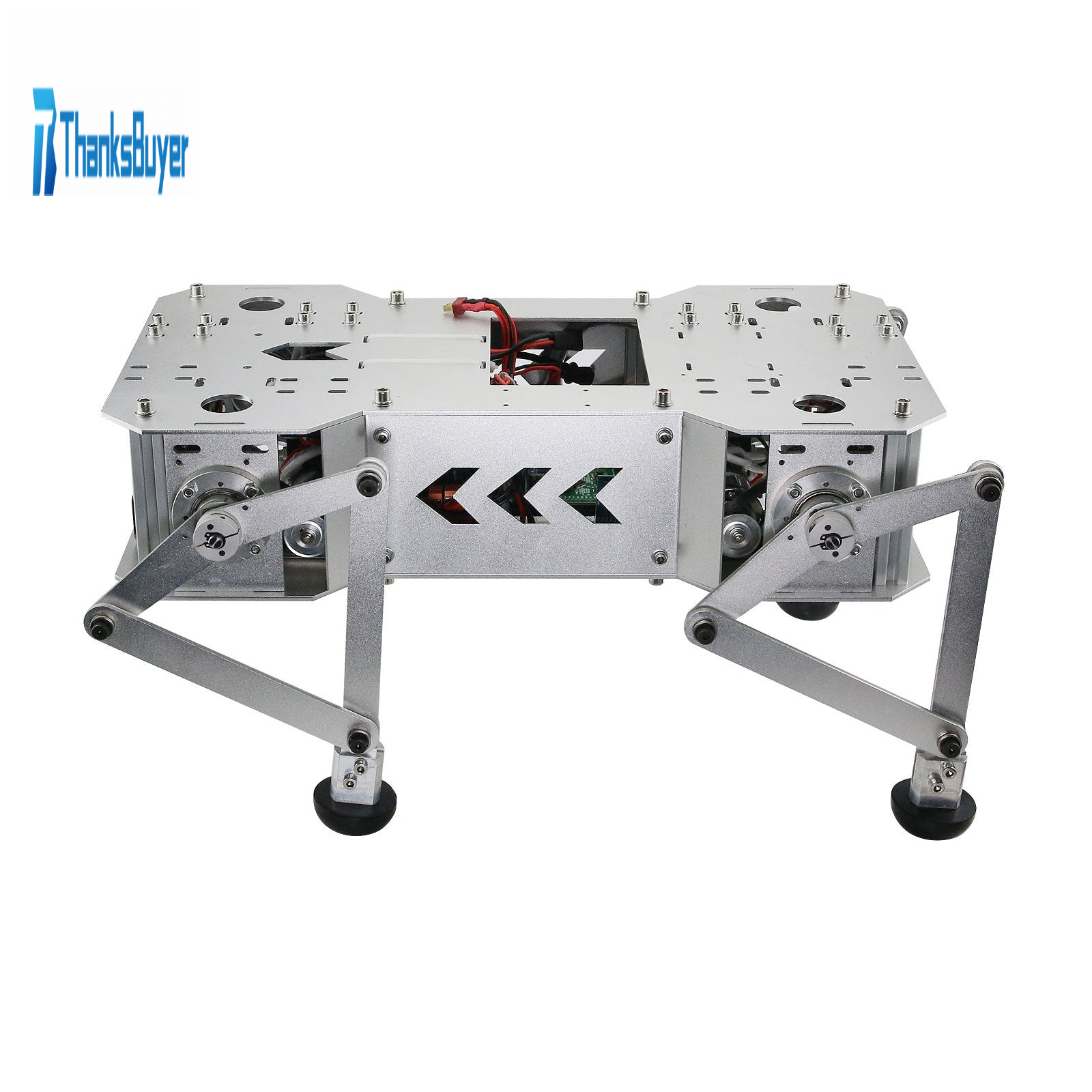

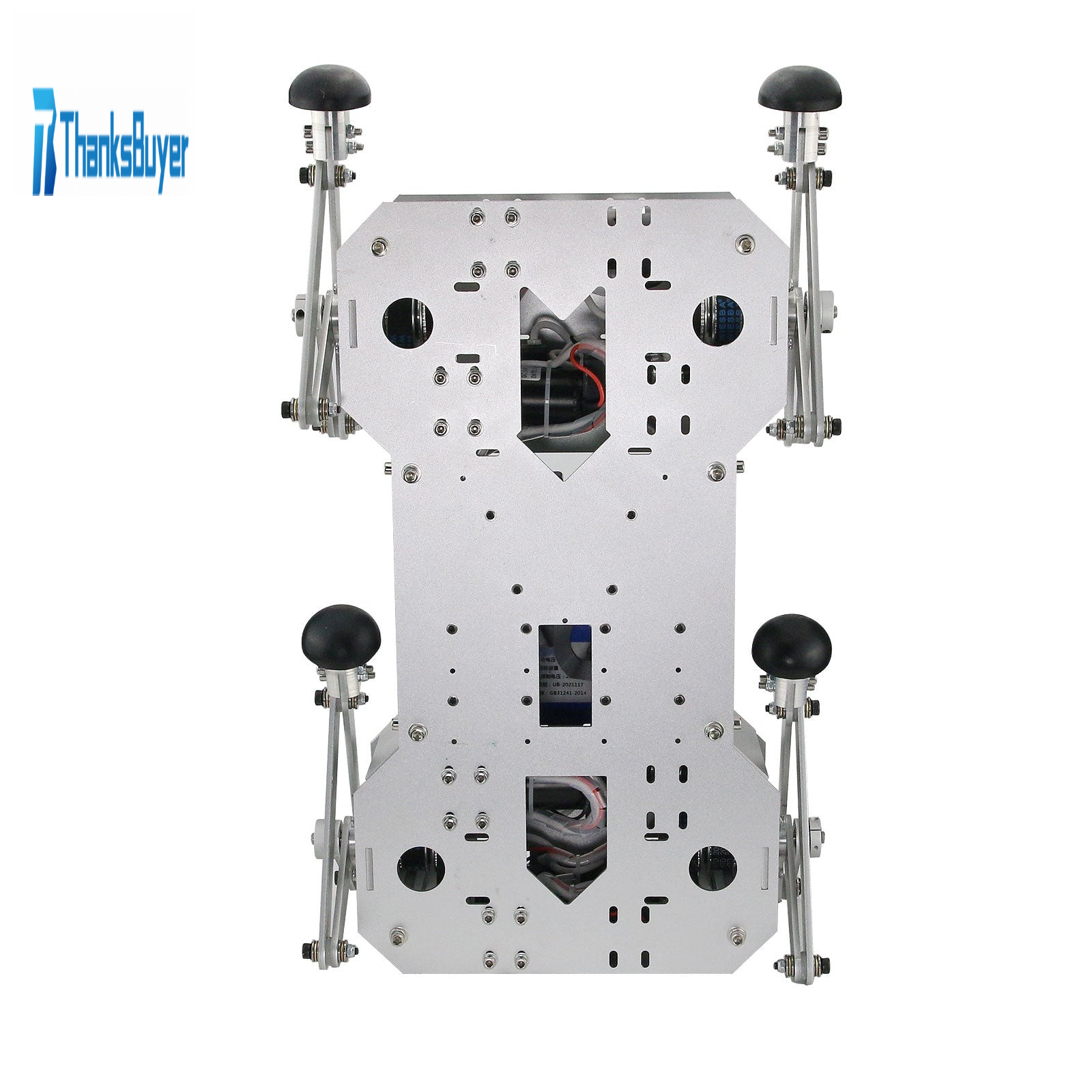

Quadruped Robot Remote Control BeeDog Programmable Crawling Robot with Planetary Gear Motor Assembled

Quadruped Robot Remote Control BeeDog Programmable Crawling Robot with Planetary Gear Motor Assembled

Specifications:
Bracket material: aluminum alloy

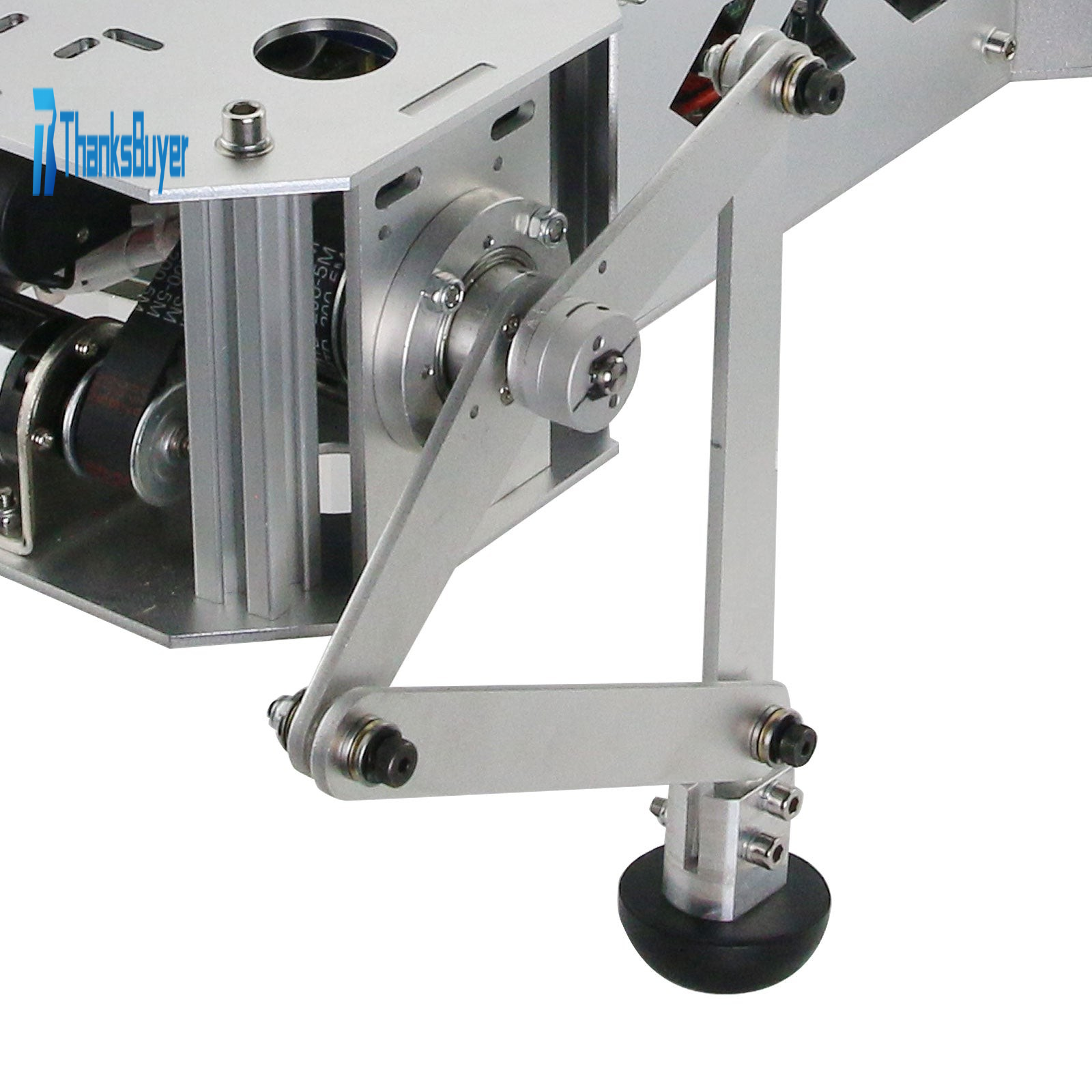

Motor: MD36NP27P planetary gear motor
Encoder: 500 line AB phase photoelectric encoder
Number of motors: 8
Motor power: 35W * 8
Weight: 10.4kg

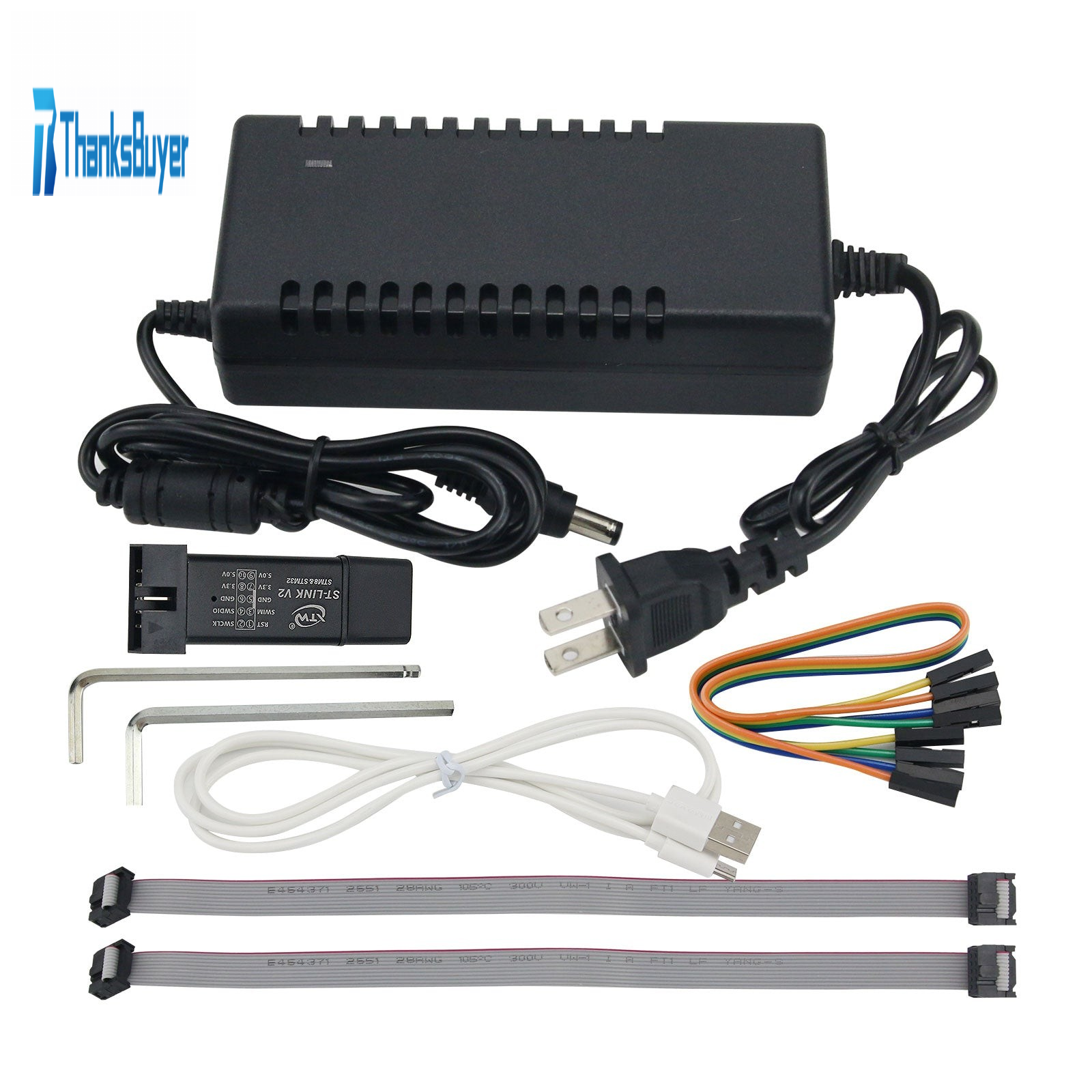

Charger: charger with protection (about 2.5 hours when fully charged)
Life time: 15 minutes
Display: OELD
Program download: serial port one-key download or SWD download
Motor drive: MOS drive
Main control chip: STM32F405RGT6
Auxiliary control chip: STM32F103RCT6
Operating system: FreeRTOS
Open source: source code (including inverse kinematics analysis, gait planning), schematic diagram
Zero calibration: default mechanical calibration, reserved 8 infrared interfaces
Function: tramping in place, walking, steering
Motherboard reserved interface: CAN, serial port, IIC, USB, etc.

Features:
- Fully open source.
- FreeRTOS operating system.
- STM32F4 master.
- Full metal processing.
- Planetary gear motor.
- Photoelectric encoder.
- Micro USB data cable, one-key download.
- Reverse connection protection, overcurrent protection, short circuit protection, electrostatic -protection.
- Equipped with special chargers for over discharge, overshoot, short circuit, overvoltage and other multiple protections.

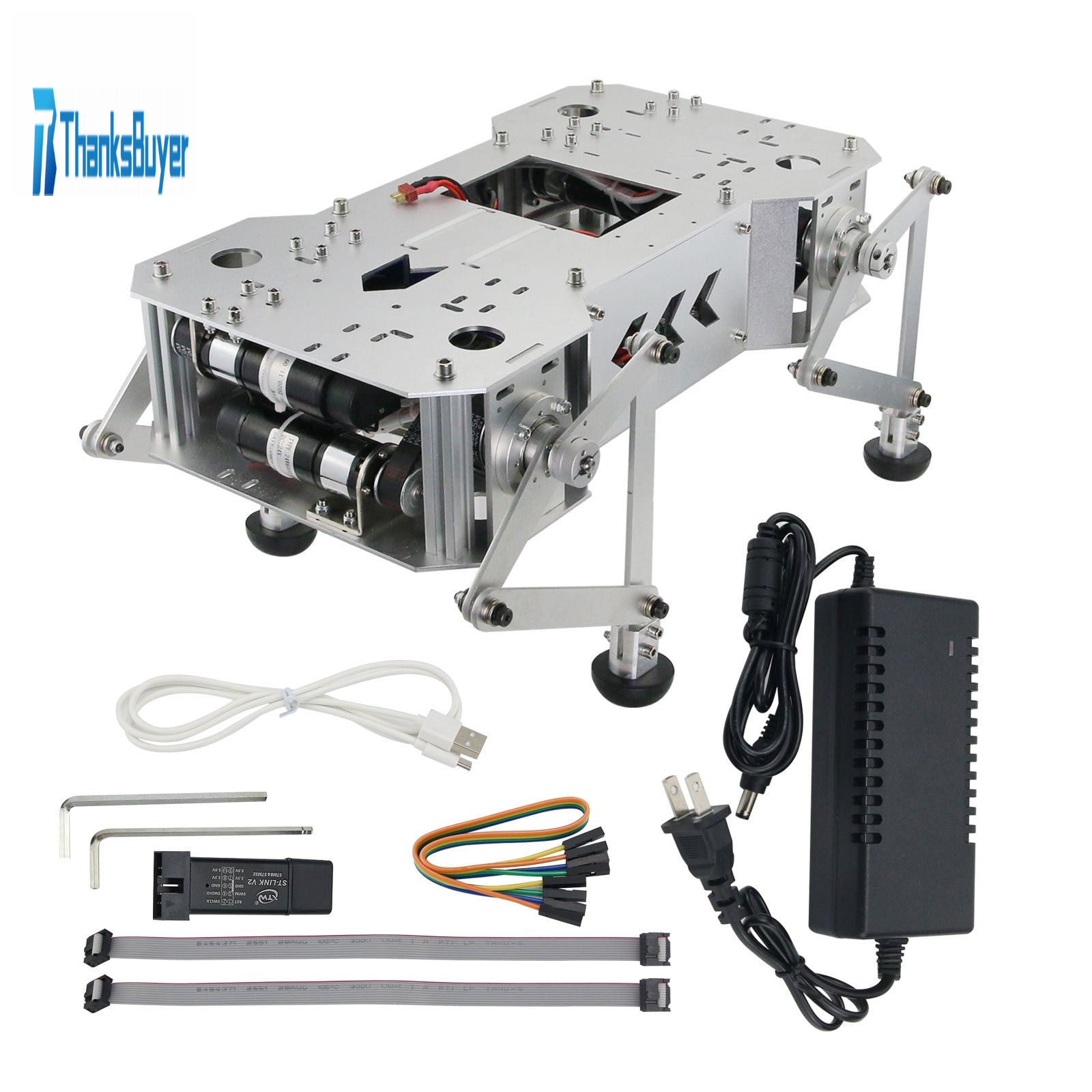

Package List:
-1 x Assembled Quadruped Robot

Note:
1. The quadruped robot is assembled and debugged.
2. It is recommended to use a 5AH 24V lithium battery which is not included.
3. Remote controller for PS2 is not included.
