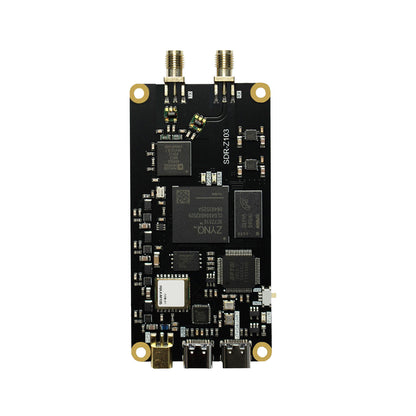

  3. SDR-Z103 AD9363+ZYNQ7010 Software Defined Radio 1R+1T Development Board QPSK BPSK FM AWGN GPS Compatible with PlutoSDR
Thanksbuyer Online,SDR Radio, Testers and Measurement devices, Astronomy products, Audio Amplifer and Decodersによる

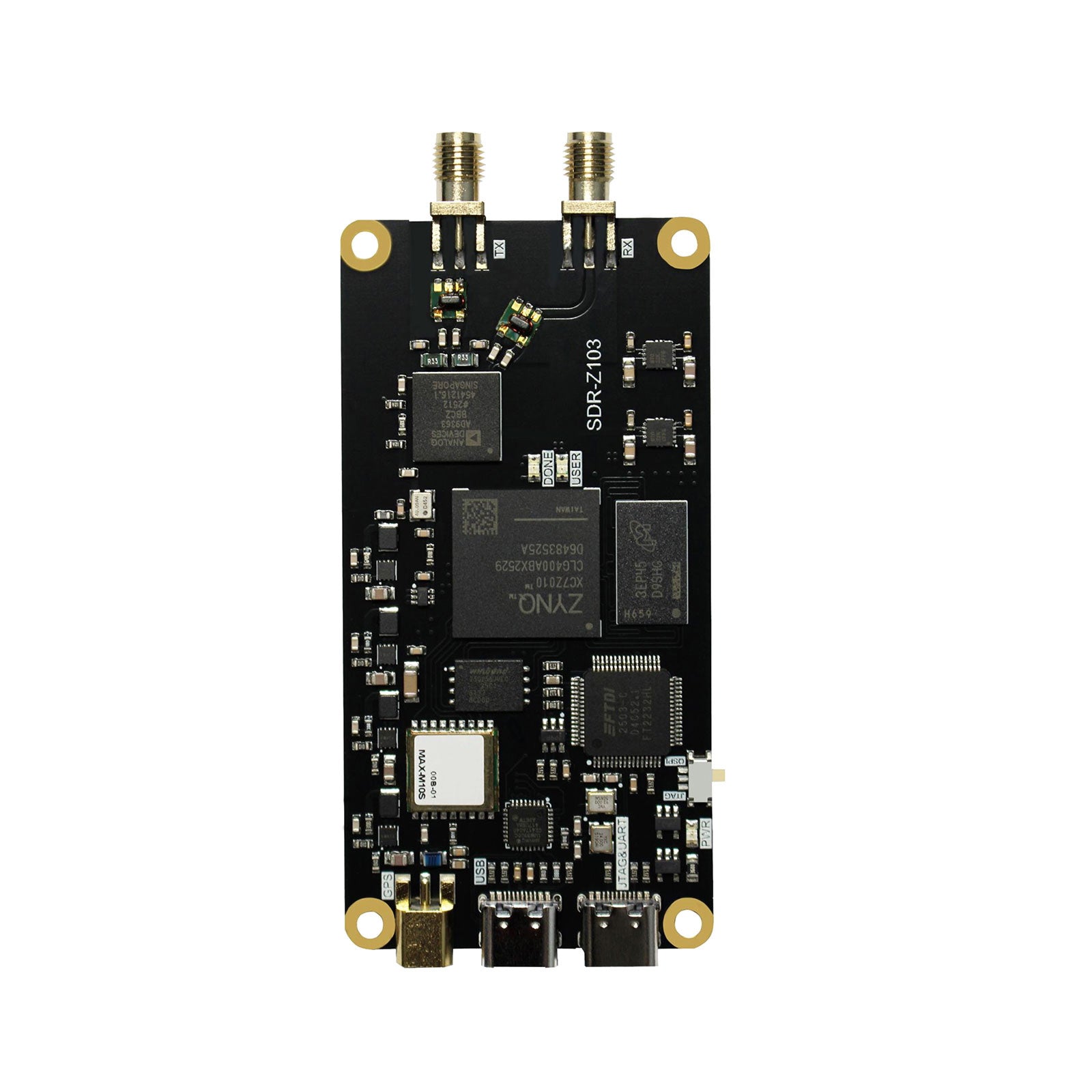

SDR-Z103 AD9363+ZYNQ7010 Software Defined Radio 1R+1T Development Board QPSK BPSK FM AWGN GPS Compatible with PlutoSDR

$104.71
$104.71
税込み。 配送料はチェックアウト時に計算されます。
Availability: 2000個の在庫
SKU: 101760
Tags:
$104.71
$104.71

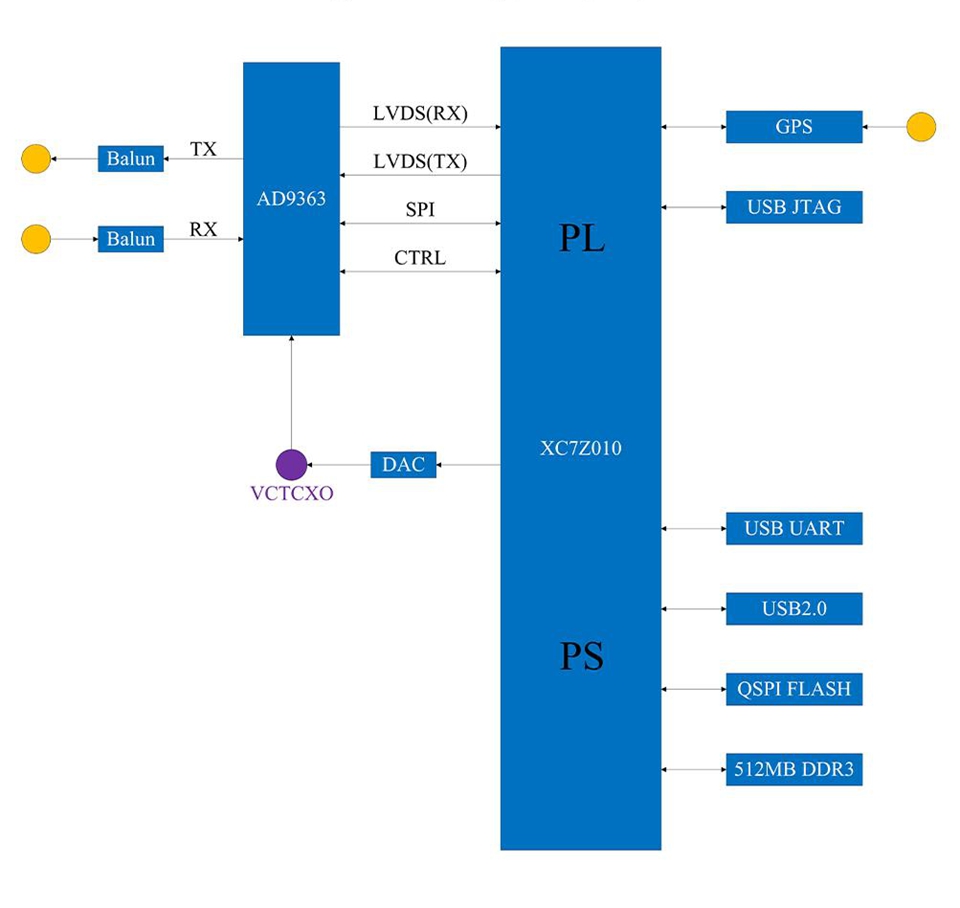

AD9363 Parameters:
- RF channels: 1R 1T
- Frequency range: 325MHz - 3.8GHz
- Bandwidth range: 200kHz - 20MHz
- SOC model: XC7Z010-2CLG400
- DDR3: 512MB
- QSPI FLASH: 256Mb
- Clock: VCTCXO 0.5ppm, 12bit DAC

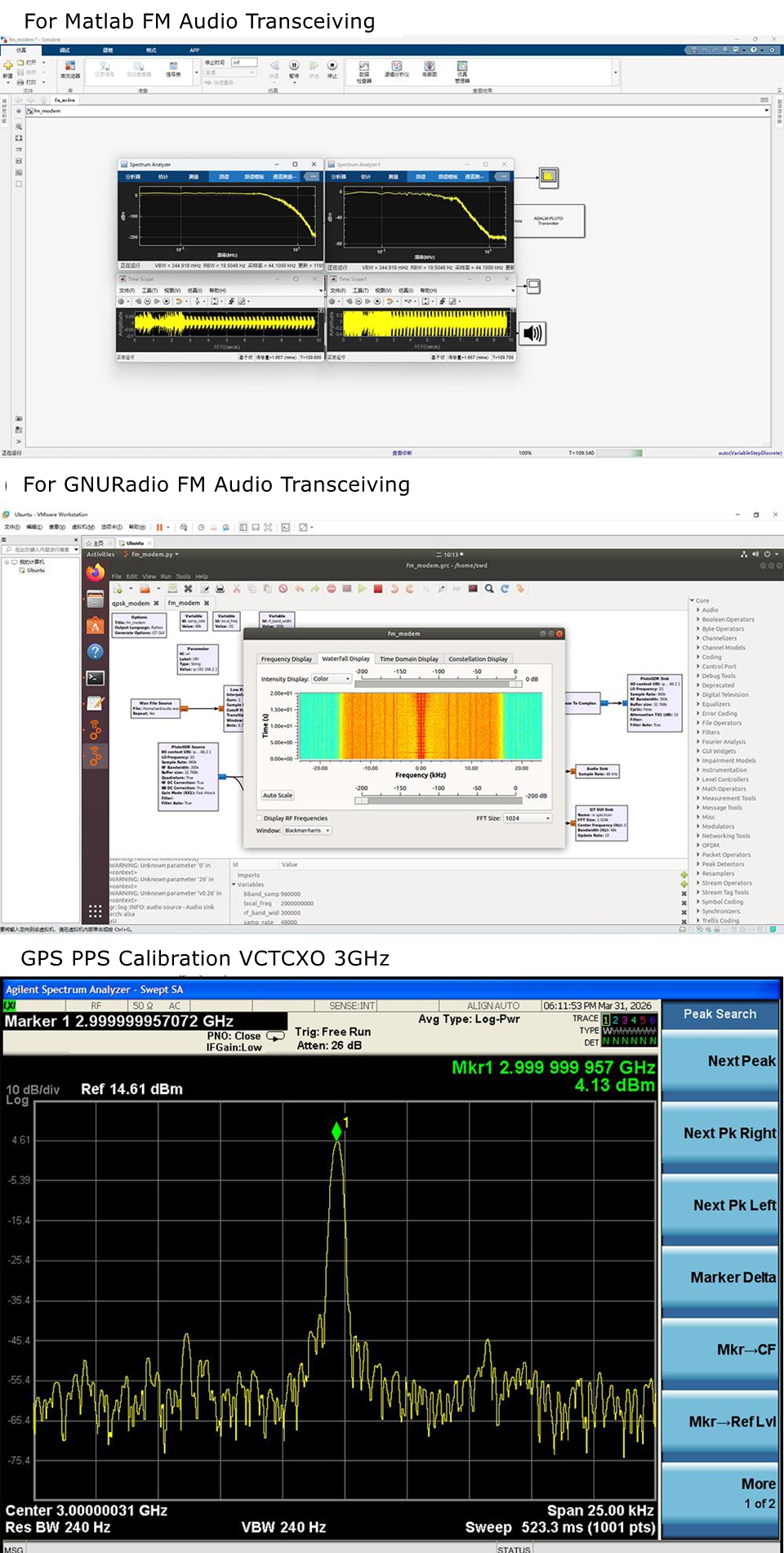

- Synchronization: GPS PPS
- GPS: MAX-M10S-00B-01

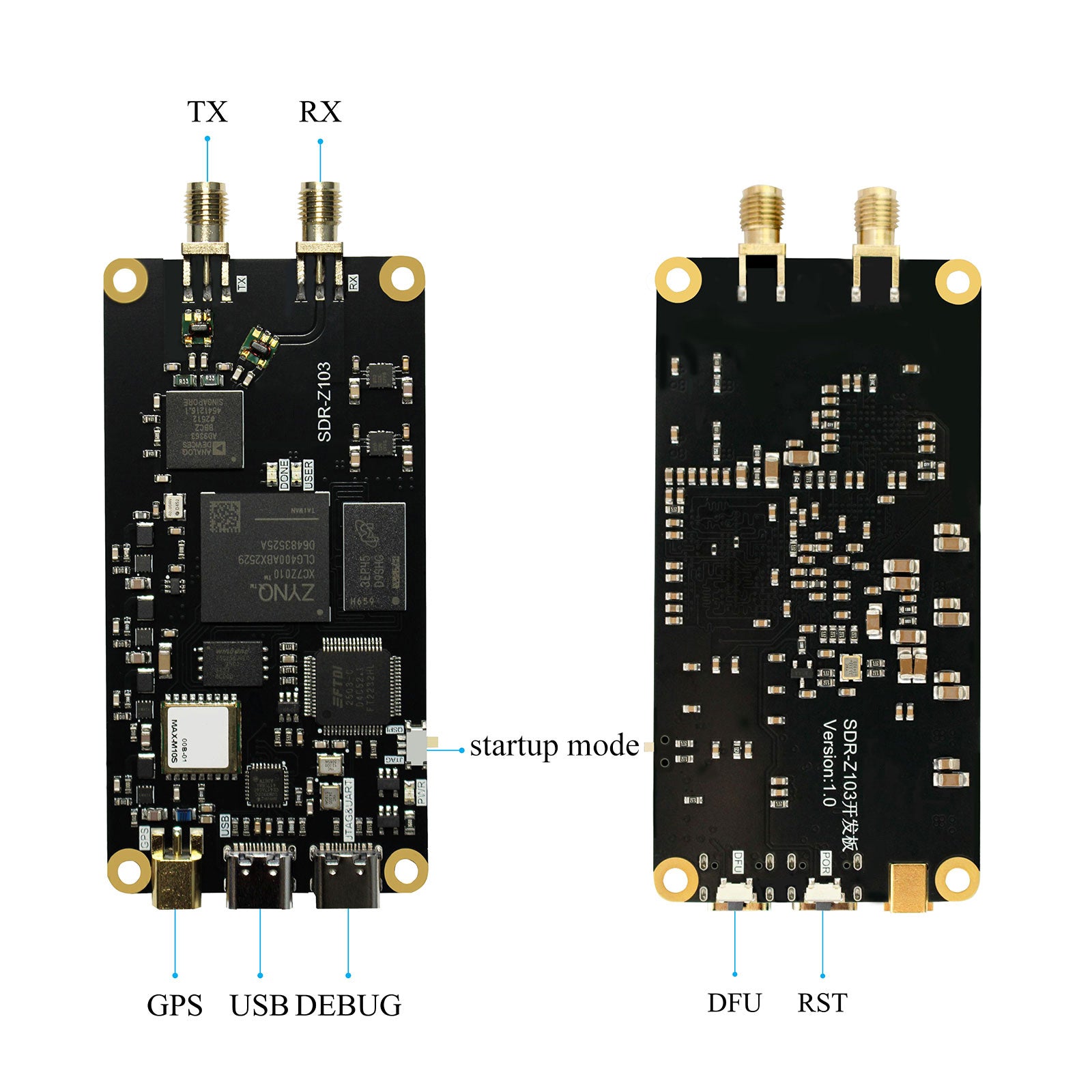

- Interface: 1-channel USB2.0, 1-channel USB-JTAG/UART

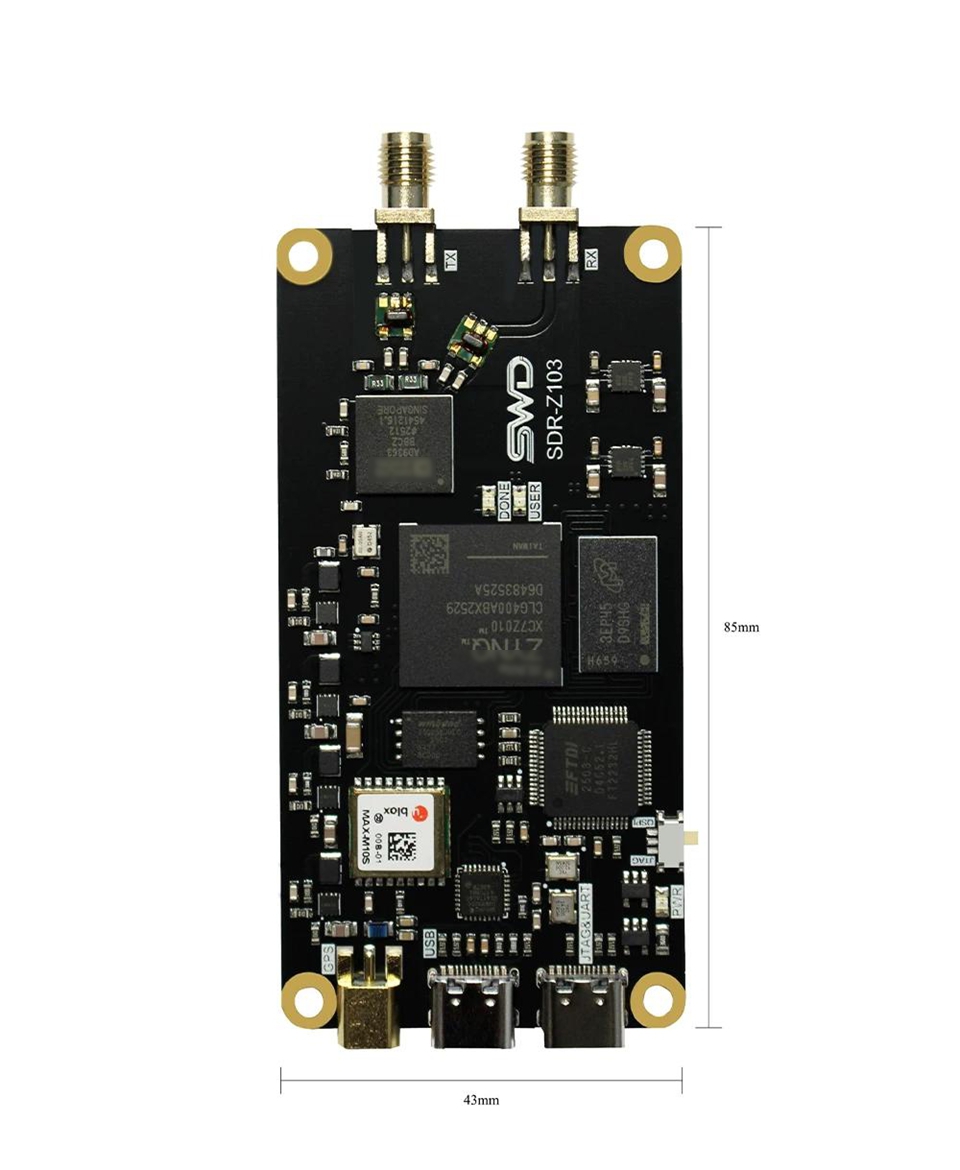

- Product size: 85 x 43mm
- Power supply: USB Type-C

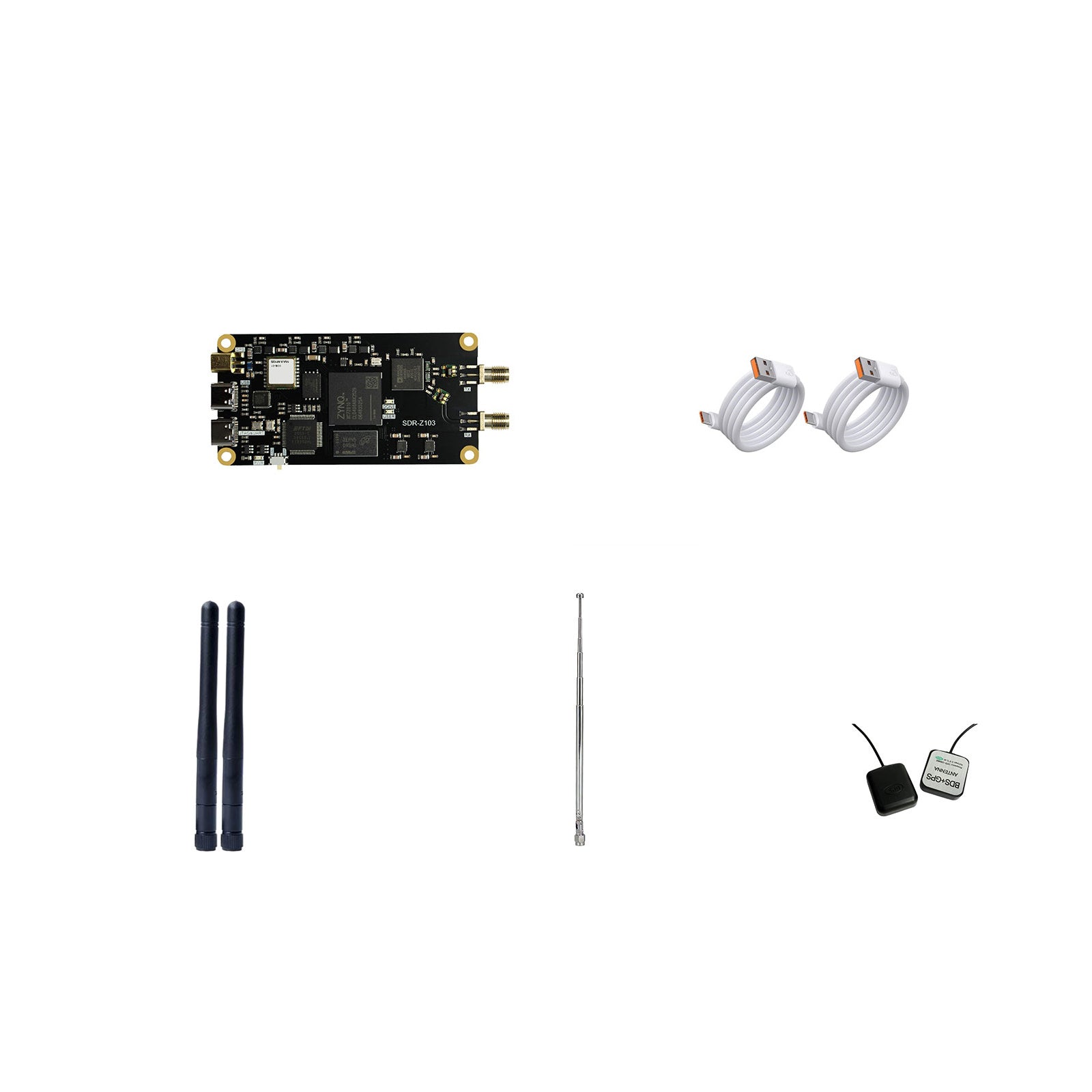

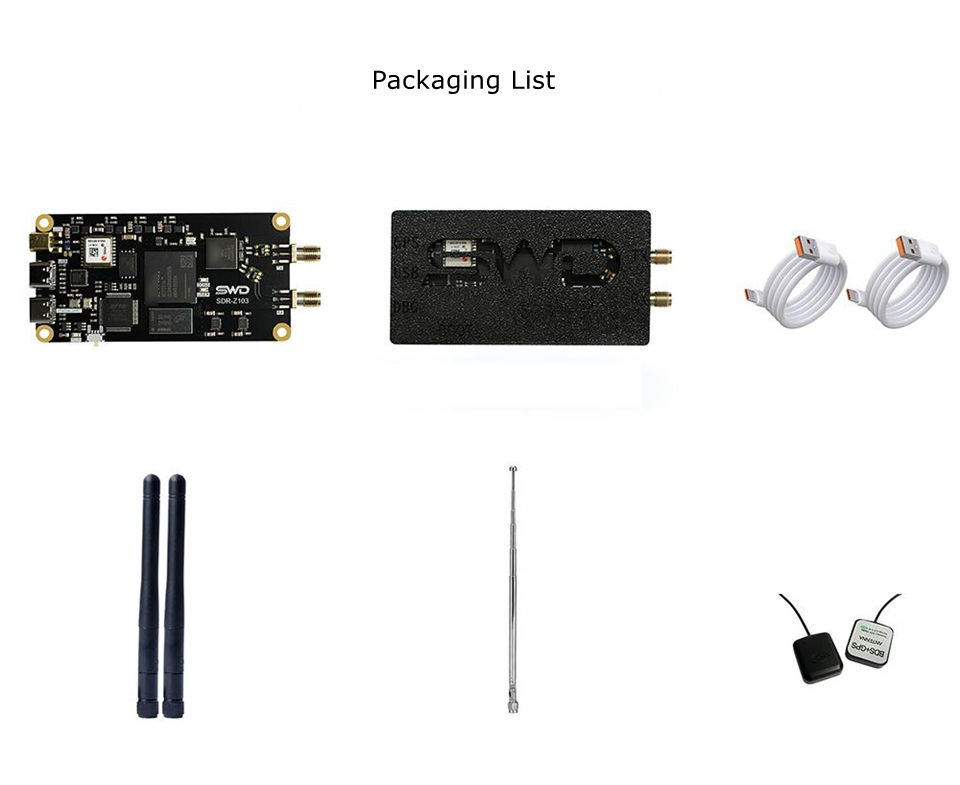

Package Included:
- 1 x Development Board Kit
