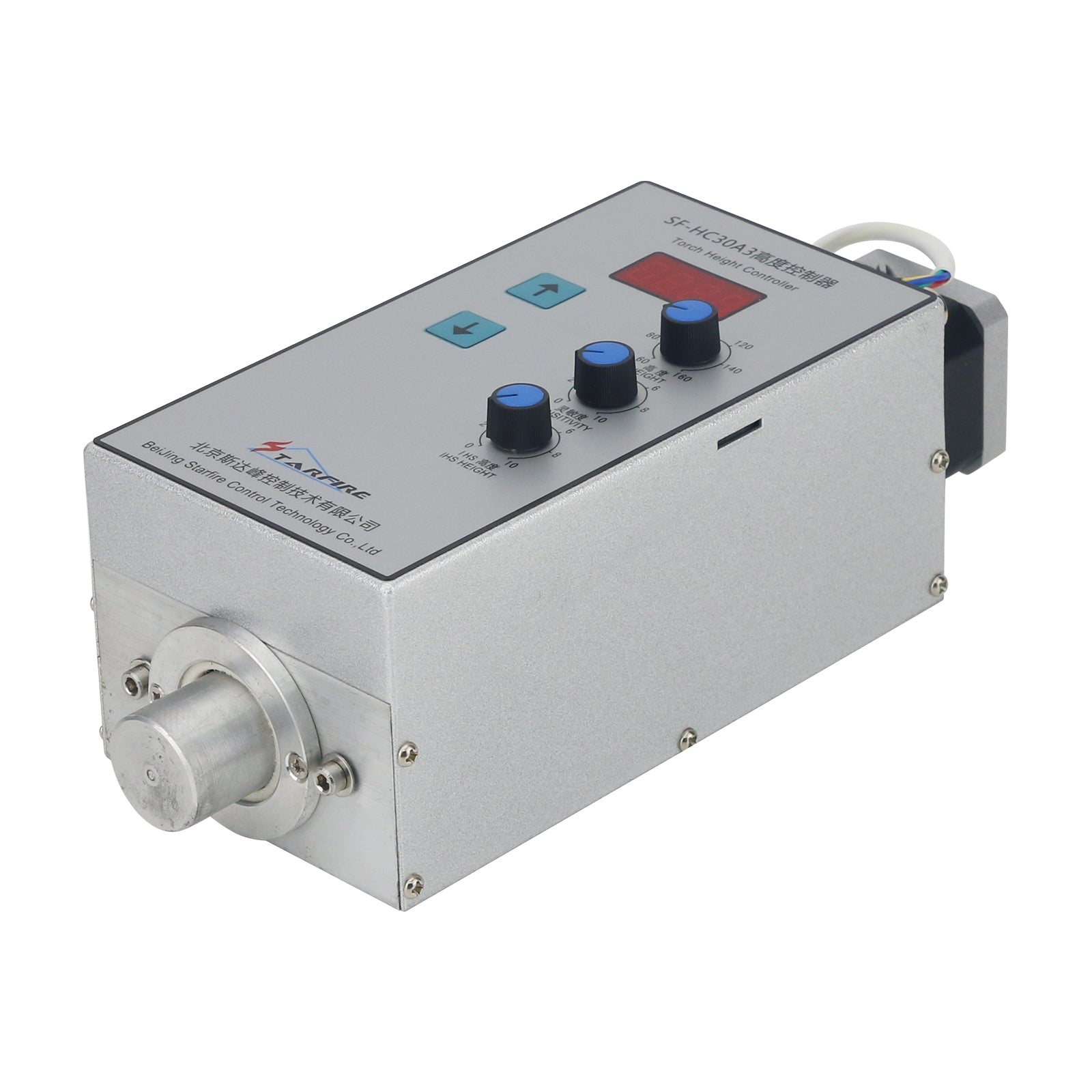

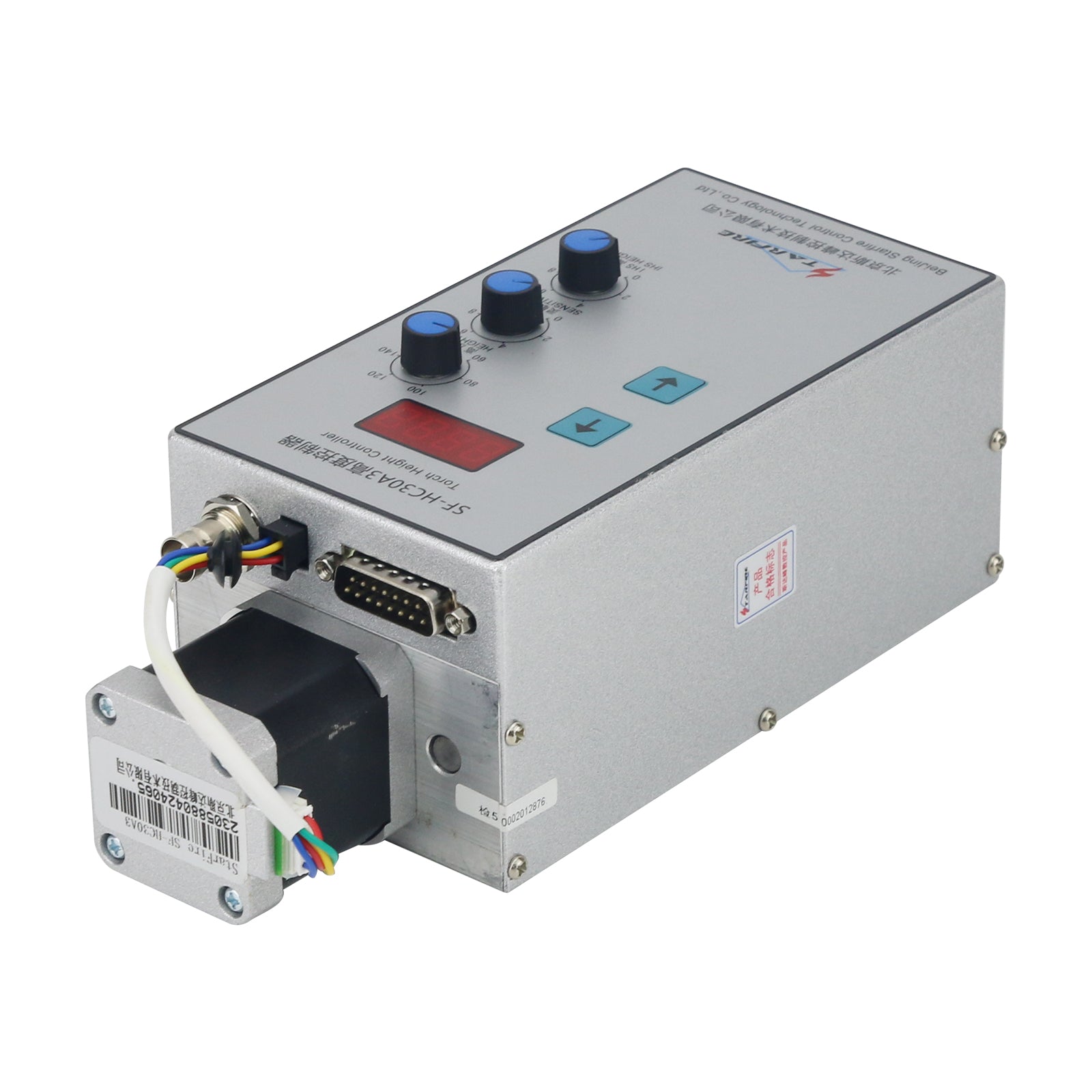

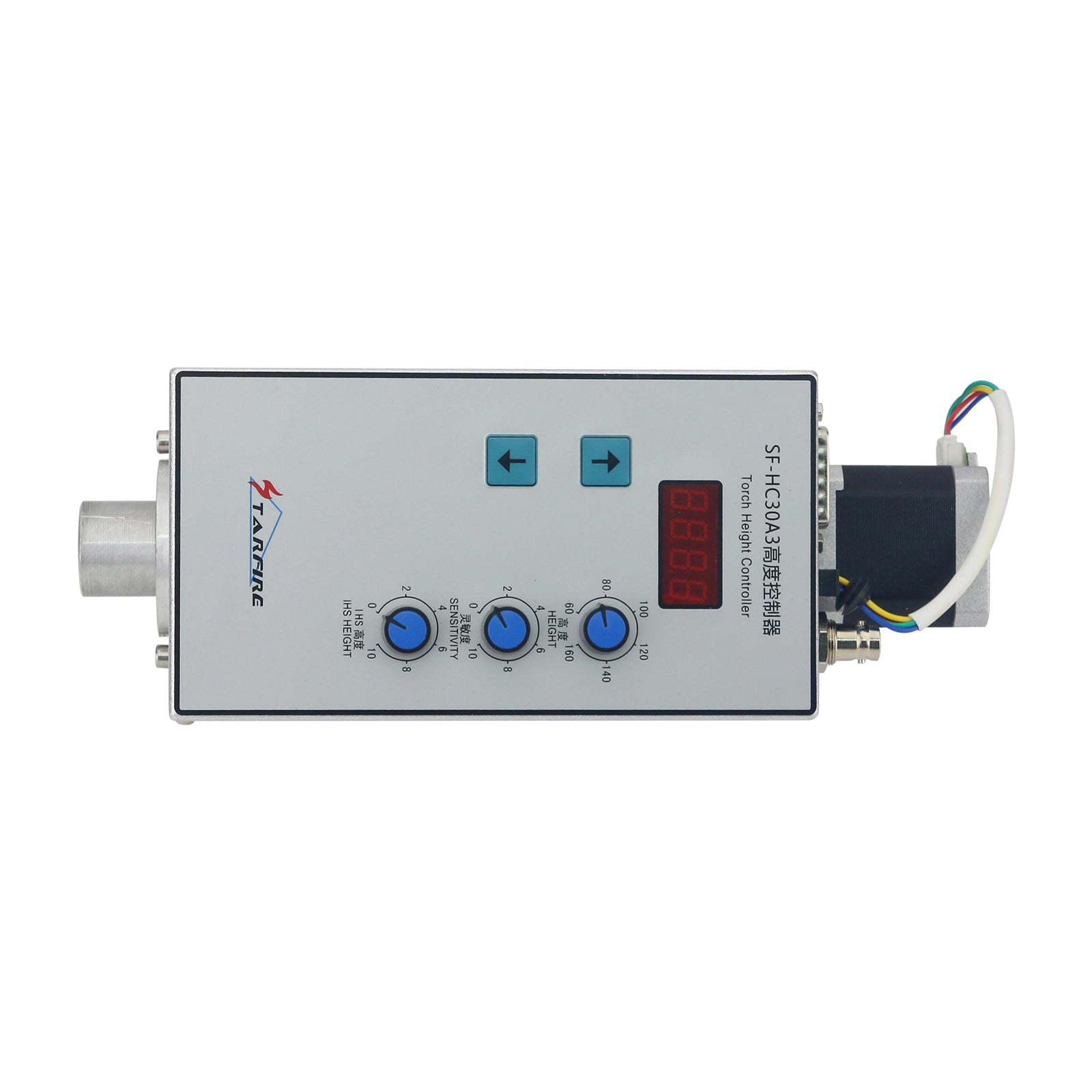

SF-HC30A3 Plasma Torch Height Controller Plasma THC for CNC Plasma Cutting Machines

SF-HC30A3 Plasma Torch Height Controller Plasma THC for CNC Plasma Cutting Machines

Features:
- Stepper motors replace traditional DC motors
- SF-HC30A3 plasma torch height controller adopts stepper motor control technology, which subverts the traditional DC motor height adjustment mode, making it fast and stable and greatly improving the service life of the product
- The integrated design of the detector, controller and driver of the mechanical lifting device and the height adjustment controller makes the product highly integrated, and the adjustment stroke is 100mm/3.9"
- Fully digital technology
- Using patch technology. Without any adjustable devices, full digital control technology ensures the product has a high degree of reliability. The shell can be used in harsh environments. The sealed, anti-interference, waterproof and moisture-proof aluminum box is designed, which is especially suitable for the harsh environment of high temperature and high electromagnetic interference of plasma cutting

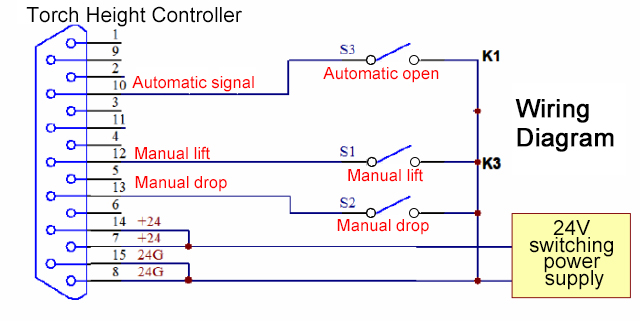

- A variety of interfaces are easy to use, the interface is simple and easy to control. Also, it is suitable for all plasma cutting CNC systems

Main Specifications:
- Power requirements: DC 24V±2 V 3 A
- Applicable motor: 17hs (42) series stepping motor
- Adjustment stroke range: 0-100mm/0-3.9"
- Automatic height adjustment control range: 3-30mm/0.1-1.2"
- Automatic height adjustment speed: 3000mm/min (118.1"/min)
- Control accuracy: ±0.5mm/±0.02"
- Box Dimensions: 155 x 87 x 71mm/6.1 x 3.4 x 2.8"
- Working environment temperature: -10 to 50 ℃
- Weight: 1.5Kg/3.3lb

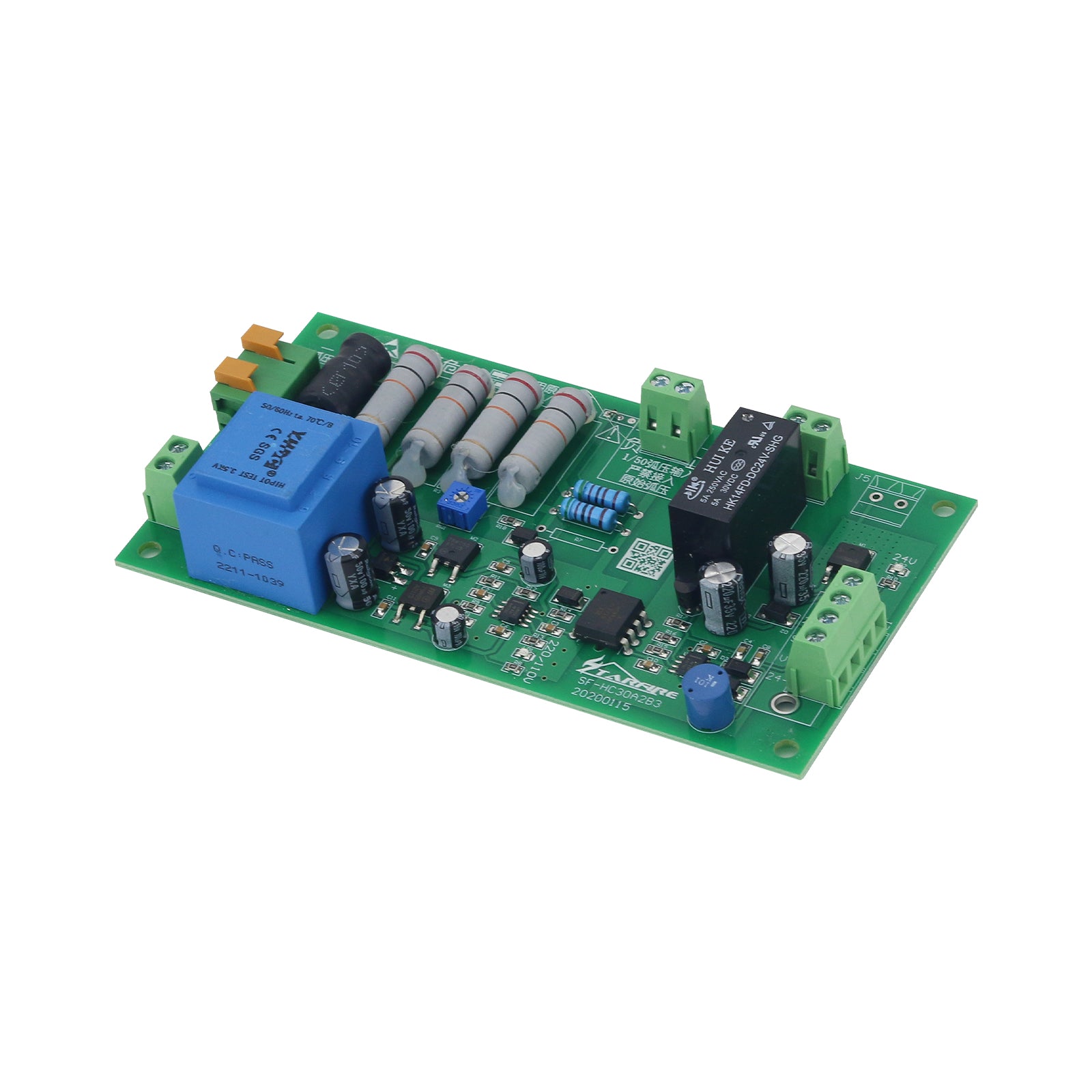

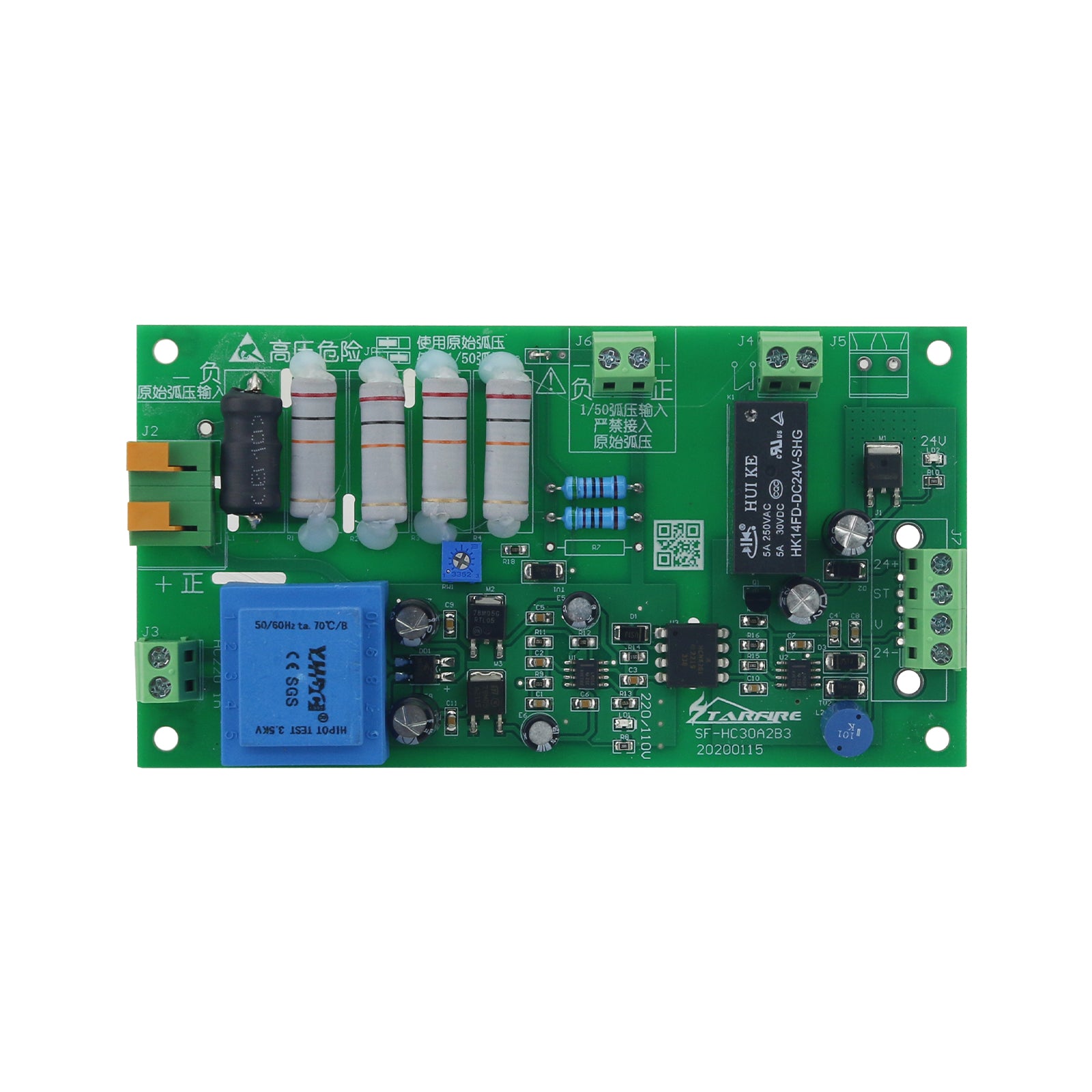

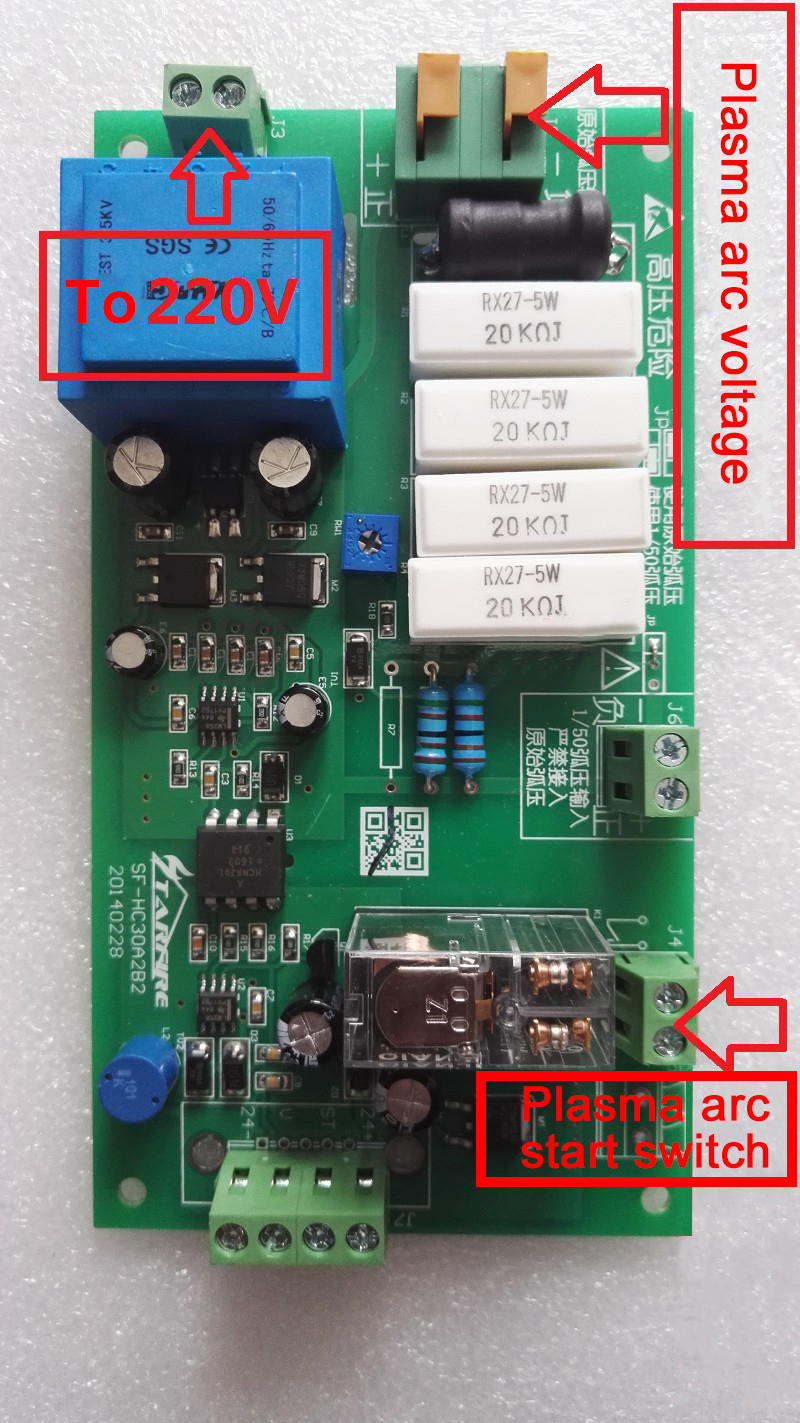

- Detection system: arc voltage height detector

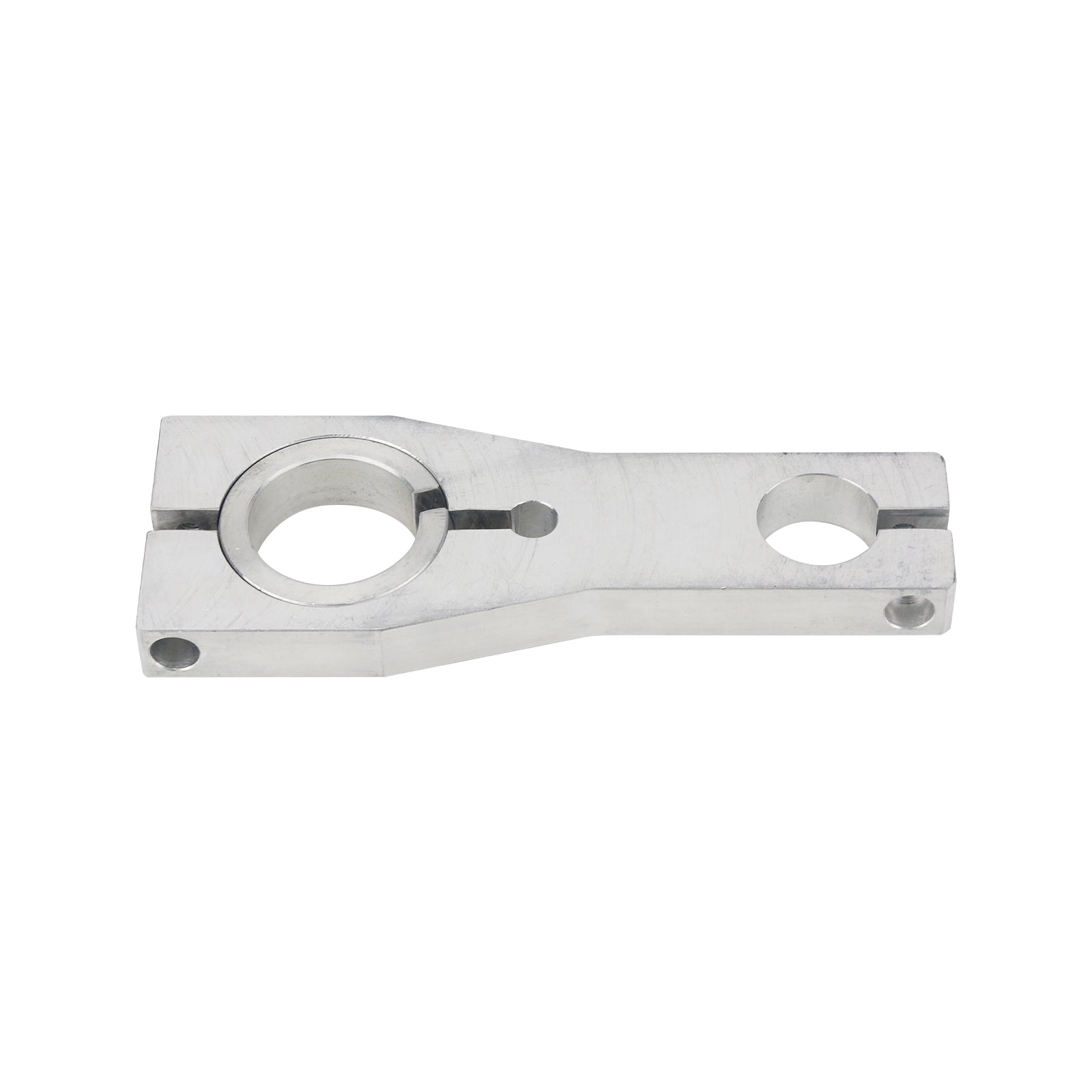

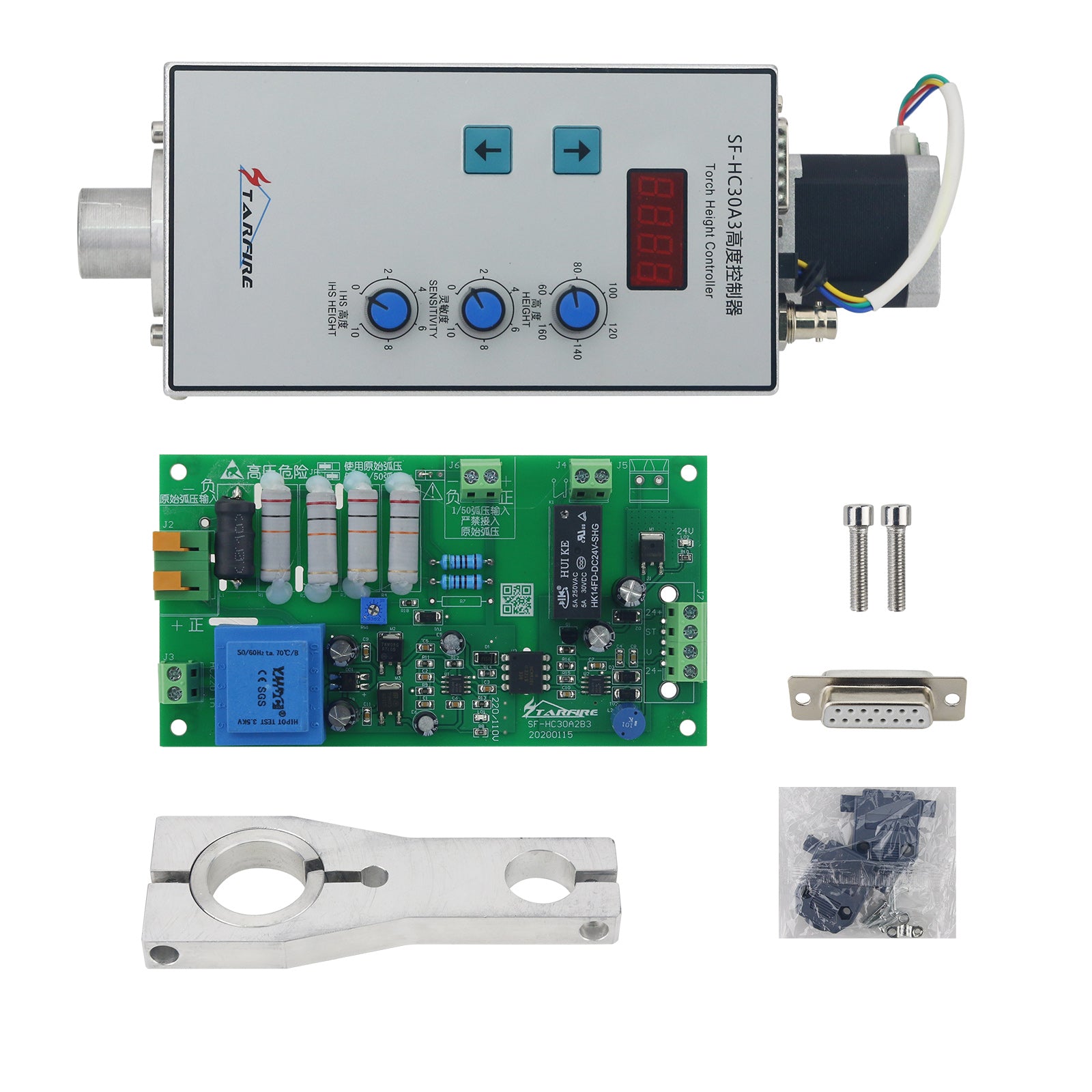

Package Included:
