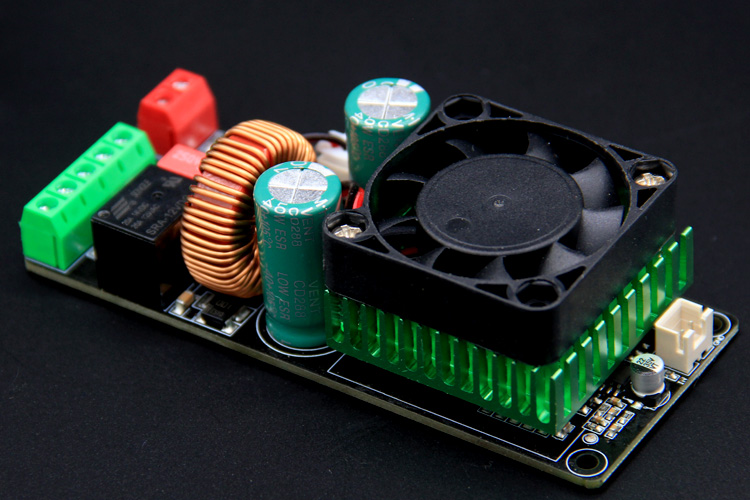

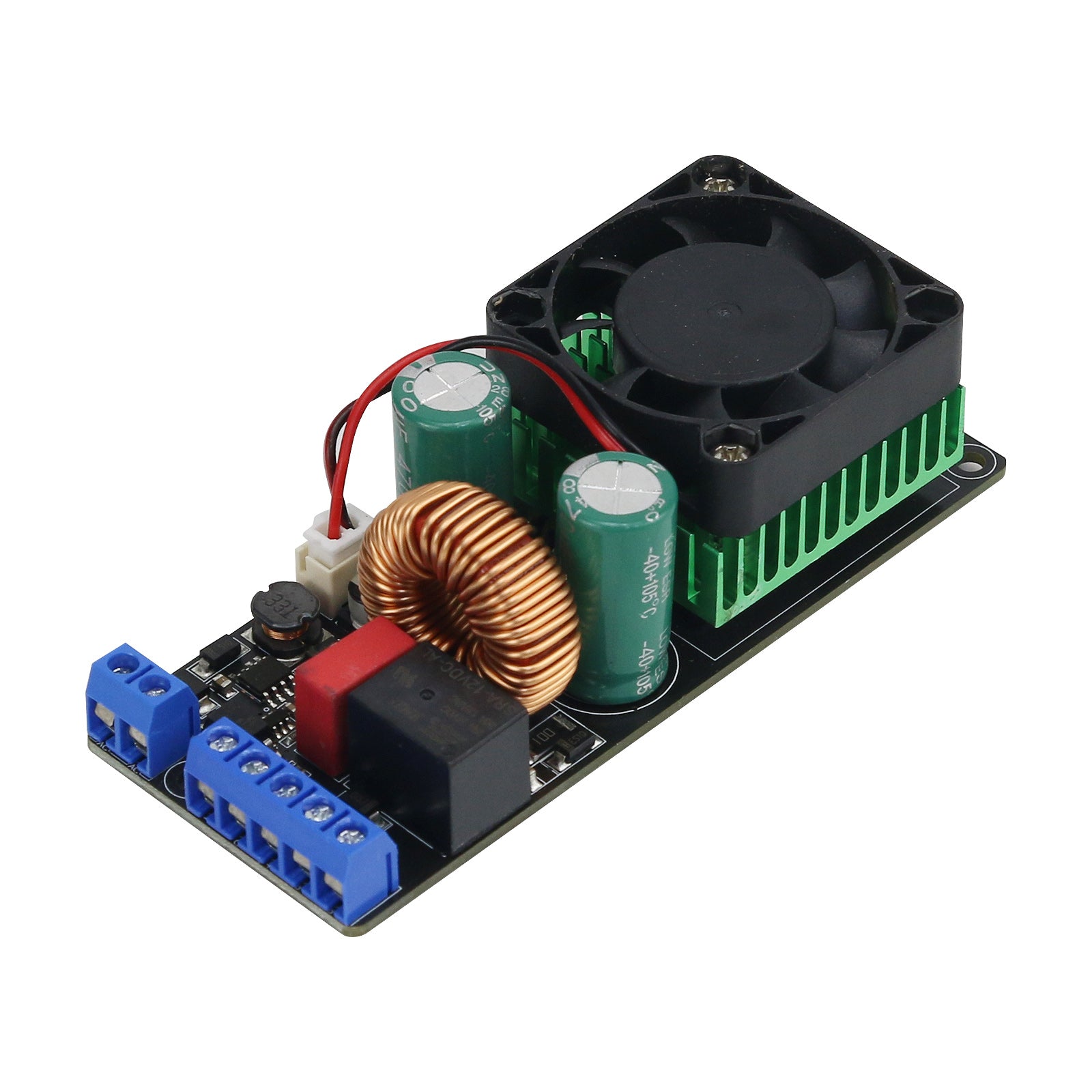

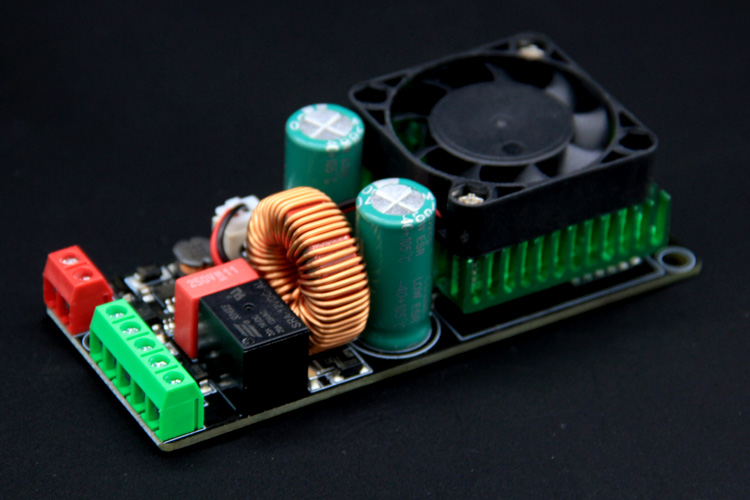

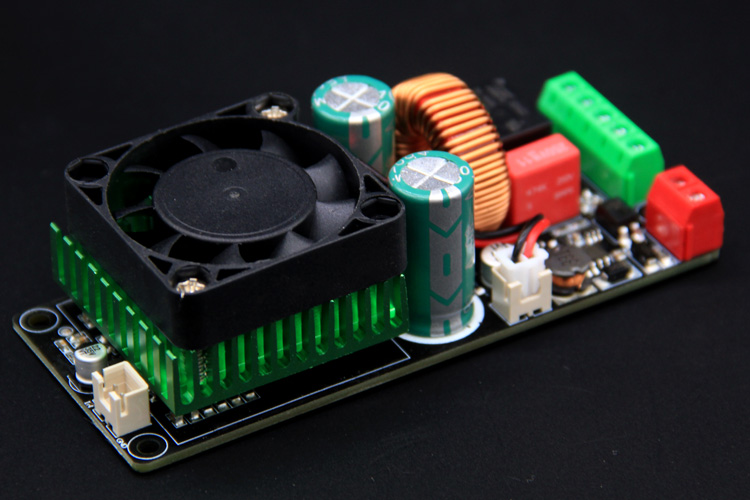

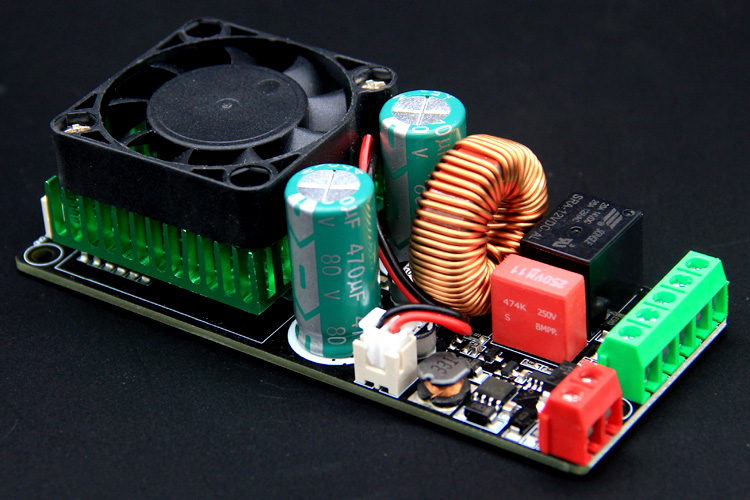

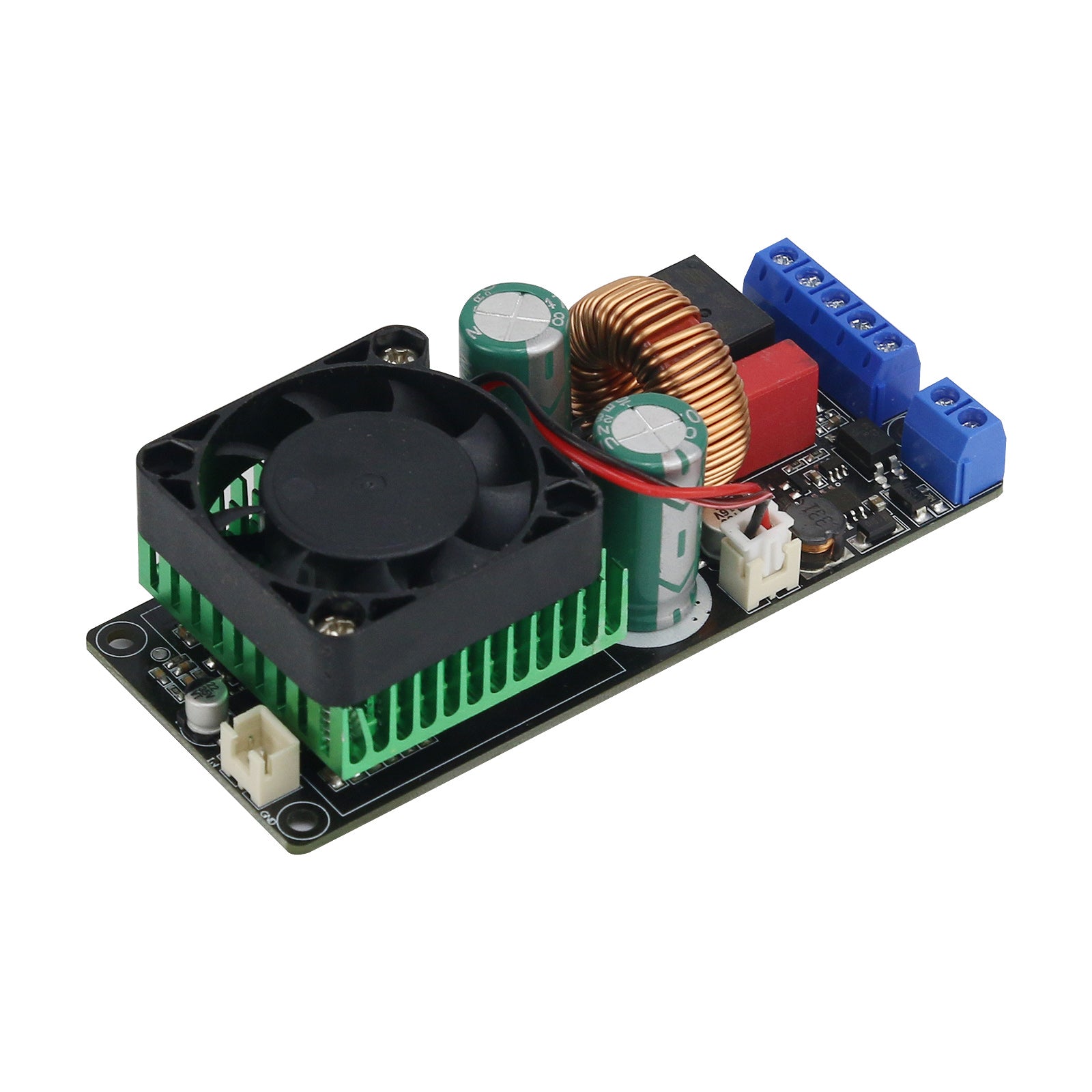

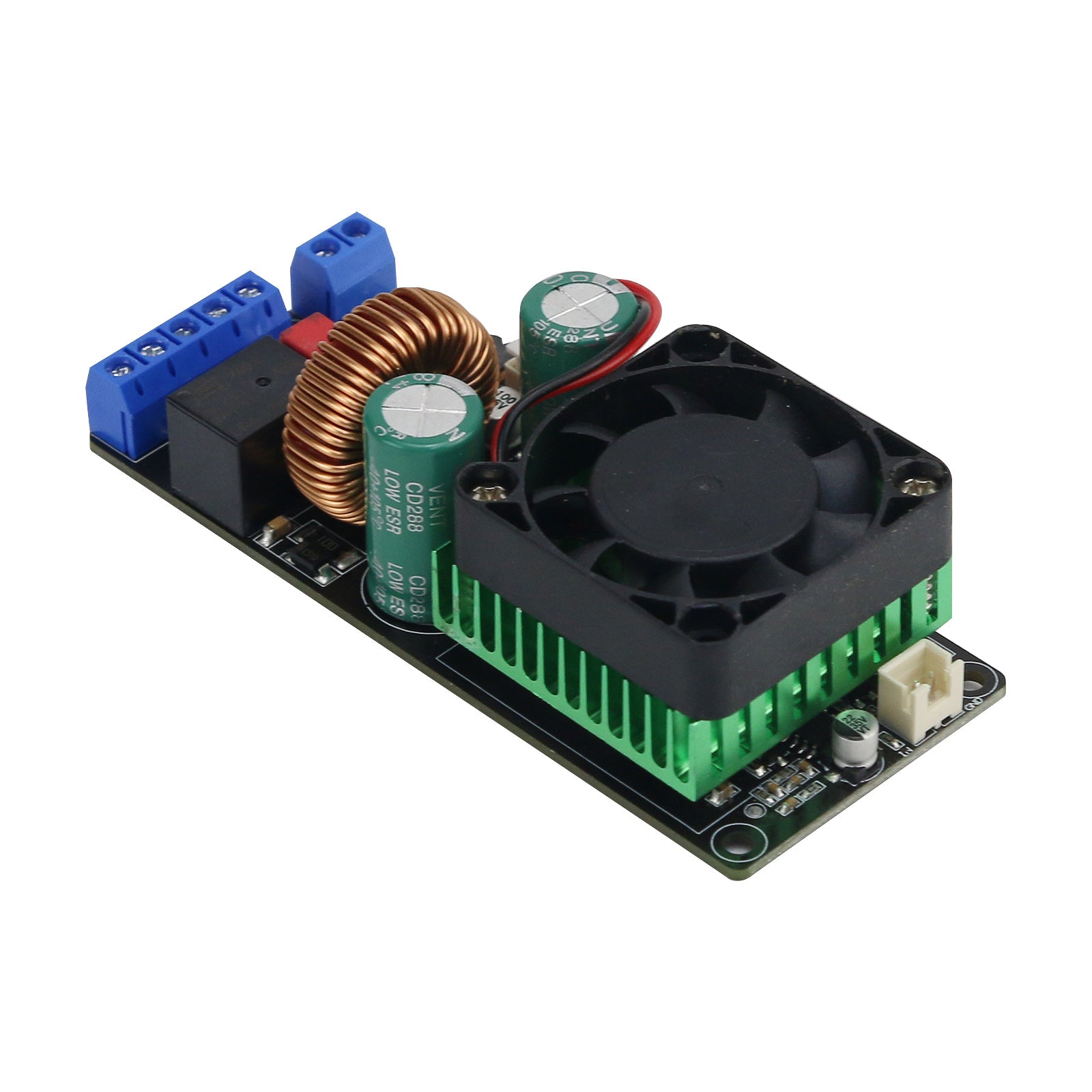

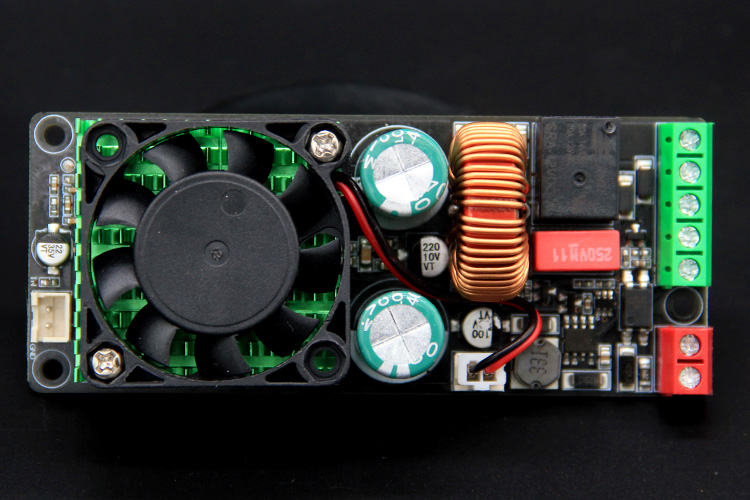

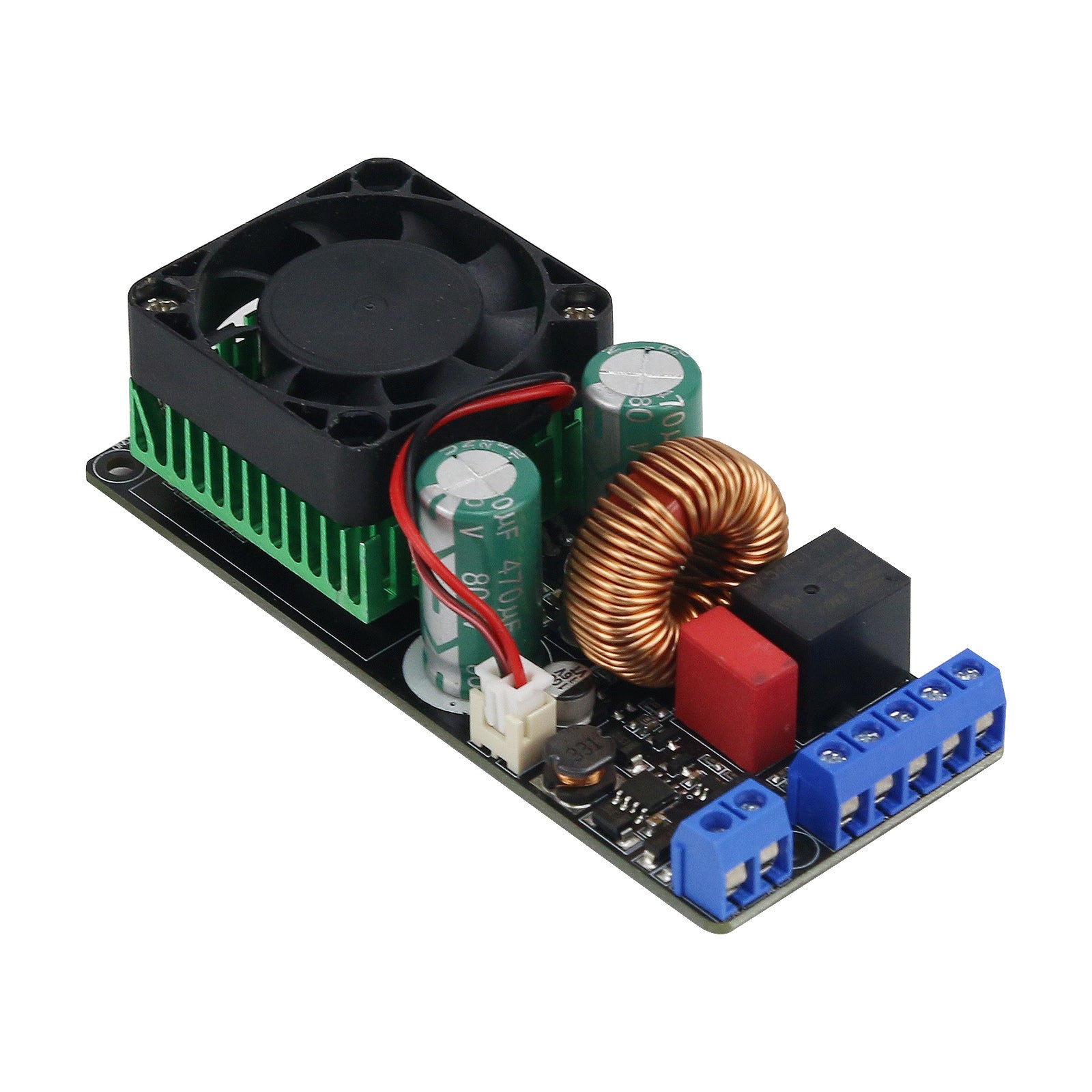

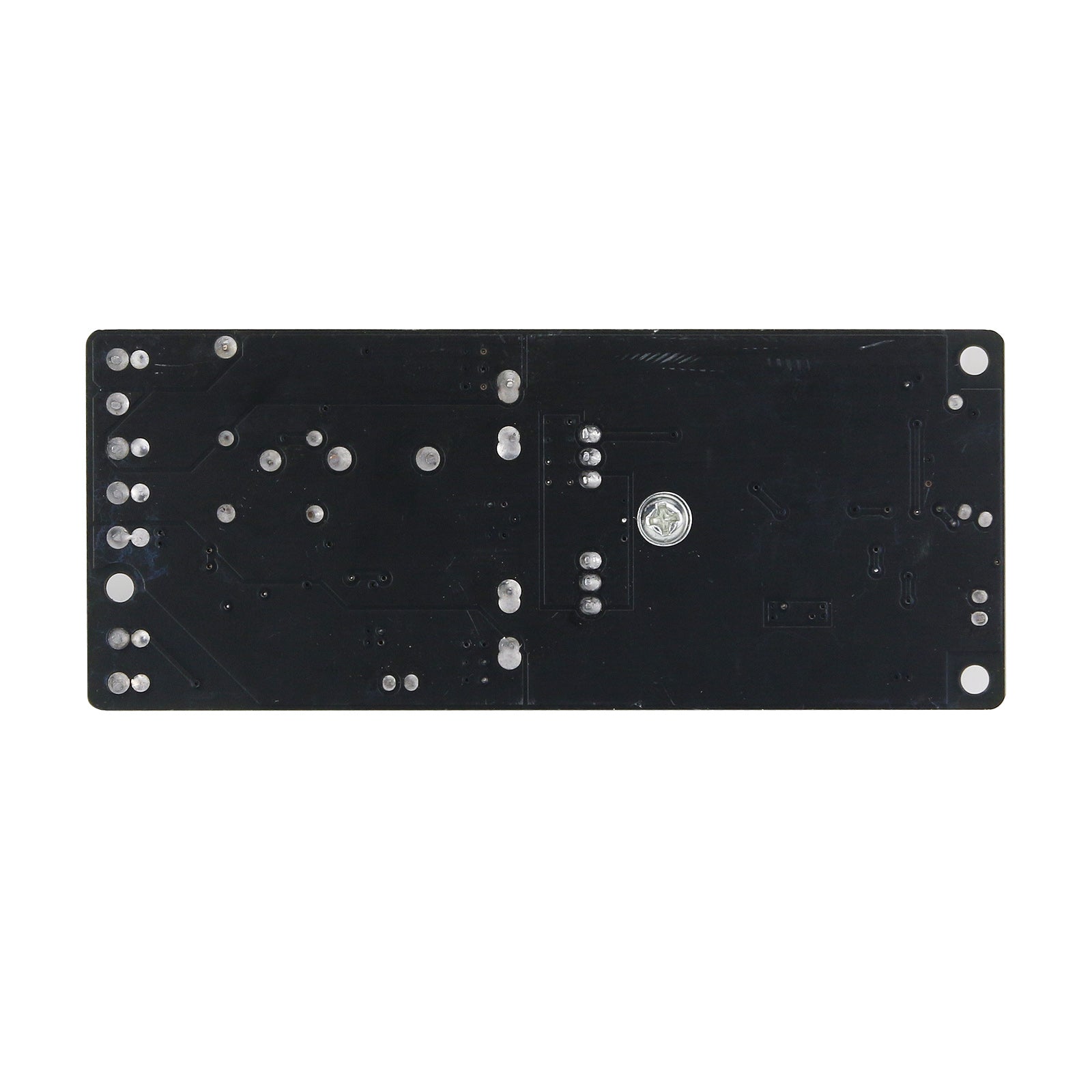

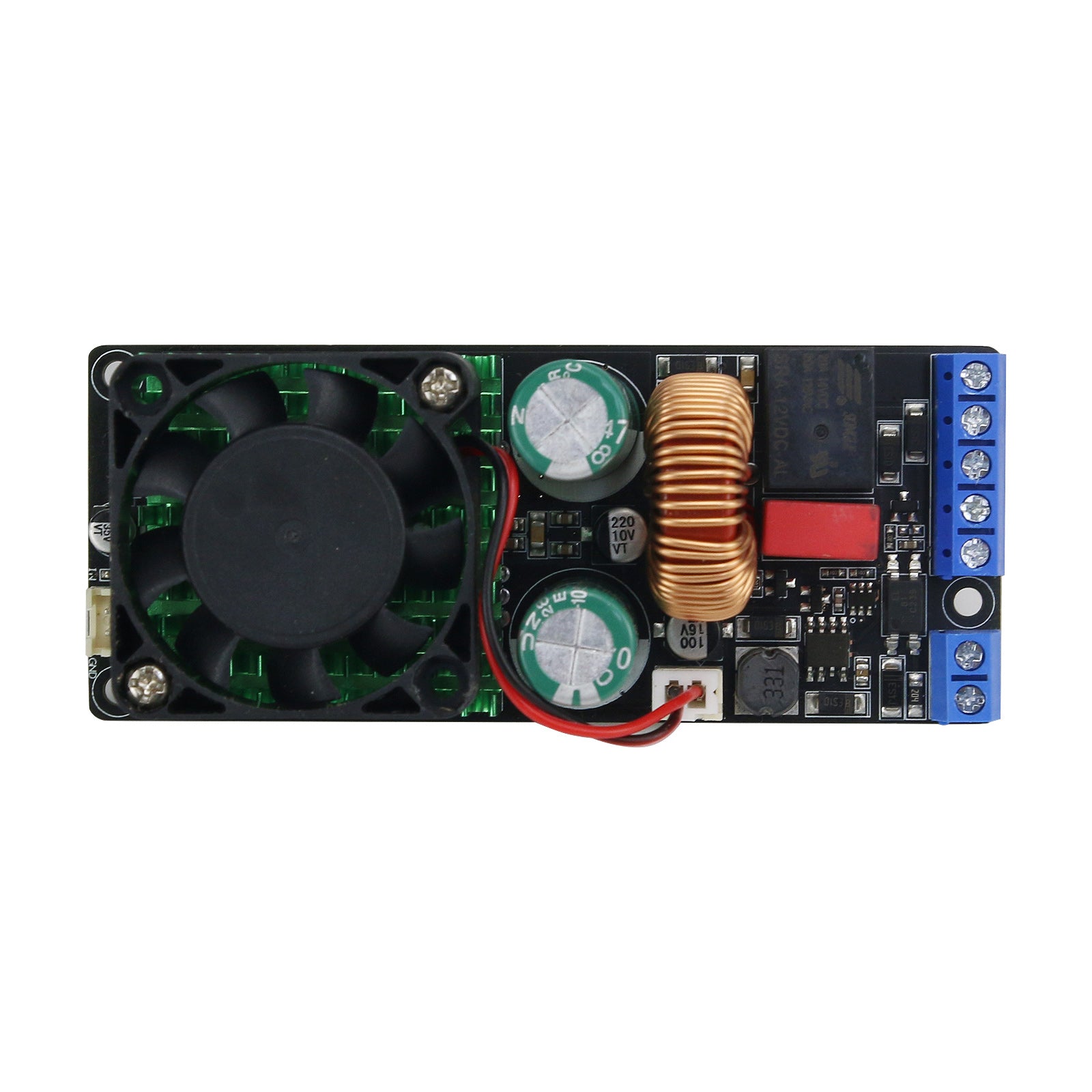

UMSONG High Performance 500W HiFi Digital Amplifier Board Mono Super LM3886/IRS2092S

UMSONG High Performance 500W HiFi Digital Amplifier Board Mono Super LM3886/IRS2092S

Parameter:
- Power supply voltage: Dual DC power supply ±45~±70V (±65V power supply is recommended)
- Rated output power: 500W (±65V power supply 4Ω load, 1% distortion)
- Efficiency: ≥90%
- SNR: 90dB
- Total harmonic distortion: 380W (±70 power supply 4Ω horn, distortion<0.1%)
  280W (±70 power supply 8Ω horn, distortion<0.1%)
- Frequency response: 20Hz-20KHz
- Horn: 4~8Ω
- voltage magnification: 50 times
- Output DC bias protection, i.e. horn protection: Yes

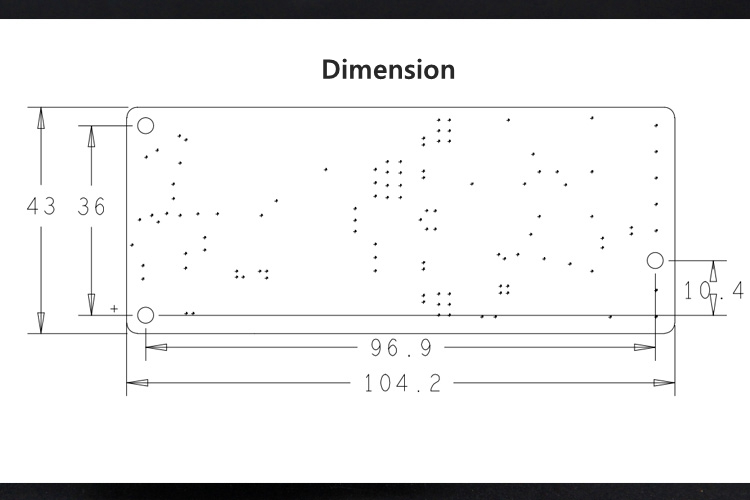

- Dimension: 105 x 43 x 28mm
- Weight: 100g

Precaution:
- According to the power formula P=U x U/R=voltage x voltage/load, power is determined by voltage and load. The higher the voltage and the smaller the load, the greater the power. The voltage supply range of the board means that all voltage boards within this range can work normally. Not all voltage and load power are as big as the power output indicated. For example, 12V power supply for 4 ohm load, the maximum power is 15W, and the maximum power is 7.5W at 8 ohm; 24V power supply: 4 Ω, maximum power: 50W, maximum power: 25W at 8 Ω; At any time, the power of the power supply must be greater than the power of the power amplifier, otherwise the loud volume band will not operate, the power will be reduced and cut off, and the corresponding power output cannot be reached.

Package Included:
- 1 x Amplifier Board

Note:
- The board must be powered by Dual DC power supply.
