X630 Hdmi to CSI-2 Module with High Performance for Raspberry Pi Support 1080p 60fps and Audio & Video

X630 Hdmi to CSI-2 Module with High Performance for Raspberry Pi Support 1080p 60fps and Audio & Video

Description:

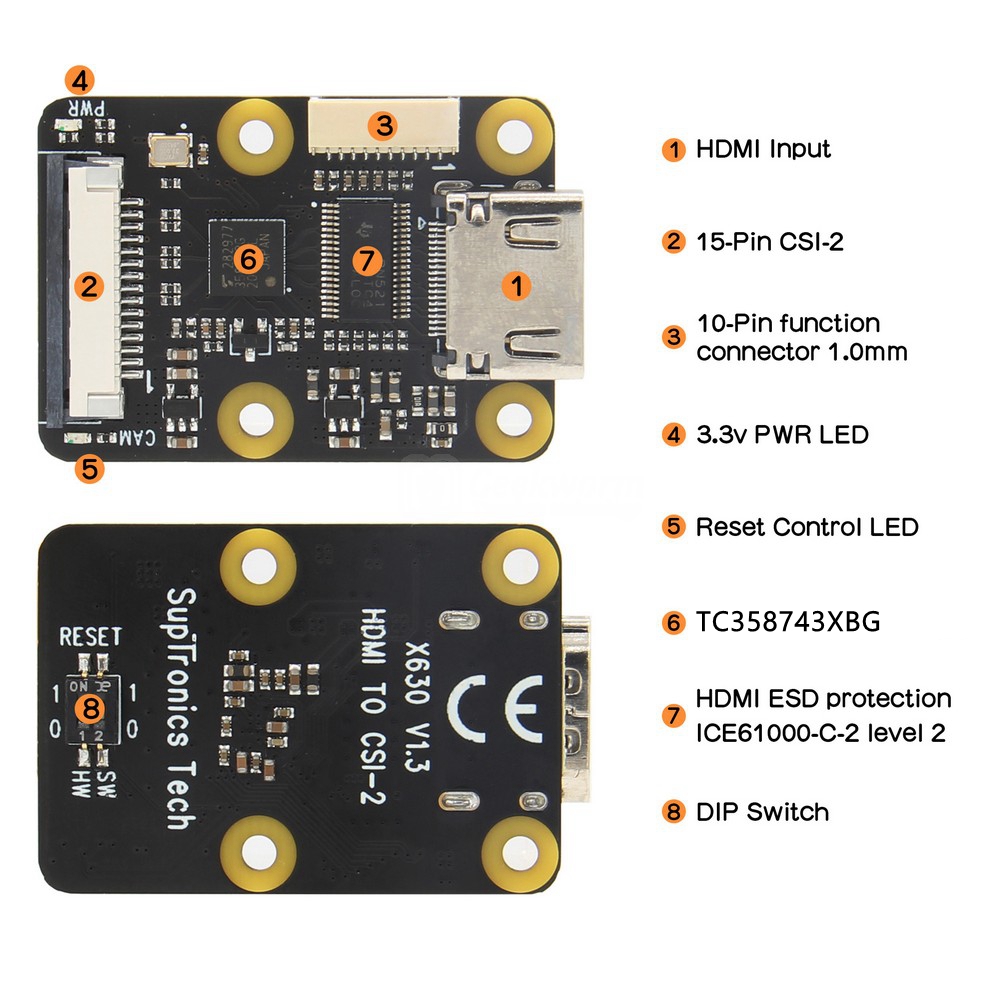

- X630 module is a bridge module that converts HDMI to MIPI CSI-2. It enables your Raspberry Pi to accept HDMI video and audio and process them as an incoming data source. Compatible with raspberry pie 4B/3B+/3B/2B/B+/3A+/Pi Zero/Zero W, etc.
- User manual: wiki.geekworm.com/X630

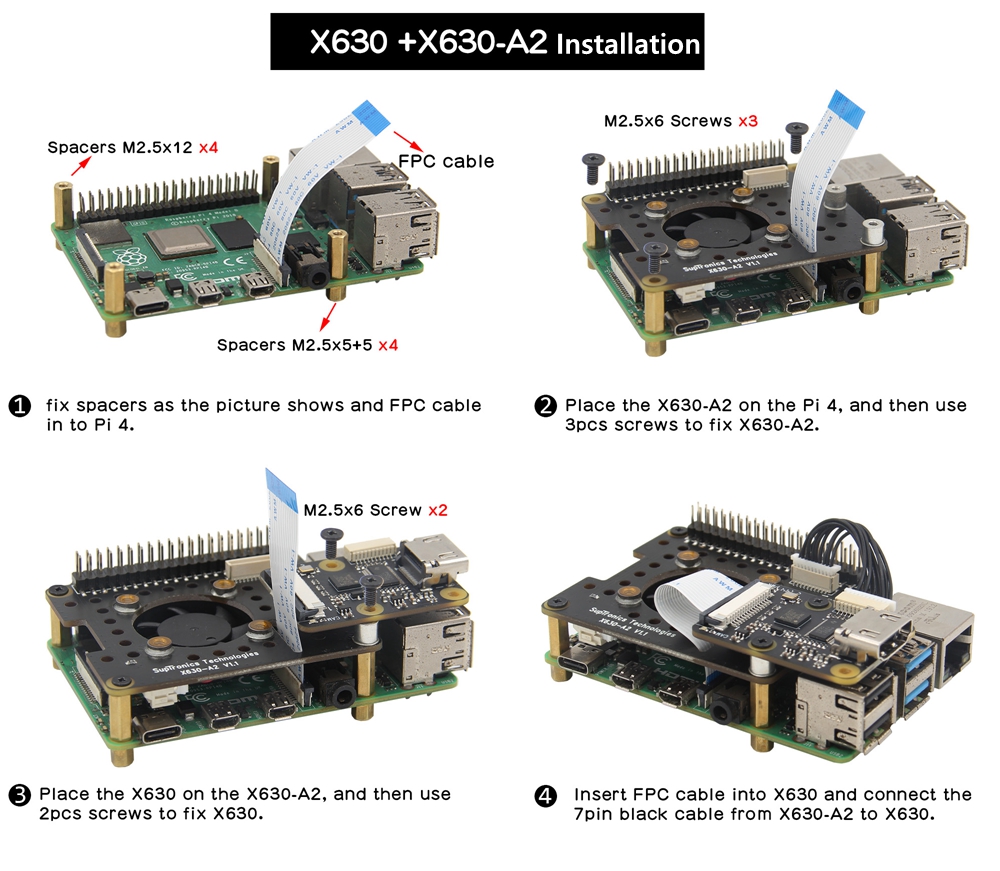

- Installation video: bilibili.com/video/BV1DT411P7Bi

Parameter:
- Model: X630-C1 (HDMI to CSI-2 Module)
- Dimension: 42 x 29.7mm
- Function: HDMI to CSI-2
- Compatible with: Raspberry Pi 4B/3B+/3B/2B/B+/Pi Zero/Zero W, etc.

Package Included:
- 1 x X630 Hdmi to CSI-2 Module
- 1 x X630-A1 Board
- 1 x FPC cable（5cm length）
- 1 x FPC cable-for backup（8cm length）
- 2 x F/F M2.5x17mm Spacers
- 4 x M2.5x6 Screws
- 1 x M2.5 Nut
