XM+ SBUS Receiver Mini Receiver V2.1 (New Hardware) Dual Antennas Suitable For Frsky X9D X10S

XM+ SBUS Receiver Mini Receiver V2.1 (New Hardware) Dual Antennas Suitable For Frsky X9D X10S

Description:
XM+ receiver is designed with V2.1 new hardware, which is not for non-FRSKY brand remote controllers.

If you use other brands of remote control, such as TX16S, TX18S, T-LITE remote control, please choose the V1 (old firmware) receiver, thank you!

The safe mode is a very useful function. The control signal disappears for a period of time when all the controls are moved to a predetermined position. XM+ supports all channels of fail-safe functions.

Features:
- Mini receiver XM+
- Super mini, more sophisticated, full range reception
- Up to 16CH from SBUS
- RSSI can be connected to OSD return
- Weight 1.6g, 21.5*12*3.5mm

Specifications:
- Product name: XM+
- Volume: 21.5*12*3.5mm (LxWxH)
- Weight: 1.6g
- Working voltage: 3.7V-10.0V
- Working current: 30mA (5V)
- Working distance: >1.5km
- Output channel: Up to 16CH from SBUS (CH1~CH15 for PWM, CH16 RSSI for FC)

Recommended Match:
XM+ with X9D PLUS, X9E or X12S

Package Included:

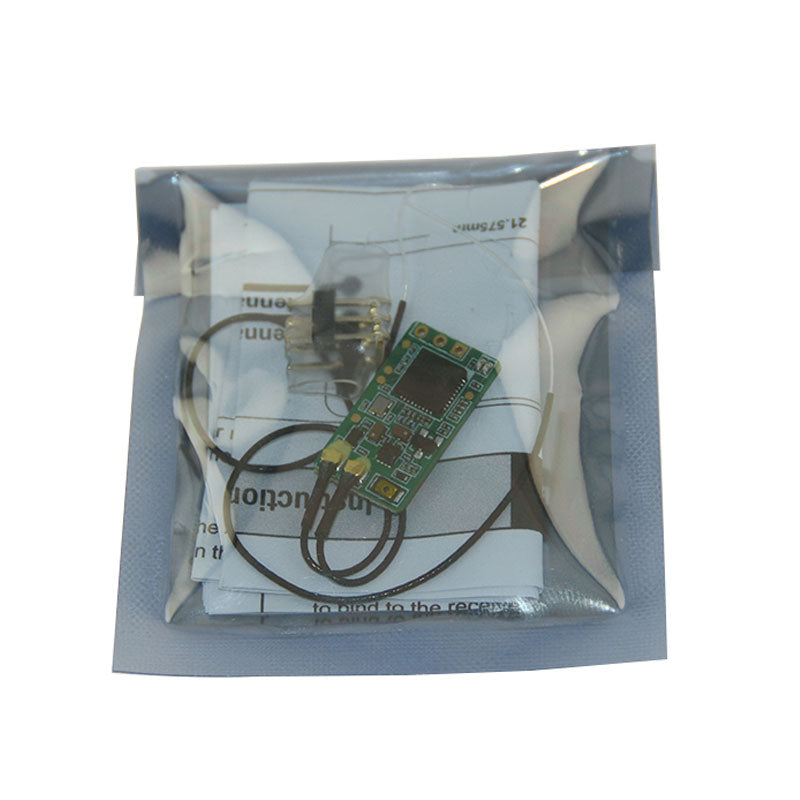

- 1 x Set of Receiver XM+
