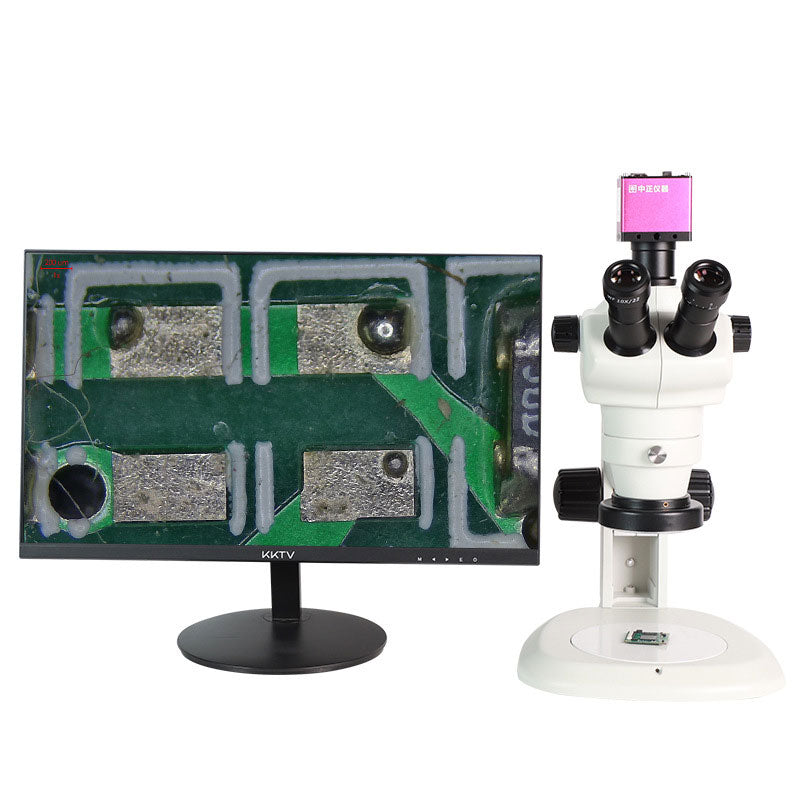

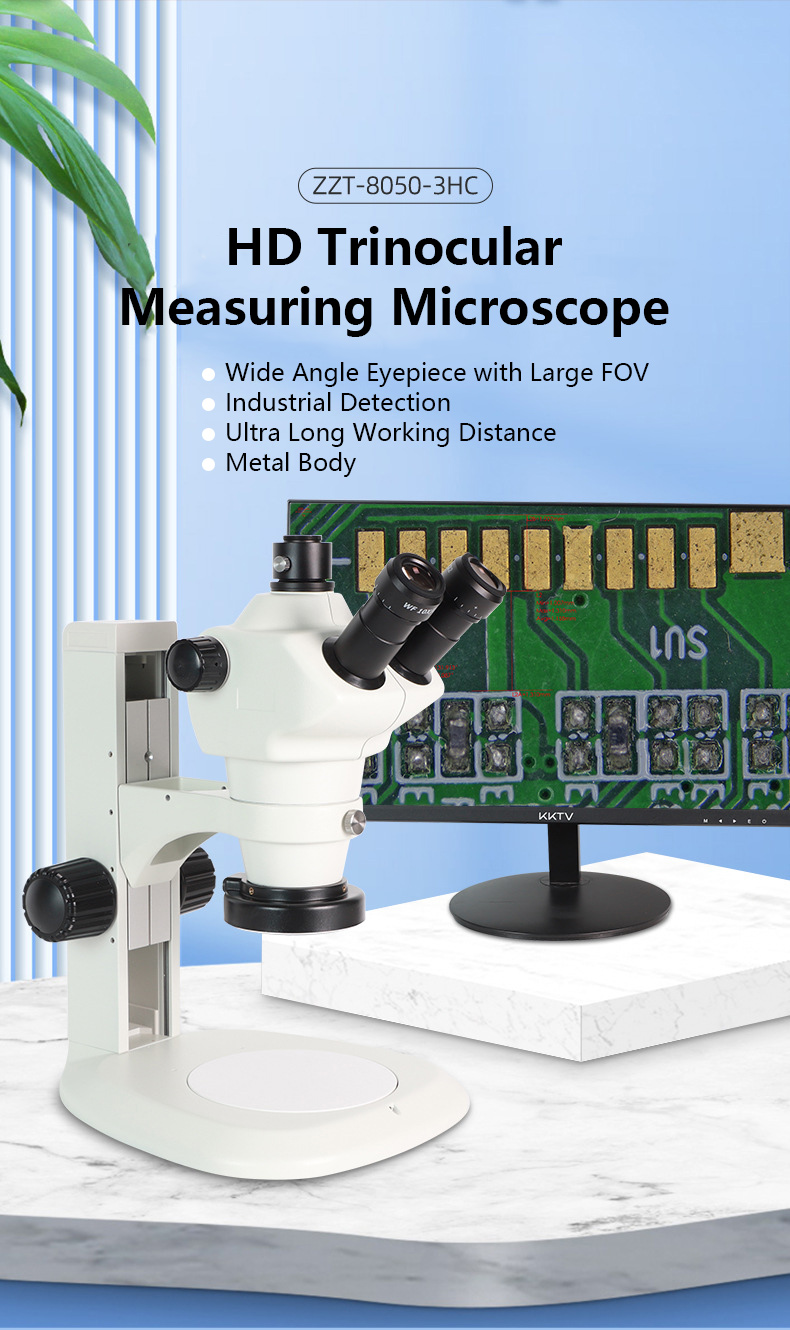

ZZT-8050 Trinocular Microscope Industrial Detection Microscope + ZZS-3000HC Measuring Camera + 22-inch Screen

ZZT-8050 Trinocular Microscope Industrial Detection Microscope + ZZS-3000HC Measuring Camera + 22-inch Screen

Specification:
Lens:

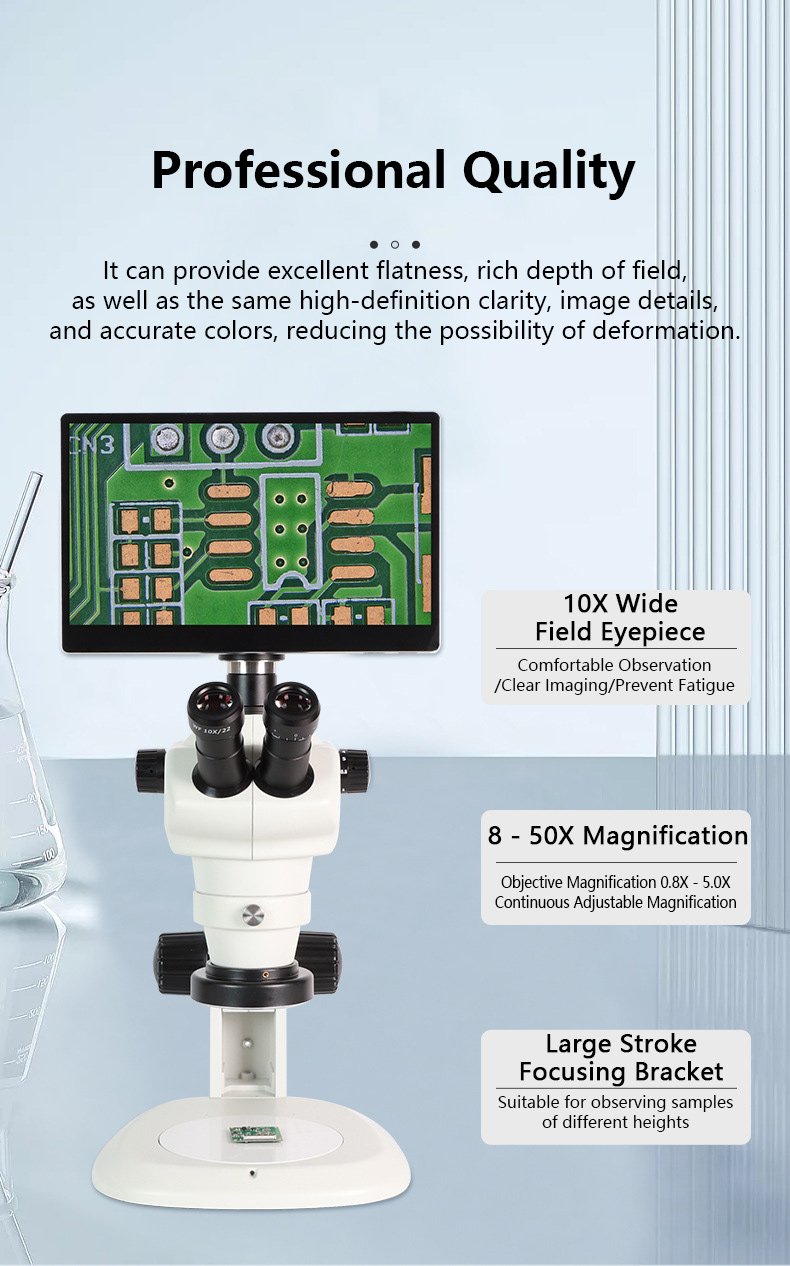

- Optical magnification: 0.8X - 5.0X continuous adjustable

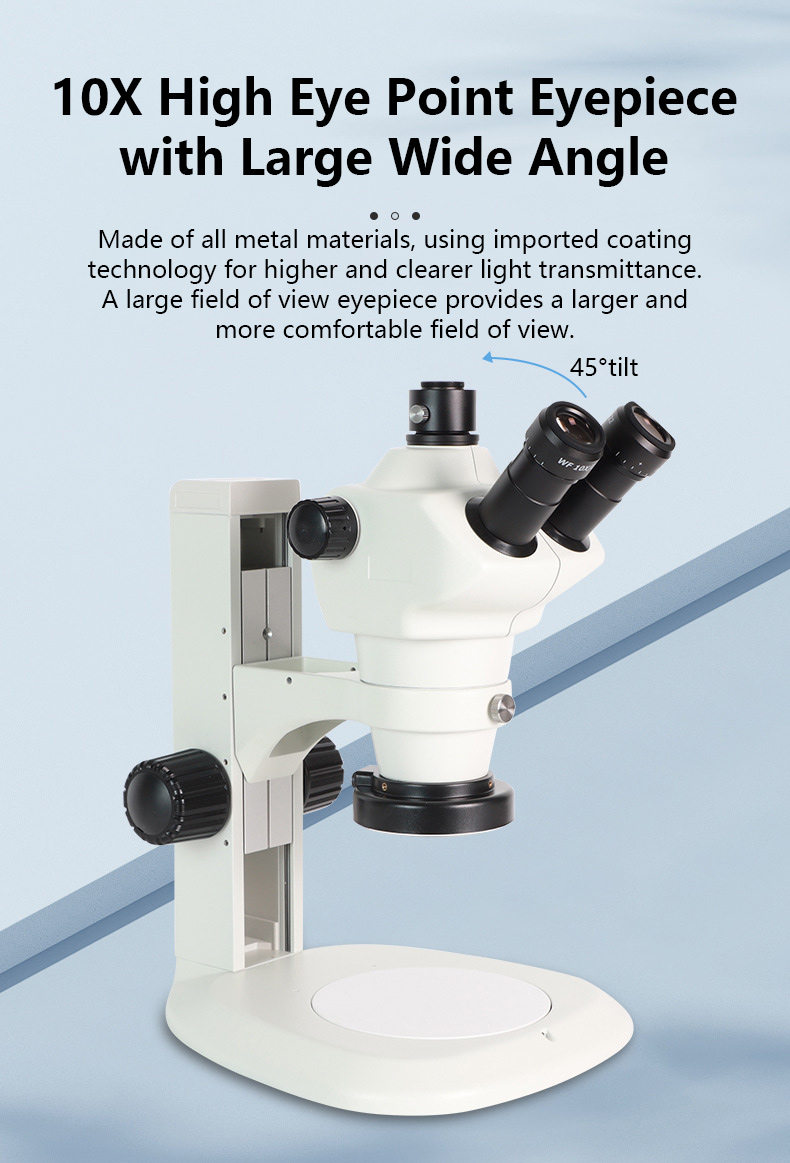

- Observation lens tube: dip angle 45 degree
- Objective lens: 10X objective lens x 2
- Pupil distance: 52 - 75mm
- Observation lens: support 360 degree rotation
- Objective zoom ratio: 6.3:1
- Working distance: about 115mm

Bracket:

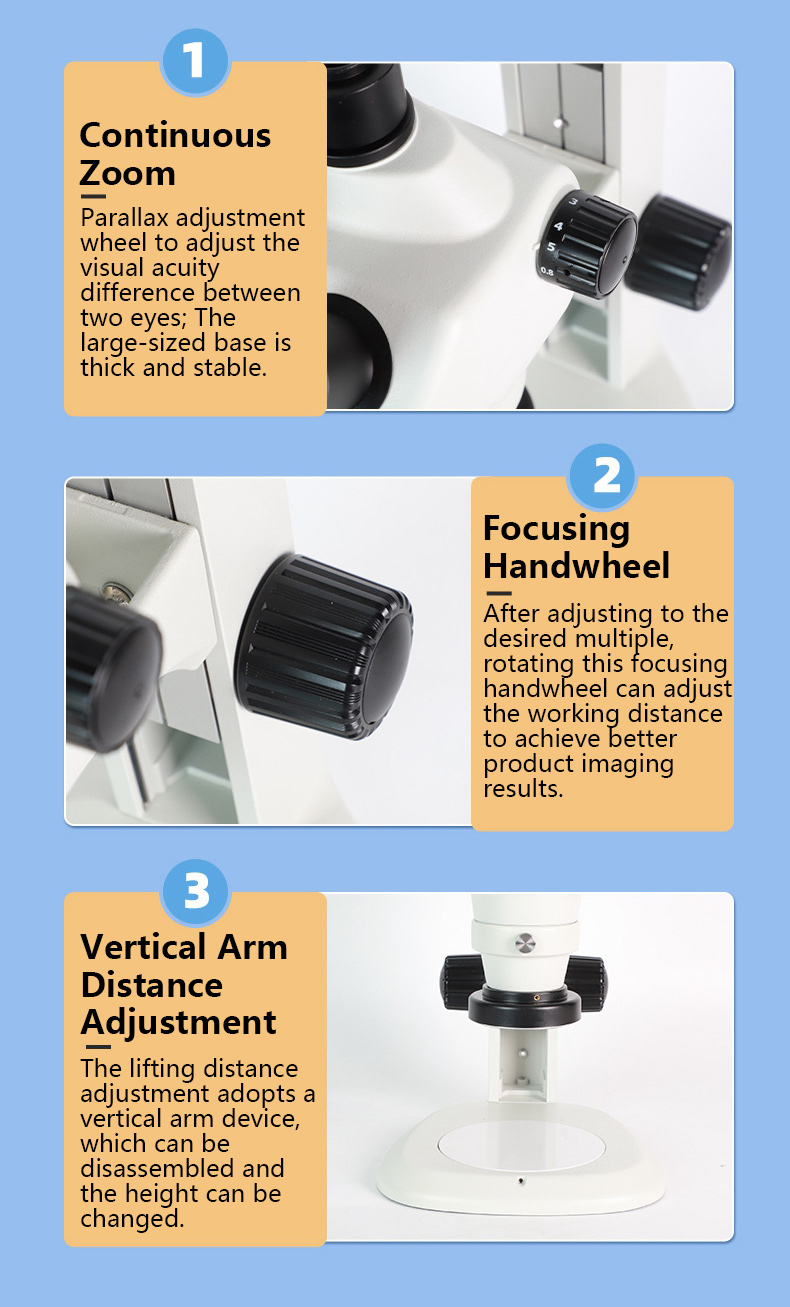

- Lifting range: 160mm

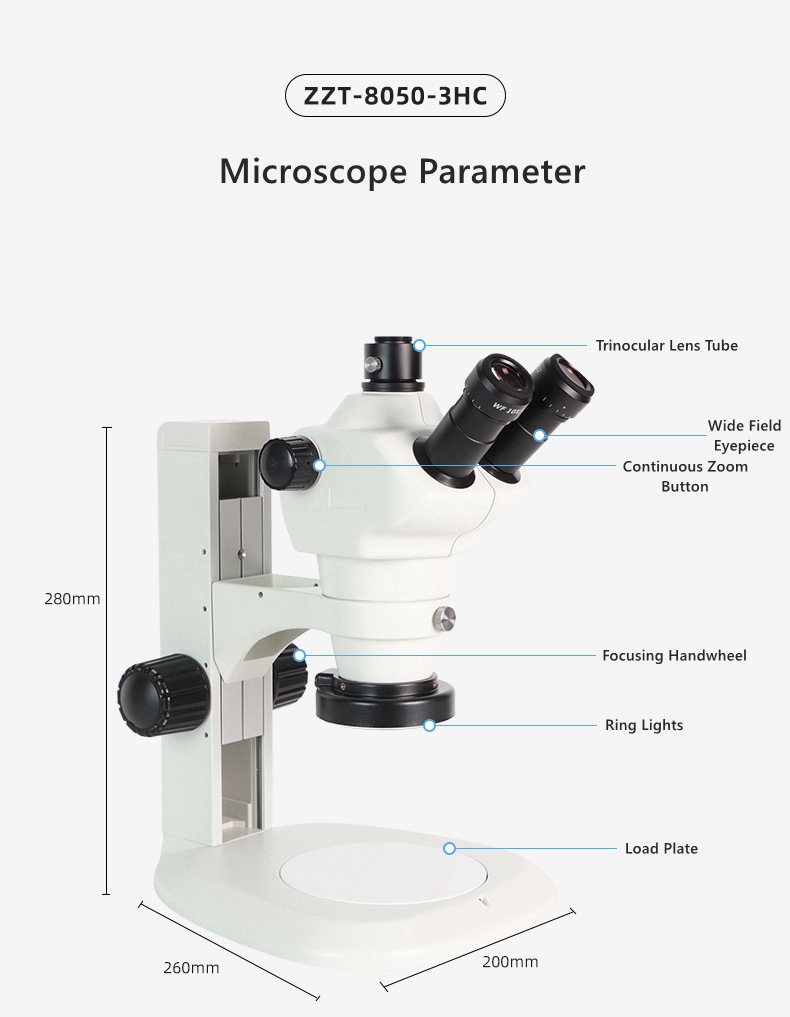

- Base column: 260 x 200 x 20mm, bracket height 280mm

ZZS-3000HC Camera Specification:
- Camera interface: C/CS interface
- Sensor type: 1/2” sensor
- Video interface: HDMI interface
- Resolution: 1920 x 1080
- Pixel size: 3.75um x 3.75um
- Storage function: USB flash drive / photography / measurement
- Power: DC 12-24V
- Output color: colorful; black and white
- Target size: 1/2
- Output frame rate: 60FPS
- White balance adjustment: automatic / manual
- Image control: adjustable contrast / saturation / clarity
- Image adjustment: horizontal image / vertical image
- Scanning method: progressive
- USB interface: can connect mouse for photography/recording/measurement
- Operation system: for Linux / dual core Cortex-A9 structure / 1GHz

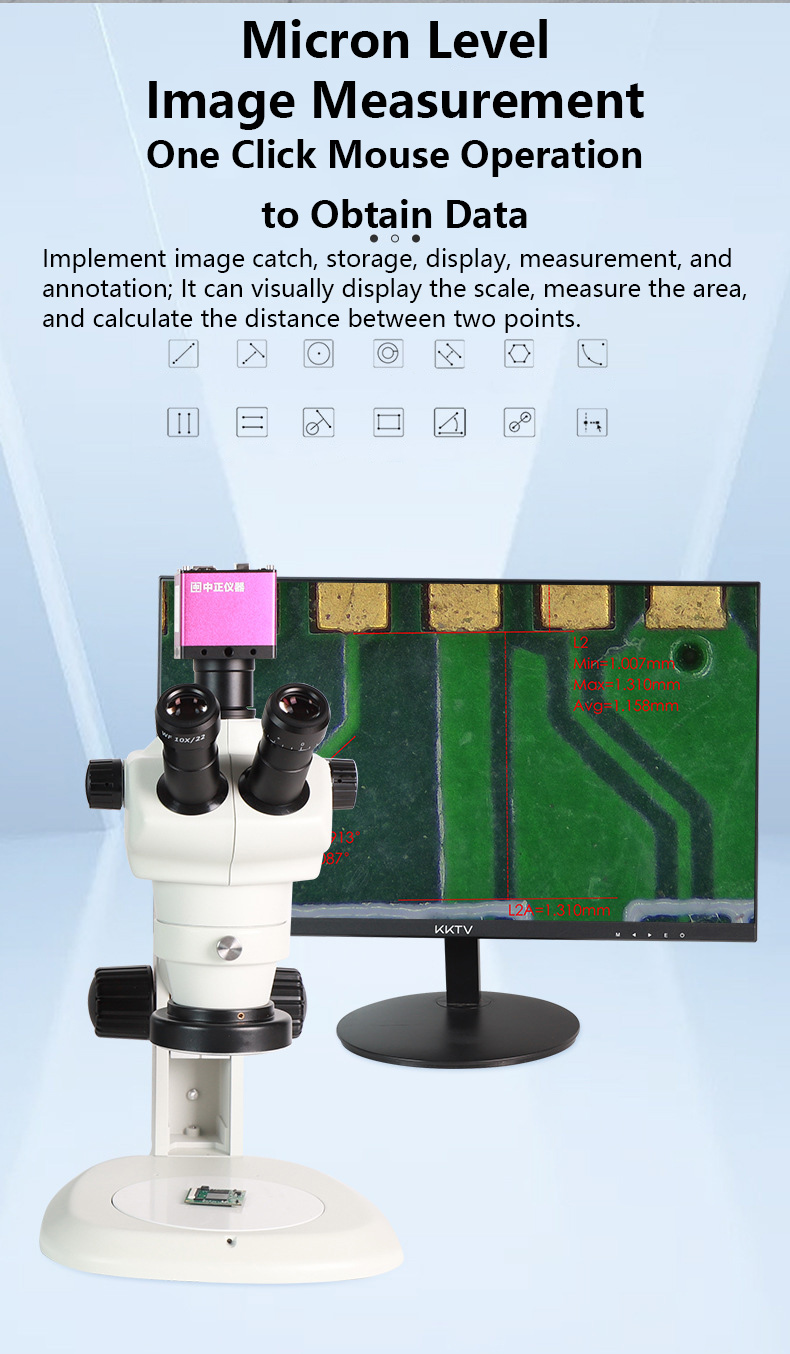

- Measurement function: point, line, rectangle, circle, arc, polygon, center to center distance, point to line, line to line, angle and other distance measurements.

Package Included:
- 1 x ZZT-8050 Trinocular Lens
- 1 x ZZS-3000HC Camera
- 1 x 22-inch IPS Screen
- 1 x Standard Base and Adjustable Bracket

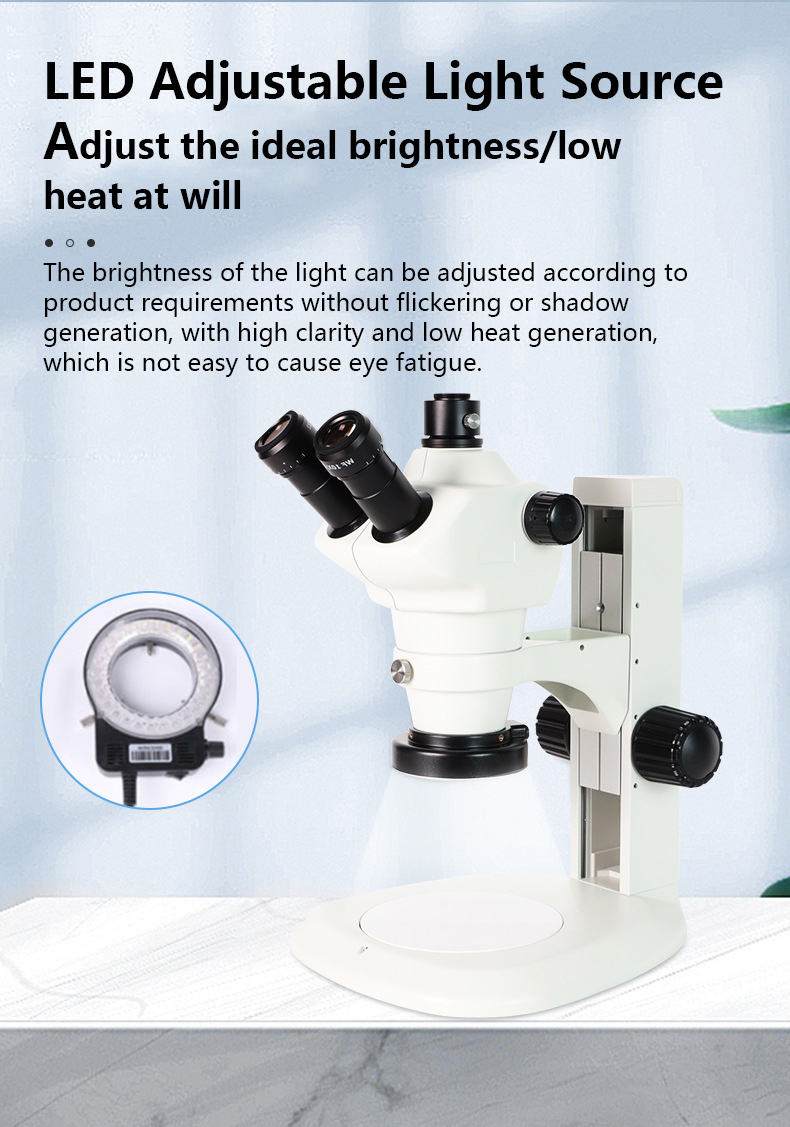

- 1 x High Quality LED Adjustable Light Source
- 1 x 32G Storage USB Flash Drive
- 1 x Standard Glass Calibration Ruler
- 1 x USB Optical Mouse
