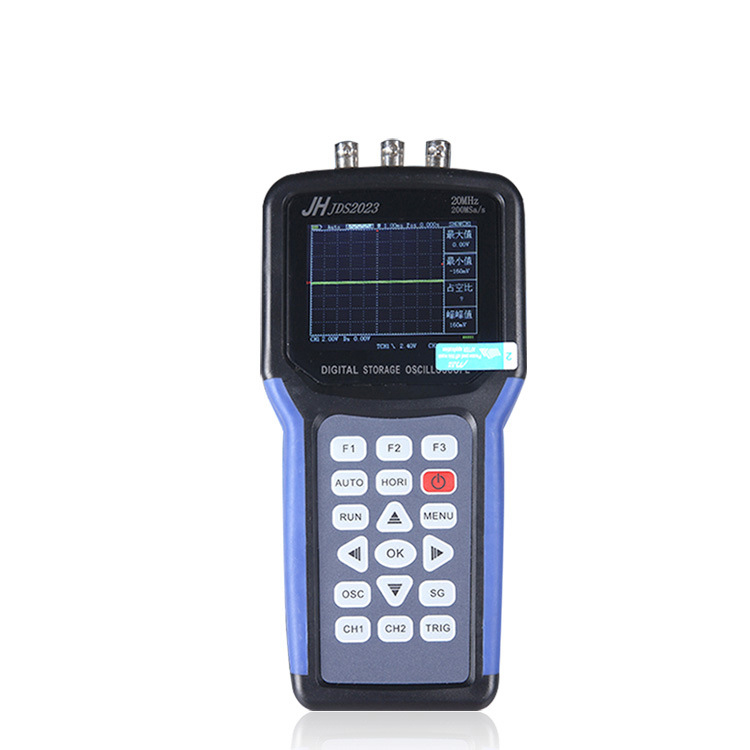

JDS2023 20MHz Handheld LCD Digital Storage Oscilloscope Signal Generator for Home Car Repair

JDS2023 20MHz Handheld LCD Digital Storage Oscilloscope Signal Generator for Home Car Repair

Description:

    Features:
    100% brand new and high quality.

    Model: JDS2023
    Input
    Input coupling                          AC,DC
    Channel                                   2 (1 analog channel, 1 digital channel)
    Display mode                          Y-T
    The input impedance             1MΩ 25pF
    The maximum input voltage   40V(Probe X1);400V(Probe X1);2000V(Probe X100)
    Probe attenuation                   1X,10X
    Attenuation setting                 1X,10X,100X

    Signal acquisition system
    Sampling method                   Real time sampling, random sampling
    The storage depth                  2K
    Acquisition mode                   Sampling, peak detect

    Vertical system
    Vertical sensitivity                 10mV-5V(Probe 1X) 100mV-50V(Probe 10X) (1,2.5,5 Stepping)
    The vertical accuracy            +/-3%
    The vertical resolution           8bit
    Bandwidth                             20MHz

    Horizontal system
    The real-time sampling rate    200 MSa/s
    Horizontal scanning range     10nS/div-5S/div

    Triggering system
    Trigger Mode                         Automatic, normal and single
    Trigger Type                          The rising edge, falling edge
    Automatic detection               Support(50Hz-40MHz)

    Measurement system
    Cursor measurement             Support time and voltage
    Measuring method                 Manual
    Measurement                        The peak to peak value and frequency

    Equipment
    Screen                                  3.2 inch,16 bit true color,TFT,320*240
    Battery                                  2000+mA Lithium battery (support 5 hours of continuous work)
    Size                                       202*100*35（mm）
    Digital channel                      200 MSa/s

    Signal generator
    Frequency                            Sine wave (1Hz - 5MHz); the other(1Hz-1MHz)
    Duty ratio                              0% - 100%
    Range                                 100mV - 4V
    Offset                                   +(0V -2V)

    Remark: Include batteries
