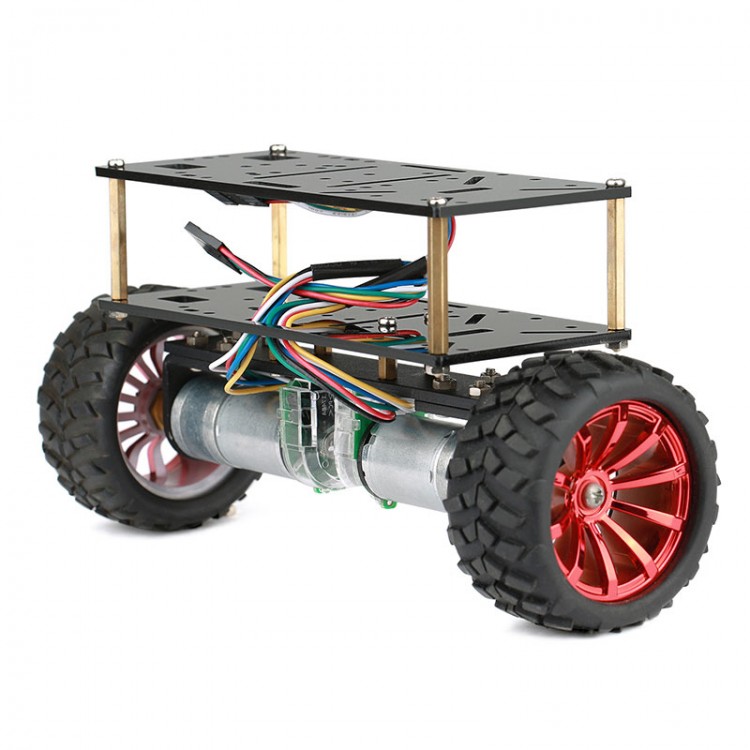

JGB37 Photoelectric Version 1:18 448CPR Speed Measuring Motor 2WD Self-balancing Car Chassis Smart Balancing Vehicle Base

Availability: In stock, usually dispatched in 1 business day

  • Price:$44.97
  • Price in reward points: 450 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.07 $43.17 $41.82 $40.02 Contact US
Quantity:

JGB37 Photoelectric Version 1:18 448CPR Speed Measuring Motor 2WD Self-balancing Car Chassis Smart Balancing Vehicle Base

Description:

- Both Hall and photoelectric speed measuring motors have corresponding protective shells to fundamentally protect the speed measuring device of the motor.
- The only difference between photoelectric and Hall motor is the accuracy of the measuring speed, while other parameters are the same.

Wiring Definition:
- Red wire: motor +
- Black wire: motor -
- Green wire: encoder -
- Blue wire: encoder +
- Yellow wire: output A phase
- White wire: output B phase

Specification:
- Product net weight: 820g

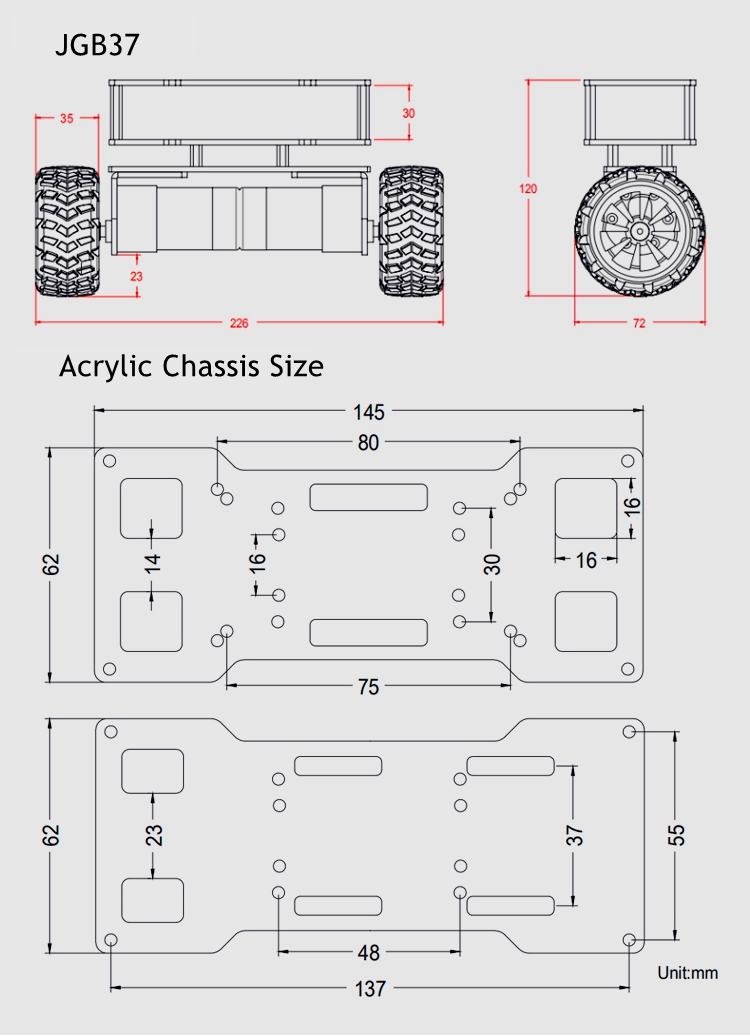

- Product size: 226 x 72 x 120mm
- Reference speed: 1.6m/s at 12V
- Maximum load capacity: 2000g
- Motor voltage: 6 - 12V
- Encoder voltage: 3.3 - 5V
- Speed measuring type: photoelectric/magnetic ring (optional)
- Encoder precision: 448cpr for photoelectric version; 16cpr for Hall version
- Encoder type: incremental type
- Phase difference: 90 degrees
- Interface type: 6P DuPont Cable/2.54 space

JGB37 Motor Parameter:
- Voltage: DC 6-12 V
- No-load speed: 290 - 585 r/min
- Load speed: 220 - 440 r/min
- Rated torque: 1.0 - 2.0 kg.cm
- Rated current: 800mA
- Stall torque: 4400mA
- Power: 5 - 9W

Package Included:
- 1 x Self-balancing Car Chassis
