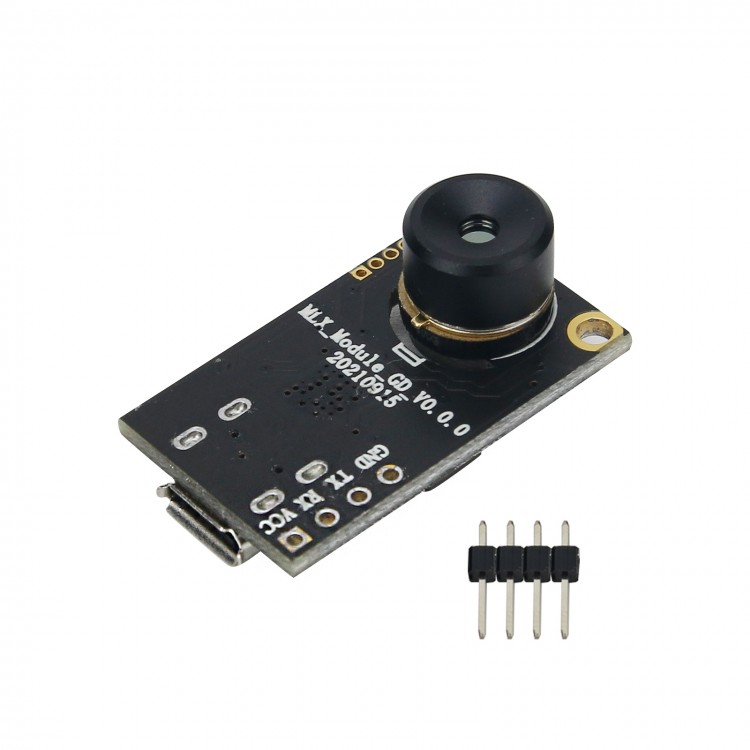

JM_MLX90640_M Infrared Thermal Imager Module 32x24 Thermal Array Sensor MLX90640ESF-BAA 55x35°
Download Instructions & PC Software:
https://pan.baidu.com/s/1d7bPGblDgqnaeZQDBPS4Hw Password: m011
Features:
1. Micro USB interface (USB to UART TTL), can be directly plugged into the computer to view images and configure parameters
2. UART TTL interface, which can output temperature and configuration parameters
3. Power supply: 5V
4. Dimensions: 28 x 16.6mm/1.1 x 0.7"
5. Use MLX90640ESF-BAA sensor
6. Sensor dot matrix: 32x24
7. Detection temperature: -40 to 300℃
8. Sensor viewing angle: 55x35°
9. Multiple output modes (automatically output 768 points of temperature, output the highest and lowest temperature, PWM alarm output)
10. Detection accuracy: +/-2.5° (center point, target temperature 10 to 50°C, working temperature 10 to 50°C, refresh rate 1HZ)
11. Support multiple baud rates
Electrical Parameters:
- Input voltage: minimum 4.5V, typical 5.0V, maximum 5.5V
Required Environment:
- Storage temperature: 0 to 70℃
- Working temperature: 10 to 50℃
- Humidity: 70%
Package Included:
- 1 x Set of Thermal Array Sensor

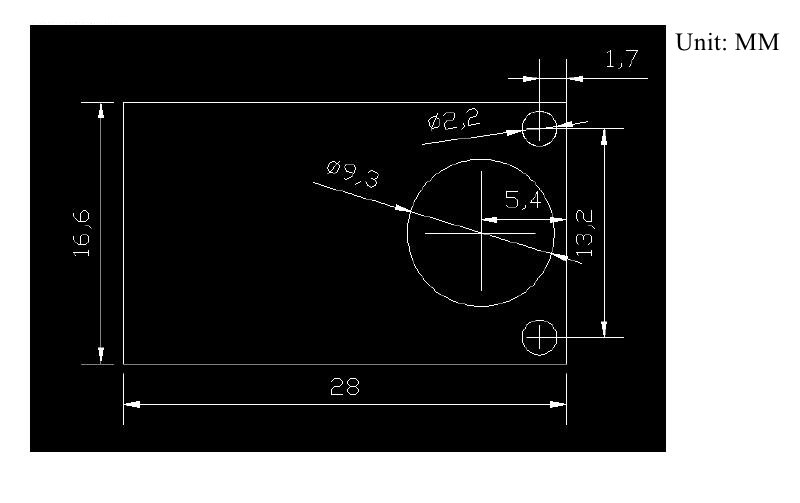

Mechanical Size:
