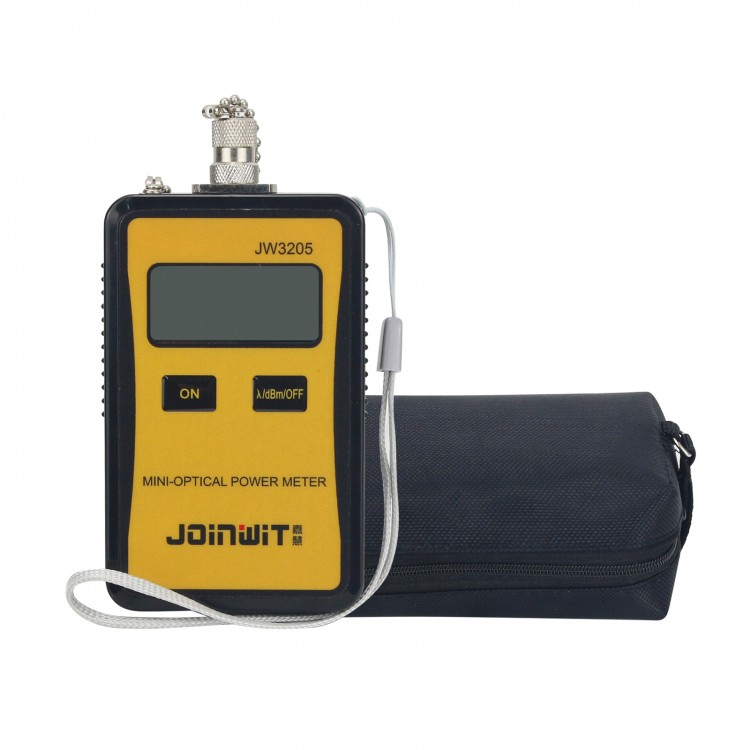

JW3205 Mini Optical Power Meter 800-1600NM Handheld Fiber Optic Power Meter Optional Interfaces
Description:
JW3205 mini optical power meter can be used with JW3110 mini light source. It adopts the latest integrated circuit design and has a simple and easy-to-operate interface to help you install, operate and maintain in the field of optical fiber networks.
Features:
- Universal interface. Optional UN, FC, SC and ST interfaces and no complicated conversion is required during testing
- Simple interface easy to operate
- Unique dual-button design completes all the work required for testing
- Automatic shutdown function
- Power-saving design. Automatic shutdown after ten minutes without operation
Technical Parameters:
- Optional models: JW3205A (-60 to +3dBm), JW3205B (-50 to +10dBm), JW3205C (-40 to +20dBm) and JW3205D (-30 to +30dBm)
- Optional interface types: UN (universal interface), FC, SC and ST
- Wavelength range: 800-1600nm
- Calibration wavelength: 850nm, 980nm, 1310nm and 1550nm
- Probe type: InGaAs
- Detector area: Diameter 0.3mm
- Inherent uncertainty: ±0.22dB (5%)
- Linearity: 0.03dB
- Display resolution: 0.05dB
- Working temperature: -10 to +60℃
- Storage temperature: -25 to +70℃
- Automatic shutdown time: 10min
- Battery continuous working time: 360h
- Dimensions: 93 x 59 x 16mm/3.7 x 2.3 x 0.6"
- N.W.: 66g/0.15 lb
Package Included:
- 1 x Set of Optical Power Meter
Note:
- 3pcs 1.5V AAA batteries are not included.
