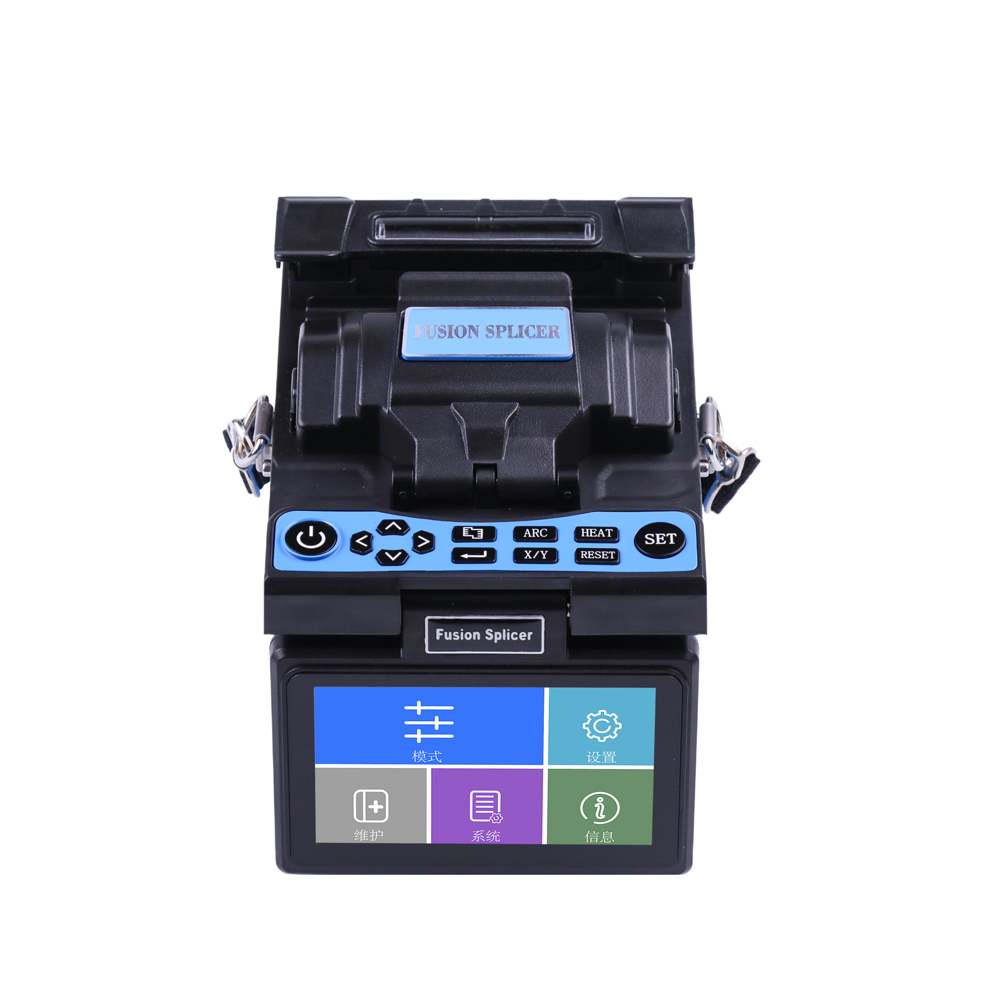

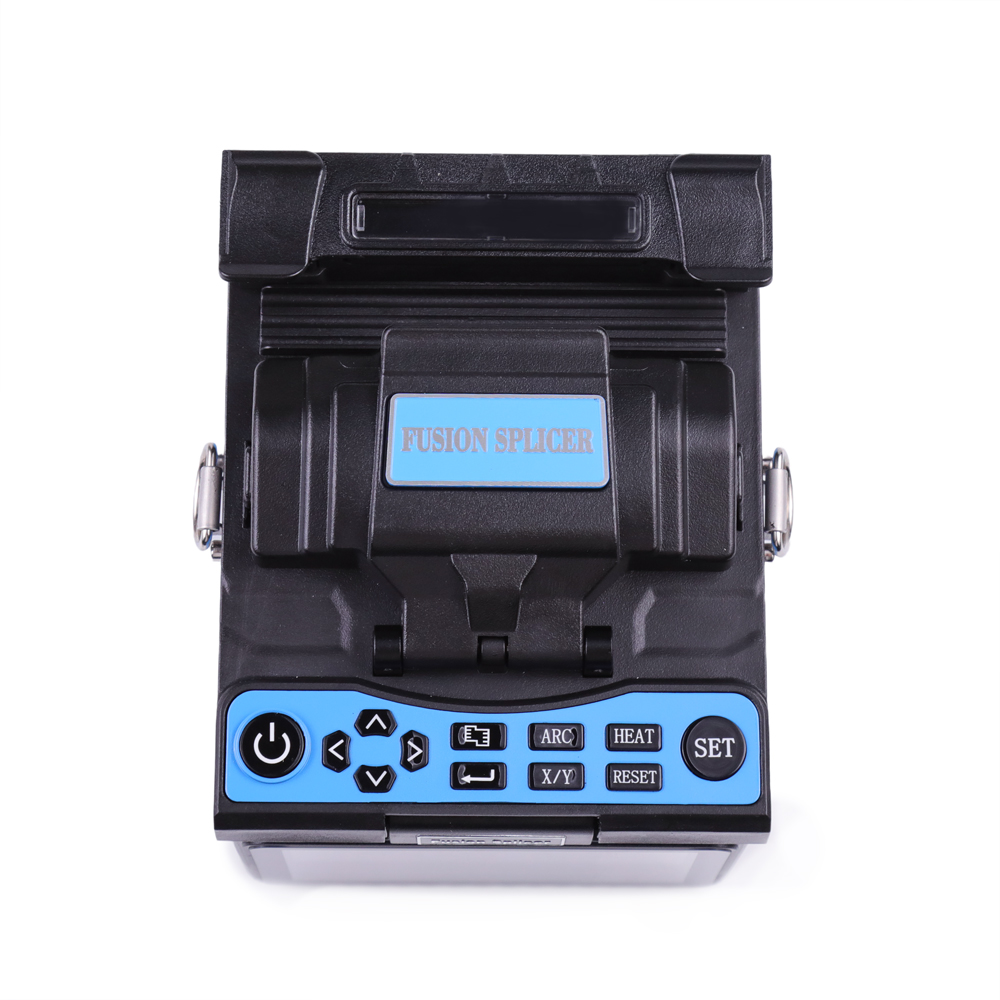

JW4108H Handheld Single Fiber Fusion Splicer Support 250X Fiber View Magnification for SMF MMF DSF NZDSF

JW4108H Handheld Single Fiber Fusion Splicer Support 250X Fiber View Magnification for SMF MMF DSF NZDSF

Specification:
- Applicable fiber: SM (ITU-T G.652&G.657); MM (ITU-T G.652&G.657); DS (ITU-T G.652&G.657); NZDS (ITU-T G.652&G.657)
- Fiber count: single
- Cladding length: 80 - 150μm for cladding diameter, 160-900μm for coating diameter
- Typical splice loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS), G.657: 0.02dB (ITU-T standard)
- Return loss: >60dB
- Fiber cleaved length: 10 - 16mm (coating diameter < 250μm), 16mm (coating diameter: 250 - 1000μm)
- Splicing program: 40 groups
- Operate mode: manual, automatic
- Auto-heating: available
- Typical splicing time: 8 seconds
- Tube heating time: 26 seconds for 60mm and 40mm shrinkable sleeves
- Fiber view magnification: 250X (X or Y view), 125X (X and Y view)
- Viewing method and display: 2 CMOS cameras, 4.3 inch color LCD monitor
- Storage of splice result: 4000 results
- Loss evaluation: available
- Tension test: 1.8 - 2.2N
- Interface: GUI menu interface, easier operation
- Battery capacity: 5200mAh Battery Capacity,typical times(splice and tube heat)
- Power supply: adaptor, input: AC100-240V (50/60HZ)
- Electrode life: more than 4000 ARC discharges, can be replaced conveniently
- Terminals: USB 2.0 port, for uploading splice results and upgrading software
- Operating condition:
  Altitude: 0-5000m
  Humidity: 0-95%
  Temperature: -10℃ ~ +50℃
  Wind speed: max 15m/s
- Dimension: 149mm(L) x 120mm(W) x 127mm(H)
- Weight: 1.9kg (including battery)

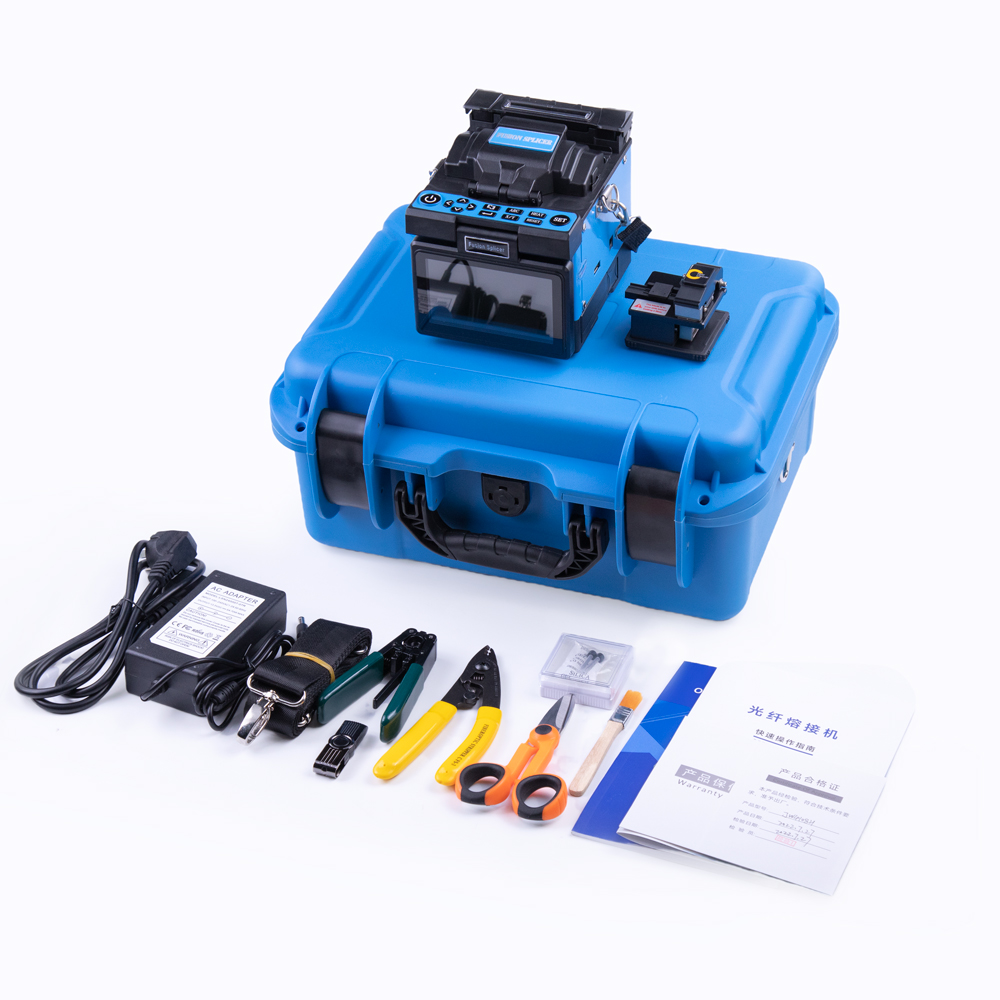

Package Included:
- 1 x Fusion Splicer
- 1 x Fiber Cleaver
- 1 x Pair of Spare Electrodes
- 1 x Fiber Stripper
- 1 x Skin Line Stripper
- 1 x Cooling Tray
- 1 x Adapter
- 1 x Power Cord
- 1 x Carrying Case
- 1 x User Manual
