Description:
In the circuit structure, the digital part (mainly MCU and LCD) and the analog part are divided into two boards, which avoids the use of pin header connection. A separate analog board is better isolated from the digital part. The motherboard can be used as an universal control board for a wide range of applications. The motherboard is pre-assembled and tested at the factory, and the program is written to the microcontroller in advance.

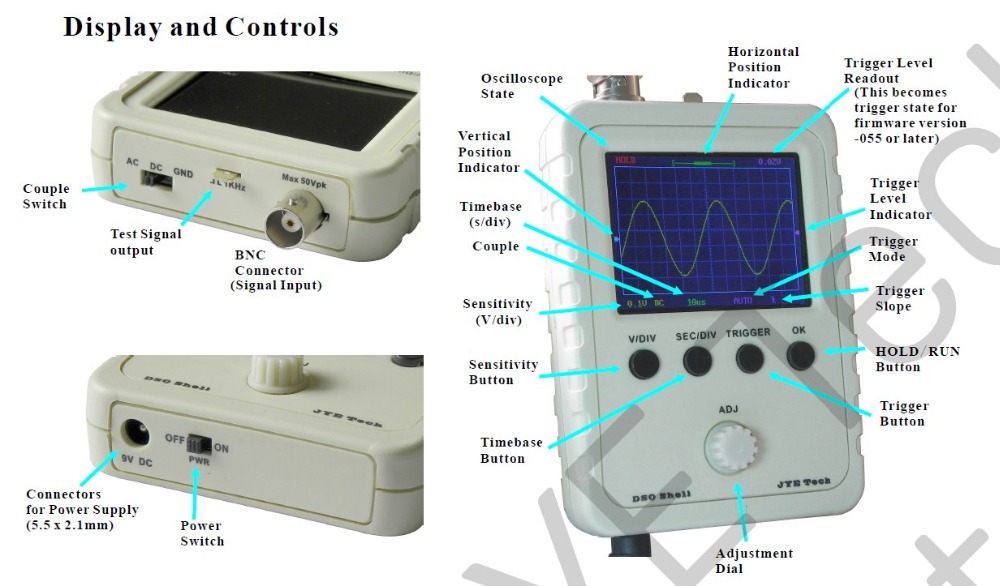

It is designed with a complete housing. It is user-friendly for users to modify. It is easy to adjust parameters with rotary coding switch.

DSO Shell Oscilloscope features higher sensitivity and a wider range. The high end can reach 5mV/div, and the low end reaches 20V/div, while the corresponding sensitivity range of DSO138 is 10mV/div to 5V/div. It is the best choice to replace DSO138.

Features:
- Motherboard PCB version number: 109-15000-00E
- Analog board PCB version number: 109-15003-00D
- Data can be output in CSV format and uploaded to PC
- Download latest program: http://www.jyetech.com/Products/LcdScope/Firmwares_150.php

Specifications:
- Maximum Real-time Sampling Rate: 1MSa/s
- Accuracy: 12 Bits
- Sample Buffer Depth: 1024 Bytes
- Analog Bandwidth: 0-200KHz
- Vertical Sensitivity: 5mV/Div-20V/Div (Increase by 1-2-5)
- Vertical displacement adjustable with indication
- Input Impedance: 1MΩ
- Maximum Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
- Coupling Modes: DC / AC / GND
- Horizontal Time Base Range: 10μs/Div-50s/Div (Increase by 1-2-5)
- Trigger Modes: Auto, Normal, and Single (Easy to collect instantaneous waveforms)
- Trigger Types: Rising/Falling Edge
- Trigger level position adjustable with indication
- Observe the waveform before the trigger (negative delay)
- The waveform display can be frozen at any time (HOLD function)
- With 1KHz / 3.3V square wave test signal source
- With waveform parameter digital display, the parameters that can be displayed are: frequency, period, pulse width, duty ratio, maximum value, minimum value, average value, peak-to-peak value, effective value
- Save/recall waveform. Waveform does not disappear it is turned off

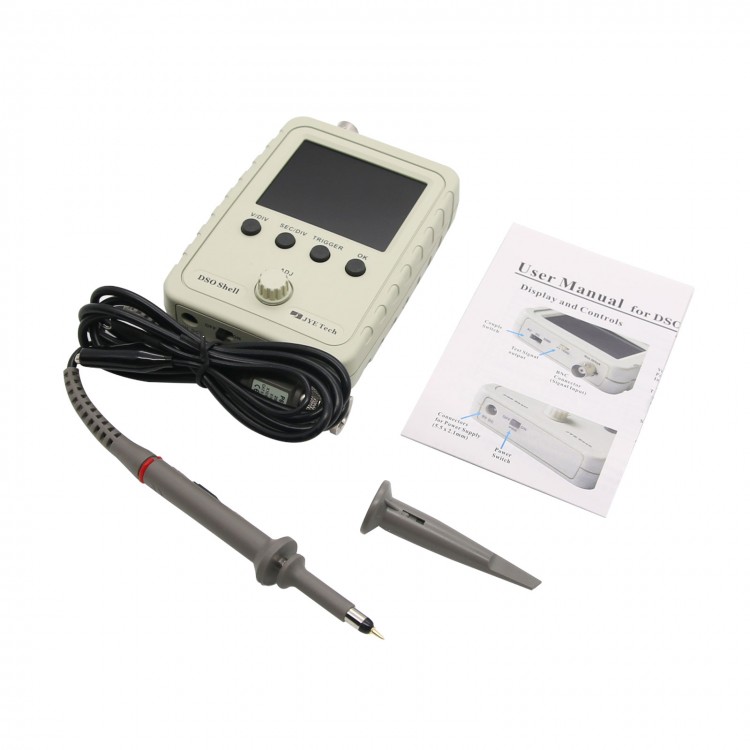

Package Included:
- 1 x DSO Shell Oscilloscope Finished
- 1 x BNC Probe
- 1 x User Manual

Note:
- It is finished and ready to use.
- It is powered by 9V DC power supply. The voltage of power supply cannot exceed 10V, or the device will be damaged. Power supply is not included in the package.

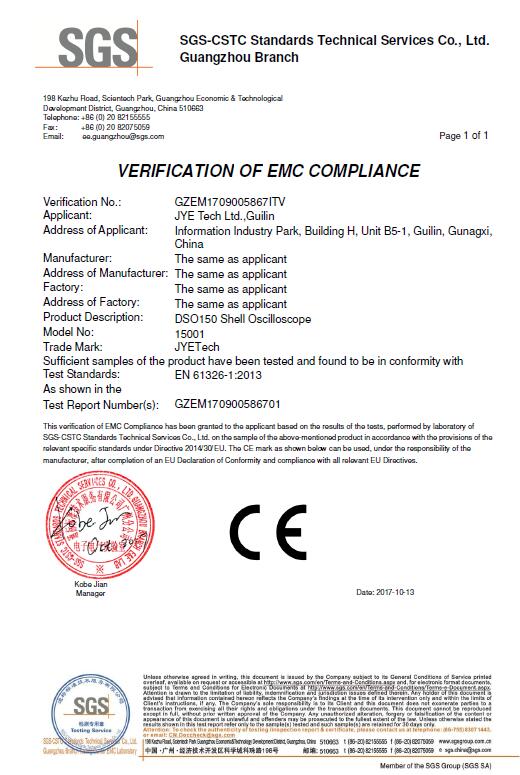

CE Certified:
