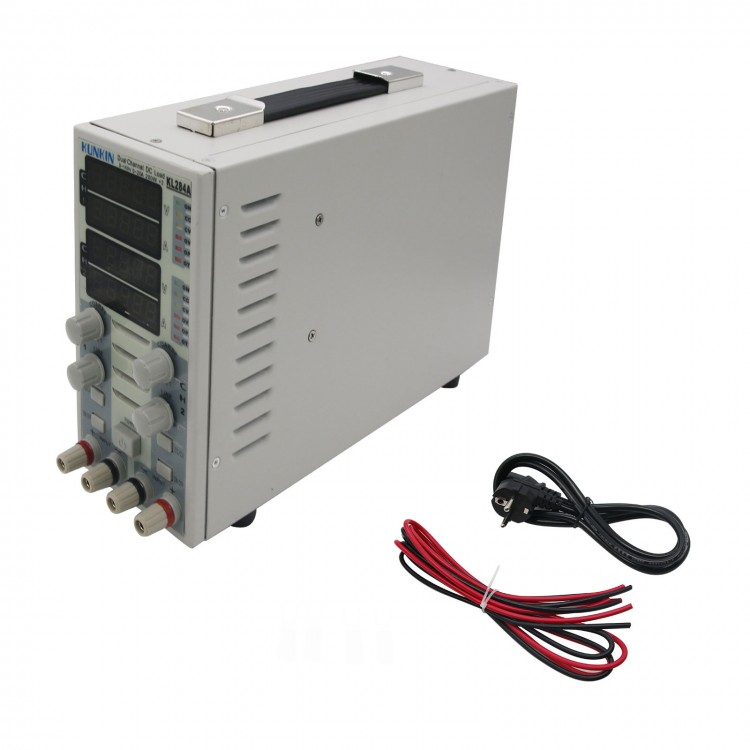

KL284A Dual Channel LCD DC Load Electronic Load Instrument 400W 0-150V 110V/220V

Availability: In stock, usually dispatched in 1 business day

  • Price:$239.97
  • Price in reward points: 2400 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $235.17 $230.37 $223.17 $213.57 Contact US
Quantity:

KL284A Dual Channel LCD DC Load Electronic Load Instrument 400W 0-150V 110V/220V


Note: Voltage:110V/220V(optional).Please leave a message.

 Feature:
1.Voltage and current are four high-precision digital LED display
2.Small size, high power, simple operation
3.Over-voltage, over-current, over power, overheating, reverse polarity protection
4.Voltage, current, high-resolution
5.Operating modes are given voltage and constant current, especially for LED power supply and battery testing and aging
6.Have isolated two independent input channels can be paralleled constant current mode, constant voltage mode can be connected in series


Specification:

Model

KL284A





load Input:

Channel

2CH

Voltage input

0~150V DC

Current input

20A*2 DC

Power input

200W*2

Voltage Accuracy

0.00~150.00V:0.05%+5mV



Current Accuracy

0.000~15.000A/0.000~20.000A:0.03%+5mA

Min Resolution

0.01V/0.001A

Min Rdson

<0.08Ω

Ripple Wave

<5mVpp

Working Condition

0~40℃, 80% RH



Input:

Power Dissipation





10W

AC

110V or 220V AC±10%, 47~63Hz

Weight:

4.5Kg
