| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $225.30 | $220.70 | $213.81 | $204.61 | Contact US |
QLeTEK KL500A 100V 500A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$59.85
QLeTEK KL300A 100V 300A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$49.96
QLeTEK KL150A 100V 150A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$43.95
Note: Voltage:110V/220V(optional).Please leave a message.
Feature:
1.Voltage and current are four high-precision digital LED display
2.Small size, high power, simple operation
3.Over-voltage, over-current, over power, overheating, reverse polarity
protection
4.Voltage, current, high-resolution
5.Operating modes are given voltage and constant current, especially for LED
power supply and battery testing and aging
6.Have isolated two independent input channels can be paralleled constant
current mode, constant voltage mode can be connected in series
Specification:
|

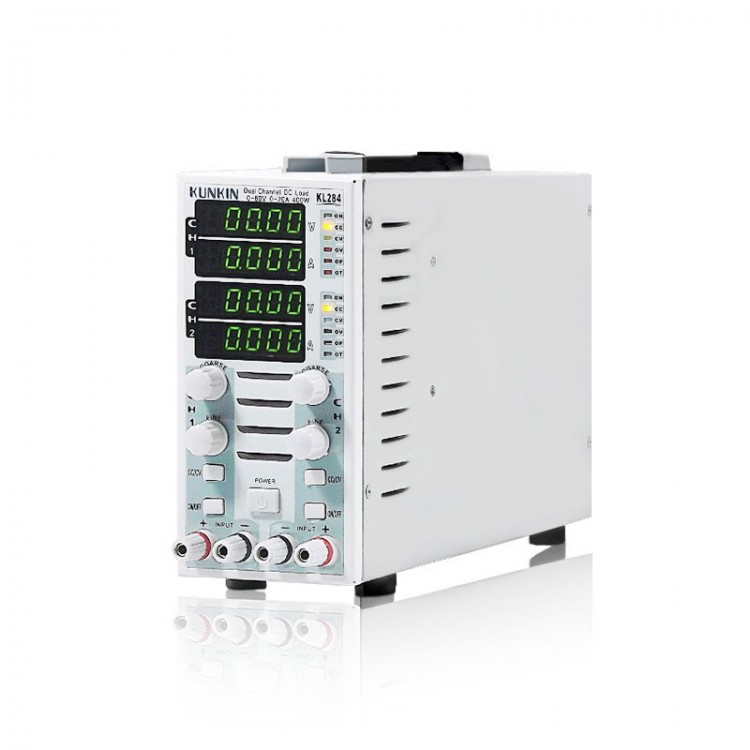

Model |
KL284 |
||
|
load Input: |
Channel |
2CH |
|
|
Voltage input |
0~80V DC |
||
|
Current input |
20A*2 DC |
||
|
Power input |
200W*2 |
||
|
Voltage Accuracy |
0.00~80.00V：0.03%+5mV |
|
|
|
Current Accuracy
|
0.000~15.000A/0.000~20.000A：0.03%+5mA |
||
|
Min Resolution |
0.01V/0.001A |
||
|
Min Rdson |
<0.08Ω |
||
|
Ripple Wave |
<5mVpp |
||
|
Working Condition |
0~40℃, 80% RH |
||
|
Input: |
Power Dissipation
|
＜10W |
|
|
AC |
110V or 220V AC±10%, 47~63Hz |
||
|
Weight: |
4.5Kg |
||
