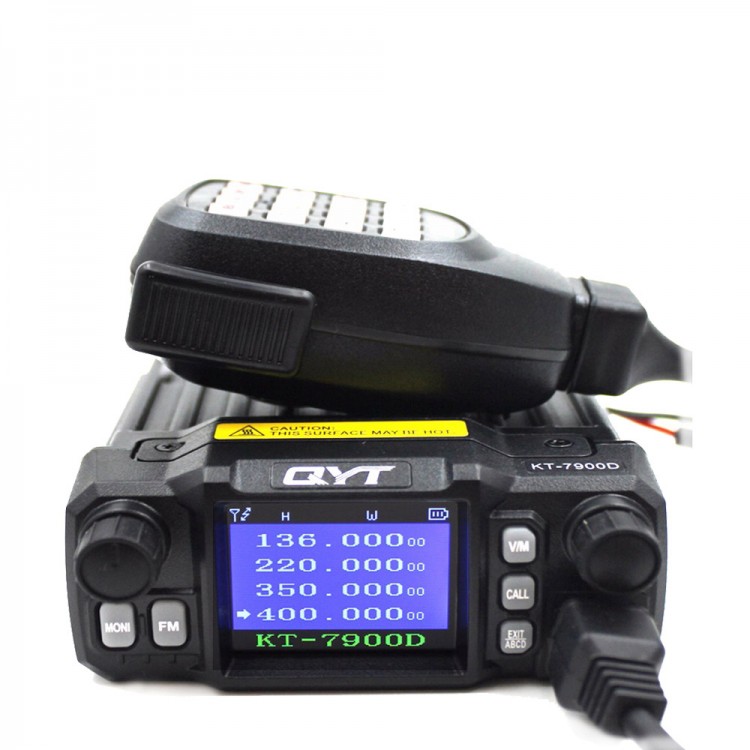

KT-7900D Mini Quad Band Mobile Radio Car Truck VHF UHF Mobile Radio Transceiver

Availability: In stock, usually dispatched in 1 business day

  • Price:$87.02
  • Price in reward points: 870 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $85.28 $83.54 $80.93 $77.45 Contact US
Quantity:

KT-7900D Mini Quad Band Mobile Radio Car Truck VHF UHF Mobile Radio Transceiver







Functions:

- Quad Band, Quad-Standby, External Speaker/PTT
- Mini Size
- PC program
- Remote Stun, Remote Activate, Remote Kill
- DTMF Function, 2 Tone, 5Tone
- PTT-ID Code
- Repeater Function
- 25 Power Output
- Long-Distance Communication
- FM Radio
- Alarm Function
- Monitor

Specifications:
General Parameters:
- Frequency Range:
* VHF: 136-174MHz; 220-270MHz
* UHF: 350-390MHz ; 400-480MHz
- Number of Channel: 200
- Channel Spacing: 25KHz (Wide Band), 20K(Middle Band), 12.5 (Narrow Band)
- Phase lock step: 2.5KHz, 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
- Working Voltage: 13.8V DC±15%
- Squelch way: Signal Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
- Frequency Stability: ±2.6ppm
- Operating Temperature: -20 to 60℃
- Dimensions: 103 x 43 x 126 mm (WxHxD)
- Weight: 448g

Receiver Part (ETSI EN 300 086 standard test):
Wide Band:
- Sensitivity (12db SINAD): ≤0.25μν
- Adjacent channel choice: ≥70db
- Intermodulation: ≥65db
- Spurious Signal Response: ≥70db
- Audio response: +1 to 3db (0.3~3KHz)
- SNR: ≥45db
- Audio distortion: ≤5%
- Audio output power: ≥2W@10%

Narrow Band:
- Sensitivity (12db SINAD): ≤0.35μν
- Adjacent channel: ≥60db
- Intermodulation: ≥60db
- Spurious Signal Response: ≥70db
- Audio response: +1 to 3db (0.3~2.55KHz)
- SNR: ≥40db
- Audio distortion: ≤5%
- Audio output power: ≥2W@10%

Transmitter (ETSI EN 300 086 standard test):
Wide Band:
- Output power: 25W/20W (VHF/UHF)
- Modulation Mode: 16KΦF3E
- Adjacent Channel Power: ≥70db
- SNR: ≥40db
- Parasitic harmonic: ≥60db
- Audio response: +1 to 3dB (0.3~3KHz)
- Audio distortion: ≤5%

Narrow Band:
- Modulation Mode: 11KΦF3E
- Adjacent Channel Power: ≥60db
- SNR: ≥36db
- Parasitic harmonic: ≥60db
- Audio response: +1 to 3dB (0.3~2.55KHz)
- Audio distortion: ≤5%

Package Included:
- 1 x Set of Mobile Radio

Note:
- If you need software, please contact us.
- Large truck 24V and household 220V need to be equipped with a power converter to be used.
