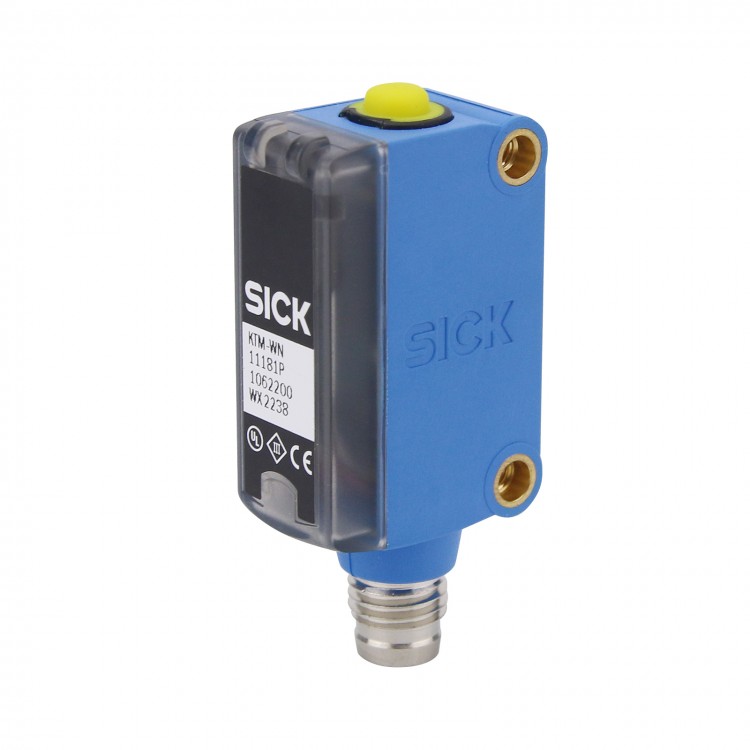

KTM-WN11181P Contrast Sensor KTM Prime 1062200 Original Sensor for SICK

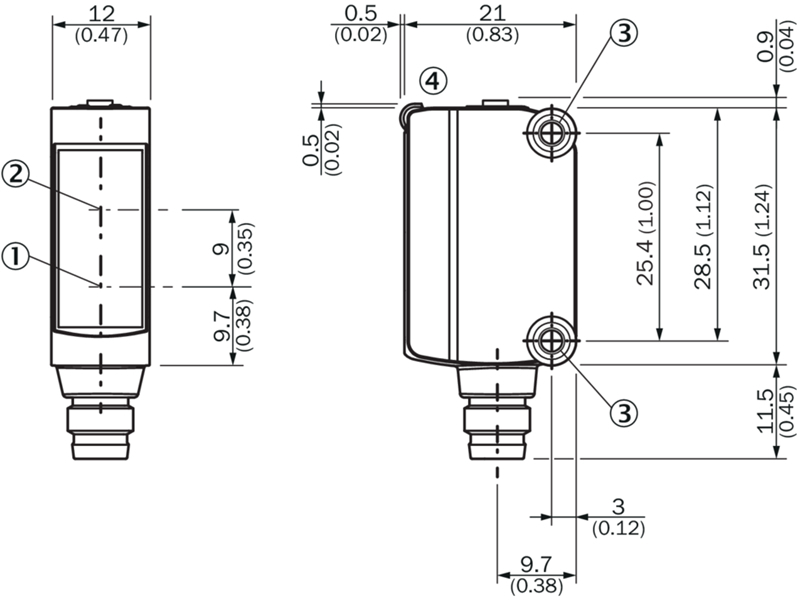

Dimensional drawing KTM-Mxxxxx1P, KTM-Wxxxxx1P
Dimensions in mm (inch)
① Center of optical axis, sender
② Center of optical axis, receiver
③ Mounting holes M3
④ display and adjustment elements
Display and adjustment elements
① Teach-in button
② LED yellow
③ LED green

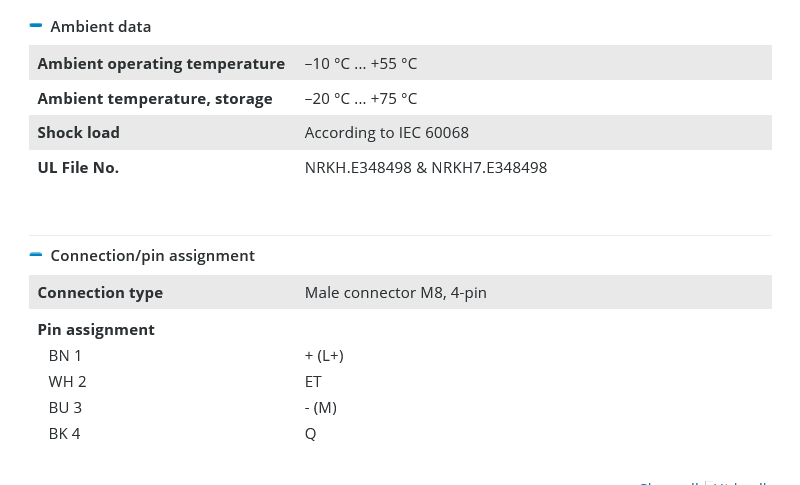

Connection type. see table: Connection/PIN assignment

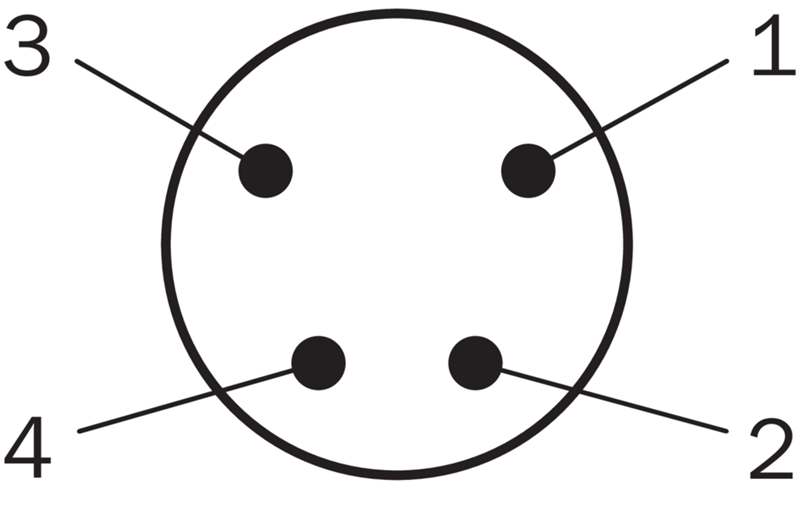

Male connector, M8, 4-pin, uncoded

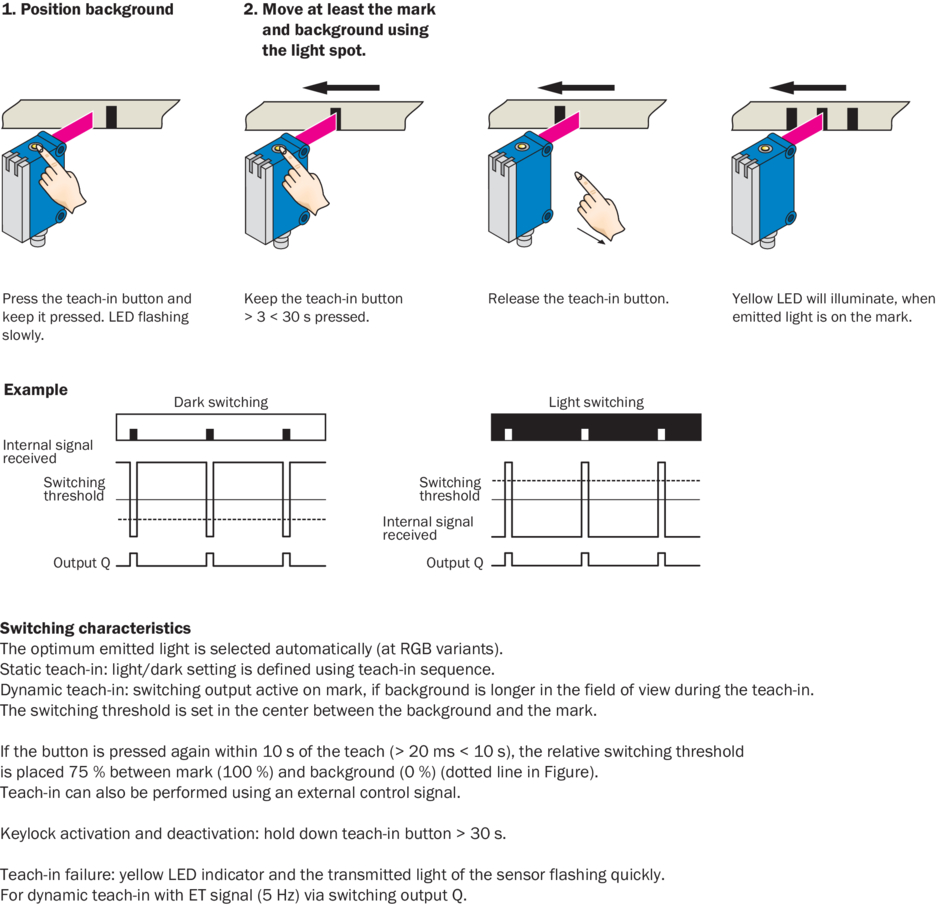

Setting the switching threshold (dynamic)

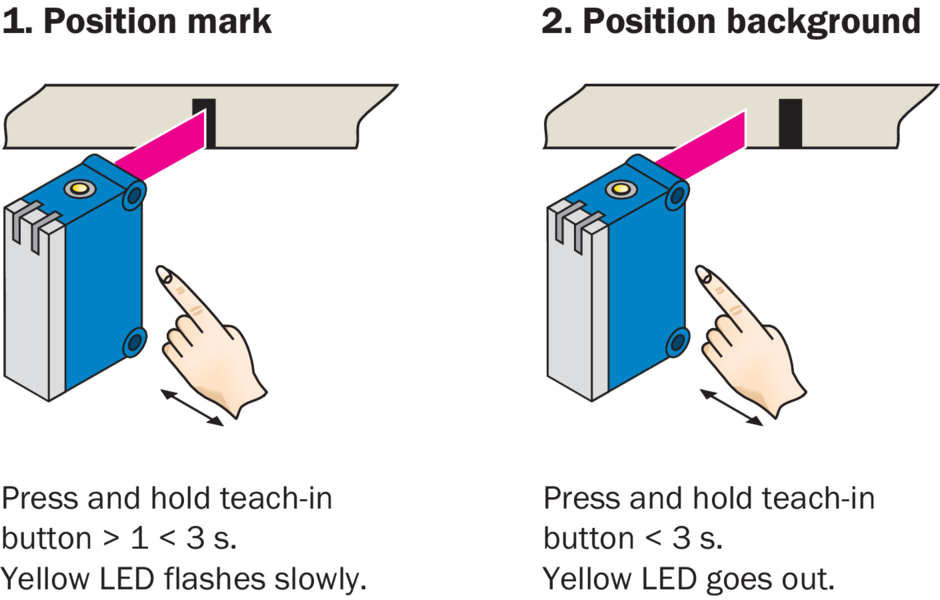

Setting the switching threshold (static)

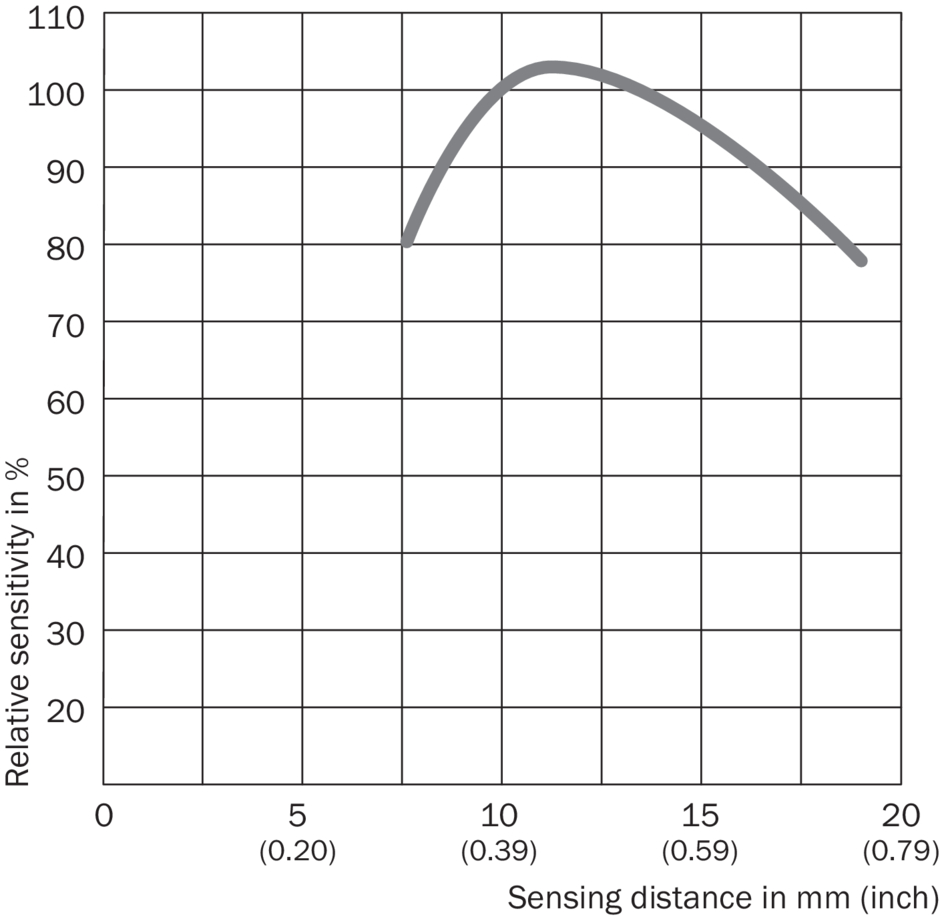

Sensing distance KTM-xxx1xxxx
Package Included:
- 1 x Contrast Sensor
